Bomar Workline 610.450 DGH Band Saw()
- Listing No
- 955299
- Year
- Manufacturer
- Bomar
- Model
- Workline 610.450 DGH
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Semi-automatic 2-way mitre bandsaw 2 way mitre – 60° right 60° left digital readout for mitre angle Long stroke hydraulic vice Powered bow raise Adjustable back off valve for optimising downfeed speed relative to material mass Dovetail sliding vice for mitre cutting 34 mm blade width Depth of throat: 610 mm Max height of workpiece: 450 mm Sawspeed: 20 > 120 m/min Length of band saw: 5200 x 34 x 1,1 mm
About this machine

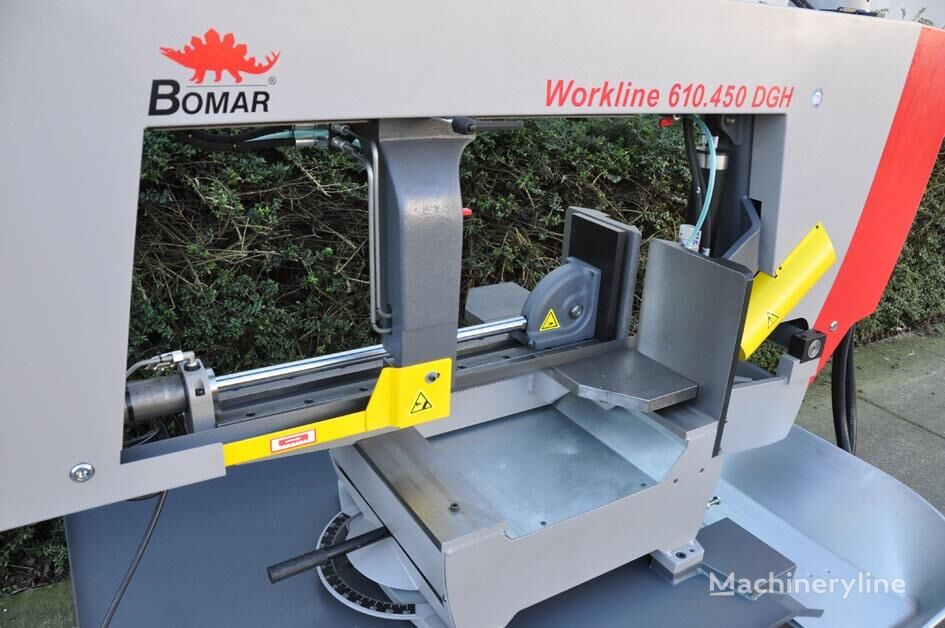

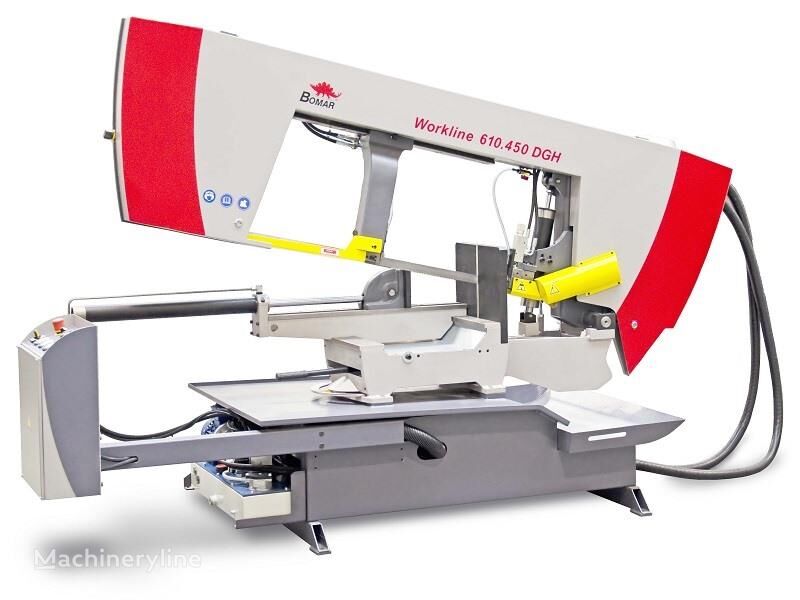

This Bomar Workline 610.450 DGH is a used horizontal band saw — sometimes referred to as a metal cutting band saw or a cold saw in the cutting machinery trade — designed for precise, efficient cutting of metal bar, tube, and structural section. Bomar is a well-established European manufacturer specialising in band sawing machines, producing equipment widely used in metalworking, fabrication, and industrial production environments.
The machine is configured as a semi-automatic two-way mitre band saw, capable of cutting at mitre angles of up to 60° to the right and 60° to the left. A digital readout for the mitre angle is included, allowing the operator to set and confirm the cutting angle with precision, which is particularly valuable in production settings where repeatability matters. The bow raise is powered, reducing operator effort during the setup and return cycle.

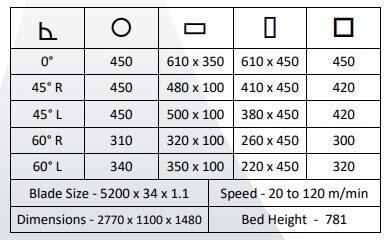

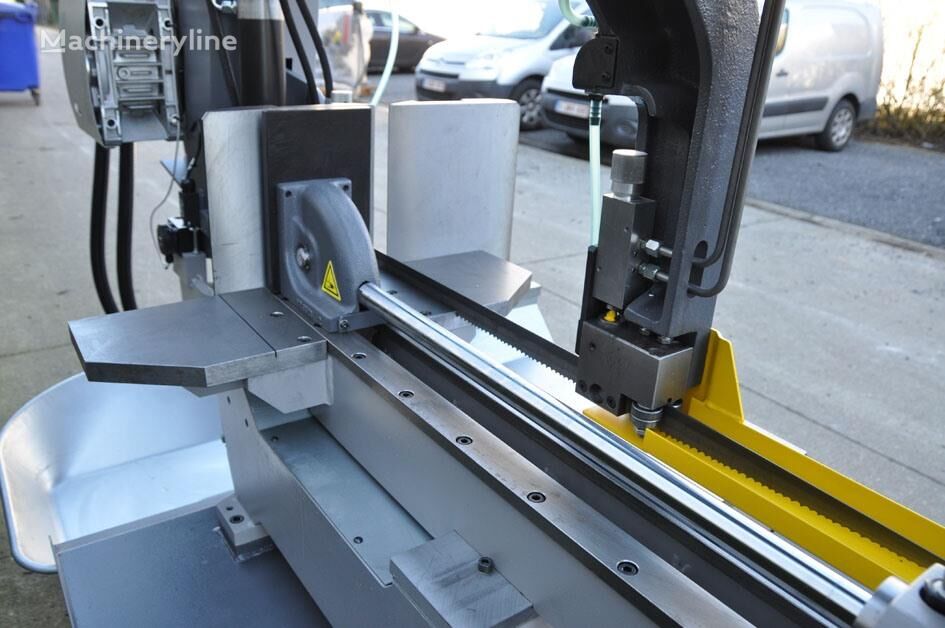

The cutting capacity is defined by a throat depth of 610 mm and a maximum workpiece height of 450 mm, figures that correspond directly to the machine's designation and indicate a substantial capacity suitable for larger structural profiles and heavy bar stock. The hydraulic vice features a long stroke and incorporates a dovetail sliding design specifically intended for mitre cutting, ensuring secure clamping of the workpiece even at acute angles. An adjustable back-off valve is fitted to allow the operator to optimise the downfeed speed relative to the mass of the material being cut, giving fine control over cutting pressure and helping to extend blade life.
The band saw blade measures 5,200 × 34 × 1.1 mm, with the 34 mm blade width confirming a robust specification suited to the machine's capacity range. Saw speed is continuously variable between 20 and 120 metres per minute, enabling the machine to be matched to a wide range of materials from harder steels to softer non-ferrous metals. This machine is located in Belgium and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
