2006 - BOY BOY 90A 102 Injection Moulding()
- Listing No
- 1153480
- Year
- 2006
- Manufacturer
- BOY
- Model
- BOY 90A 102
- Condition
- Used
- Location
- Poland
- Price
- POA
- Description
-
Product Code: 102 Availability: In Stock Year of production: 2006 Brand: Boy Shot Weight: 193 g Clamping Force: 900 kN Screw dia: 42 Injection pressure: 1724 Tie bar distance: 430x360 Platen size: 635x610 Mould height min.: 250 Type of controls: Procan CT Language: German Power: 26,3 Workinghours: 15070 Weight: 3100 Dimensions: 4,9x1,2x2,1 Hopper: No
About this machine

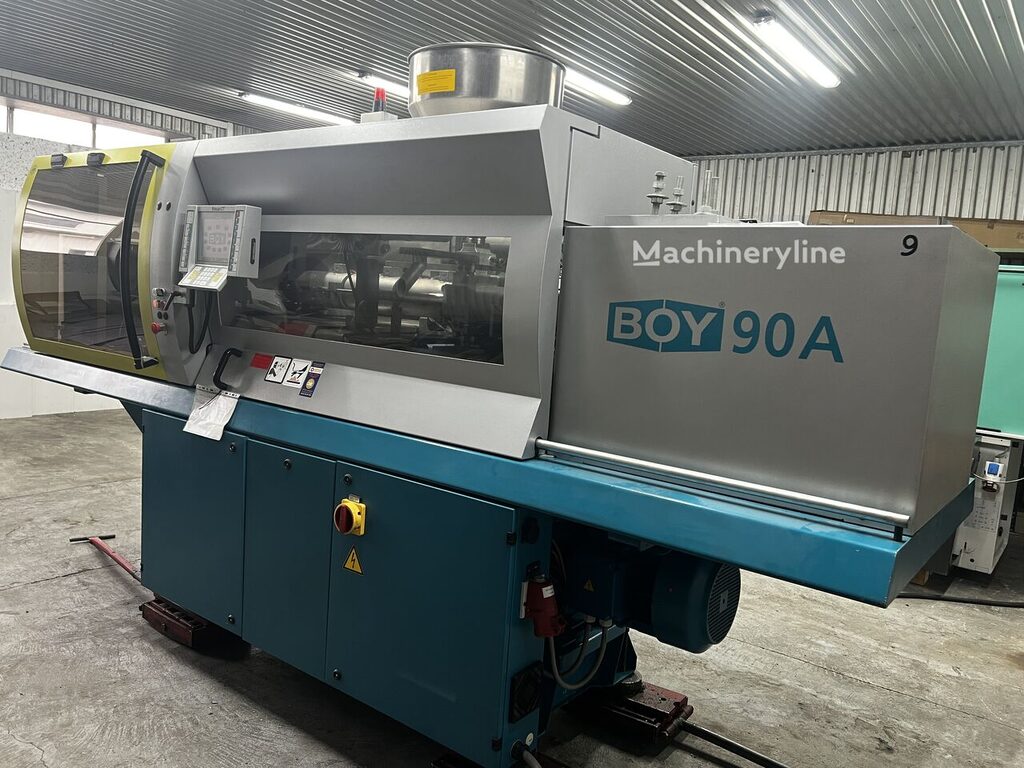

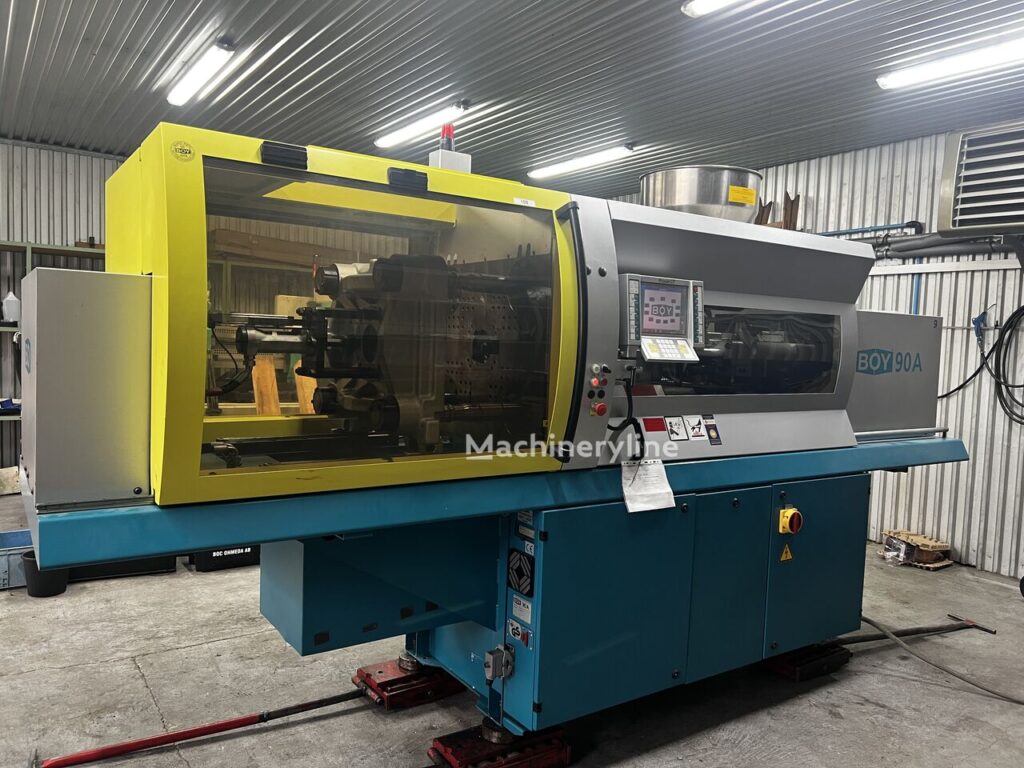

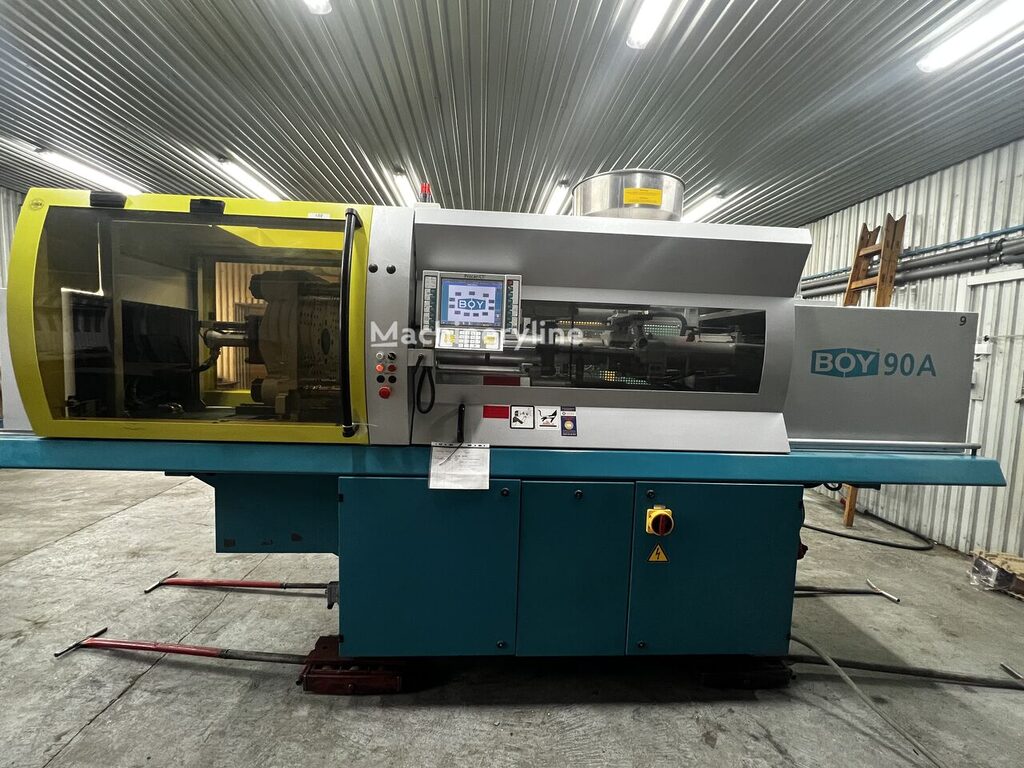

This BOY 90A 102 is a used injection moulding machine — also commonly referred to as an injection moulder or plastic injection press — a type of industrial equipment used to produce plastic components by injecting molten material into a closed mould under high pressure. BOY is a well-established German manufacturer of injection moulding machines, known for producing compact, high-precision equipment serving industries such as automotive, medical, electronics, and consumer goods.
This machine was manufactured in 2006 and is currently located in Poland, available from stock. It has accumulated 15,070 working hours. With a clamping force of 900 kN and a shot weight of 193 g, it is suited to medium-small part production. The injection pressure is 1,724 bar, and the screw diameter is 42 mm, providing consistent plasticising performance for a wide range of materials.

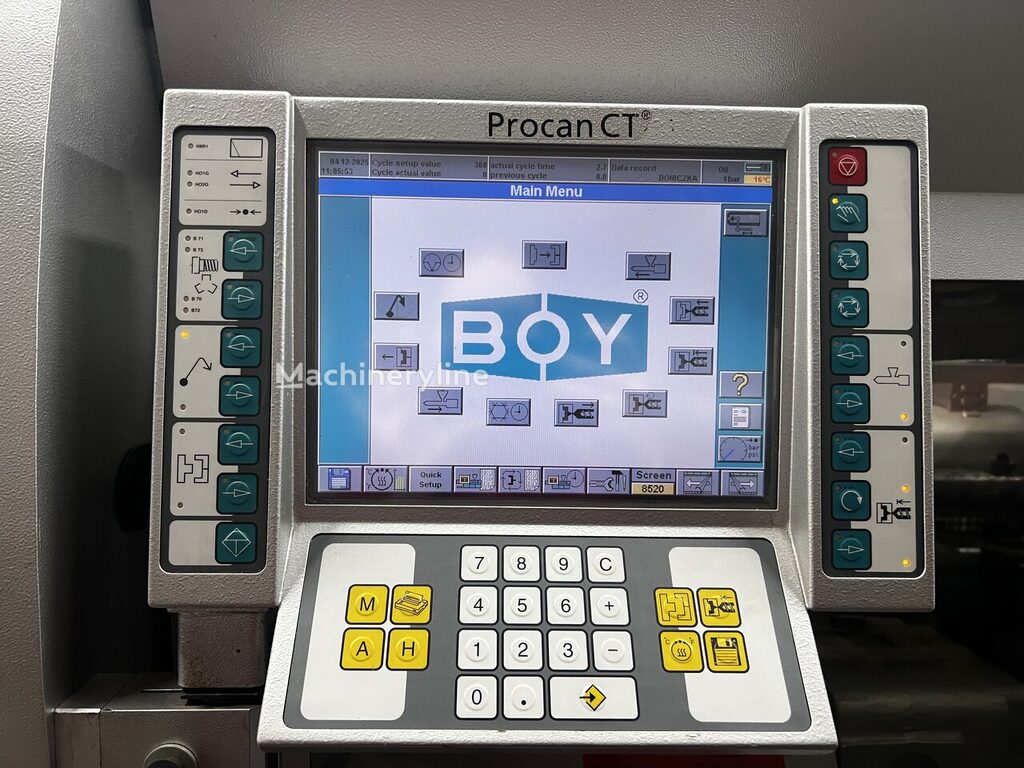

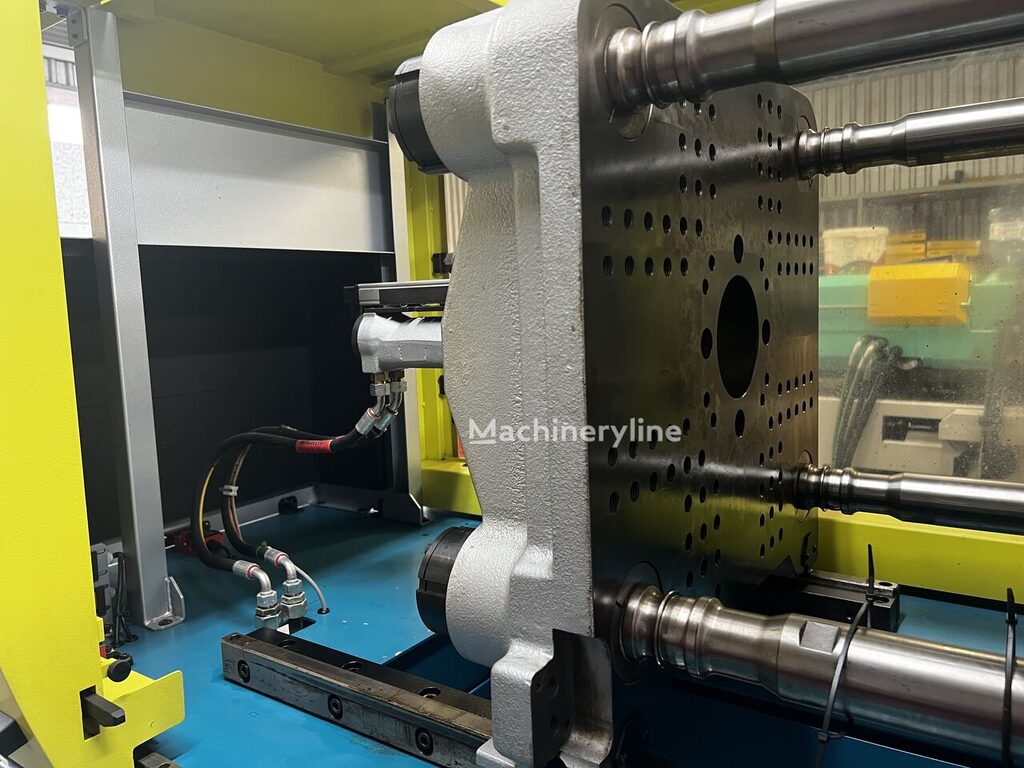

The mould area is defined by a tie bar distance of 430 × 360 mm and a platen size of 635 × 610 mm, with a minimum mould height of 250 mm. The machine is equipped with a Procan CT control system, configured in German language. Installed power is 26.3 kW.
The machine has an overall weight of 3,100 kg and external dimensions of 4.9 × 1.2 × 2.1 metres, making it a relatively compact unit for its clamping class. No hopper is included with this listing.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
