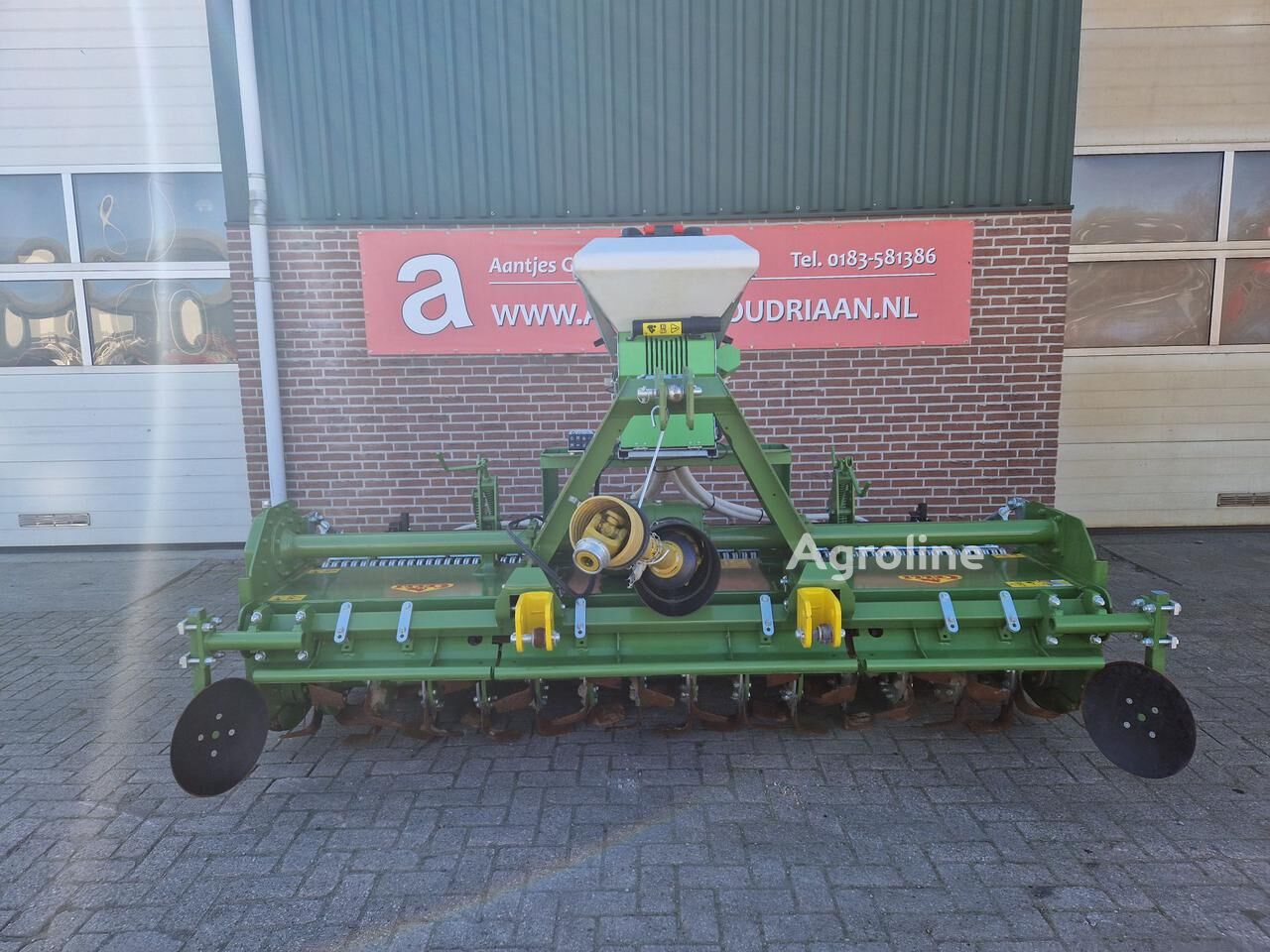

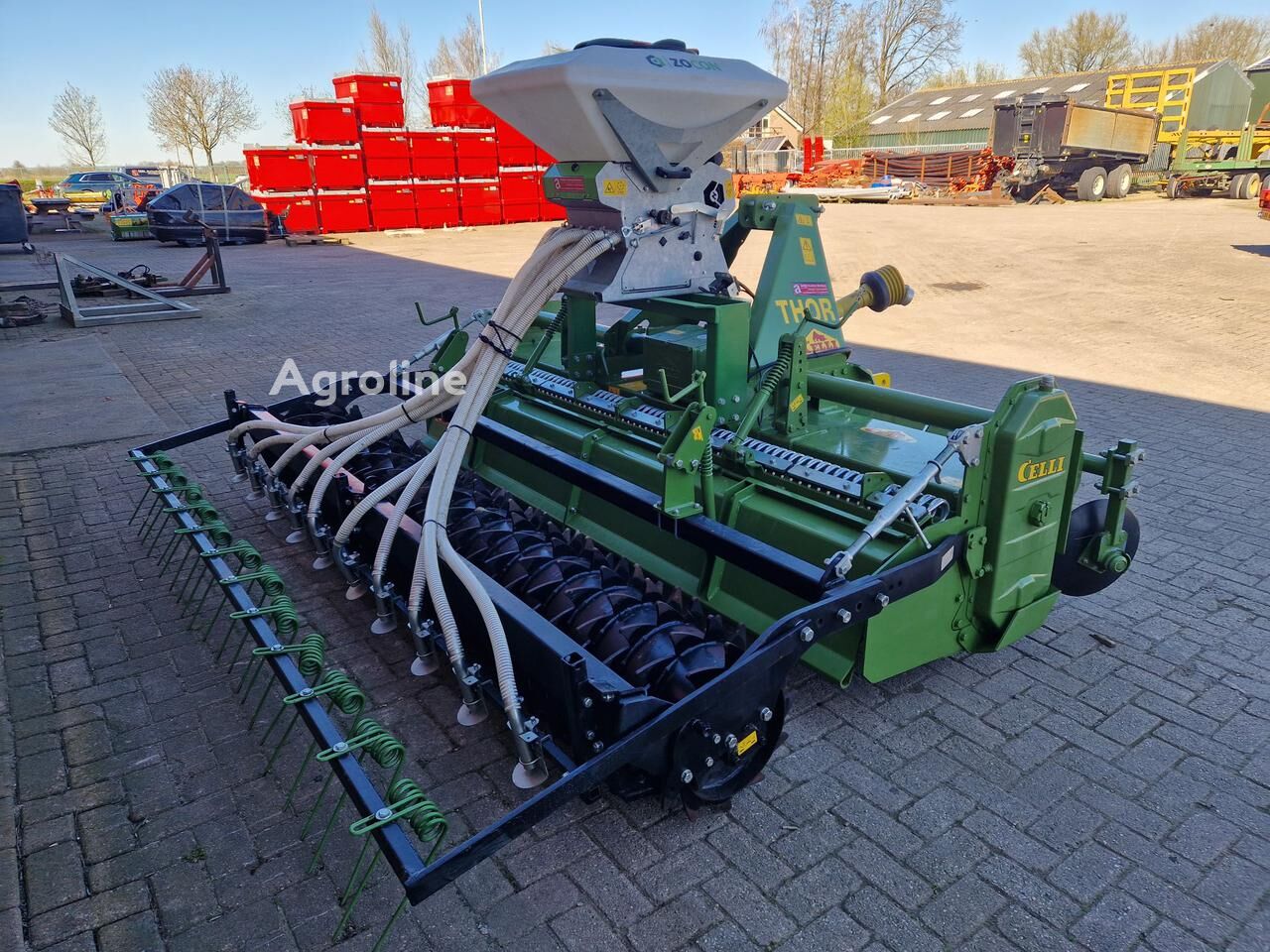

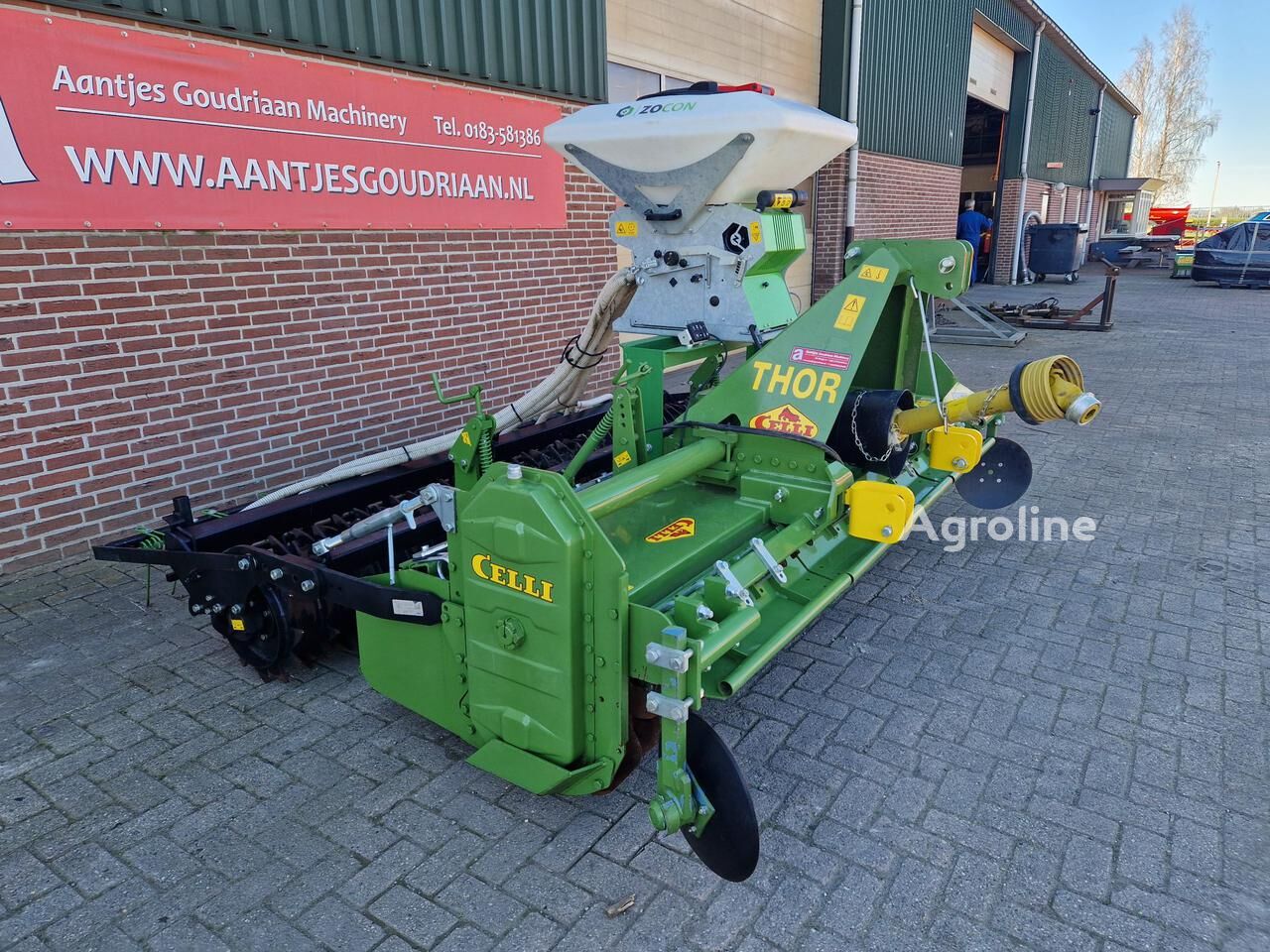

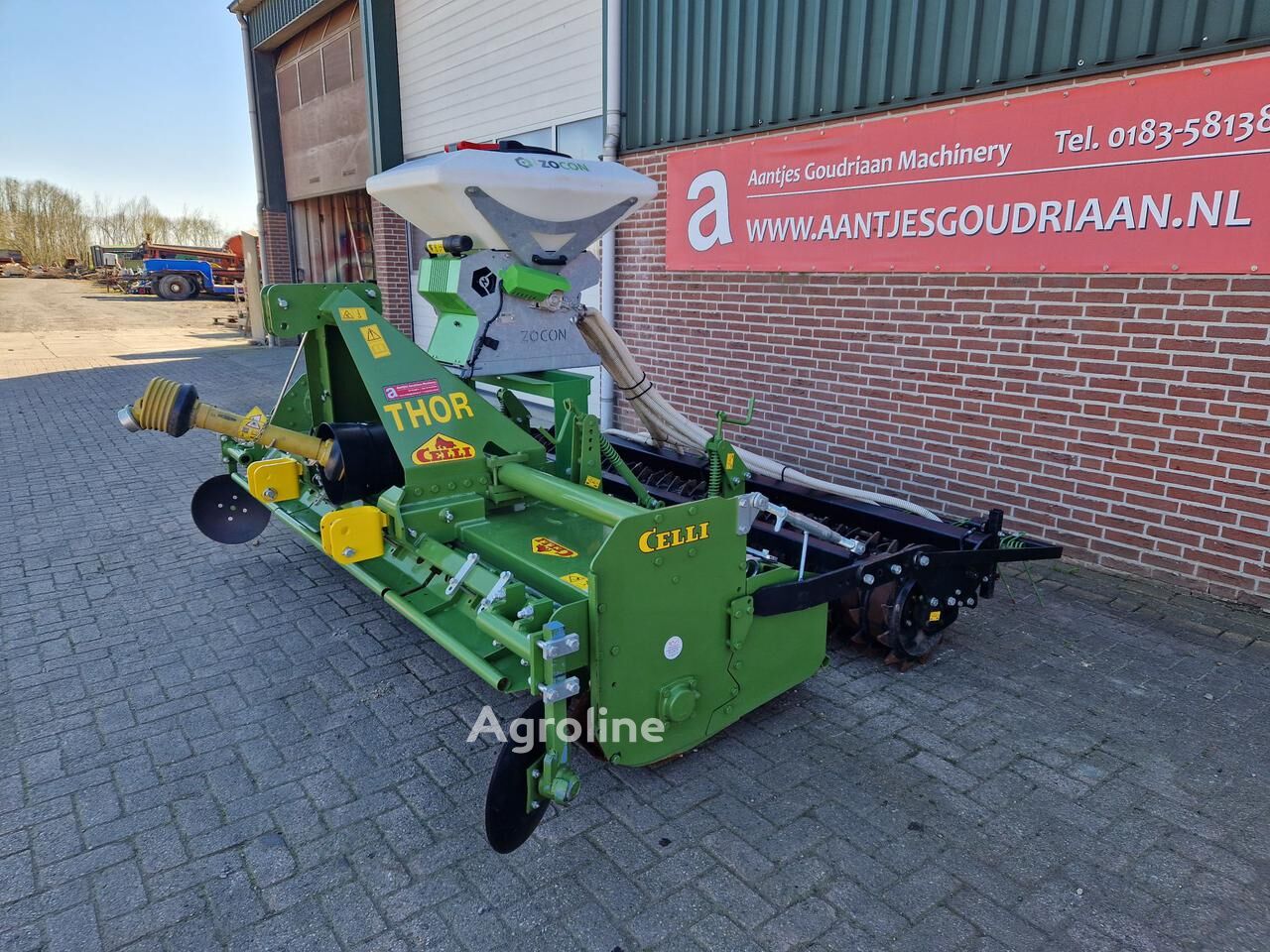

2023 - Celli Seed Drill()
- Listing No
- 1064360
- Year
- 2023
- Manufacturer
- Celli
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Overtopfrees met zaaibak • Werkbreedte 2850mm • Set randschijven • Aanspanning CAT II en CAT III • Pendelende aanspanpunten • Walterscheid aftakas met slipkoppeling • Tandwiel zijaandrijving • Rotortoerentallen 151, 172, 234 en 254 rpm • PTO 540 RPM • Rotor met oliebadsmering • 6 Haakse messen per flens met tegen flens • Maximale werkdiepte: 250 mm • Veerpennenrek met verende pennen verstelbaar • Verstelbare achterklep • Uitgevoerd met pakkerrol • Incl gras zaaimachine Staat: Gebruikt Bouwjaar: 2023
About this machine
The Celli Seed Drill is a trailed precision seeding machine designed for arable farming operations. Celli manufactures agricultural machinery across Europe, with a focus on soil preparation and planting equipment for cereal and crop production. This machine is used to sow seeds at controlled depths and spacing, making it an essential tool for modern grain and legume farming.
This 2023 model features a working width of 2,850 mm, enabling efficient coverage across wide cultivation passes. The machine is equipped with a seed hopper and is configured as an overtopfrees (top-dress) unit with integrated seeding capability. It attaches via CAT II and CAT III coupling points with pendulum suspension hitch, providing stability on uneven ground.
The machine is powered by a 540 RPM PTO (Power Take-Off) shaft connection to a tractor. Power is transmitted to the rotor assembly via a Walterscheid cardan shaft with slip clutch and side-drive gearbox. The rotor offers four selectable speeds—151, 172, 234, and 254 rpm—allowing operators to match seed distribution rates to field conditions and crop requirements. The rotor itself is fitted with oil-bath lubrication for durability. Each rotor flange carries six angled blades paired with a counter-flange for consistent seed metering.
The drill can work to a maximum depth of 250 mm and features a spring-tine rack with adjustable resilient tines for post-seeding incorporation and soil levelling. An adjustable rear flap controls material flow and finish. The machine is fitted with a packer roller to consolidate the seedbed.
A grass seeder attachment is included with this unit. A complete set of edge discs is also supplied. The machine is in used condition and is currently located in the Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
