2012 - Colombo AT35 Wood Saw()
- Listing No
- 981793
- Year
- 2012
- Manufacturer
- Colombo
- Model
- AT35
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Machine number: 411 Workpiece dimensions: max. length 3000 mm, min. 250 mm, max. thickness 100 mm, min. 30 mm, width 200 mm 1 vertical shaft, 340 mm long, 40 mm diameter, 7.5 kW, 3100 rpm, suction port with 150 mm diameter (x2), max. tool diameter: 320 mm Right-hand version Overhead cutting saw 3 kW 3000 rpm manual horizontal movement over 120 mm 400 mm blade cutting height 100 mm Carriage with pneumatic clamping 1100 x 500 mm table Stop positioning from -45° to 45° Motorized carriage with electronic control 2-32 m/min
About this machine

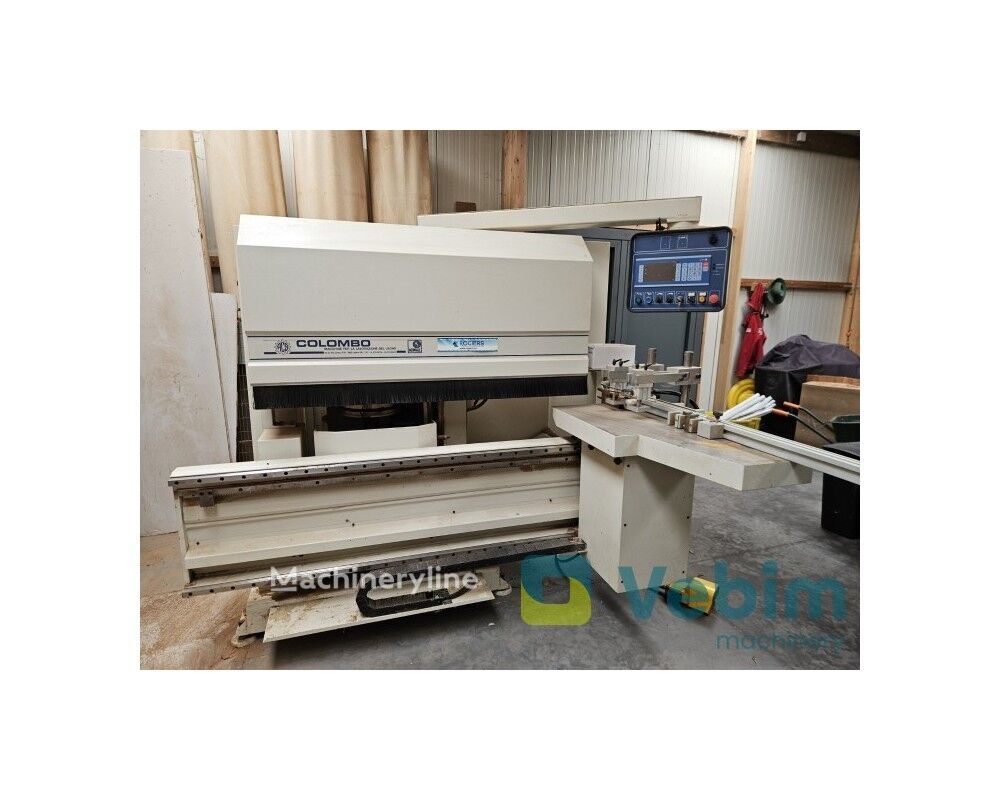

The Colombo AT35 is a used wood saw — sometimes called a panel saw — designed for the precise cutting of timber and wood-based panel materials. Colombo is a well-regarded Italian manufacturer of woodworking machinery and tooling, supplying equipment to furniture makers, joinery workshops, and the broader wood-processing industry.
This machine carries serial number 411 and was built in 2012. It is configured as a right-hand version and is currently located in Belgium. The machine accommodates workpieces ranging from 250 mm to 3,000 mm in length, between 30 mm and 100 mm in thickness, and up to 200 mm in width, making it suited to a wide range of solid timber and panel applications.

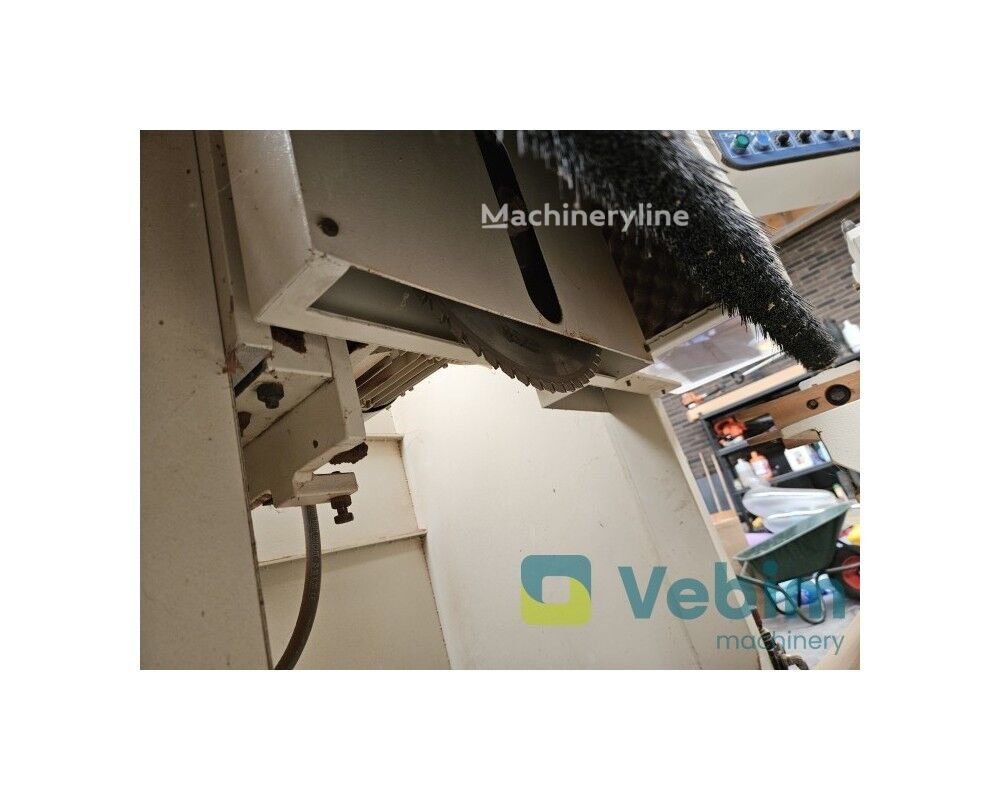

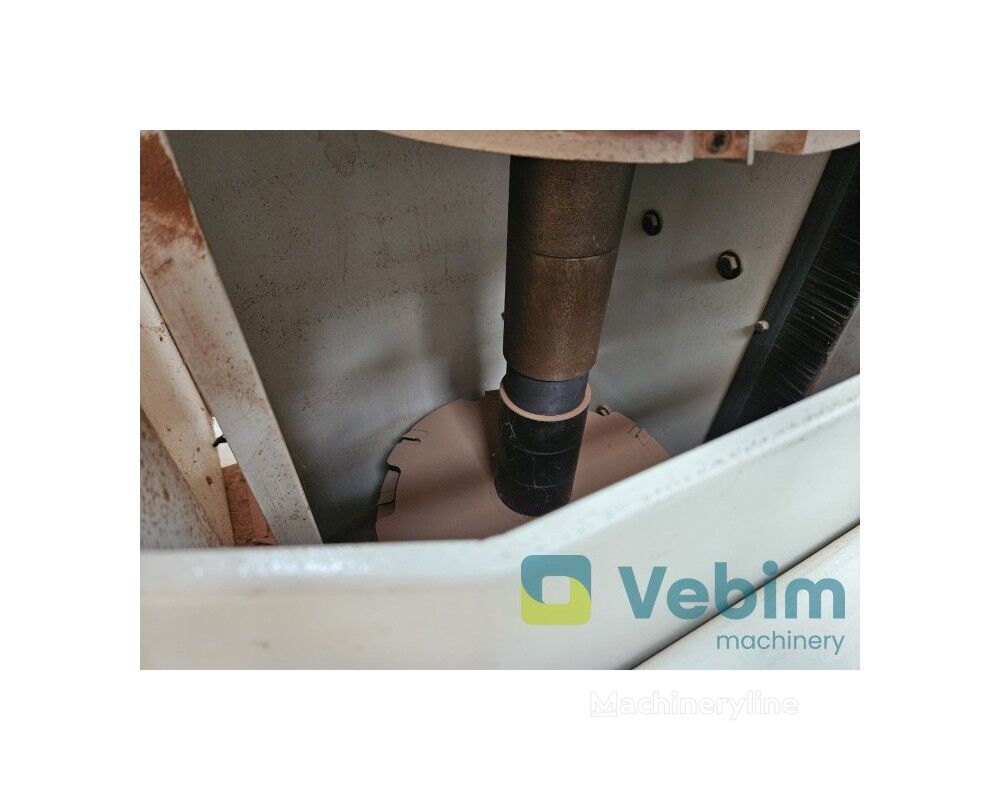

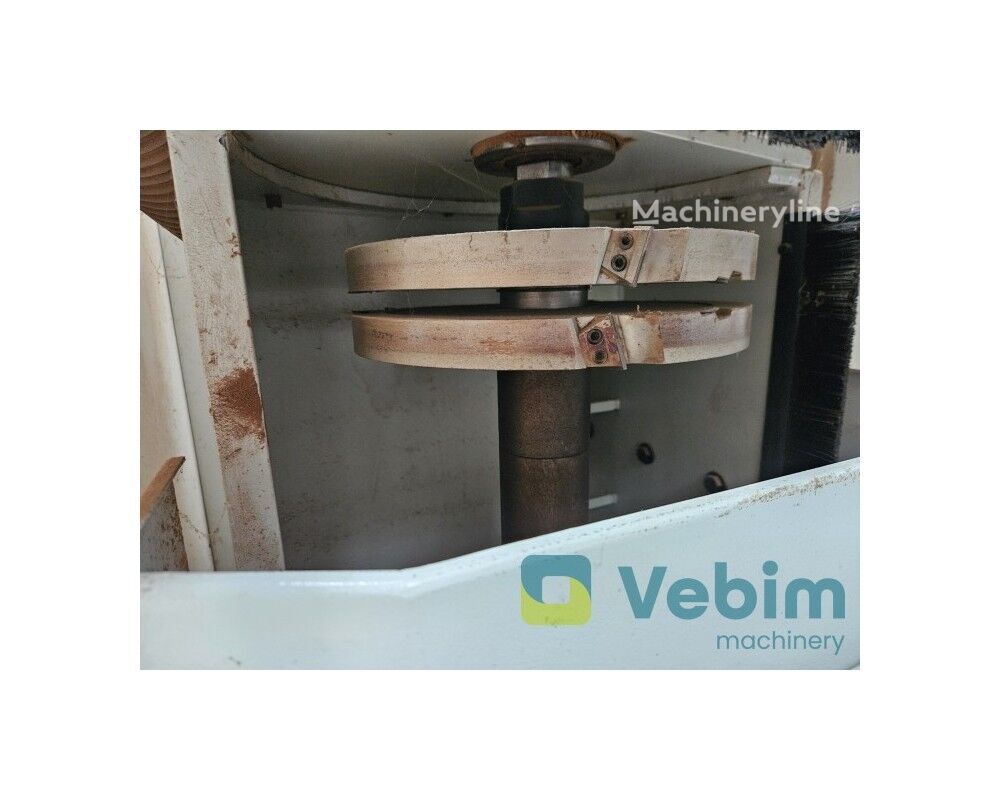

The main cutting unit is driven by a vertical spindle shaft measuring 340 mm in length and 40 mm in diameter, powered by a 7.5 kW motor running at 3,100 rpm. The shaft accepts tools up to 320 mm in diameter and is equipped with two suction ports, each with a 150 mm diameter, for efficient dust and chip extraction. An overhead cutting saw is also fitted, powered by a separate 3 kW motor operating at 3,000 rpm. This saw uses a 400 mm blade, delivers a cutting height of 100 mm, and travels horizontally by manual movement over a range of 120 mm.

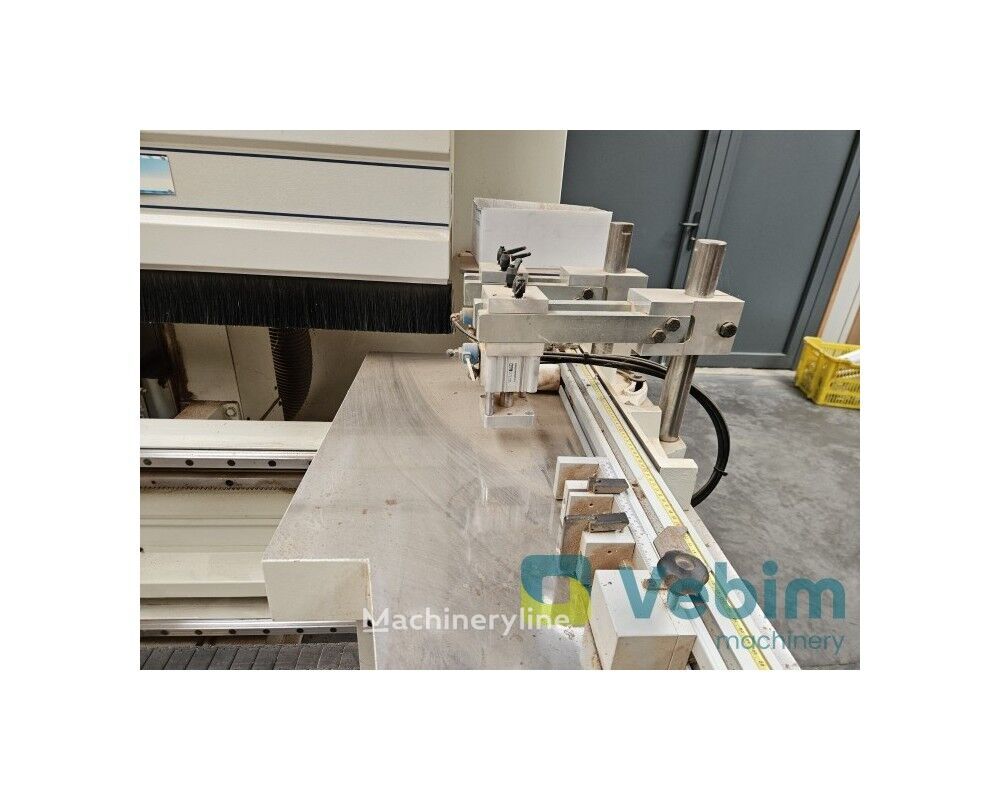

The machine features a motorised carriage with electronic control, offering a feed speed range of 2 to 32 metres per minute. The carriage is equipped with pneumatic clamping to secure workpieces during cutting, and runs over a table measuring 1,100 mm by 500 mm. An adjustable stop is included, with angular positioning from −45° to +45°, allowing mitre cuts across a full range of common angles.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
