2025 - Cummins C22D5Q Declaration of Conformity, Diesel, 22kVA, A Diesel Generator()
- Listing No
- 810592
- Year
- 2025
- Manufacturer
- Cummins
- Model
- C22D5Q Declara
- Condition
- Used
- Location
- Netherlands
- Price
- €9,450
- Description
-
Field of application: ConstructionTransport dimensions (LxWxH): 1.96x0.82x1.28Please contact PFEIFER GROUP (See no., See no., ) for more informationVerwendungszweck: BauwesenTransportabmessungen (L x B x H): 1.96x0.82x1.28Wenden Sie sich an PFEIFER GROUP (See no., See no., ), um weitere Informationen zu erhalten.The Cummins C22D5Q, C38D5Q, C55D5EQ, C66D5EQ, C110D5Q, C170D5Q, and C220D5EQ are the generator models we offer for both sale and rental, available for immediate delivery from stock at Pfeifer Rentals & Sales.For more information, feel free to contact us without any obligation.Manufacturer: CumminsTyp: C22D5QManuf. Year: 2025Serial nr: D23I155909Fuel: DieselGeneralModel: C22D5QEngine: Cummins X2.5-G2Controller: PowerStart PS0600Alternator: Stamford S0L2-G1Phases: 3-phaseVoltage: 400/230 VFrequency: 50 HzESP (Standby Power): 22 kVA / 18 kWPRP (Prime Power): 20 kVA / 16 kWCurrent (ESP): 31.8 AEngine PerformanceDisplacement: 2.5 litres, 3-cylinder inlineSpeed: 1500 rpmGross engine power: 27 kWm (ESP), 24.37 kWm (PRP)Oil capacity: 7.3 / 8.0 litresCoolant capacity: 15 litresAir intake: 2.30 m³/minExhaust gas flow: 127 kg/h at 660°CMax. back pressure (exhaust): 3.38 kPaFuel ConsumptionFuel tank capacity: 55 litresAutonomy @ 75% PRP: 13 hoursFuel consumption at full load (PRP): 5.2 l/hMax. fuel flow: 40 l/hElectrical SystemStarting voltage: 12 VDCBattery: 12V, 75 AhBattery charger: 4 A, 12/24 VDCDimensions & WeightLxWxH: 1.960mm x 0.820mm x 1.285mmWet Weight (kg) 757CE (Declaration of Conformity)More detailed pictures / product movie on our website.pfeifermachinery.comAbove specifications are subject to change without prior notice and subject to errorsMeer informatieToepassingsgebied: BouwAfmetingen (LxBxH) (m): 1.96x0.82x1.28Neem voor meer informatie contact op met PFEIFER GROUP (See no., See no., ) Poids à vide : 757kg, Référence parc : 65834202, Numéro de série : D23I155909, Poids à vide : 757kg, Informations Moteur : Cummins, Puissance apparente : 22kVA, Poids : 0.757kg, Type d'intérieur : Autre, Type de pneus : Simples, Marque du moteur : Cummins
About this machine

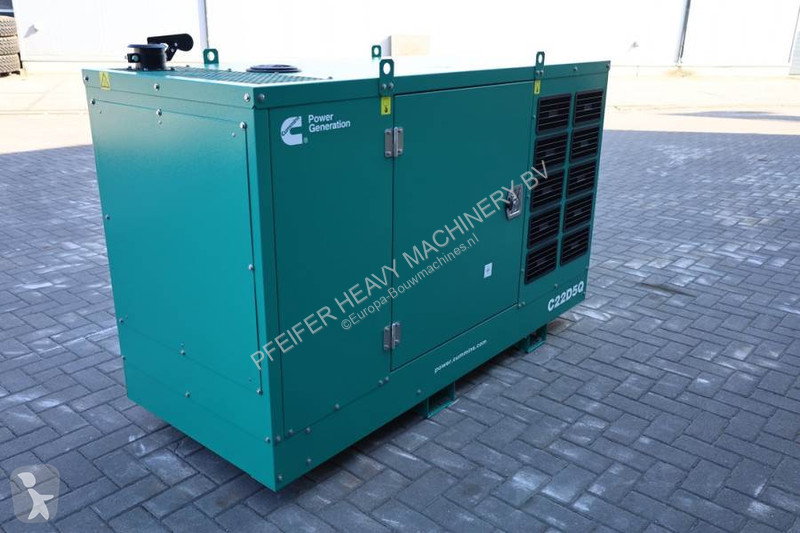

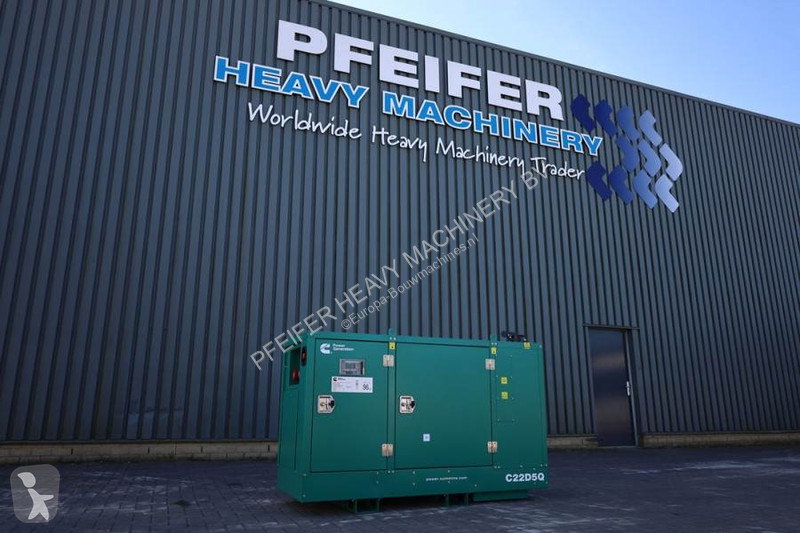

The Cummins C22D5Q Declaration of Conformity is a diesel generator designed for construction and transport applications. Cummins is a global manufacturer of power generation and engine systems serving industrial, construction, and energy sectors with reliable diesel-powered equipment.

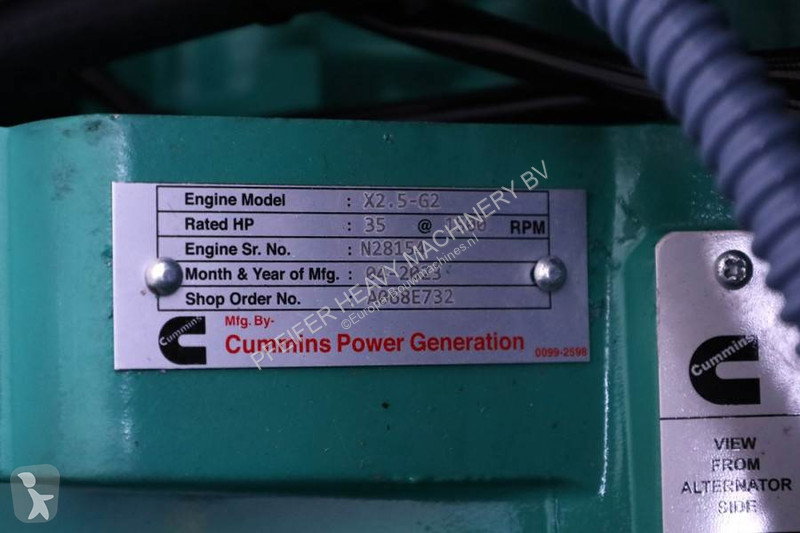

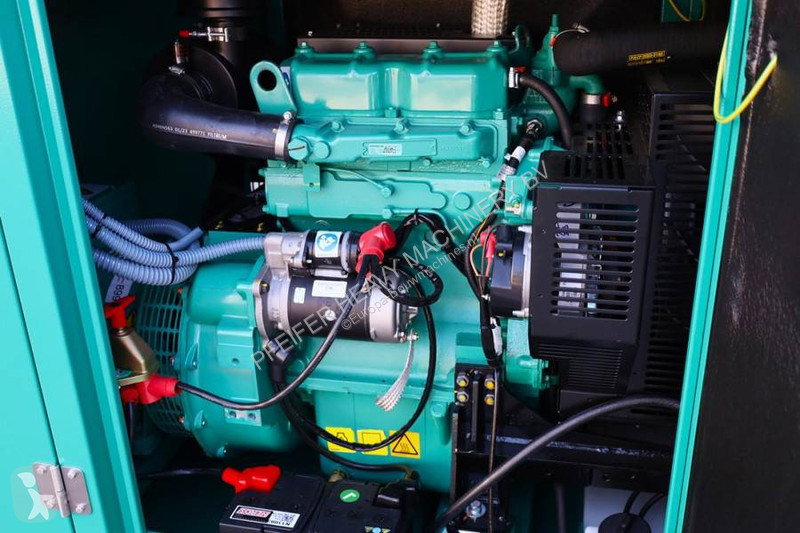

This unit is a three-phase diesel generator with a rated standby power output of 22 kVA (18 kW) and prime power of 20 kVA (16 kW). It operates at 400/230 volts with a frequency of 50 Hz and delivers a current of 31.8 amperes at standby power. The generator is equipped with a Cummins X2.5-G2 engine—a 2.5-litre, three-cylinder inline unit running at 1500 rpm with a gross engine power of 27 kW at standby rating and 24.37 kW at prime rating.
The fuel system features a 55-litre tank, enabling approximately 13 hours of operation at 75 per cent prime power. Fuel consumption at full load is 5.2 litres per hour, with a maximum fuel flow capacity of 40 litres per hour. The engine's cooling system holds 15 litres of coolant, and the oil capacity is 7.3 to 8.0 litres. Air intake volume is 2.30 cubic metres per minute, with exhaust gas flow of 127 kilograms per hour at 660 degrees Celsius and a maximum back pressure of 3.38 kilopascals.
The electrical system uses a 12-volt DC starting configuration with a 75 ampere-hour battery and a 4-ampere, 12/24-volt DC battery charger. The PowerStart PS0600 controller manages the generator's operation, while a Stamford S0L2-G1 alternator produces the electrical output.
The machine measures 1.96 metres in length, 0.82 metres in width, and 1.285 metres in height, with a wet weight of 757 kilograms. The unit carries a Declaration of Conformity (CE marking) and was manufactured by Cummins in 2025 with serial number D23I155909. It is currently located in the Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
