1998 - Driltech T40KS Vertical Drill()
- Listing No
- 483968
- Year
- 1998
- Manufacturer
- Driltech
- Model
- T40KS
- Condition
- Used
- Location
- USA
- Price
- $29,500
- Description
-
ATTACHED, PLEASE FIND PICTURES AND VIDEO OF THIS DRILTECH T40K MAST (ONLY). YOU CAN SEE THIS MAST IS COMPLETE WILL TAKE 4 1/2 inch 25-30’FT ROD HAS THE ROTARY DRIVE WITH MOTOR TWO CAROUSEL EACH ONE WILL 6 RODS (PIPES) 20’FT. IT LOOKS LIKE SOMEONE WAS USING IT WITH 20FT PIPES. BUT YOU CAN ADD TO IT TO MAKE IT THE CAROUSEL TAKE 25’FT PIPES. REASON WAS REMOVED FROM DRILL, RIGHT SIDE OF THE DRILL WAS ON FIRE YOU CAN SEE THE HOSES GOT BURNED. BUT OTHER THEN THAT THE MAST IS IN GOOD CONDITION NO CRACKS OR WELDING ON IT. This Mast Come off A DRILTECH DRILL Model T40K with 1050 cfm 350psi the Pulldown capacity was 50,000 lbs. THIS MAST HAS STANDARD DRILTECH (torque and thread) THE DIM AND WEIGHT IS AS FOLLOWS: 35' LENGTH 7' WIDE 6' HIGH APPROX. 30,000 LBS. WEIGHT LET ME KNOW IF YOU WILL BE INTERESTED
About this machine
This Driltech T40KS is a used vertical drill — sometimes referred to as a rotary drill rig — offered from California, USA, at $29,500. Vertical drills of this type are purpose-built for blast-hole drilling, water well drilling, and similar deep-penetration applications in mining, quarrying, and construction. Driltech is a well-established manufacturer of rotary and percussion drilling equipment, with a long history of supplying blast-hole and exploration rigs to the mining and quarrying industries worldwide.

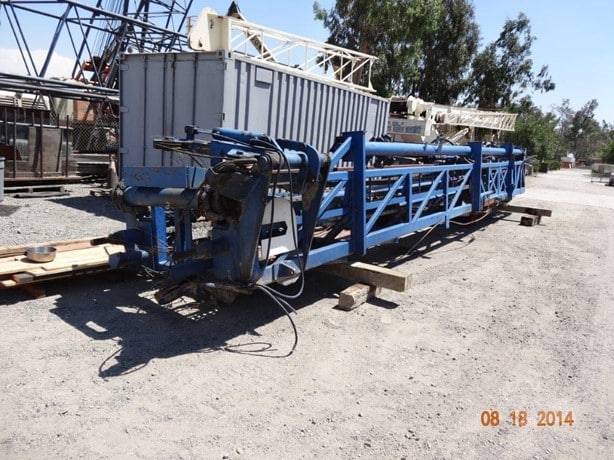

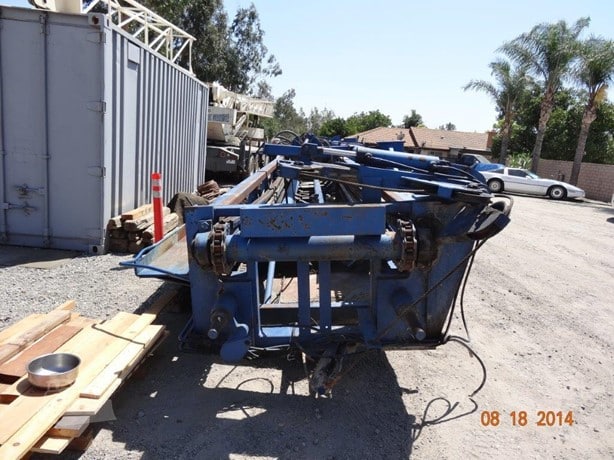

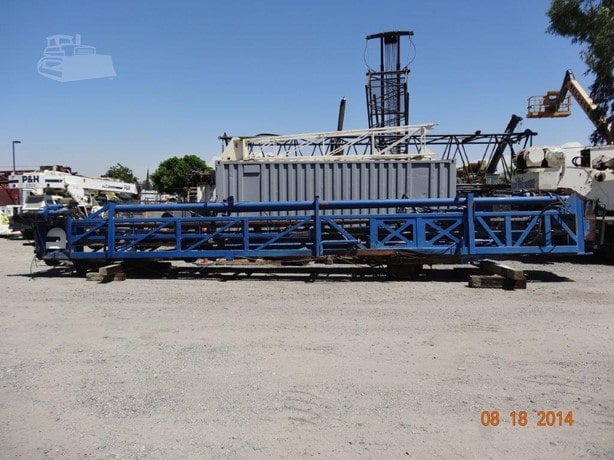

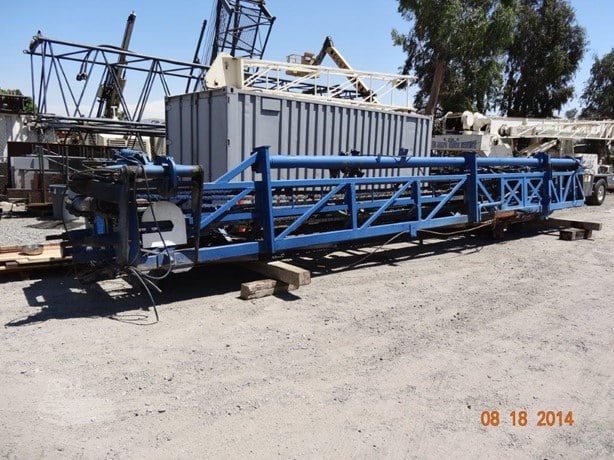

It is important to note that what is being sold here is the mast assembly only, removed from a T40K drill. The mast is described as complete and structurally sound, with no cracks and no repair welding evident. The reason for removal was a fire on the right-hand side of the drill, which resulted in burned hydraulic hoses on the mast; beyond the hose damage, the mast itself is reported to be in good condition.

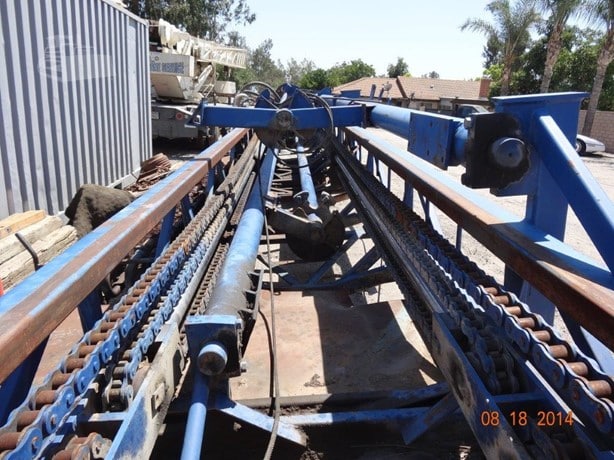

The mast accepts 4½-inch drill rod and is configured with two rod carousels, each holding six rods. The carousels are currently set up for 20-foot pipe but can be modified to accommodate 25-foot lengths. The rotary drive with its hydraulic motor is included as part of the assembly.
The parent drill from which this mast was taken was a Driltech T40K rated at 1,050 CFM air flow and 350 PSI operating pressure, with a pulldown capacity of 50,000 pounds. The thread and torque specification is standard Driltech, ensuring compatibility with corresponding Driltech drill-string components. The mast dimensions are approximately 35 feet in length, 7 feet wide, and 6 feet high, with an estimated weight of 30,000 pounds.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
