2004 - Engel ES650H 200W-20 Injection Moulding()
- Listing No
- 1152511
- Year
- 2004
- Manufacturer
- Engel
- Model
- ES650H 200W-20
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

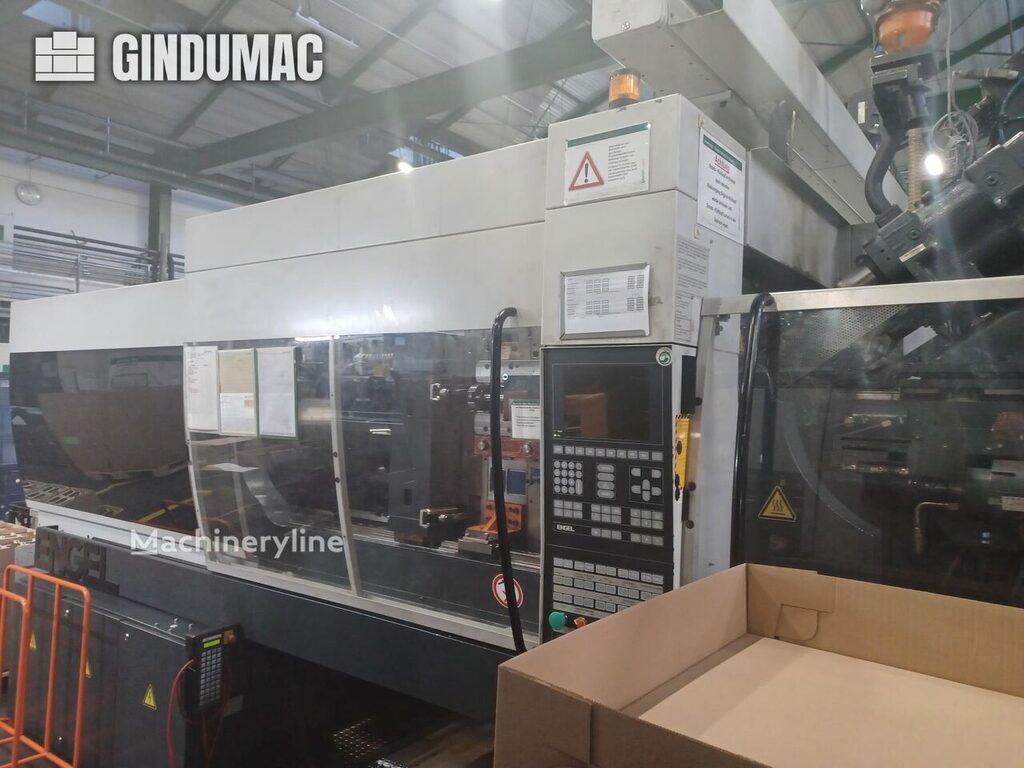

This Engel ES650H/200W-200HL-2F was manufactured in 2004. It features a clamping force of 2000 kN and platen dimensions of 920 x 760 mm. The machine includes a two-component system with screw diameters of 40 mm and 25 mm, and a robot system ERC 23/1-E for enhanced automation. Ideal for precision in hydraulic injection moulding. Contact us for more information about this machine. Location: DE Max. Shot Weight: 216 g Screw Diameter: 40 mm Configuration: 2K (two-component injection molding machine) Platen dimensions (H x V): 920 x 760 mm Mold installation height (min): 500 mm Opening stroke: 750 mm Max. daylight (platen distance): 1150 mm Max. mold weight: 3000 kg (1500 kg per side) Ejector stroke: 150 mm Ejector force: 80 kN Core pulls: 3 (ejector side) Centering ring diameter (ejector side): 200 mm Screw diameter: 40 mm Injection pressure: 1946 bar Shot volume (swept): 251 ccm Shot weight (PS): 216 g Screw speed: 290 rpm L/D ratio: 20 Nozzle radius: 15 mm Interfaces/Control: Printer interface; process control available Robot system: ERC 23/1-E linear robot X-axis stroke: 500 mm Y-axis stroke: 1000 mm Z-axis stroke: 1600 mm Hot runner control: 16-zone Clamping unit Injection unit 1 (Primary - 650H) Injection unit 2 (Secondary - 200W) Injection pressure: 2089 bar Shot volume (swept): 69 ccm Shot weight (PS): 60 g Screw speed: 480 rpm L/D ratio: 24 Additional equipment
About this machine
This Engel ES650H 200W-20 is a used injection moulding machine — sometimes referred to as an injection moulding press — dating from 2004 and currently located in Germany. Injection moulding machines are used to produce plastic components by injecting molten material into a mould under high pressure, and Engel is a well-established Austrian manufacturer with a long-standing reputation for precision plastics processing machinery, serving industries ranging from automotive and packaging to medical technology and consumer goods.

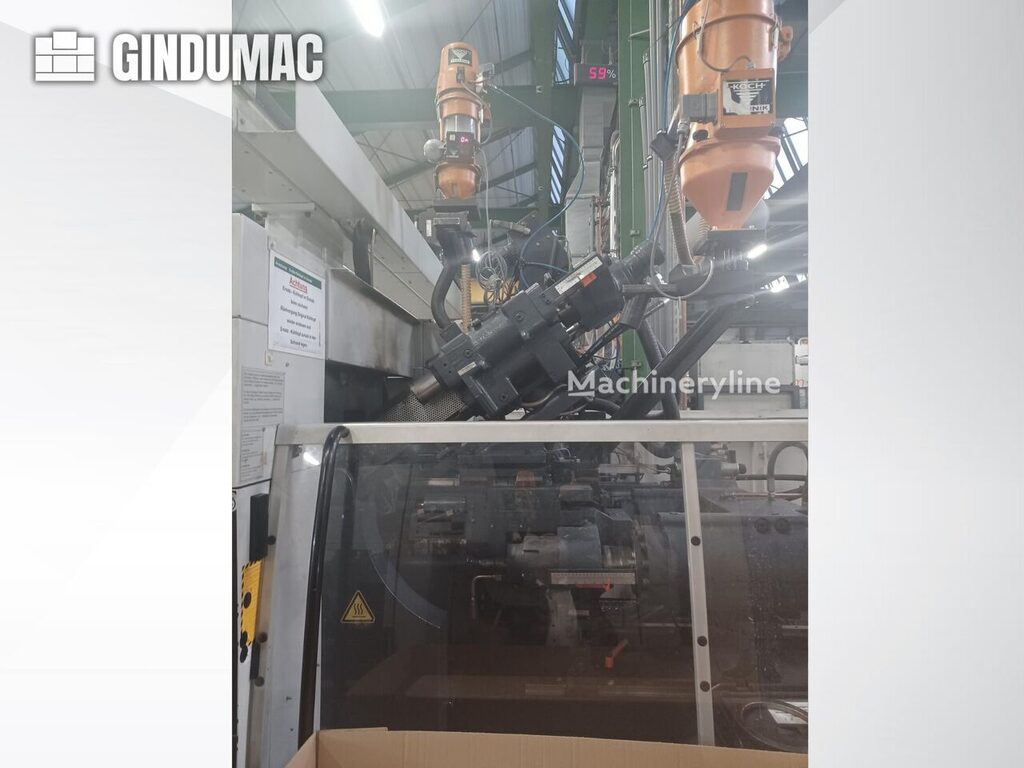

This machine is configured as a two-component (2K) system, meaning it carries two separate injection units capable of processing two different materials or colours within a single moulding cycle. The primary injection unit delivers a shot volume of 251 ccm and a maximum shot weight of 216 g (polystyrene basis), with a screw diameter of 40 mm, an L/D ratio of 20, a screw speed of up to 290 rpm, and an injection pressure of 1,946 bar. The secondary injection unit provides a shot volume of 69 ccm and a shot weight of 60 g (PS), with a screw diameter of 25 mm, an L/D ratio of 24, a screw speed of up to 480 rpm, and an injection pressure of 2,089 bar. The nozzle radius on the primary unit is 15 mm.
The clamping unit exerts a force of 2,000 kN and accommodates platens measuring 920 × 760 mm. The mould installation height has a minimum of 500 mm, the opening stroke is 750 mm, and the maximum daylight between platens reaches 1,150 mm. Maximum mould weight is 3,000 kg in total, rated at 1,500 kg per side. The ejector delivers a stroke of 150 mm and a force of 80 kN, and there are three core pulls on the ejector side. The centering ring diameter on the ejector side is 200 mm.

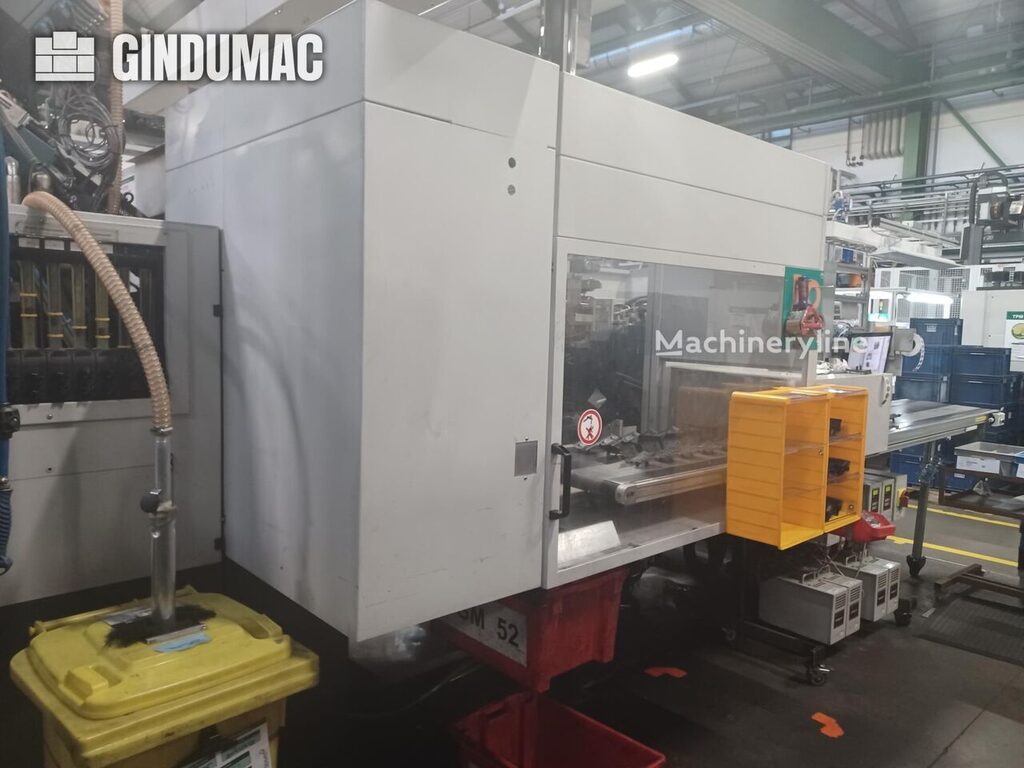

Automation is provided by an integrated ERC 23/1-E linear robot with axis strokes of 500 mm (X), 1,000 mm (Y), and 1,600 mm (Z), enabling automated part removal and handling. The machine also includes a 16-zone hot runner control system, a printer interface, and process control capability, supporting process monitoring and documentation in production environments.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
