2001 - Engel ES650H 200W-20 Injection Moulding()
- Listing No
- 1152445
- Year
- 2001
- Manufacturer
- Engel
- Model
- ES650H 200W-20
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

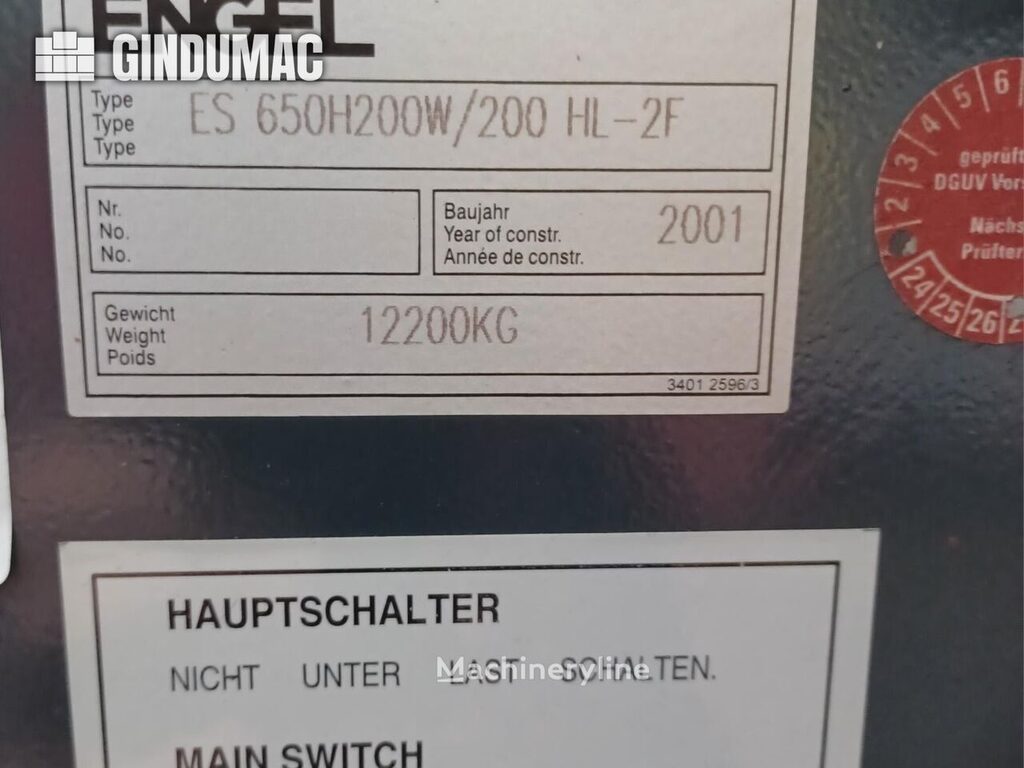

This 3-axis Engel ES650H/200W-200HL-2F was manufactured in 2001. It features a clamping force of 2000 kN, a mold opening stroke of 700 mm, and a tie-bar distance of 920 x 750 mm. Equipped with dual injection units, screw diameters of 40 mm and 25 mm, and a rotary table control. Consider the opportunity to buy this Engel ES650H/200W-200HL-2F hydraulic injection moulding machine. Contact us for more information about this machine. Location: DE Control Brand: ENGEL Control Model: CC100 Mold weight (WZ): 1500 kg Total moving weight: 3000 kg Minimum mold height: 550 mm Mold opening stroke: 700 mm Tie-bar distance (H × V): 920 × 750 mm Platen size: 1250 mm Ejector stroke: 150 mm Ejector force: 61 kN Centering ring diameter A-side: 110 mm Centering ring diameter B-side: 90 mm Mold locking system: Hydraulic / Pneumatic Core pull control: Yes Number of cores: 4 (A-side) Rotary table control: Yes Index plate control: Yes Max. shot volume: 200 cm³ Stroke volume: 251 cm³ Screw diameter: 40 mm L/D ratio: 20 Screw speed: 290 rpm Injection pressure: 1930 bar Injection rate: 142 g/s Shot weight (PS): 216 g Plasticizing rate: 26 g/s Nozzle orifice: 15 mm Pump motor: 30 / 12.3 kW X-axis (injection unit): 500 mm Y-axis (rotary table / mold carrier): 1000 mm Z-axis (clamping unit): 1400 mm SPC / Process control: Yes Pressure interface: Yes Second injection barrel: Yes Mold monitoring: No Cavity pressure sensor: p-θ-t-θ (Priam) Hot runner control: 16 zones Filter dryer: No Special programs: Yes Special option: GealanXcomp Automation: No Clamping unit Injection unit 1 (Main) – Type 650H Injection unit 2 (Secondary) – Type 200W Max. shot volume: 140 cm³ Stroke volume: 69 cm³ L/D ratio: 24 Screw speed: 480 rpm Injection pressure: 2000 bar Injection rate: 104 g/s Shot weight (PS): 60 g Plasticizing rate: 12 g/s Nozzle orifice: 15 mm Pump motor: ~6.8 kW Machine axes travel Equipment and options (machine-integrated) Condition Well-maintained and serviced Additional equipment Engel Linear Take-out Robot ERC 23/1-E (included) Show the whole comment
About this machine

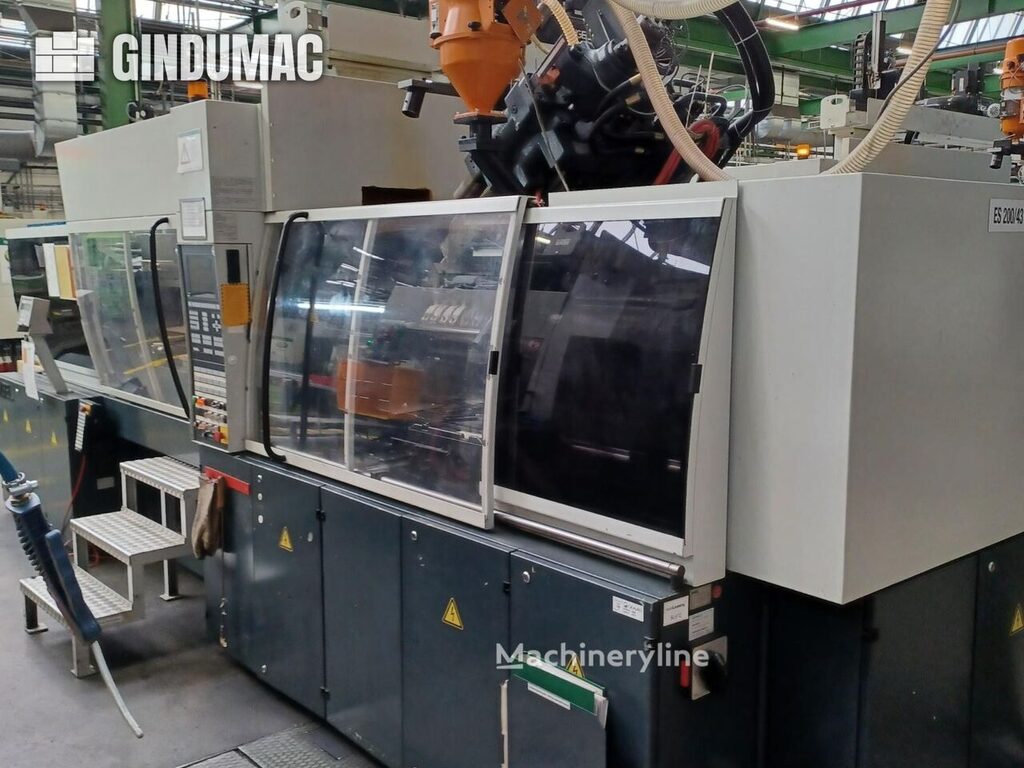

This Engel ES650H 200W-20 is a used injection moulding machine — sometimes referred to as an injection molding press — dating from 2001 and currently located in Germany. Injection moulding machines are used to manufacture plastic components by injecting molten material under high pressure into a mould cavity, and they are fundamental across industries including automotive, consumer goods, packaging, and medical technology. Engel is a well-established Austrian manufacturer of injection moulding machinery, recognised globally for hydraulic, electric, and hybrid machine platforms serving a broad range of plastics processing applications.
This is a two-component, hydraulic machine configured with dual injection units: a primary Type 650H unit and a secondary Type 200W unit. The clamping unit delivers 2,000 kN of clamping force, with a mould opening stroke of 700 mm and a tie-bar distance of 920 × 750 mm. The platen size is 1,250 mm, the minimum mould height is 550 mm, and the ejector delivers 61 kN of force over a stroke of 150 mm. The machine accommodates moulds weighing up to 1,500 kg, and the total moving weight is 3,000 kg. Centering ring diameters are 110 mm on the A-side and 90 mm on the B-side. The mould locking system is hydraulic and pneumatic.
The primary injection unit has a 40 mm screw with an L/D ratio of 20, a maximum shot volume of 200 cm³, a stroke volume of 251 cm³, and a shot weight of 216 g (PS). Injection pressure reaches 1,930 bar, the injection rate is 142 g/s, and the plasticising rate is 26 g/s. Screw speed on the primary unit is 290 rpm, and the pump motor is rated at 30/12.3 kW. The secondary injection unit carries a 25 mm screw with an L/D ratio of 24, a maximum shot volume of 140 cm³, a stroke volume of 69 cm³, and a shot weight of 60 g (PS). Its injection pressure is 2,000 bar, injection rate 104 g/s, and plasticising rate 12 g/s, with a screw speed of 480 rpm and a pump motor of approximately 6.8 kW. Both nozzles have a 15 mm orifice diameter.
The machine is controlled by an Engel CC100 control system and is equipped with a rotary table, index plate control, and core pull control with four cores on the A-side. Machine axes travel measures 500 mm on the X-axis (injection unit), 1,000 mm on the Y-axis (rotary table/mould carrier), and 1,400 mm on the Z-axis (clamping unit). Additional integrated features include a 16-zone hot runner control, cavity pressure sensing via a p-θ-t-θ Priam system, SPC and process control, a pressure interface, and a second injection barrel. The special option listed is GealanXcomp, and special programs are noted as present.
The machine is described as well-maintained and serviced. An Engel Linear Take-out Robot ERC 23/1-E is included with the machine.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
