2011 - Engel Insert 80V 40 Injection Moulding()
- Listing No
- 1151737
- Year
- 2011
- Manufacturer
- Engel
- Model
- Insert 80V 40
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Engel Insert 80V/40 was manufactured in 2011. A vertical injection moulding machine, it's ideal for precision thermoplastic parts. Consider the opportunity to buy this Engel Insert 80V/40 vertical injection moulding machine. Contact us for more information. Location: AT Control Brand: ENGEL Control Model: n/a Screw Diameter: 18 mm Ejector travel: 105 mm Nozzle travel: 380 mm Turntable diameter: 1200 mm Rotary table drive: hydraulic Ejector drive: hydraulic Connected load: 22 kw Machine Benefits Technical Machine Benefits Maximum opening 520mm /minimum opening 185mm Extra Information Machine still under power
About this machine
The Engel Insert 80V 40 is a used vertical injection moulding machine — sometimes referred to as a vertical injection moulder — manufactured by Engel in 2011 and currently located in Germany. Injection moulding machines of this type are used to produce precision thermoplastic components by injecting molten material into a closed mould under pressure. Engel is a well-established Austrian manufacturer of injection moulding machinery, supplying equipment to industries including automotive, electronics, medical technology, and consumer goods.

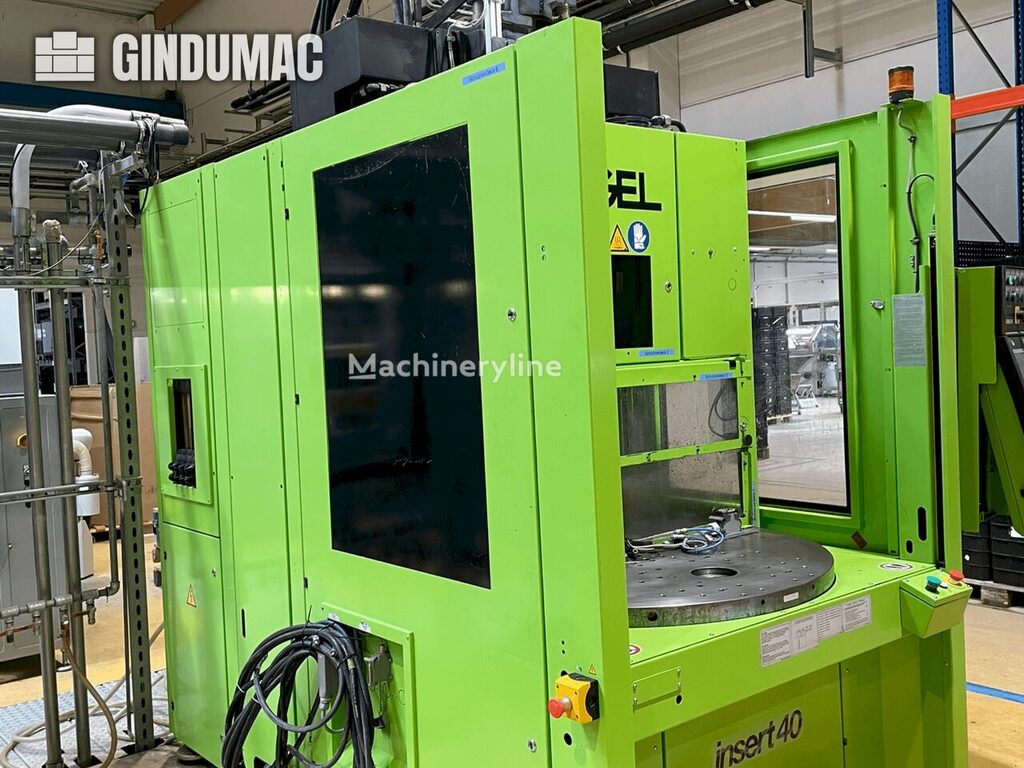

This machine is equipped with an 18 mm screw diameter and a hydraulically driven rotary turntable with a diameter of 1,200 mm, making it well suited to insert moulding applications where components are loaded onto the table and indexed between stations. The rotary table is hydraulically driven. The ejector is also hydraulically operated, with an ejector travel of 105 mm. Nozzle travel is stated at 380 mm.
In terms of mould opening capacity, the machine offers a maximum daylight opening of 520 mm and a minimum opening of 185 mm, giving flexibility across a range of mould heights. The connected electrical load is 22 kW. The machine is fitted with an Engel control system. It has been confirmed to be still under power, indicating it remains operational and available for inspection or testing.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
