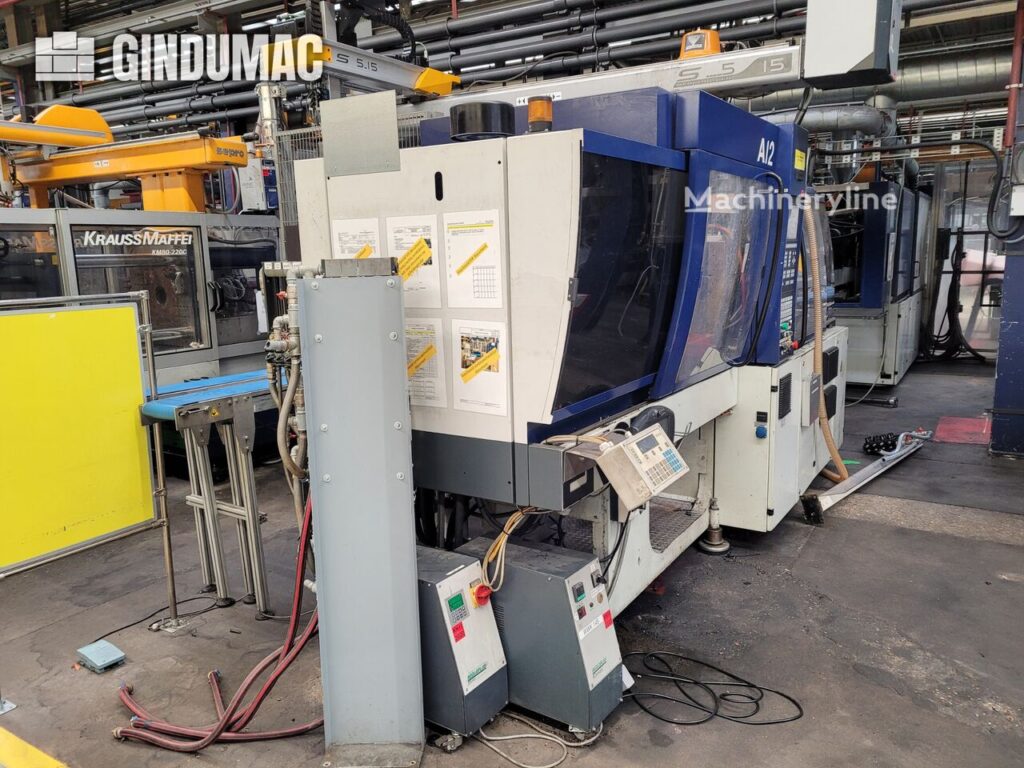

2003 - Engel Victory 200 60 Injection Moulding()
- Listing No
- 1151133
- Year
- 2003
- Manufacturer
- Engel
- Model
- Victory 200 60
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

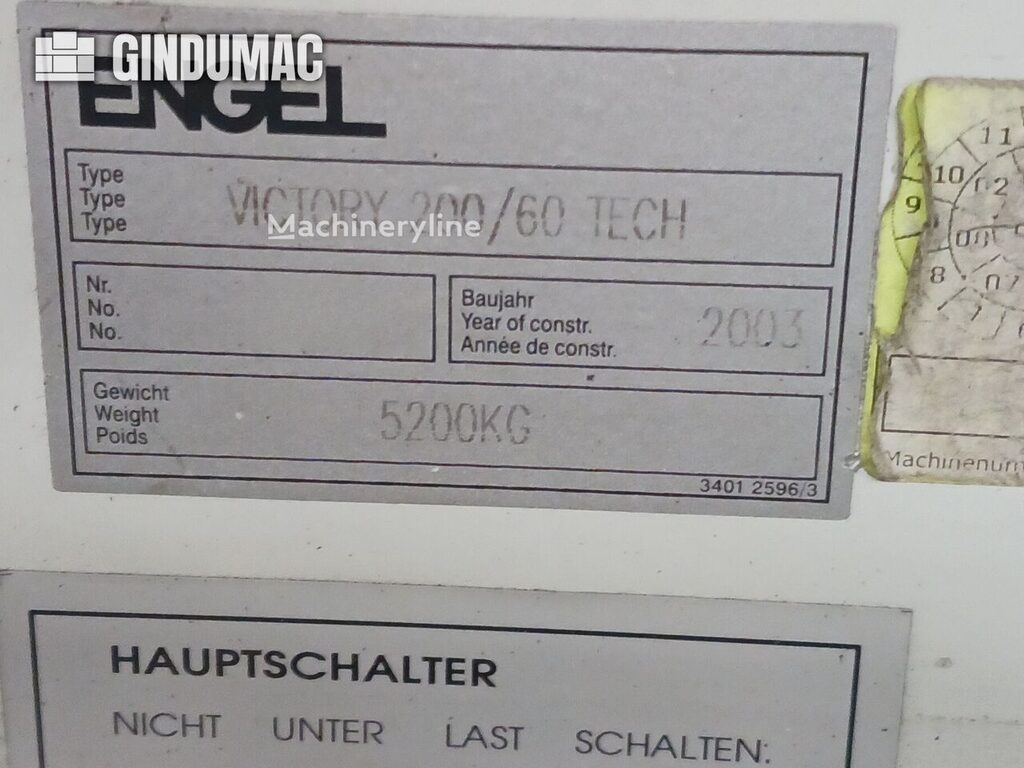

This Engel Victory 200/60 TECH was manufactured in 2003. It features a screw diameter of 35 mm, clamping force of 600 kN, and an opening stroke of 450 mm. The machine includes a robot and has a maximum platen spacing of 700 mm. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 200/60 TECH machine we have for sale. Contact us for more information. Location: NL Screw Diameter: 35 mm Dosing stroke: 140 mm Opening stroke: 450 mm Ejector force: 40 kN Ejector stroke: 100 mm Minimum tool installation height: 250 mm Maximum platen spacing: 700 mm Additional equipment Robot (included) Water temperature control equipment (not included) Conveyor belt (not included)
About this machine
The Engel Victory 200 60 is a used injection moulding machine — sometimes referred to as an injection moulding press — built for the precision manufacture of plastic parts by injecting molten material into a closed mould under controlled pressure. Engel is a well-established Austrian manufacturer widely recognised for its range of injection moulding machinery, serving industries such as automotive, medical, packaging, and consumer goods.
This particular machine was manufactured in 2003 and is located in Germany. It delivers a clamping force of 600 kN and accommodates tools with a minimum installation height of 250 mm and a maximum platen spacing of 700 mm, giving a usable opening stroke of 450 mm. These parameters define the range of mould sizes the machine can accept and the depth of part it can demould in a single cycle.
The injection unit is fitted with a screw of 35 mm diameter and a dosing stroke of 140 mm, which together govern shot volume and material throughput per cycle. The ejector system provides a force of 40 kN over a stroke of 100 mm, enabling reliable part ejection across a variety of component geometries.

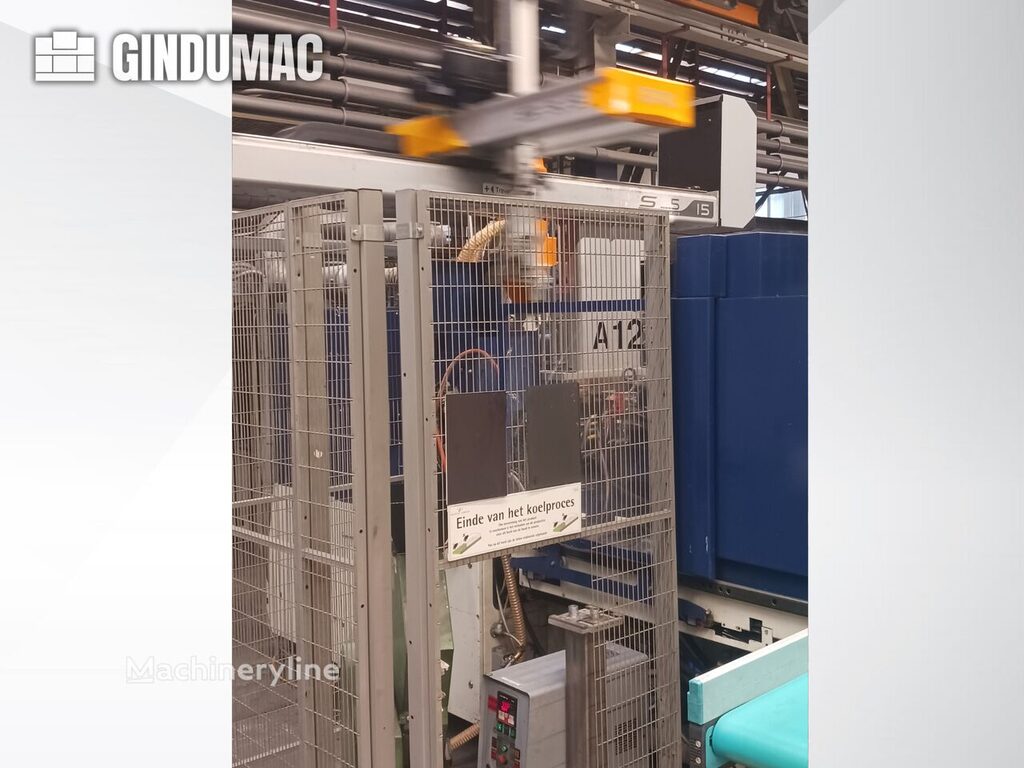

The machine is offered with a robot included, which supports automated part removal and can contribute to consistent cycle times and reduced manual handling. Water temperature control equipment and a conveyor belt are not included with this listing. The machine is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
