2008 - FAT 370A Band Saw()
- Listing No
- 953818
- Year
- 2008
- Manufacturer
- FAT
- Model
- 370A
- Condition
- Used
- Location
- Spain
- Price
- POA
- Description
-
Technical characteristics of the second-hand FAT 370A automatic band saw Cutting data Cutting capacity in mm 90º Round Square Rectangular 280 315×220 220×220 Hydraulic bundle former 250×140 Mechanical bundle former 250×100 Reference: 170-C004 Band dimensions: 3120x27x0.9 mm Work table height: 835 mm Band speed: 35-70 m/min Band motor: 1.5 KW Weight: 850 kgs Machine dimensions: 1600x1050x1650 mm Year: 2008 Equipped with: Roller track: Yes
About this machine

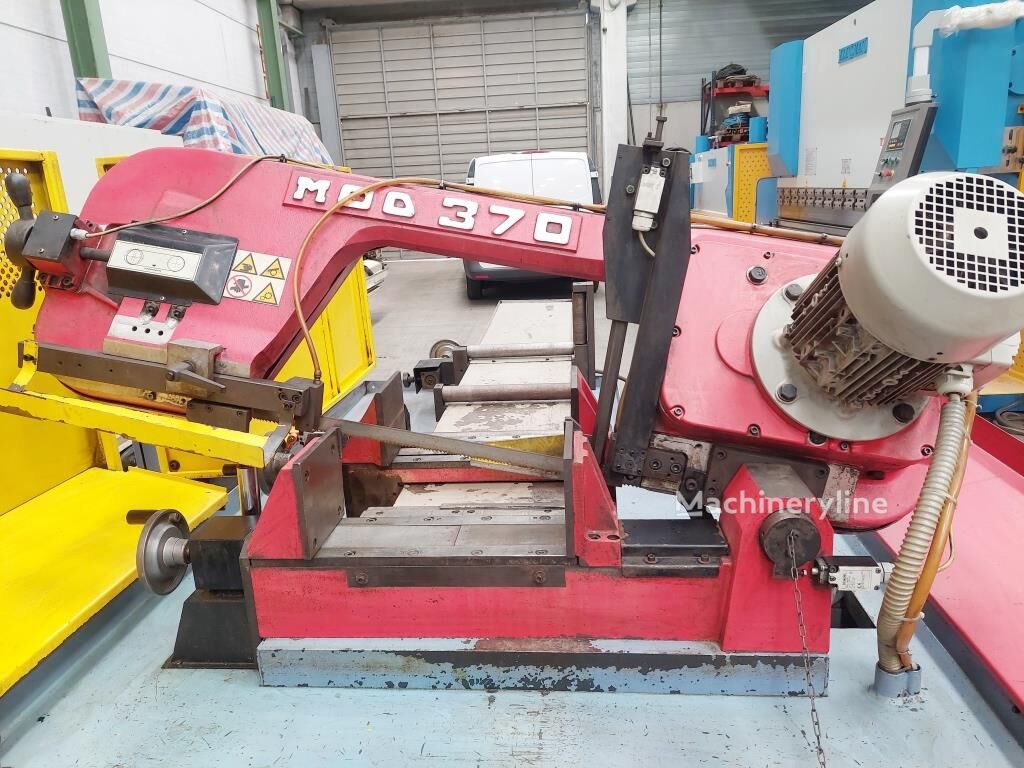

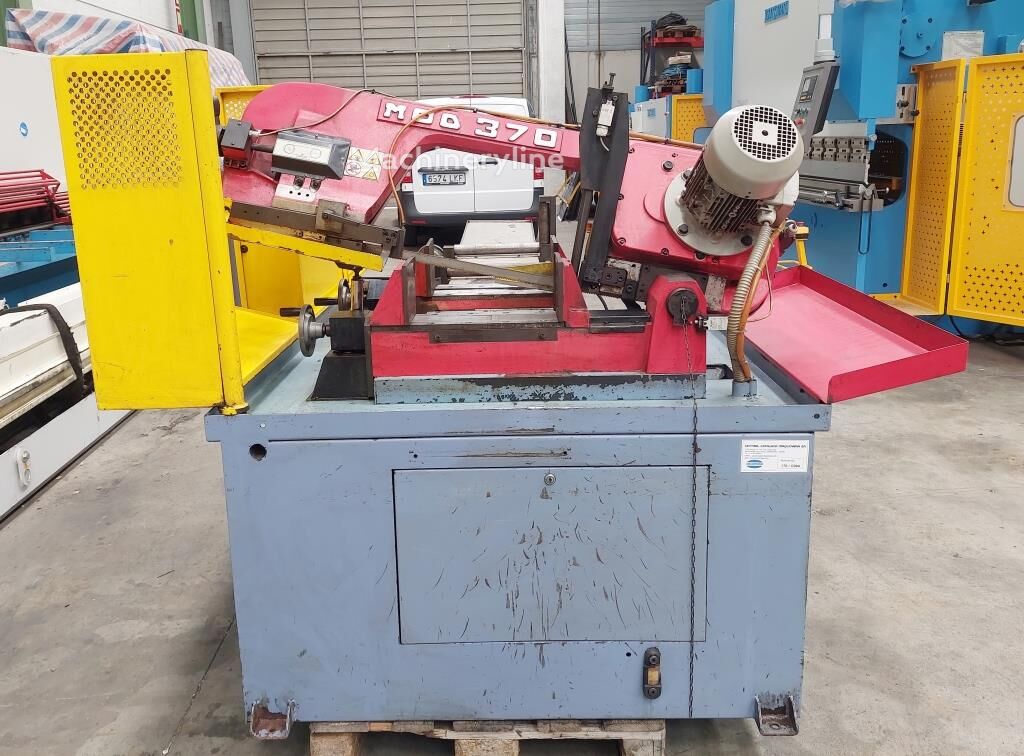

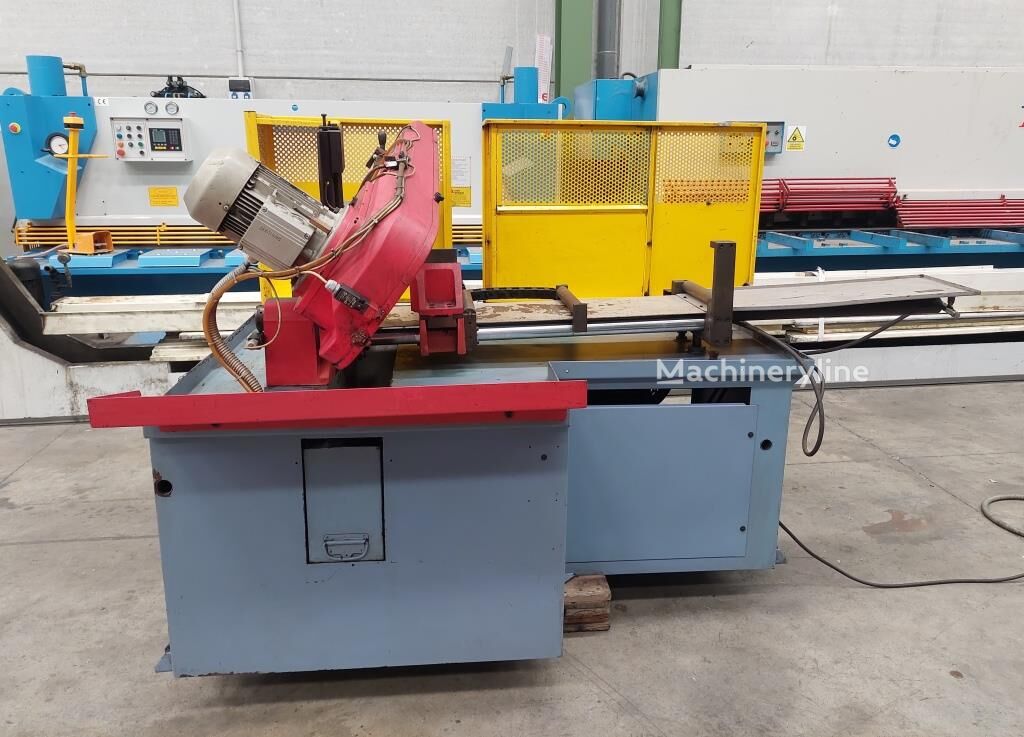

This FAT 370A is a used horizontal band saw — sometimes referred to as a horizontal bandsaw or metal-cutting band saw — a type of machine designed to make straight cuts through metal bar stock, profiles, tubes, and solid sections by drawing a continuous toothed blade across the workpiece in a controlled, horizontal arc. FAT is a Spanish machine tool manufacturer with a long-standing presence in the metalworking industry, producing sawing equipment and related machinery for industrial and workshop environments.
The machine dates from 2008 and is located in Spain in used condition. Its cutting capacities give a clear picture of the range of material it can handle: at 90 degrees, it accepts round bar up to 280 mm in diameter and square section up to 220 × 220 mm, with a rectangular capacity of 315 × 220 mm. It is also equipped for bundle cutting, with a hydraulic bundle former rated to 250 × 140 mm and a mechanical bundle former rated to 250 × 100 mm, making it well suited to batch production environments where multiple pieces are cut simultaneously.
The saw blade measures 3,120 × 27 × 0.9 mm and is driven by a 1.5 kW motor. Band speed is variable between 35 and 70 metres per minute, allowing the operator to match the cutting speed to the material being processed — slower speeds for harder or larger-section materials, higher speeds for softer metals. The work table sits at a height of 835 mm, which falls within a comfortable working range for operators. The machine has an overall footprint of 1,600 × 1,050 × 1,650 mm and weighs 850 kg, figures that are relevant for planning floor space and assessing any lifting or installation requirements. A roller track is included with the machine, providing support for longer workpieces during infeed and outfeed.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
