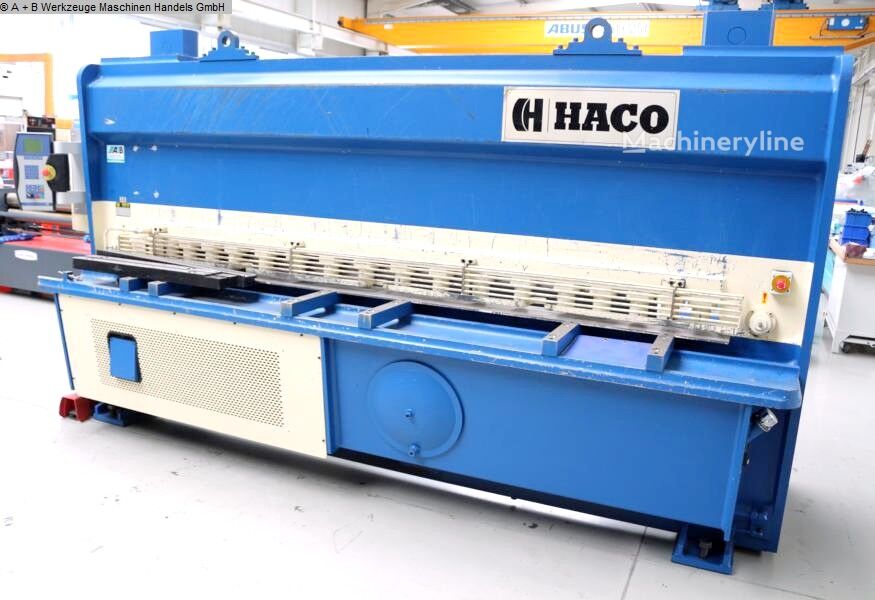

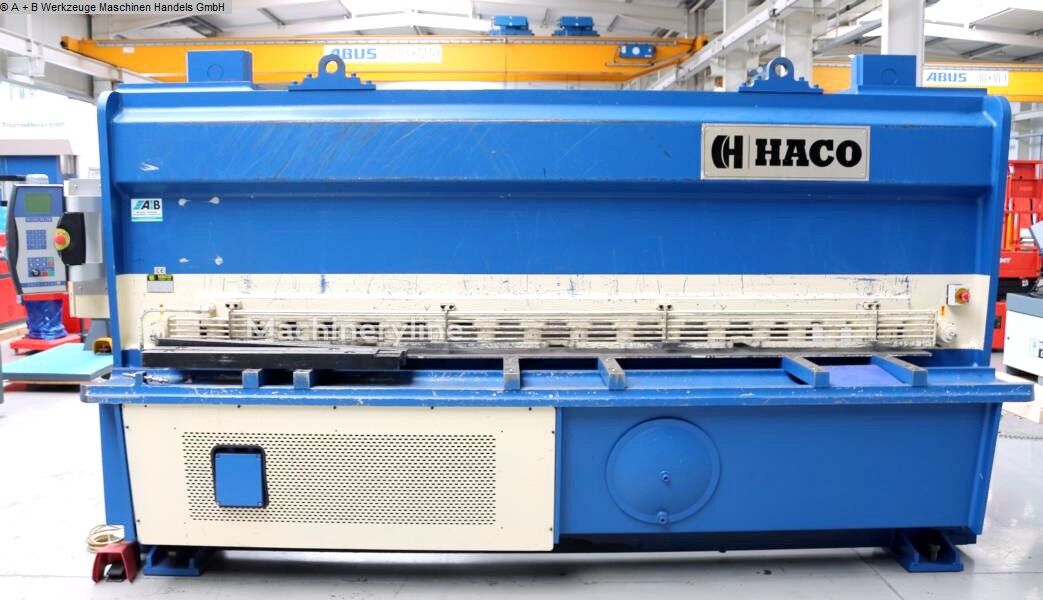

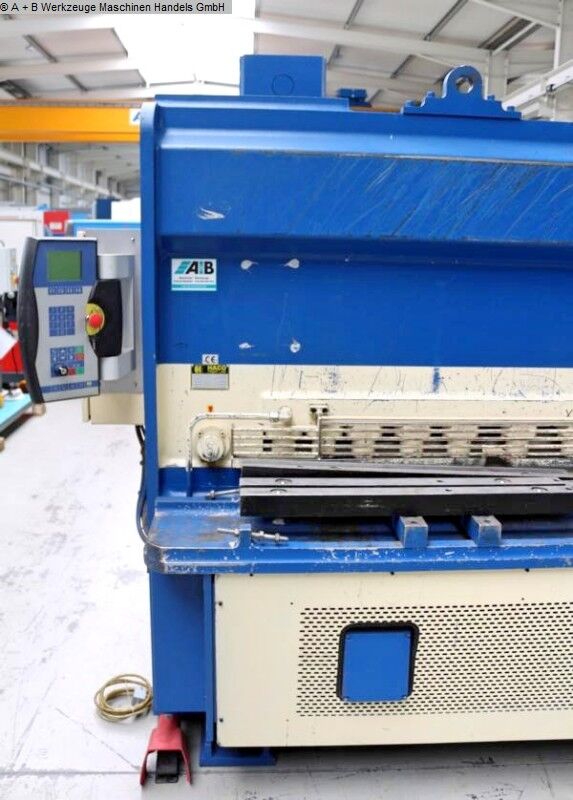

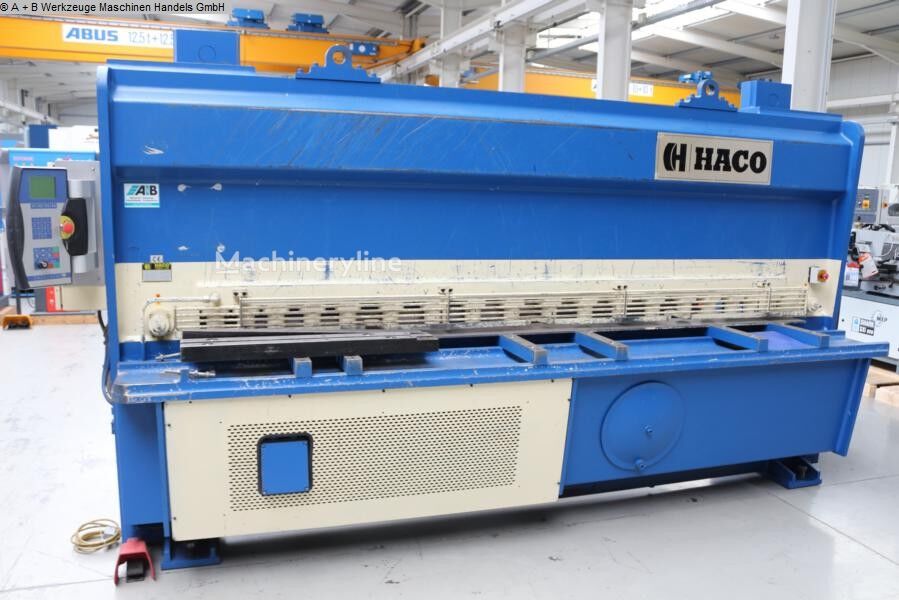

1996 - Haco Hslx 3013 Guillotine Shears

• Listing No
• 950821
• Year
• 1996
• Manufacturer
• Haco
• Model
• Hslx 3013
• Condition
• Used
• Location
• Germany
• Price
• $N/A
• Description
• sheet width 3050 mm plate thickness 13.0 mm thickness at "Niro-steel" 8.0 mm work height max. 930 mm no. of strokes 9 - 17 Hub/min cutting angle 0.5 - 3.0 ° down holder 18 Stück Control SC 90 engine output 22.0 kW weight of the machine ca. 9500 kg range L-W-H 4270 x 2200 x 2250 mm ** Good condition ** With new NC "SC 90" control unit (!!) Equipment: - Electro-hydraulic / slide-guided guillotine shear - HACO NC control model "SC 90" * Pre-selected backgauge positioning * Digital display of actual position * Electro-hydraulic cutting angle adjustment * Electro-hydraulic cutting gap adjustment * LCD display * Emergency stop switch - NC electro-motorized backgauge, on recirculating ball screws - Hydraulically operated hold-down clamps - Front finger guard - Ball transfer units in the support table * Support table with recessed grips - 1x side stop with mm scale - 2x front support arms - 1x freely movable foot switch - Rear safety guard - Operating instructions in German (PDF) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
