2015 - Haitian JU10800II Injection Moulding()
- Listing No
- 1152104
- Year
- 2015
- Manufacturer
- Haitian
- Model
- JU10800II
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Volume injectable : 4847 cm3 Poids injectable : 4410 gr Passage entre colonne : 1270 x 1100 mm Epaisseur moule : mini: 500 mm - maxi : 1200 mm Course d'ouverture : 2400 mm Course d'éjection : 350 mm 4 noyaux 1 soufflettes Economies d'Energie
About this machine

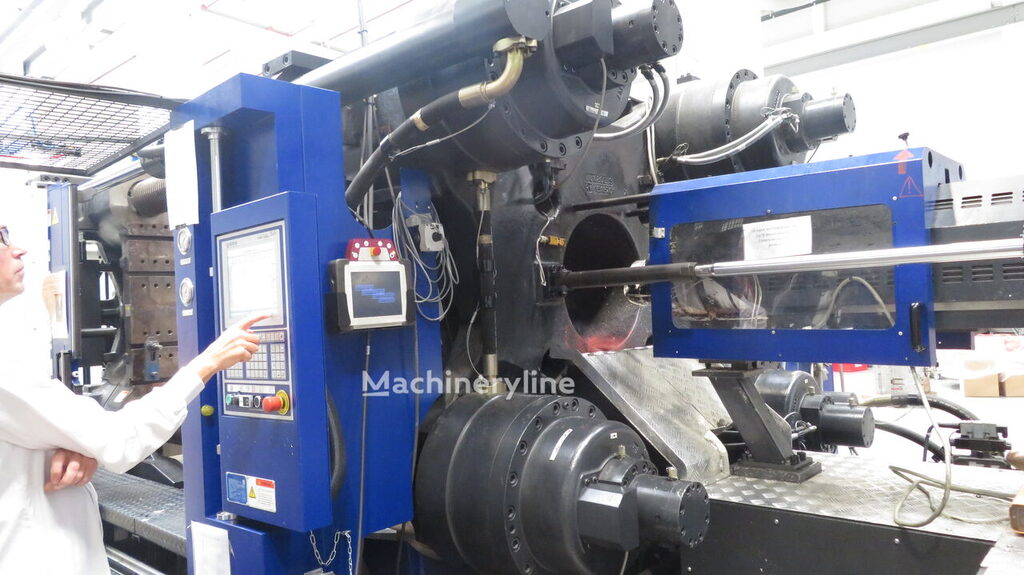

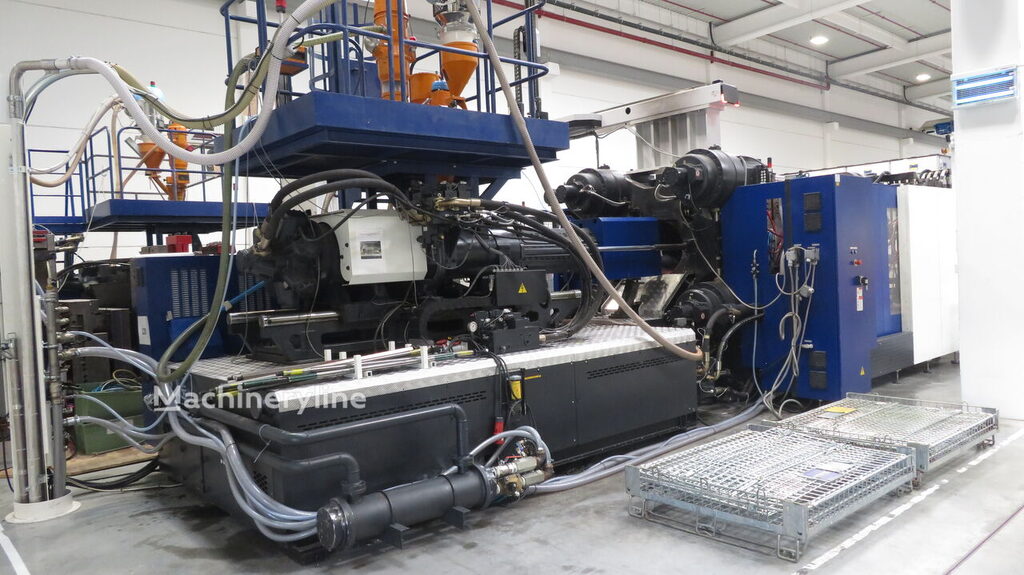

This Haitian JU10800II is a used injection moulding machine — sometimes referred to as an injection moulder or plastic injection press — designed to produce moulded plastic components by injecting molten material under high pressure into a closed mould. Haitian is one of the world's largest manufacturers of injection moulding machinery, supplying equipment to industries including automotive, packaging, consumer goods, electronics, and industrial components.
Built in 2015 and currently located in France, this machine carries a substantial processing capacity, with an injectable volume of 4,847 cm³ and a maximum injectable weight of 4,410 grams, making it well suited to the production of large or heavy plastic parts.
The platen and mould accommodation figures reflect its scale. The distance between tie bars measures 1,270 mm × 1,100 mm, defining the maximum mould footprint that can be installed. Mould thickness is adjustable between a minimum of 500 mm and a maximum of 1,200 mm, giving flexibility across a wide range of tooling heights. The mould opening stroke reaches 2,400 mm, which allows the extraction of deep or complex parts, while the ejector stroke of 350 mm provides the travel needed to demould formed components cleanly.
The machine is equipped with four hydraulic core pulls (noyaux), enabling the production of parts with undercuts or internal features that require retractable mould elements. A single air blow-off nozzle (soufflette) is also included, typically used to assist in part ejection or mould cleaning. The listing additionally notes energy-saving features, indicating the machine incorporates technology aimed at reducing power consumption during the injection cycle.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
