2011 - Haitian MA-4700 Injection Moulding()
- Listing No
- 1151930
- Year
- 2011
- Manufacturer
- Haitian
- Model
- MA-4700
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This HAITIAN MA-4700 injection moulding machine was manufactured in 2011. It offers an injection capacity of 1860 grams and a powerful injection pressure of 1850 Bar. The clamping force can reach up to 470 tons, accommodating molds with a thickness range of 320 mm to 820 mm. The distance between tie bars is 1560 mm, ensuring ample space for various mold sizes. Consider the opportunity to buy this HAITIAN MA-4700 injection moulding machine. Contact us for more information. Location: HR Injection capacity: 1860 g Max. Injection pressure: 1850 bar Diameter of screw mass: 75 mm Max. Mold clamping force: 470 tons Min. Mold thickness: 320 mm Max. Mold thickness: 820 mm Max. Distance between tie bars: 1560 mm Diameter of central ring: 200 mm Distance between guide rails: 840x830 mm Additional equipment New positioners New oil cooler ALFA ROBOT Machine Benefits Qualitative Machine Benefits Without conveyor Technical Machine Benefits
About this machine

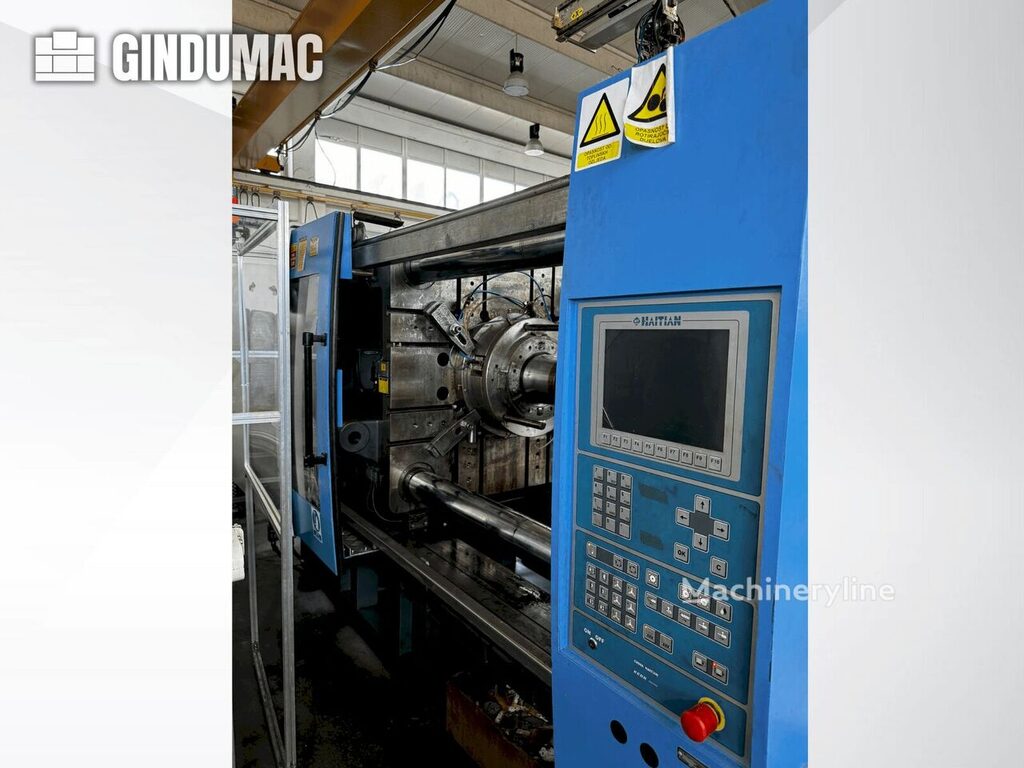

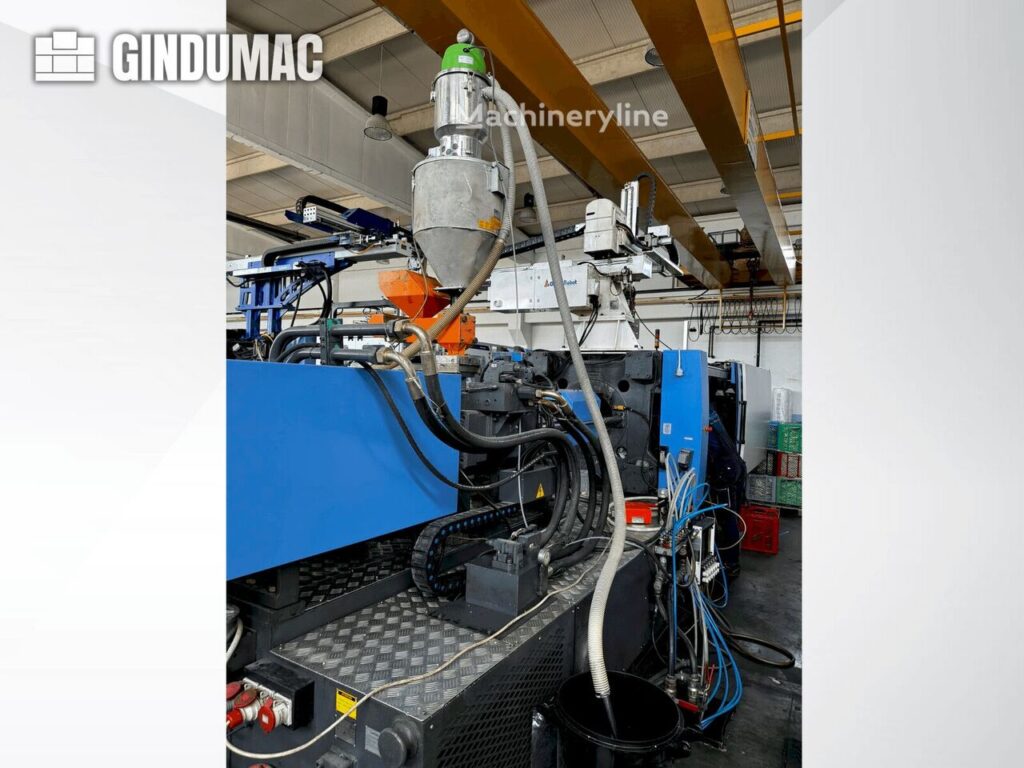

This Haitian MA-4700 is a used injection molding machine — sometimes referred to as a plastic injection press — manufactured in 2011 and currently located in Germany. Injection molding machines are used to produce plastic components by injecting molten material into a mold under high pressure, making them a cornerstone of plastics manufacturing across automotive, consumer goods, packaging, and industrial sectors. Haitian is one of the world's largest manufacturers of injection molding machinery, known for producing robust, high-tonnage machines that serve a broad range of industrial plastic processing applications.
This machine offers a maximum clamping force of 470 tons, providing the closure power needed to hold large or complex molds securely during the injection cycle. The mold thickness accommodation runs from a minimum of 320 mm to a maximum of 820 mm, giving operators flexibility across a wide variety of tooling sizes. The distance between tie bars is 1,560 mm, which defines the usable platen space and allows for correspondingly large mold footprints. The locating ring diameter is 200 mm, and the distance between guide rails is 840 × 830 mm.
On the injection side, this machine delivers a shot capacity of 1,860 grams, making it well suited to large-part or high-volume production runs. The maximum injection pressure is 1,850 bar, supporting the processing of a wide range of polymer materials, including those requiring higher fill pressures. The injection screw has a diameter of 75 mm.

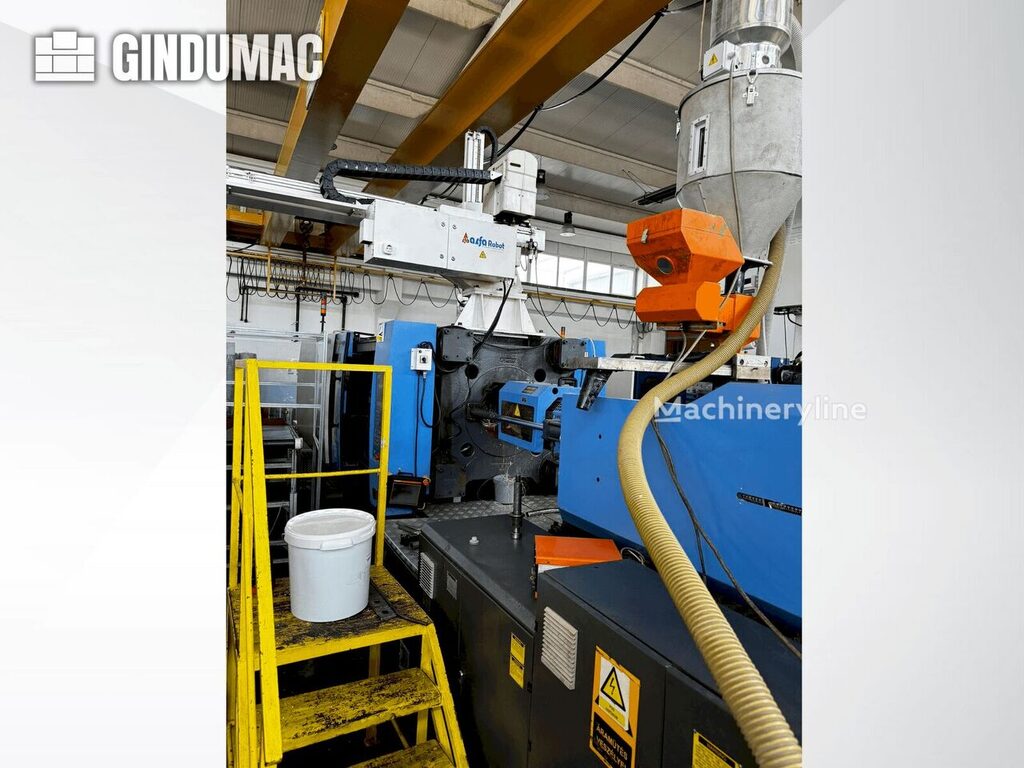

The machine is offered with several additional items included: new positioners, a new oil cooler, and an ALFA robot. It is noted as being without a conveyor. The condition is used, and the machine was manufactured in 2011.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
