2019 - Haitian ZE1900 Injection Moulding()
- Listing No
- 1153462
- Year
- 2019
- Manufacturer
- Haitian
- Model
- ZE1900
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

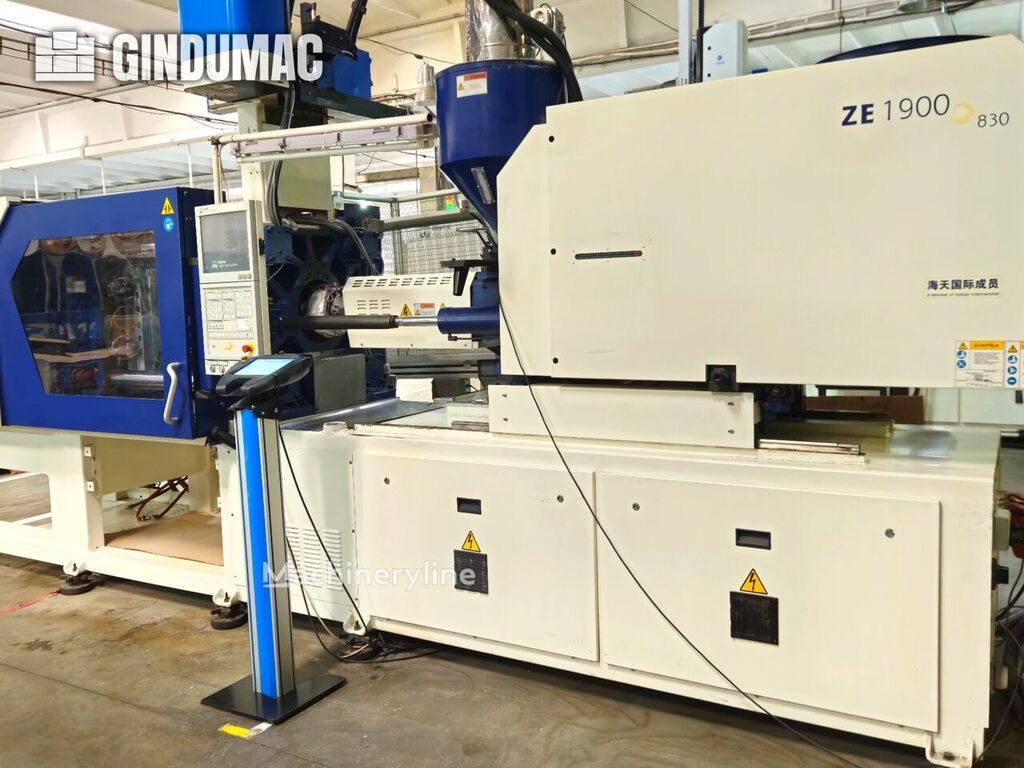

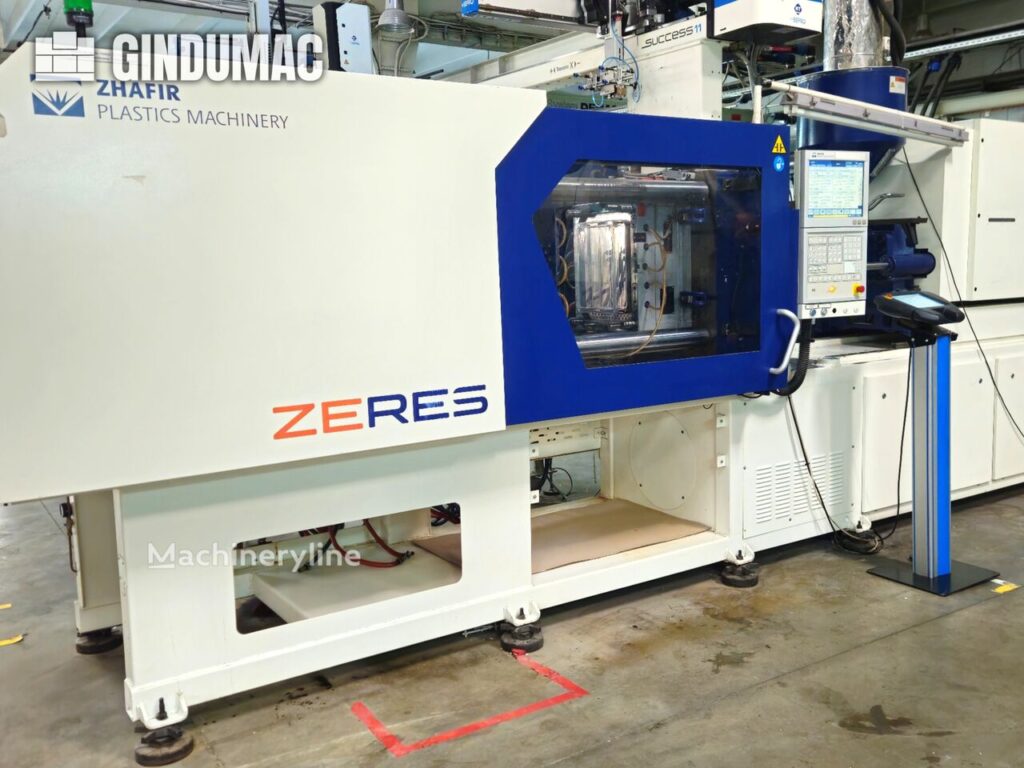

This HAITIAN ZE1900 was manufactured in 2019. It features a clamping force of 1900 kN, a maximum injection volume of 412 cm³, and a screw diameter of 50 mm. The machine includes a robot interface (Euromap 67) and is still in production with excellent condition. If you are looking to get high-quality injection molding capabilities, consider the HAITIAN ZE1900 machine we have for sale. Contact us for more information about this machine. Location: RO Screw Diameter: 50 mm Maximum injection volume: 412 cm³ Mold height (min/max): 200 / 550 mm Opening stroke: 1,020 mm Platen dimensions (W × L): 790 × 840 mm Tie-bar distance: 570 × 520 mm Heater power: 20.2 kW Electrical connection pins: 32 Injection nozzle radius (tip): R10 Centering ring diameter: 160 mm Condition: Excellent Status: In production Robot interface: Euromap 67 Additional equipment Robot (included)
About this machine
The Haitian ZE1900 is a used injection moulding machine — sometimes referred to as an injection moulding press — a type of industrial equipment used to manufacture plastic components by injecting molten material into a mould under high pressure. Haitian is one of the world's largest manufacturers of injection moulding machinery, supplying equipment to the plastics processing industry across automotive, packaging, consumer goods, and technical component sectors.
This machine was manufactured in 2019 and is currently in production at its location in Germany, described as being in excellent condition. It delivers a clamping force of 1,900 kN, which determines the force applied to keep the mould closed during injection. The maximum injection volume is 412 cm³, with a screw diameter of 50 mm responsible for melting and injecting the material.
The mould mounting area is defined by platen dimensions of 790 × 840 mm and a tie-bar distance of 570 × 520 mm, giving a clear indication of the mould sizes the machine can accommodate. Mould height is adjustable between a minimum of 200 mm and a maximum of 550 mm, and the opening stroke is 1,020 mm, which governs how far the mould opens for part ejection. The injection nozzle has a tip radius of R10, and the centering ring diameter is 160 mm, both relevant for nozzle and mould alignment.
On the electrical side, the machine draws a heater power of 20.2 kW and is fitted with a 32-pin electrical connection. It is equipped with a Euromap 67 robot interface, the standard communication protocol for connecting peripheral automation equipment, and a robot is included with the sale.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
