About this machine

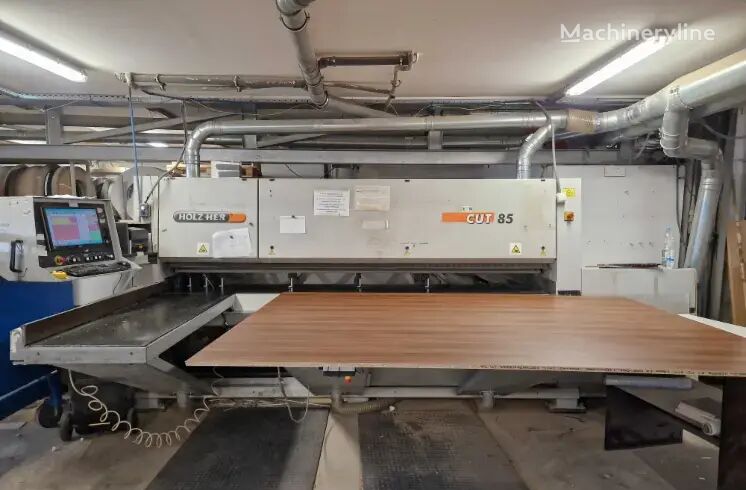

This Holz-Her CUT 85 is a used wood saw — also commonly known as a panel saw or beam saw — designed for the precise cross-cutting and ripping of solid wood panels and sheet materials. Holz-Her is a well-established German manufacturer with a long history of producing sliding table saws, edgebanders, and CNC machining centres for the woodworking and furniture-making industries. This example was manufactured in 2004 and is located in Slovakia, available immediately and described by the seller as being in very good condition.

The machine offers a generous cutting capacity of 3,200 × 3,200 mm, making it well suited to full-size panel processing. The cutting height reaches 85 mm, accommodating substantial material thickness in a single pass. Two saw blades are fitted: a main blade accepting a maximum diameter of 350 mm and a scoring blade accepting up to 180 mm, the latter ensuring clean, chip-free entry cuts on veneered or laminated panels.

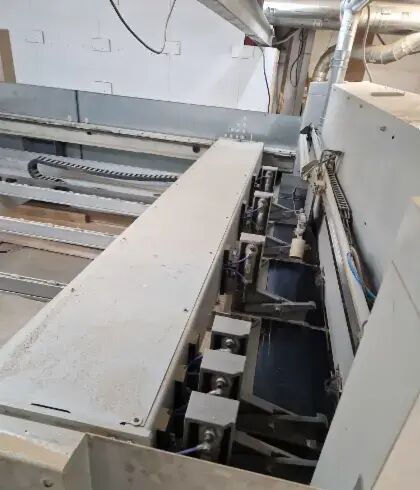

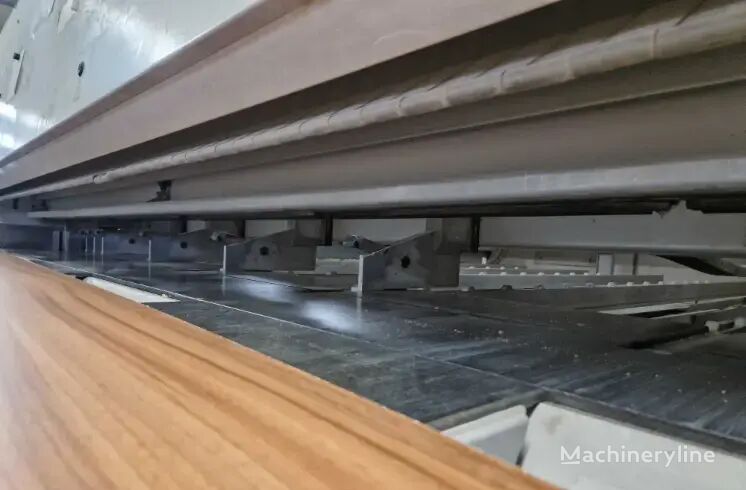

Power is provided by an 11 kW main motor and a 2.2 kW scoring motor, giving a combined installed power of 15 kW. The overall footprint of the machine is 5,636 mm wide by 6,520 mm deep, which should be accounted for in any installation planning. The workpiece handling system includes six grippers with pneumatic regulation, providing controlled and repeatable panel positioning throughout the cutting cycle. A side alignment unit with a top roller and pneumatic stroke aids accurate lateral registration of the material.

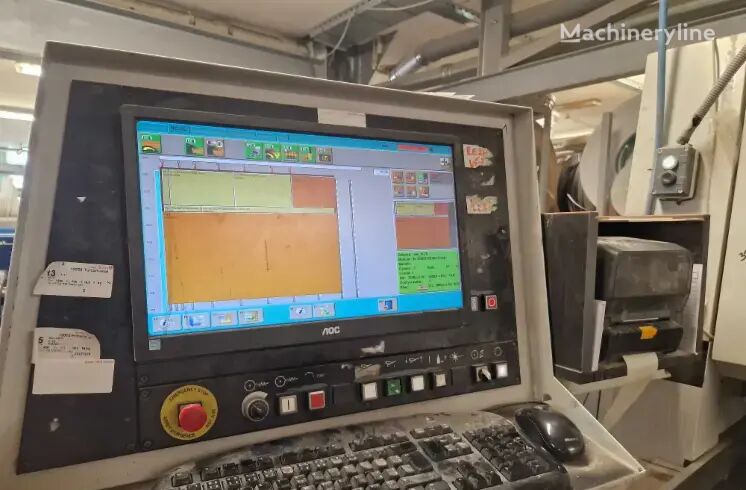

The machine is supplied with optimising software, which calculates efficient cutting patterns to minimise waste, and label printing functionality, enabling cut parts to be identified directly at the saw. Together these features make the machine suitable for production environments where throughput and material efficiency are priorities.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
