About this machine

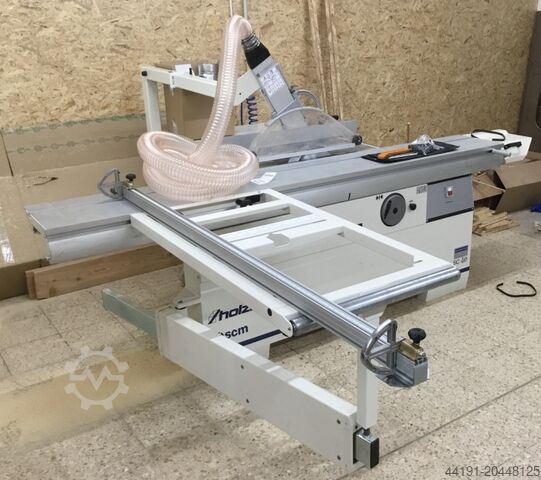

The Holzkraft SC 4E 27 is a wood saw — sometimes referred to as a panel saw or table saw — designed for precise ripping and crosscutting of timber and sheet materials. Holzkraft is an established European manufacturer of woodworking machinery, producing equipment for professional joiners, cabinet makers, and timber processing operations. This example was manufactured in 2022, commissioned in August 2024, and is described as being in as-new condition, offered from a location in Flörsheim, Germany.

The machine is built around a heavy-duty worktable of highly ribbed grey cast iron, combined with a welded steel base frame, a combination chosen to deliver high torsional rigidity and vibration-free cutting. The worktable measures 840 mm in length and 560 mm in width, set at a working height of 900 mm. The saw unit itself is also constructed from grey cast iron and features permanently precise dual pivot segment guidance with zero-point tilt, backed by a six-year Holzkraft warranty on pivot segment wear.

The sliding table is made from anodised aluminium and runs on a ball contact system on hardened guides, with a manufacturer's ten-year warranty on guideway wear. It measures 2,600 mm in length and 360 mm in width, with a height of 142 mm. The ripping length extends to 2,660 mm, while the cutting width with the parallel fence is 900 mm. For crosscutting, the maximum width to the left of the saw blade reaches an impressive 3,200 mm, making the machine well suited to handling large panels.

The saw unit accepts a 315 mm diameter blade, independent of the scoring unit, and runs at 3,800 rpm, driven by a 5.5 kW three-phase motor. Maximum cutting height at 90° is 100 mm, reducing to 70 mm when the blade is tilted to 45°, with both figures applying independently of the scoring unit. The blade tilting range runs from 90° to 45°, with the tilt angle displayed on a scale at the unit.

Standard equipment includes an angle-adjustable aluminium telescopic fence with two professional folding stops, a folding parallel fence with quick-release clamping and fine adjustment, a table extension, table widening, and an eccentric clamp. A large outrigger table fitted with a roller is included to assist with panel handling. The machine is manufactured in Italy. Prospective buyers should note that any extraction hose visible in the listing photographs is not included in the scope of delivery.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
