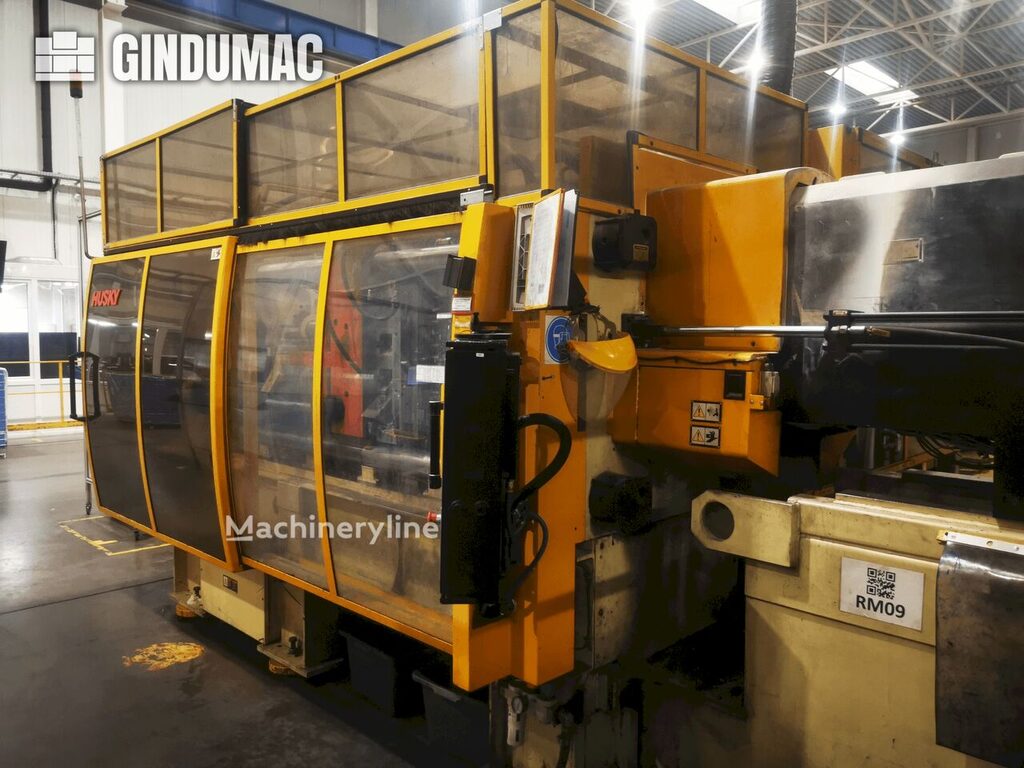

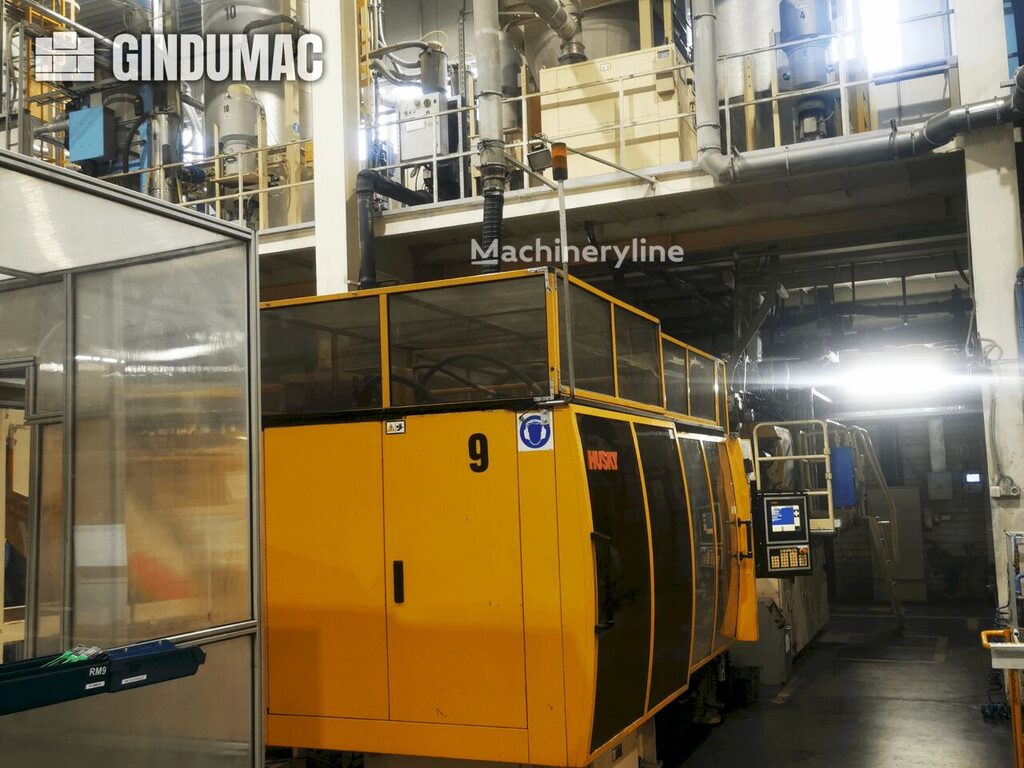

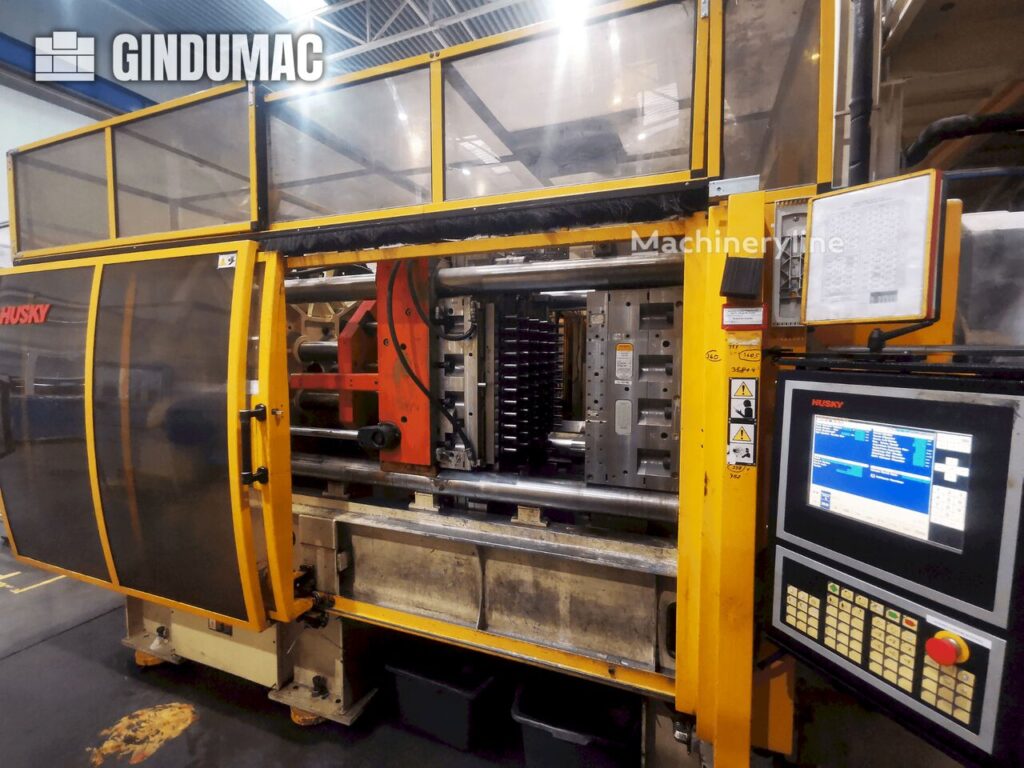

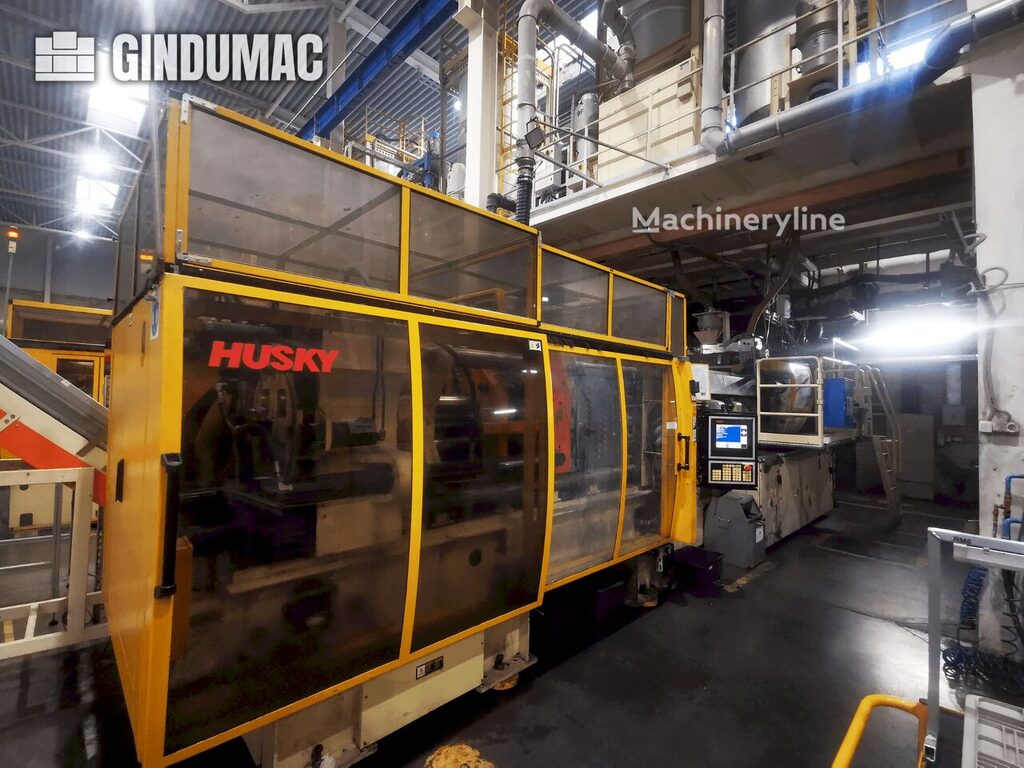

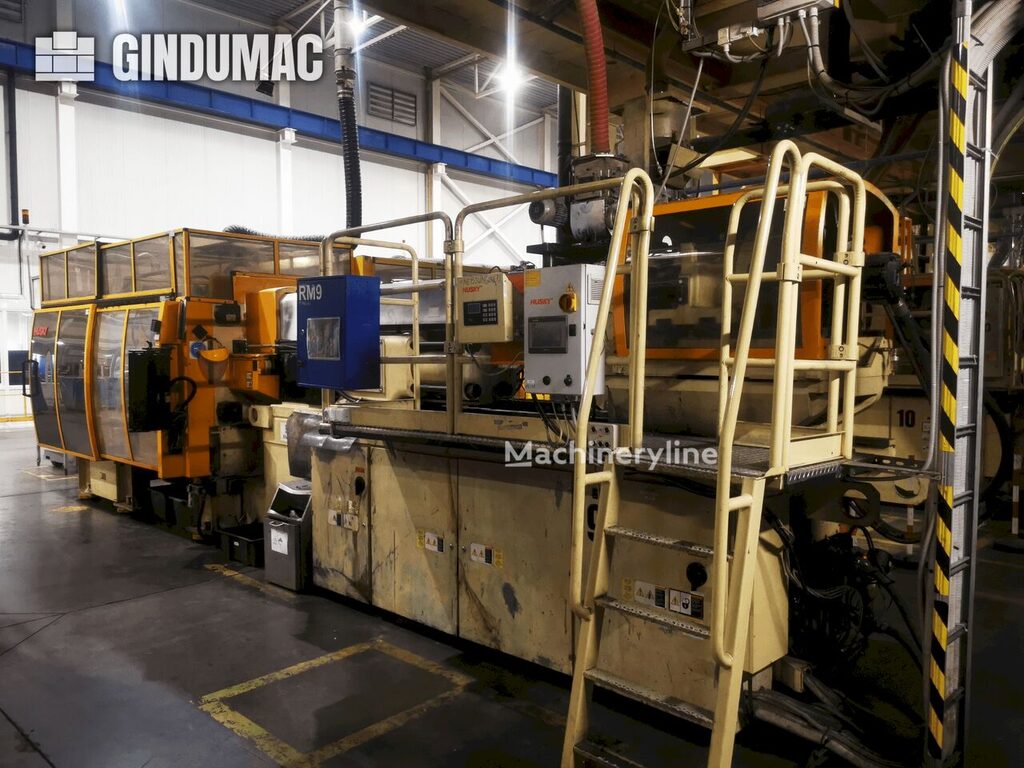

2002 - Husky GL 300PET P100 Injection Moulding()
- Listing No
- 1151664
- Year
- 2002
- Manufacturer
- Husky
- Model
- GL 300PET P100
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Husky GL 300PET P100/110 E12O was manufactured in 2002. It features a distance between tie bars of 720 × 720 mm, a maximum mold stroke of 700 mm, and a screw diameter of 120 mm. The machine offers a screw L/D ratio of 25.0:1 and an injection pressure of 1172 bar. If you are looking to get high quality molding capabilities consider the Husky GL 300PET P100/110 E12O machine we have for sale. Contact us for more information. Location: LT Screw Diameter: 120 mm Distance between tie bars: 720 × 720 mm Maximum mold stroke: 700 mm Mold shut height: 450–900 mm Maximum hydraulic ejector stroke: 225 mm Screw stroke: 400 mm Screw L/D ratio: 25:1 Maximum screw speed: 60 rpm Shooting pot stroke: 340 mm Shooting pot diameter: 110 mm Melt channel diameter: 32 mm
About this machine
This Husky GL 300PET P100 Injection Moulding is a used injection molding machine — sometimes referred to as an injection moulding press — manufactured in 2002 and currently located in Germany. Injection molding machines are used to produce plastic parts and components by injecting molten material into a mold under high pressure, and are central to high-volume plastic parts manufacturing across packaging, automotive, consumer goods, and industrial sectors. Husky is a well-established manufacturer specialising in injection molding systems, with a strong reputation in the plastics processing industry, particularly in PET preform production and hot runner technology.
The machine features a tie bar distance of 720 × 720 mm, providing the working envelope within which molds are mounted and clamped. The maximum mold stroke is 700 mm, and the mold shut height range runs from 450 mm to 900 mm, indicating a broad compatibility with molds of varying closed heights. The maximum hydraulic ejector stroke is 225 mm, which governs how far finished parts can be pushed clear of the mold cavity at the end of each cycle.
On the injection side, the screw diameter is 120 mm, paired with a screw stroke of 400 mm and an L/D ratio of 25:1 — a measure of the screw's length relative to its diameter that is associated with thorough material plasticisation and consistent melt preparation. Maximum injection pressure is 1,172 bar, and maximum screw speed is 60 rpm. The shooting pot diameter is 110 mm with a shooting pot stroke of 340 mm, pointing to a two-stage injection configuration in which material is first plasticised by the screw and then transferred to the shooting pot for precise, high-speed injection. The melt channel diameter is 32 mm, which governs flow between the shooting pot and the mold.
This machine was built in 2002 and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
