2013 - Joema 300 X 2600 MM Wood Saw()
- Listing No
- 923263
- Year
- 2013
- Manufacturer
- Joema
- Model
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
-300 mm x 2600 mm max. timber cross-section -circular saw blade D 900 mm Co Upocbq Nwengn Aspt determination of the value 8.000 € new flat motor 18.5 kW / 1450 r/min with flange 4.300 € new positioning gearmotor 1.700 € new circular saw blade AKE D 900 mm, Z 120, 10% discount 8.500 € new electrical control cabinet 22.500 € without steel construction and without assembly -the special saw was only used for about 5 hours after the overhaul >>Made in West Germany 100% massive steel construction with movable portal and mounted saw unit from above, circular saw motor 18.5 kW, 1450 rpm with electronic brake travel drive 2.5 kW with frequency converter, travel speed infinitely variable saw blade max. D 900 mm, cutting height max. approx. 300 mm if the saw unit is in the basic position, the circular saw blade is in a lower protective hood and completely covered. machine overhauled without additional safety devices >> The working width can also be increased by conversion Request more information Request more information Already requested
About this machine
This Joema 300 X 2600 MM Wood Saw is a heavy-duty industrial wood saw — sometimes referred to as a log saw or timber saw — designed to make large cross-cuts through substantial sections of timber. Machines of this type are used in sawmilling, timber processing, and woodworking operations where clean, accurate cuts through thick or wide wood sections are required.

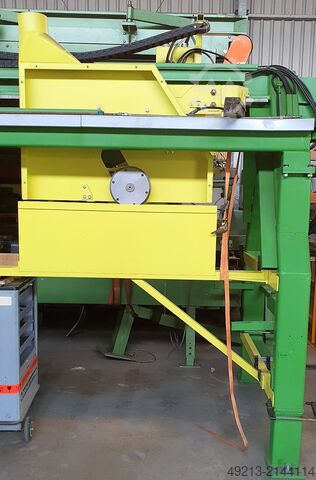

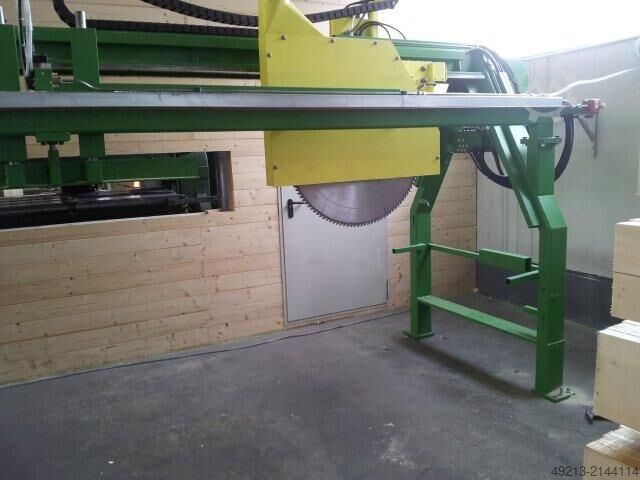

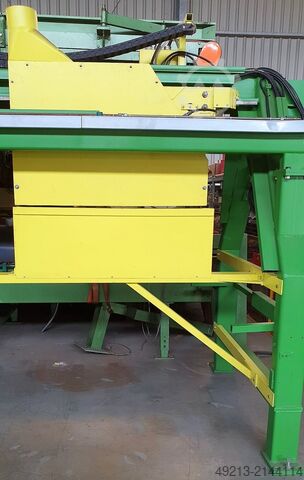

The saw is built around a massive steel construction featuring a movable portal with the saw unit mounted from above. The maximum timber cross-section it can accommodate is 300 mm in height by 2,600 mm in width, making it suited to large-format cutting tasks. The circular saw blade has a maximum diameter of 900 mm, which delivers the cutting height of approximately 300 mm. When the saw unit is in its basic position, the circular saw blade retracts into a lower protective hood and is completely covered, providing a safeguard during idle or transit positions.

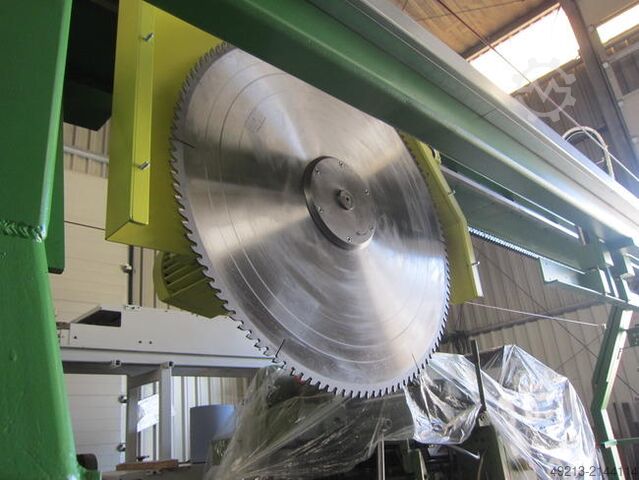

The main circular saw motor produces 18.5 kW at 1,450 rpm and is equipped with an electronic brake. The travel drive is powered by a 2.5 kW motor fitted with a frequency converter, allowing the portal travel speed to be set infinitely variable — meaning the feed rate can be fine-tuned continuously rather than being locked to fixed steps. The saw blade fitted is an AKE circular saw blade, 900 mm in diameter with 120 teeth.
The machine was manufactured in West Germany and was comprehensively overhauled prior to listing. As part of that overhaul, key components were renewed: a flat motor of 18.5 kW / 1,450 rpm with flange, a positioning gearmotor, the AKE D 900 mm circular saw blade, and a new electrical control cabinet were all replaced. Following the overhaul, the machine was operated for approximately five hours only. It is noted that the working width can be increased by conversion. The machine is located in Germany and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
