About this machine

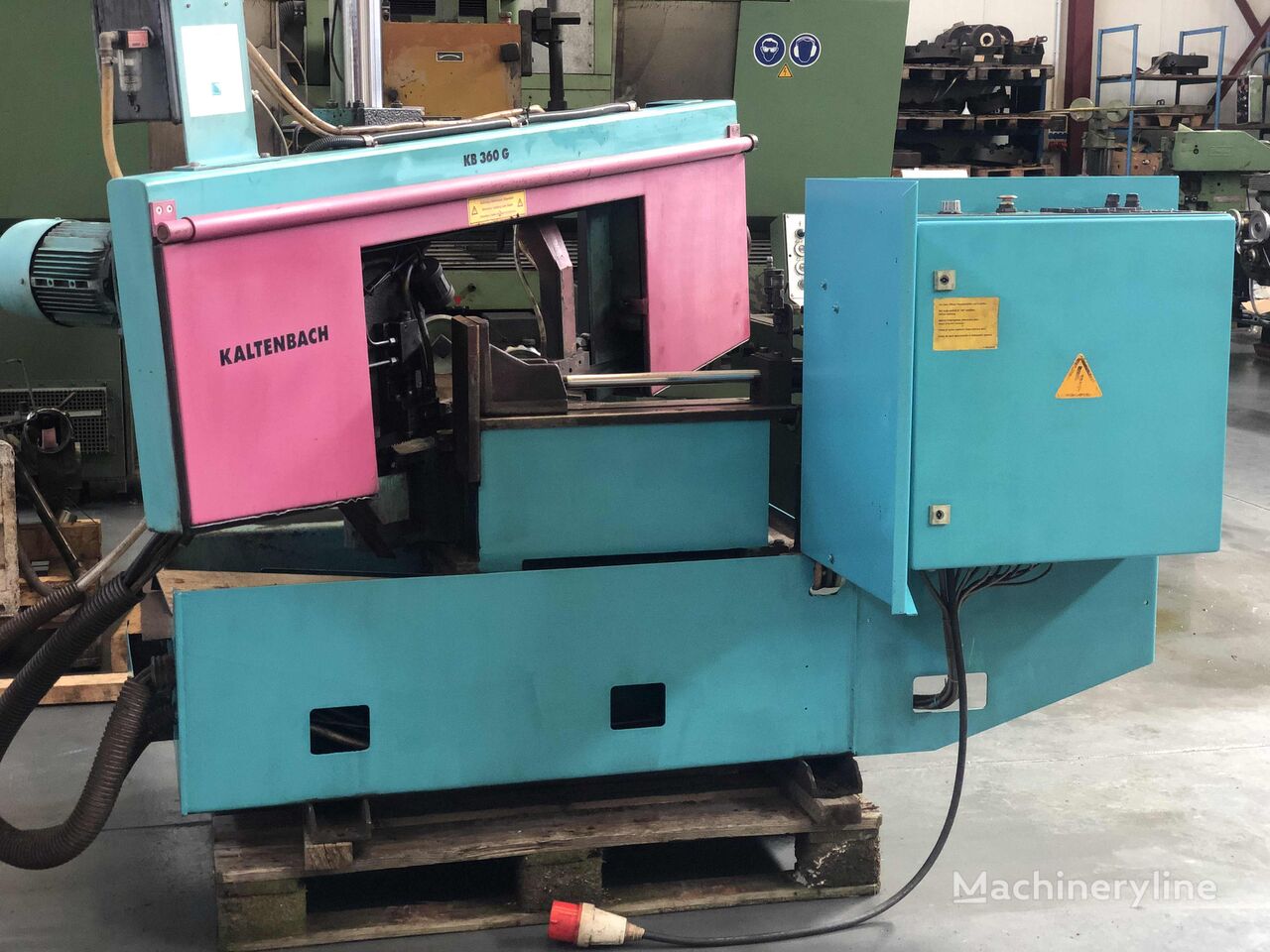

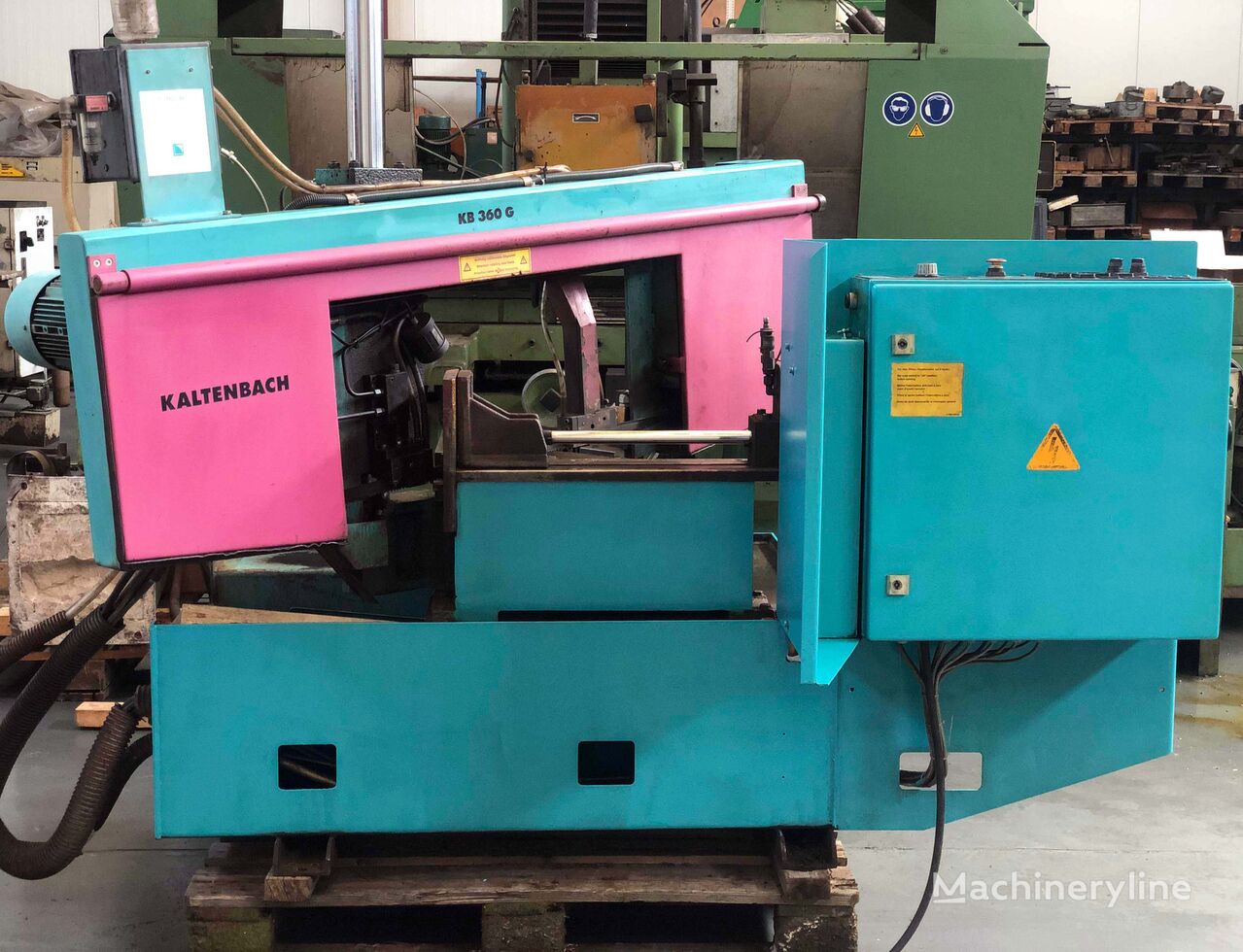

The Kaltenbach KB 360 G is a used horizontal band saw — sometimes referred to as a metal cutting band saw — built in Germany in 2002 and currently located in the Netherlands. Horizontal band saws are designed to cut bar stock, tubes, profiles, and solid sections to length by drawing a continuous blade through the material in a controlled, horizontal stroke. Kaltenbach is a well-established German manufacturer specialising in sawing and drilling systems for the structural steel, metal service centre, and fabrication industries, and is widely recognised for producing robust, production-oriented cutting equipment.

This machine is configured for mitre cutting and operates in a half-automatic mode, meaning the cutting cycle runs automatically while material handling remains partly manual. It is equipped with a material roller conveyor of approximately eight metres in length, which supports and feeds incoming stock, and machine manuals are included with the sale.

The saw offers cutting capacity at three mitre angles. At 90 degrees, it handles round stock up to 303 mm in diameter and rectangular sections up to 360 mm wide by 305 mm high. At 45 degrees, the round capacity reduces to 265 mm diameter, with a rectangular capacity of 265 mm by 300 mm. At 30 degrees, the machine cuts round material up to 175 mm in diameter and rectangular sections up to 175 mm by 300 mm.

The blade speed is variable between 20 and 90 metres per minute, allowing the operator to select an appropriate cutting speed for different materials. Two compatible saw blade dimensions are specified: 3,830 × 25 × 0.9 mm and 3,850 × 27 × 0.9 mm. The working height at the vice is 700 mm. The drive motor is rated at 1.1 kW. The machine measures 2,200 mm long by 1,250 mm wide by 1,650 mm high and has a shipping weight of 780 kg.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
