Kiheung X 1200 – Y 600 – Z 550 MM CNC Milling Machine
()- Listing No
- 956764
- Year
- Manufacturer
- Kiheung
- Model
- X 1200 - Y 600 - Z 550 MM CNC
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Kiheung Point U3 X: 1200 - Y: 600 - Z: 550 mm CNC Cross travel Y-axe: 600 mm Dimensions clamping space- table: 1700 x 470 mm Power on spindle: 7,5 kW Admission in millinghead (ISO): ISO 50 Max speedrange: 40 > 1620 rpm Control: Heidenhain tnc 124
About this machine

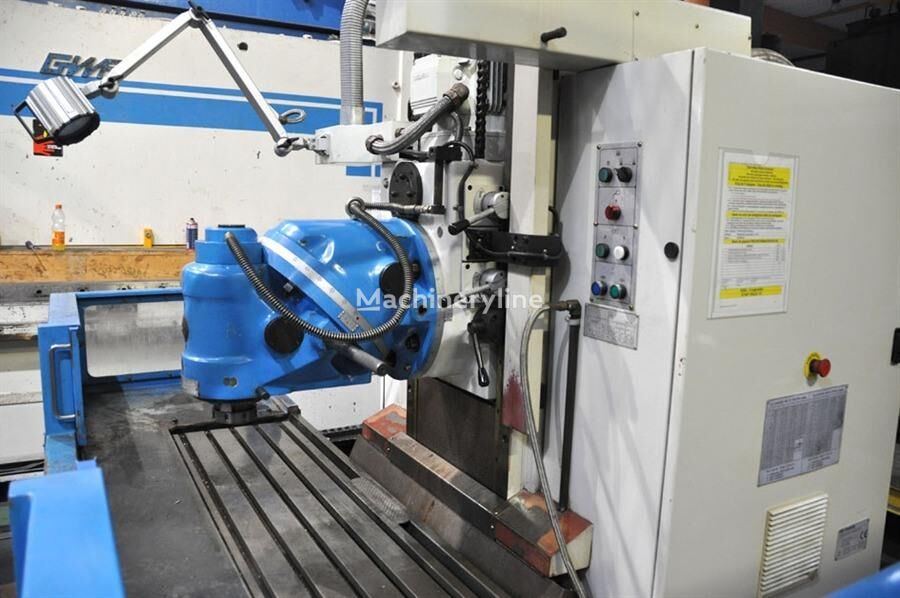

This used Kiheung Point U3 is a CNC milling machine — sometimes referred to as a machining centre — designed for precision metal cutting operations including face milling, slot milling, drilling, and contouring. Kiheung is a South Korean machine tool manufacturer with a long-standing presence in the production of CNC milling and boring machines, serving industries such as general engineering, toolmaking, and precision component manufacturing.

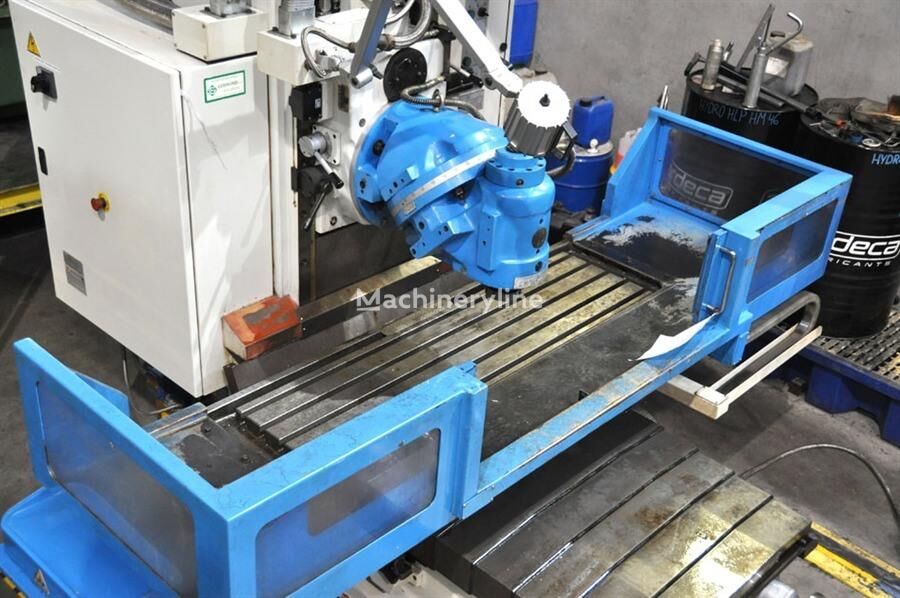

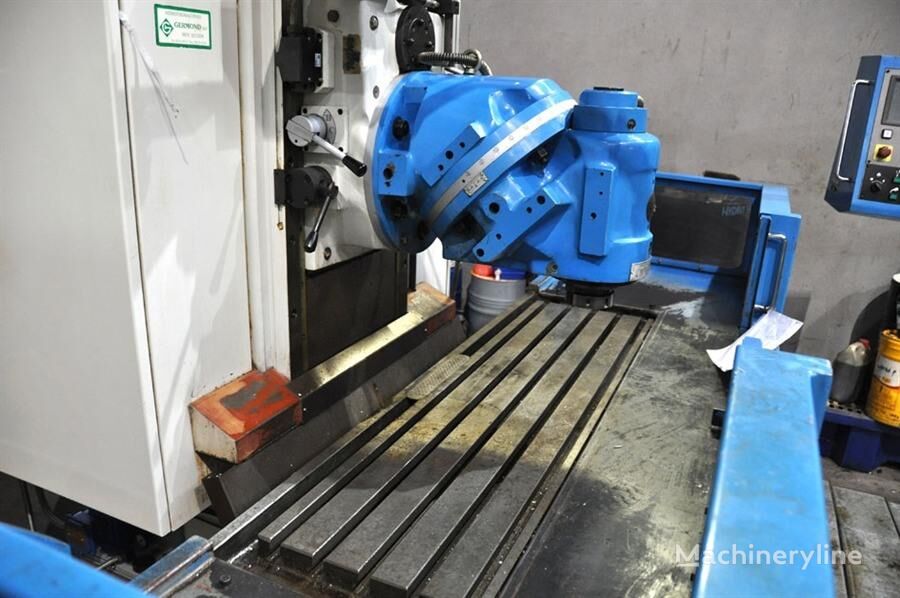

The machine offers a working envelope of 1,200 mm on the X-axis, 600 mm on the Y-axis (cross travel), and 550 mm on the Z-axis, providing a substantial cutting volume suited to medium and larger workpieces. The clamping table measures 1,700 × 470 mm, giving ample surface area for fixturing. The milling head accepts ISO 50 toolholders, a heavy-duty taper standard commonly found on larger, more rigid milling machines and well suited to demanding cutting applications.

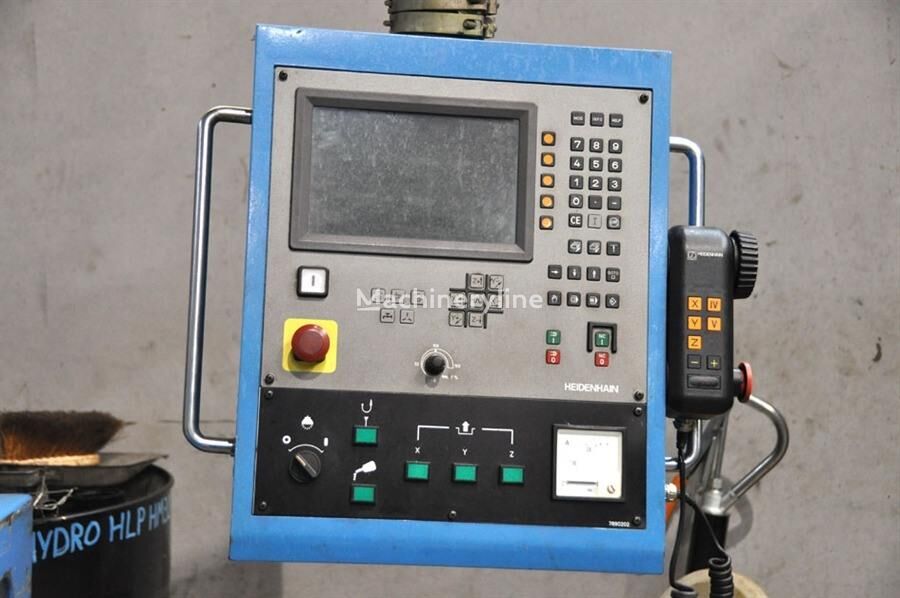

Spindle power is rated at 7.5 kW, and the speed range runs from 40 to 1,620 rpm, covering both slow, high-torque operations on tough materials and faster finishing passes. Control is provided by a Heidenhain TNC 124, a conversational CNC controller that allows operators to programme machining cycles directly at the machine without requiring external CAM software, which is a practical advantage in job-shop and toolroom environments.
The machine is offered in used condition and is located in Belgium.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
