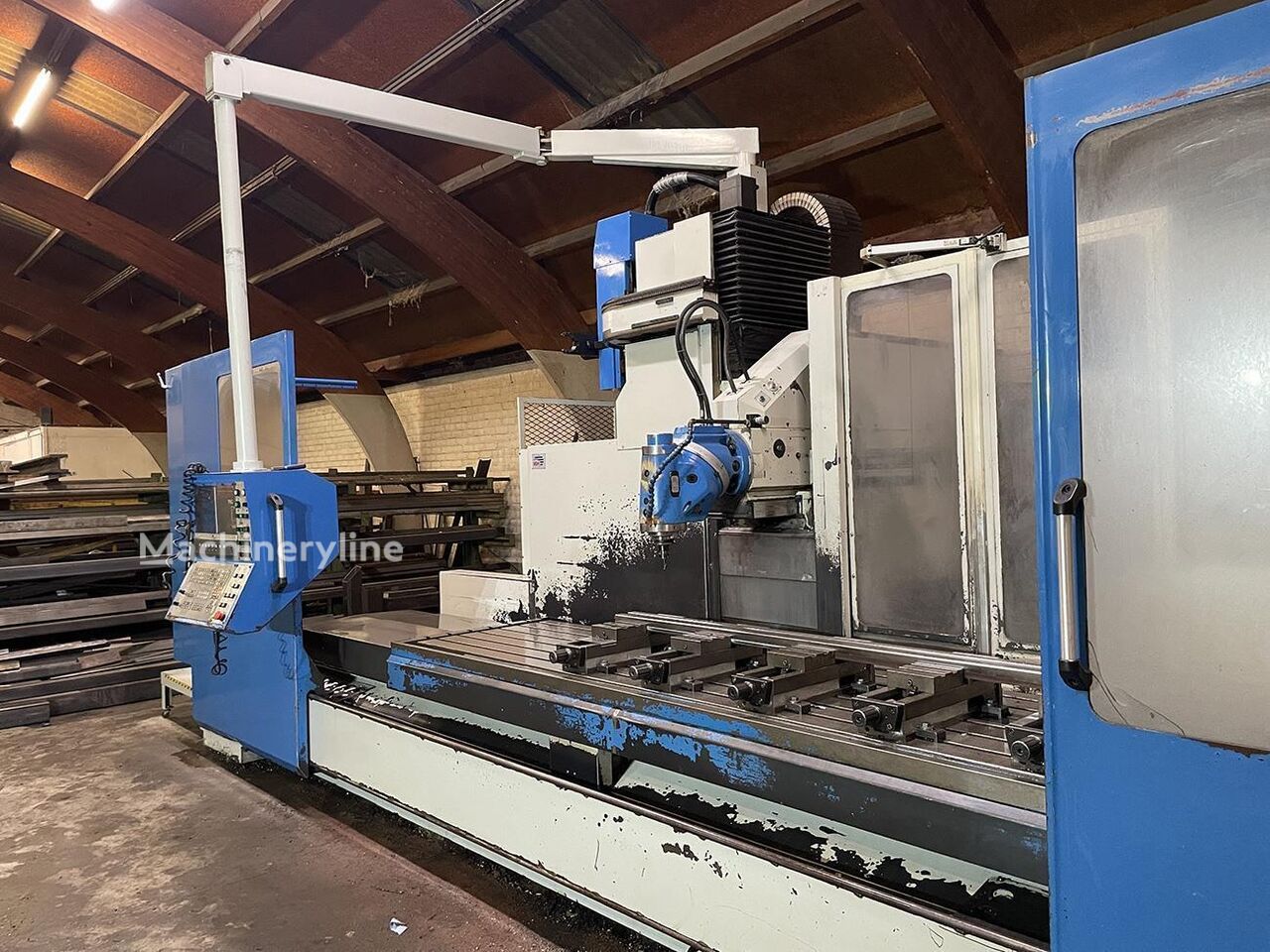

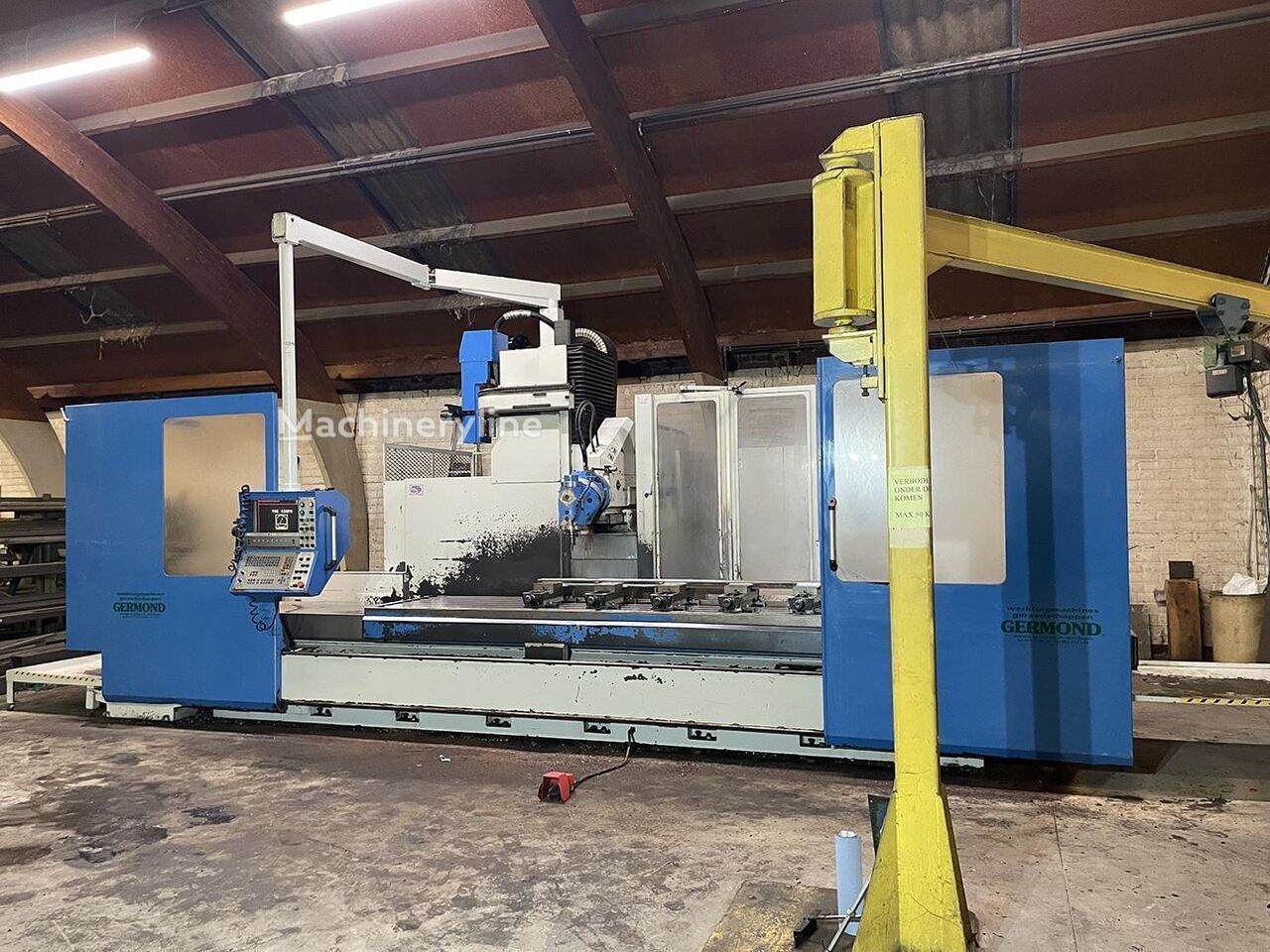

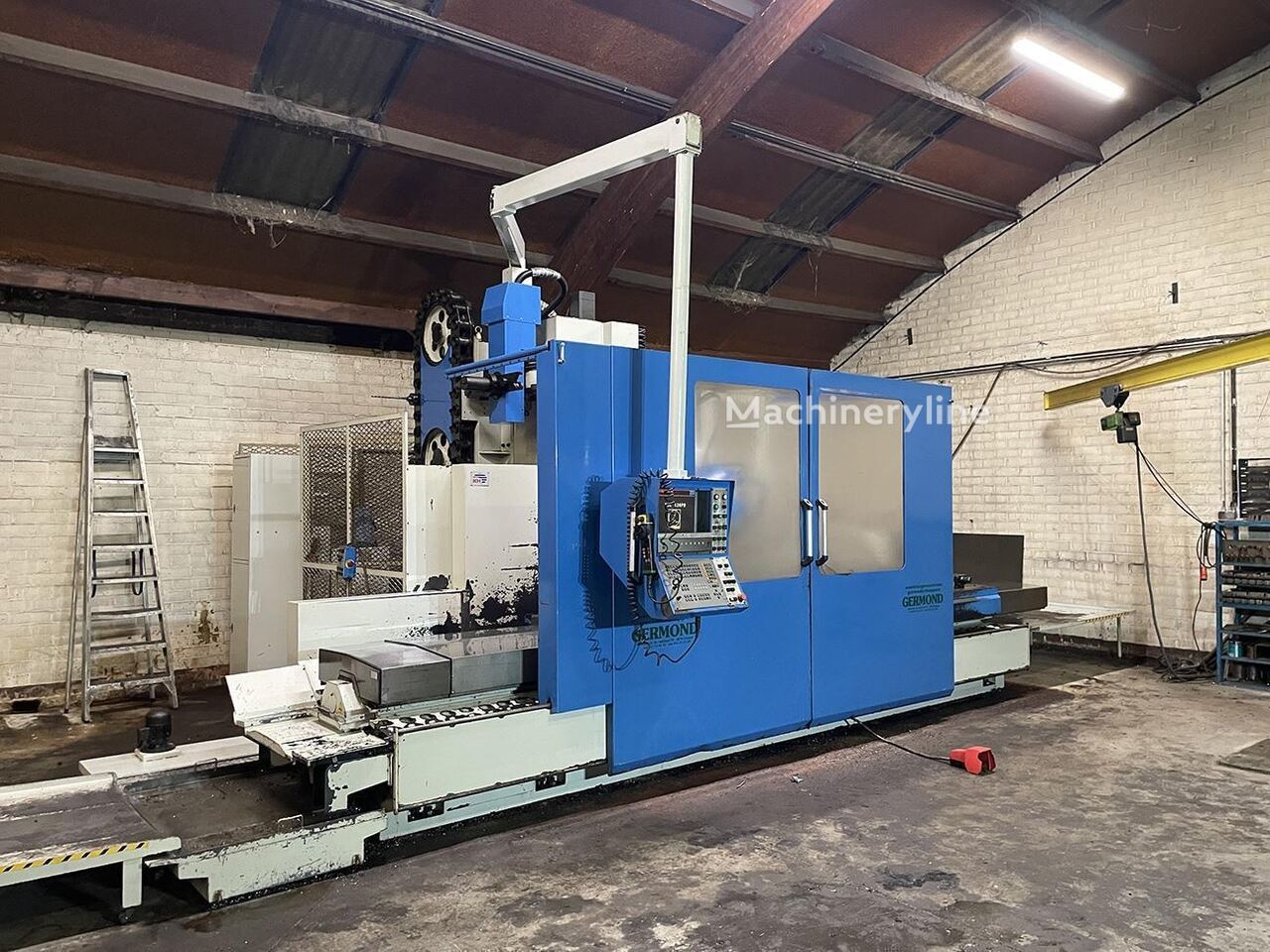

Kiheung X 3600 – Y 1000 – Z 1600 MM CNC Milling Machine
()- Listing No
- 956638
- Year
- Manufacturer
- Kiheung
- Model
- X 3600 - Y 1000 - Z 1600
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
full cnc indexing milling head (2x 2,5°) toolchanger with 30 positions cooling through spindle Cross travel Y-axe: 1000 mm Dimensions clamping space- table: 4100 x 900 mm Power on spindle: 22/29 kW Admission in millinghead (ISO): BT 50 Max speedrange: 1 > 2250 rpm Control: Heidenhain TNC 426
About this machine
This Kiheung X 3600 - Y 1000 - Z 1600 MM is a used CNC milling machine, sometimes referred to as a machining centre, offered for sale from Belgium. CNC milling machines are used across precision engineering and metalworking industries to remove material from a workpiece through controlled multi-axis cutting, producing complex parts and surfaces to tight tolerances. Kiheung is a South Korean machine tool manufacturer with a reputation for producing heavy-duty, large-format milling and boring machines suited to demanding industrial applications.

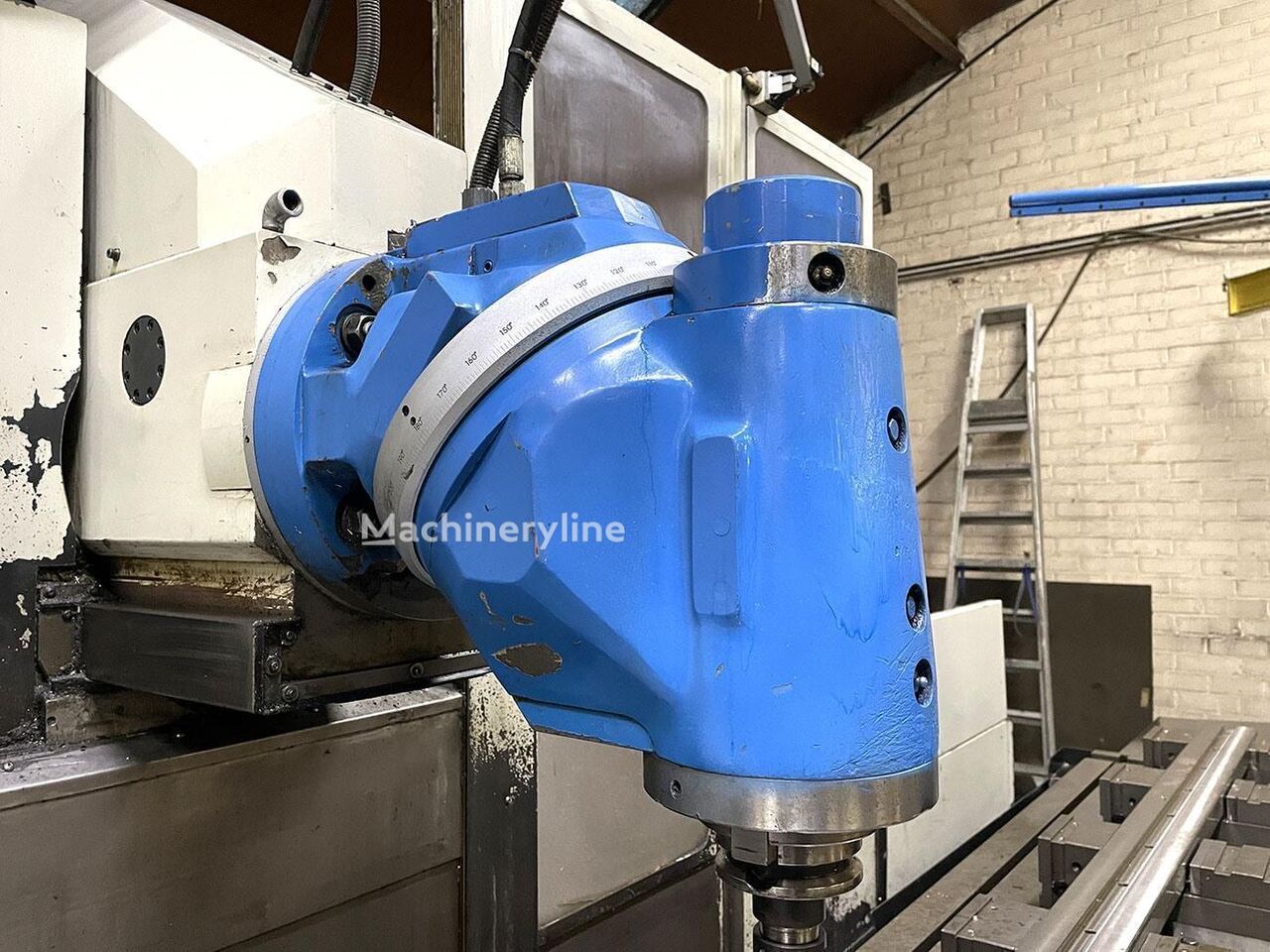

The machine is equipped with a fully CNC indexing milling head capable of indexing in 2 × 2.5° increments, giving the operator precise angular positioning for complex machining operations. The spindle accepts BT 50 tooling via an ISO-standard interface, a robust taper size well suited to heavy cutting, and cooling is delivered directly through the spindle for effective chip removal and thermal control during operation. The automatic tool changer holds 30 tools, allowing extended unmanned machining sequences with minimal manual intervention.
In terms of work envelope, the cross travel on the Y-axis is 1,000 mm, and the clamping table measures 4,100 × 900 mm, providing a generous working surface for large or multiple workpieces. Spindle power is rated at 22/29 kW, reflecting a two-range or dual-mode drive arrangement capable of handling both heavy roughing and finer finishing passes. The spindle speed range runs from 1 to 2,250 rpm, covering a broad spectrum of cutting applications across different materials and tool diameters.
Control is provided by a Heidenhain TNC 426, a well-regarded conversational CNC control unit widely used in precision workshop environments and recognised for its straightforward programming interface and reliable performance in demanding production settings.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
