2018 - Macmazza TOP SAW Wood Saw()
- Listing No
- 970725
- Year
- 2018
- Manufacturer
- Macmazza
- Model
- TOP SAW
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This MACMAZZA Top Saw was manufactured in 2018. Ideal for precise panel cutting, this panel saw represents a reliable choice for your woodworking needs. Contact us for more information. Additional equipment Main Cutting Disc Motor Power (kW): Max 23 kW Number of Pneumatic Clamps on Pusher: Max. 9 Patented Rotating Support Table Machine Benefits Technical Machine Benefits Maximum total length 7920 to 8970 mm (with loading platform), maximum total width 5860 mm (+6360 mm postforming), maximum total height 1760 mm Weight (kg): 6000-9000 kg (optional platform) Power supply voltage (v): 400 / frequency (hz): 50 / maximum absorbed power (kw): 17. 9 / 25. 2 Cutting length (mm): 4300 / main cutting disc motor power (kw): 13 kw (15 kw on request) / main cutting disc rotation speed (rpm): 4300 / main cutting disc diameter (mm): max-400 / scoring disc rotation speed (rpm): 5800 / scoring disc diameter (mm): 160 Disc carriage forward speed (m/min): 3 - 70 / disc carriage return speed (m/min): 60 - 130 / disc carriage motor power (kw): 1. 5 kw Pusher-positioner speed (m/min): 0. 1 - 25 / pusher return speed (m/min): 40 - 80 / pusher-positioner motor power (kw): 2 / number of pneumatic clamps on pusher: 6 Phenolic resin support tables: 1 (2200x600), 2 (1700x600) Operating pressure (bar): 6 - 7 / compressed air consumption (nl/h): 4000 Number of extraction ports: 2 (d. 120mm), 2 (d. 100mm) / required dust extraction flow (m3/h): 4000 / dust extraction system depression (pascal): 1500 Acoustic pressure level (db): application type: Sawing (Wood) Location: Spain machine type: Panel Saw
About this machine

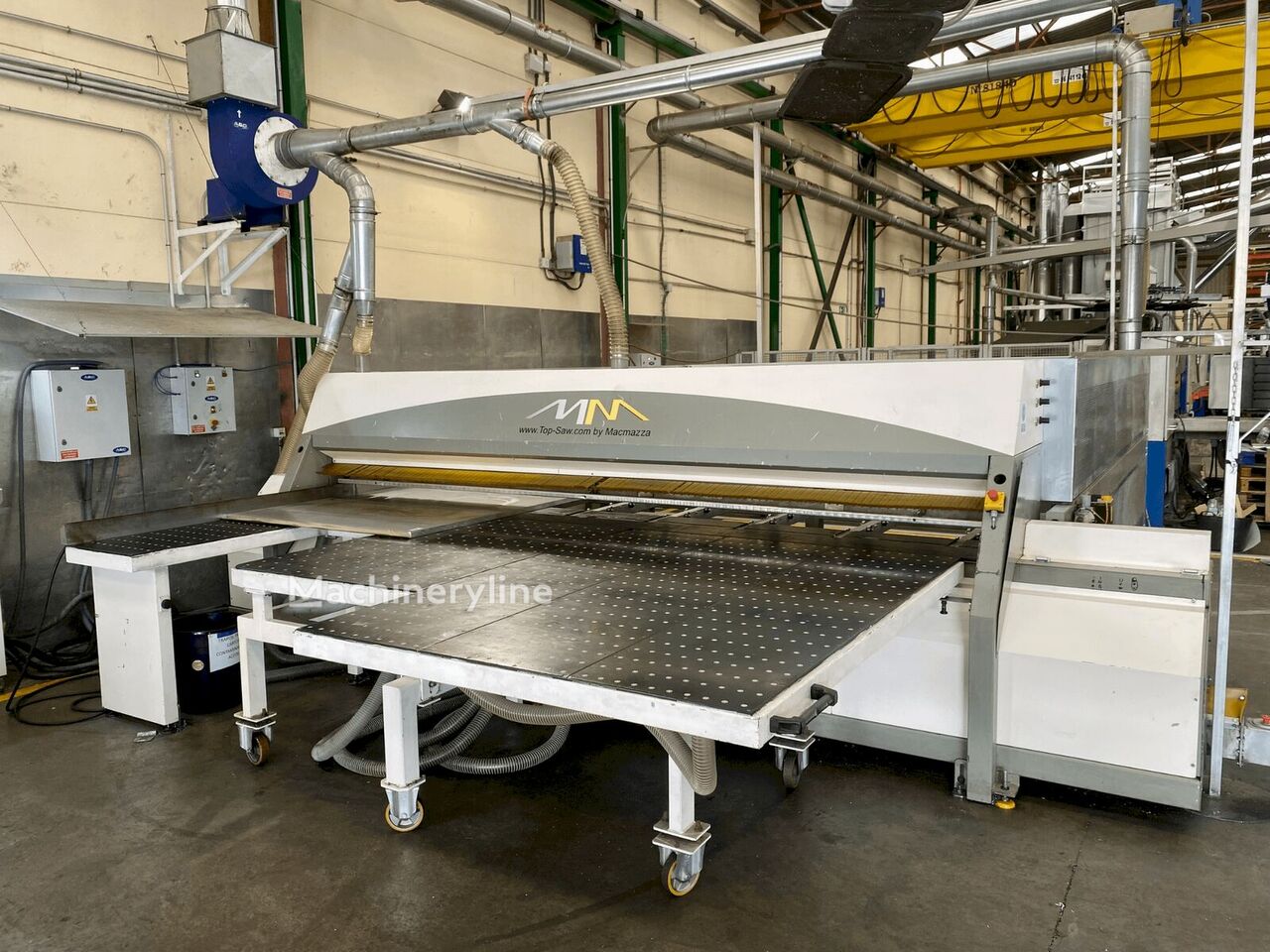

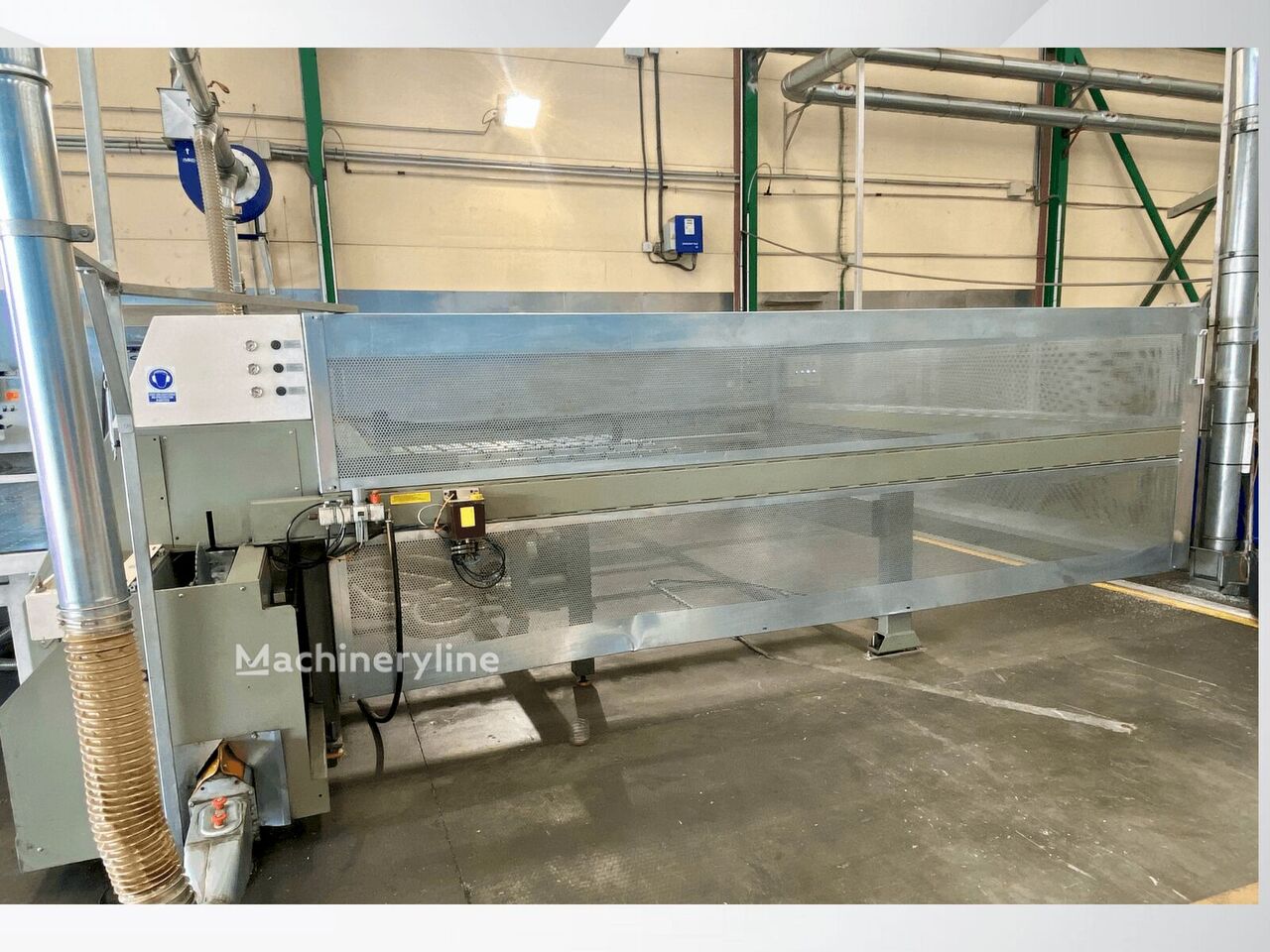

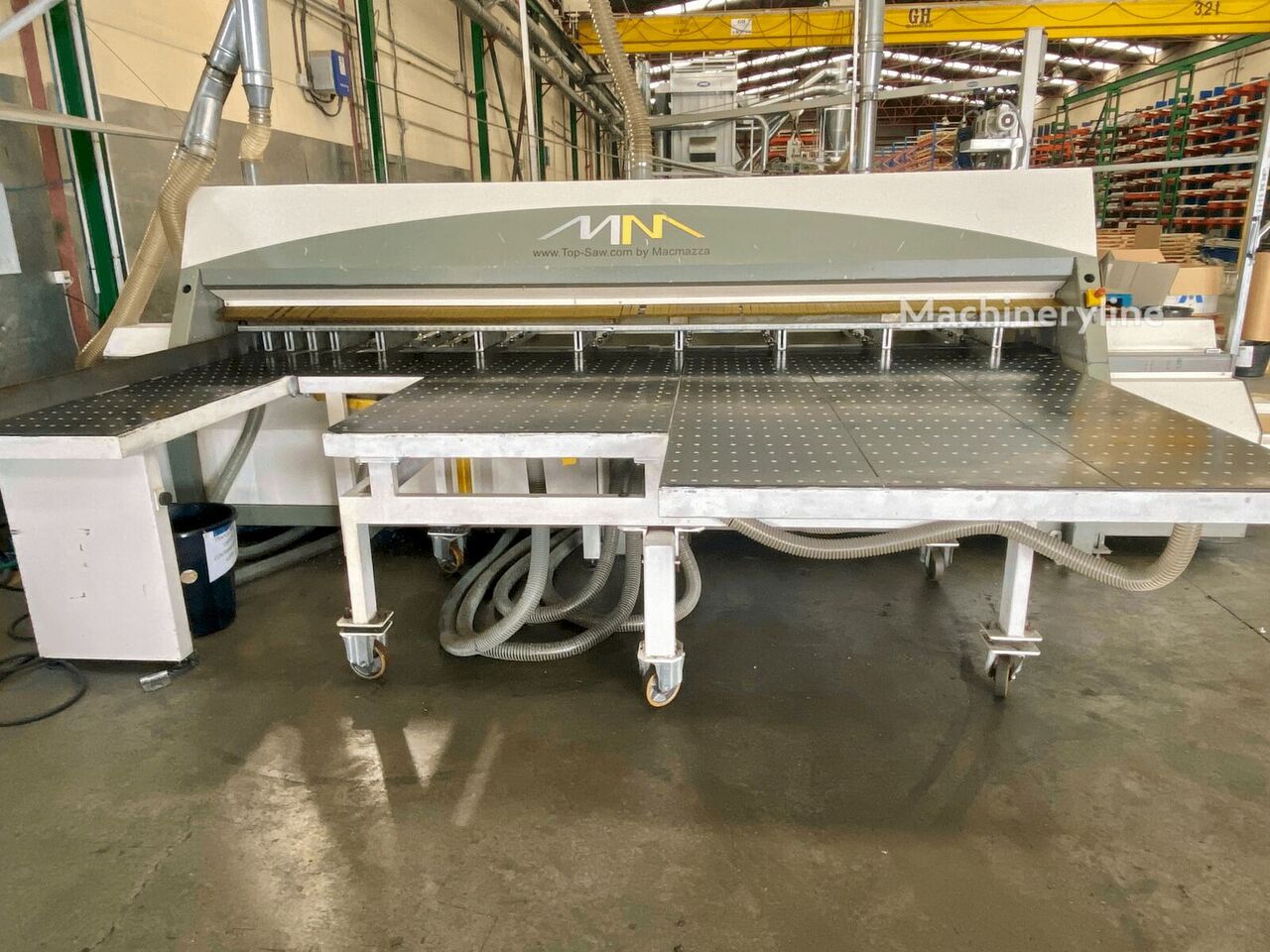

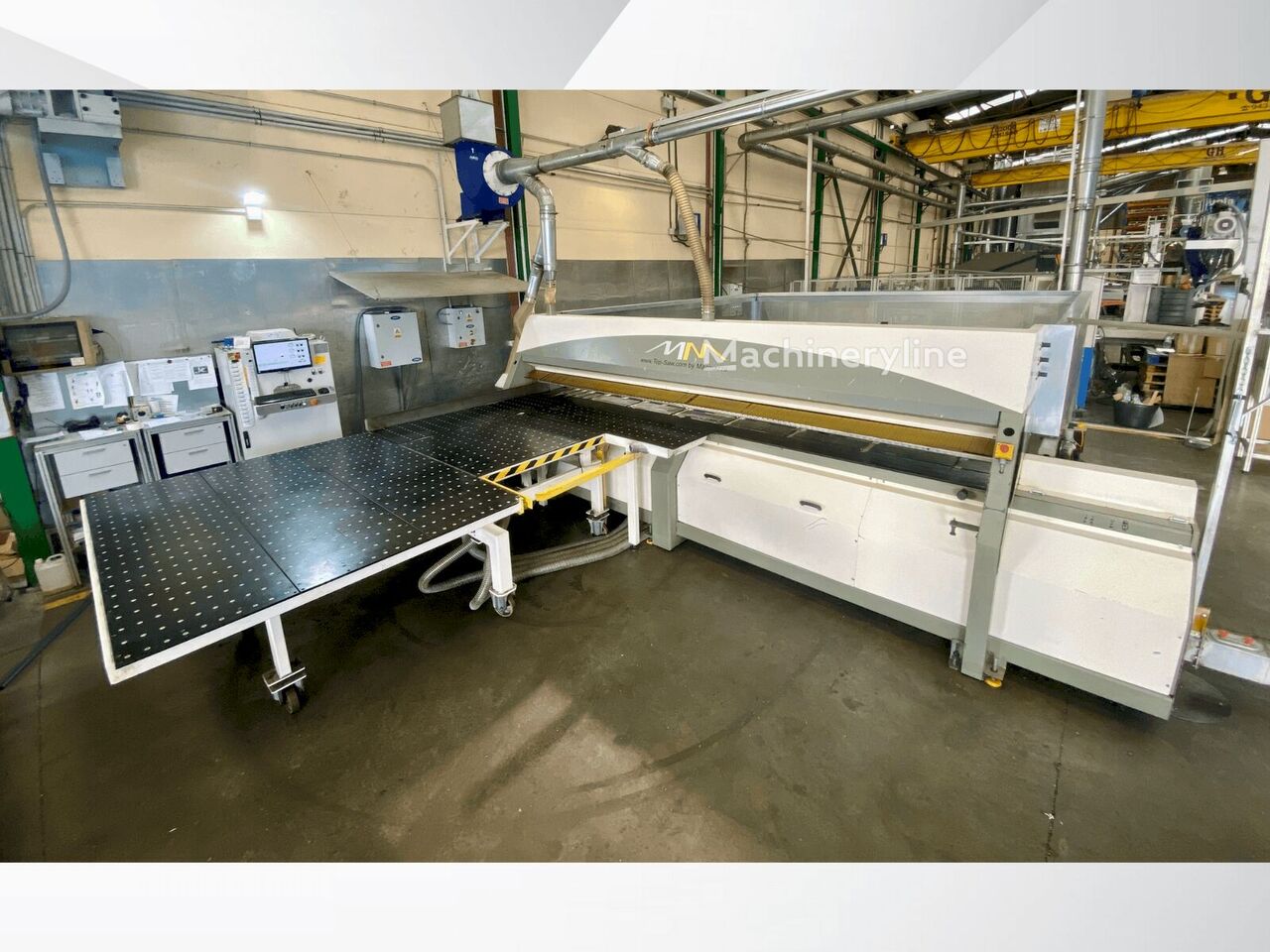

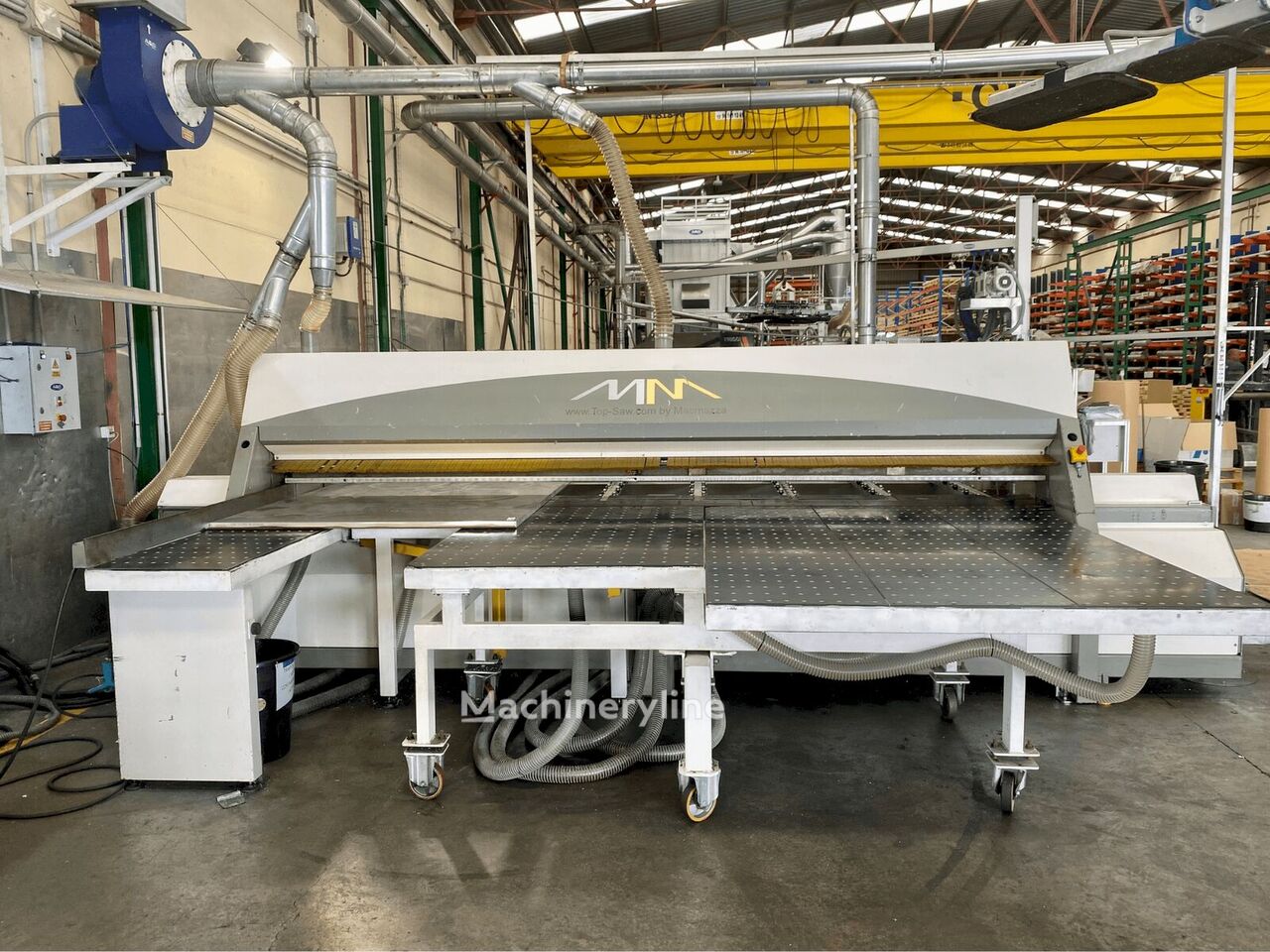

This Macmazza TOP SAW is a wood saw — also widely known as a panel saw — designed for precise straight-line cutting of sheet materials and panels. Macmazza is a manufacturer associated with panel processing machinery, producing equipment for woodworking and furniture production applications.
This 2018 machine is offered in used condition and is located in Germany. It carries a rated main cutting disc motor power of up to 23 kW and accommodates up to nine pneumatic clamps on the pusher, with the standard configuration featuring six clamps. A patented rotating support table is included as part of the machine's design.
The overall footprint spans a maximum total length of 7,920 to 8,970 mm when fitted with the loading platform, a maximum total width of 5,860 mm (extendable to 6,360 mm with postforming), and a maximum total height of 1,760 mm. Machine weight ranges from 6,000 to 9,000 kg depending on the optional platform configuration. Power supply is 400 V at 50 Hz, with maximum absorbed power of 17.9 kW in standard trim and 25.2 kW at peak specification.
The cutting length reaches 4,300 mm. The main cutting disc runs at 4,300 rpm with a maximum diameter of 400 mm, driven by a 13 kW motor (15 kW available on request). The scoring disc measures 160 mm in diameter and rotates at 5,800 rpm. The disc carriage travels forward at between 3 and 70 m/min and returns at 60 to 130 m/min, powered by a 1.5 kW motor. The pusher-positioner moves at 0.1 to 25 m/min and returns at 40 to 80 m/min via a 2 kW motor.
Two phenolic resin support tables are included: one measuring 2,200 × 600 mm and a second at 1,700 × 600 mm. The pneumatic system requires an operating pressure of 6 to 7 bar with a compressed air consumption of 4,000 Nl/h. Dust extraction is served by two 120 mm diameter ports and two 100 mm diameter ports, requiring an extraction airflow of 4,000 m³/h at a system depression of 1,500 Pascal.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
