About this machine

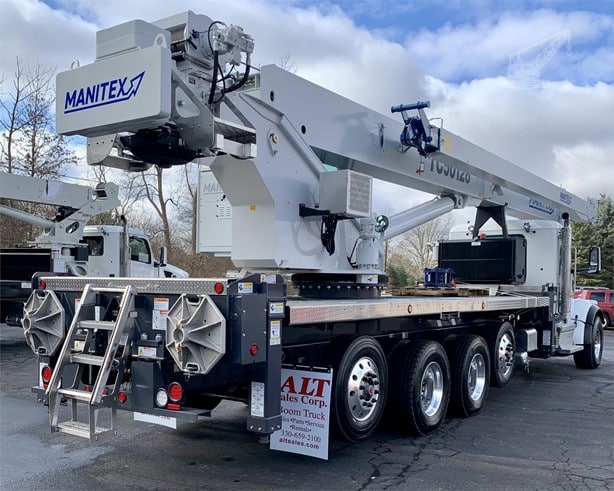

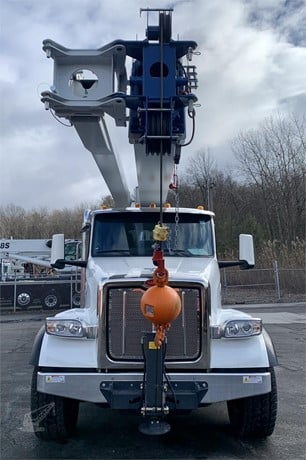

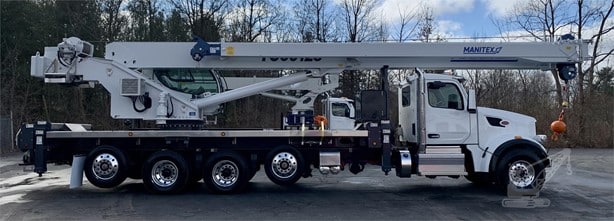

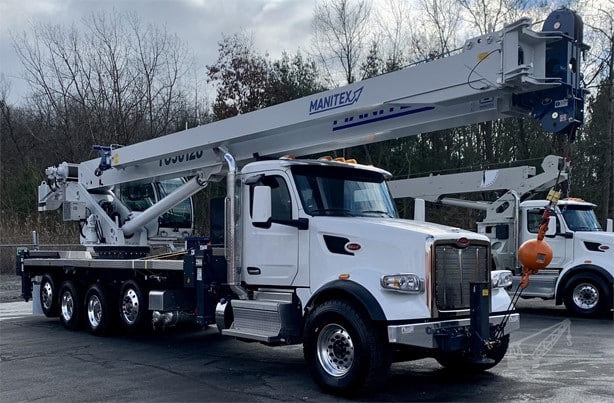

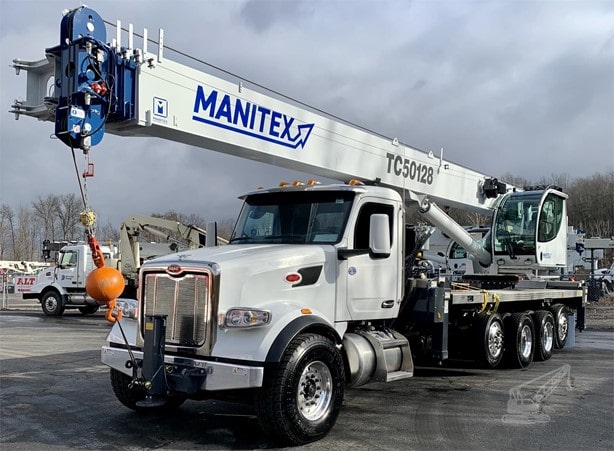

This Manitex TC50128S is a mounted boom truck — sometimes called a boom crane truck or knuckle crane truck — designed to lift and place heavy loads at height and reach from a road-going vehicle platform. Mounted boom trucks of this type are widely used in construction, infrastructure, and industrial projects where a self-propelled, street-legal lifting solution is required. Manitex is a well-established American manufacturer of lifting equipment, including boom trucks, cranes, and aerial work platforms, serving construction, energy, and industrial markets across North America and beyond.

This 2023 unit is offered used and is mounted on a 2024 Peterbilt 567 chassis powered by a Cummins X15 engine rated at 500 horsepower, paired with an Allison 4500 transmission. The combination is well regarded in vocational trucking for its durability and reliability in demanding lifting applications.

The crane itself is rated at 50 US tons and features a 128-foot main boom, giving operators substantial vertical and horizontal reach for heavy lifts on larger job sites. An additional 32-to-49-foot jib extends that reach further when needed. A front bumper stabilizer is included, enabling a full 360-degree load chart — meaning the machine can lift to its rated capacity in any direction around the truck rather than being restricted to a limited arc, which significantly expands its versatility on site.

The operator's cab is a tilting design equipped with both air conditioning and heat, providing a controlled working environment across a range of weather conditions. The unit also carries a two-year warranty, which is notable for a used listing and reflects that the machine has very low age on it. The truck and crane configuration is Federal Bridge Law Legal, meaning it is compliant with standard US axle-weight regulations and can be operated on public roads without special permits under normal conditions.

The machine is currently located in Ohio, USA.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
