2011 - Selco Wntr 730 Wood Saw()
- Listing No
- 971491
- Year
- 2011
- Manufacturer
- Selco
- Model
- Wntr 730
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This panel saw was manufactured in 2011. It features a maximum panel width of 4500 mm and length of 2200 mm, with a saw blade projection of 127 mm. It includes a lifting table, 9 grippers on the sliding stop, and flexible grippers for NC positioning. The saw unit supports a tool diameter up to 470 mm and operates with a motor power of 18.5 KW. Consider the opportunity to buy this SELCO WNTR 730 panel saw. Contact us for more information. Additional equipment Lifting table 9 Grippers on the sliding stop Flexible grippers for positioning by NC Machine programming software OSI Barcode label printer Barcode reader Machine Benefits Technical Machine Benefits Total installed power: 44 kw Max. Saw blade projection: 127 mm Max. Feed speed: 185 m/min Saw unit: 1 unit with positioning by nc Scoring unit: max. Blade diameter 200 mm, motor power 2 kw Quick change device: quick change system Extra Information Machine still under power application type: Sawing (Wood) Location: Germany machine type: Panel Saw
About this machine

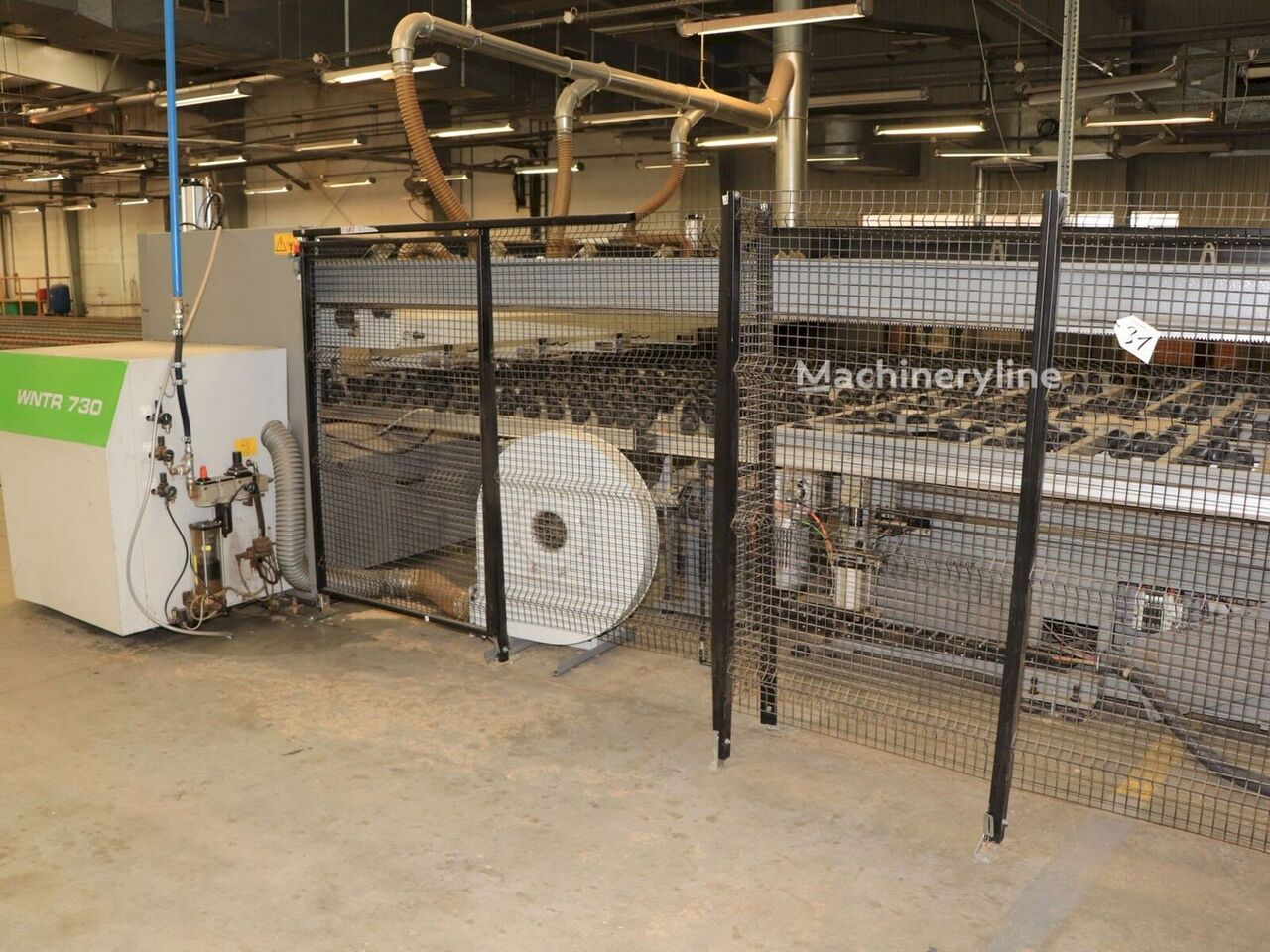

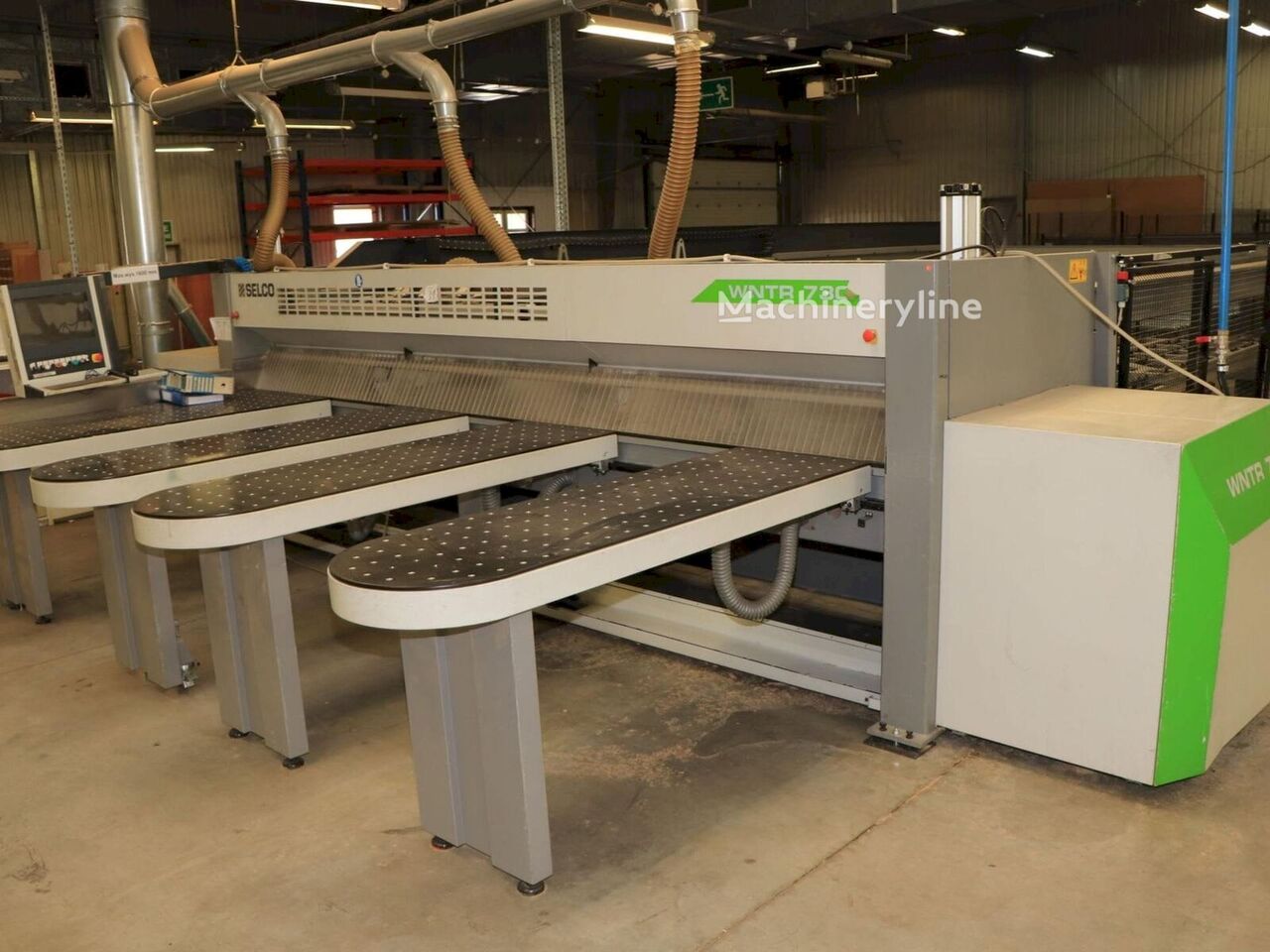

This Selco Wntr 730 is a used wood saw — more specifically a panel saw, a type of machine designed to make precise straight cuts through large sheet materials such as MDF, particleboard, plywood, and solid wood panels. Panel saws are sometimes referred to as beam saws, and Selco is a well-established Italian manufacturer of panel processing equipment, producing machines widely used in furniture manufacturing, joinery, and wood processing industries.
Manufactured in 2011 and located in Germany, this machine is reported to be still under power. The total installed power across the machine is 44 kW, with the main saw unit driven by an 18.5 kW motor. The saw unit is a single unit with NC positioning, accepting tool diameters up to 470 mm and delivering a maximum blade projection of 127 mm. A separate scoring unit is also fitted, with a maximum blade diameter of 200 mm and a dedicated motor power of 2 kW.
In terms of capacity, the machine handles panels up to 4,500 mm in width and 2,200 mm in length, making it well suited to processing full-size industrial sheet goods. The maximum feed speed reaches 185 metres per minute, supporting high-throughput production environments. A quick-change system is fitted to the saw unit, reducing tool changeover time.

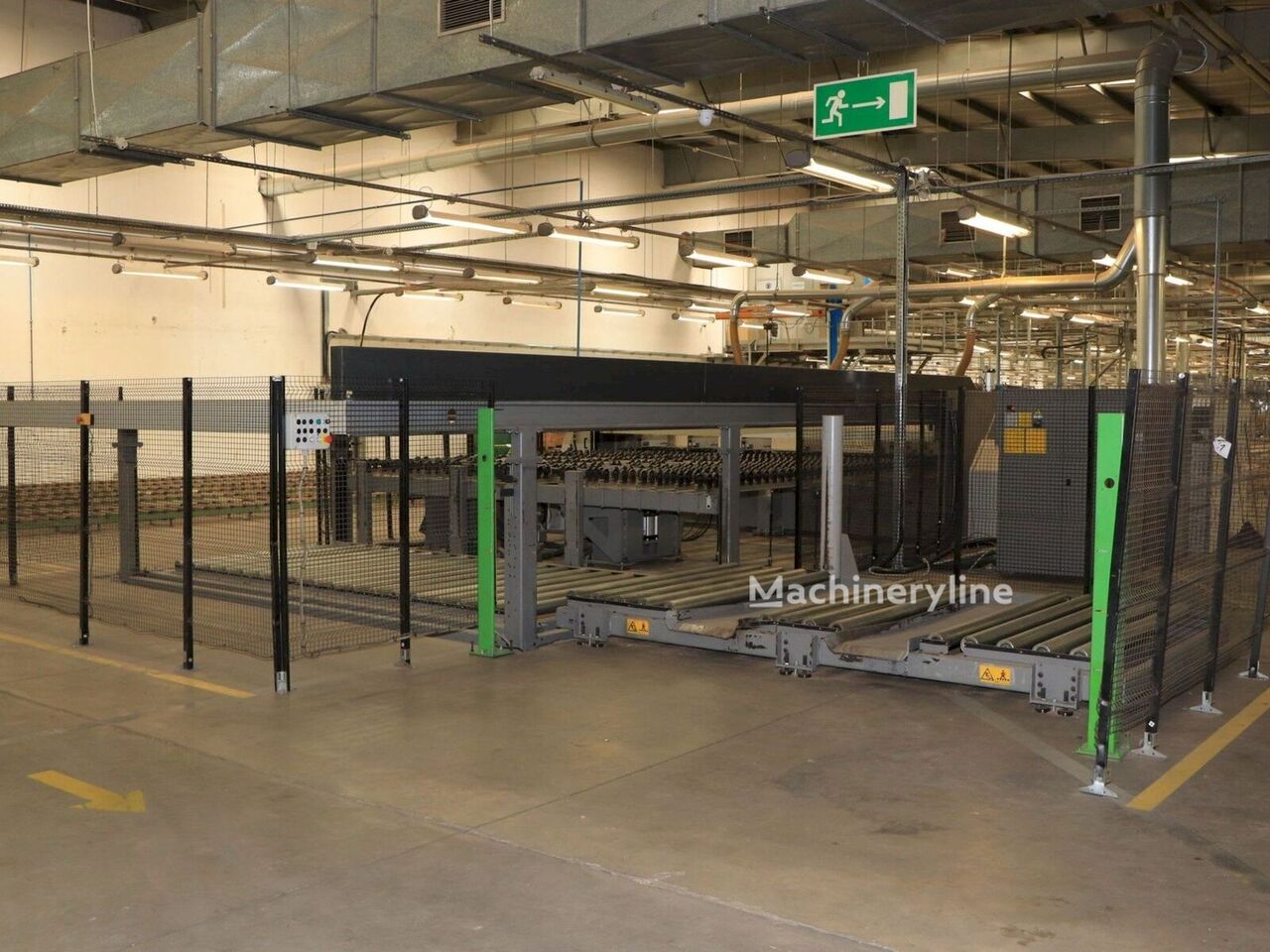

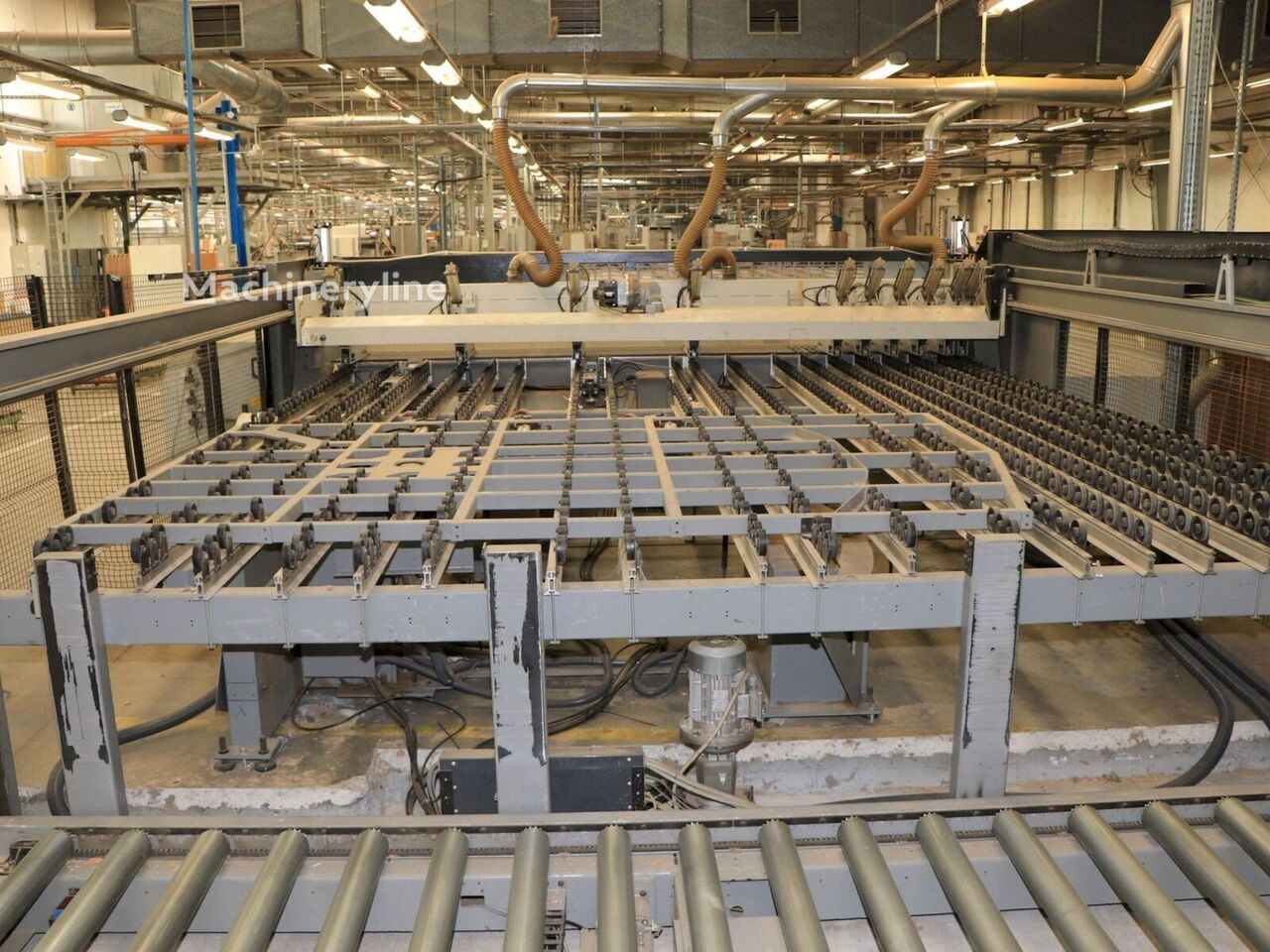

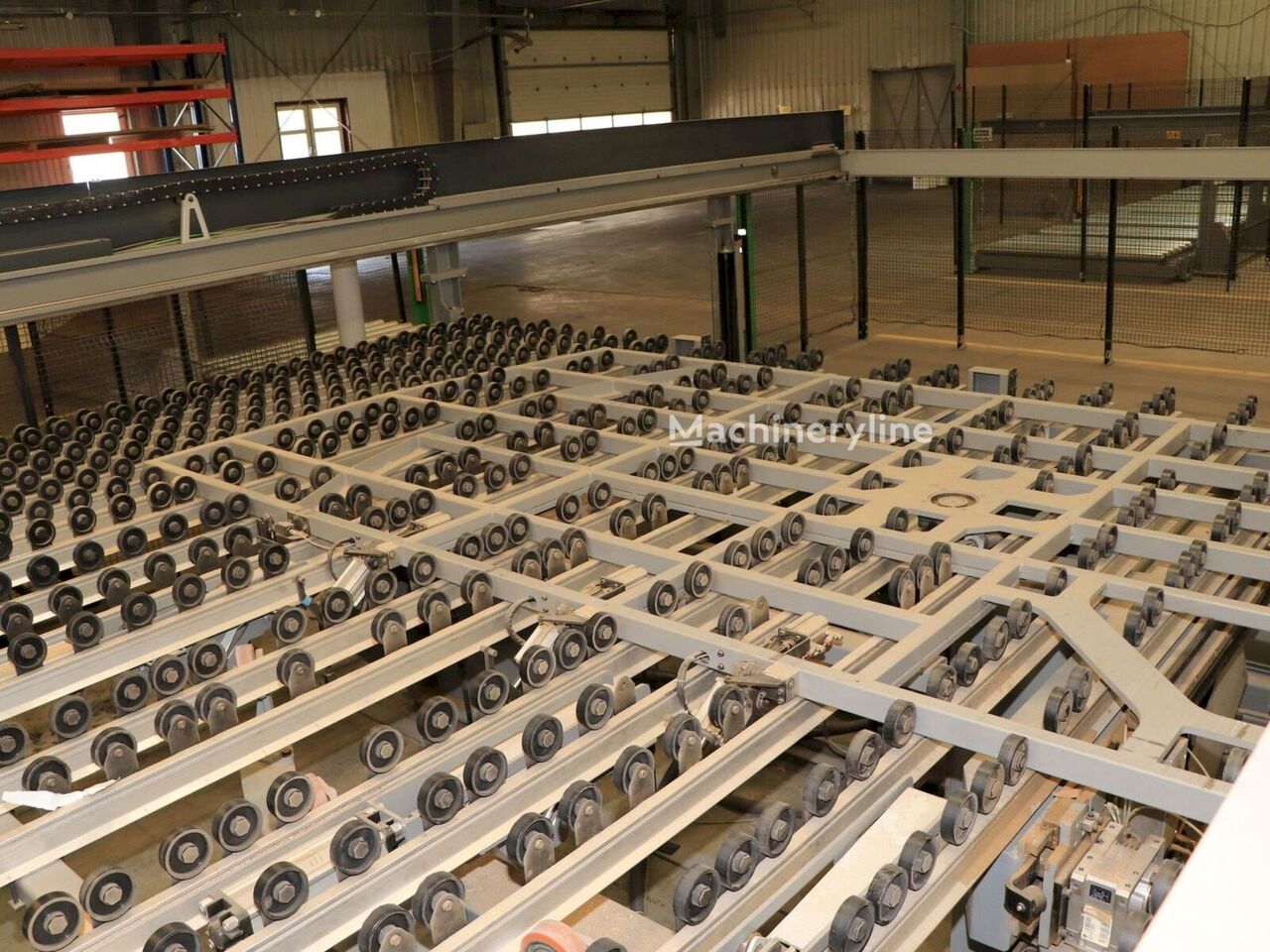

The sliding stop is equipped with nine grippers, and flexible grippers are provided for NC-controlled positioning, allowing precise and repeatable cuts to be programmed automatically. The machine includes a lifting table to assist with panel loading and handling.
Additional equipment supplied with the machine includes the OSI machine programming software, a barcode label printer, and a barcode reader, forming a complete workflow-integrated cutting cell capable of reading, labelling, and processing cut plans digitally.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
