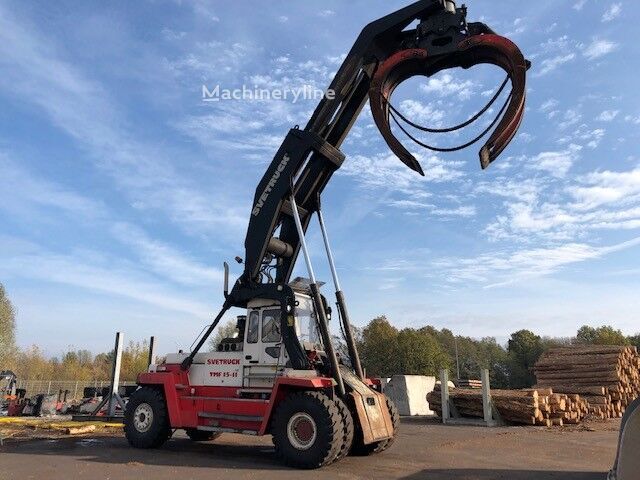

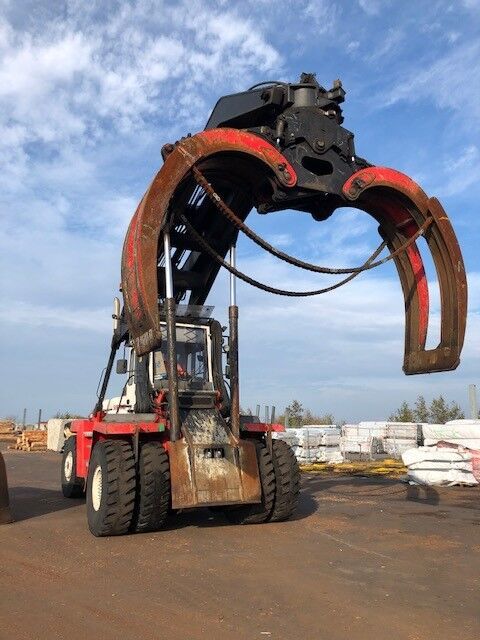

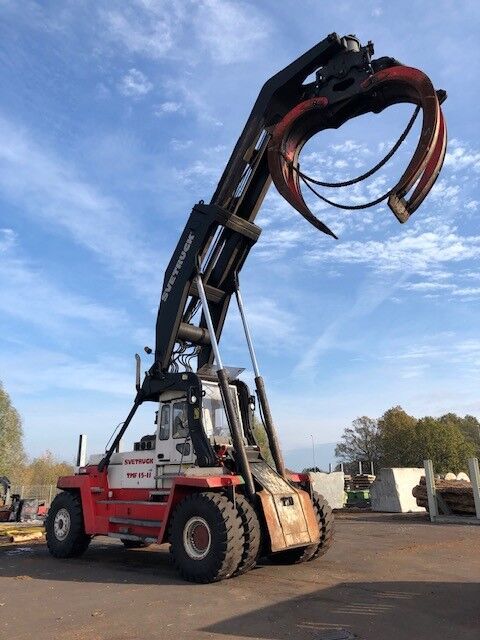

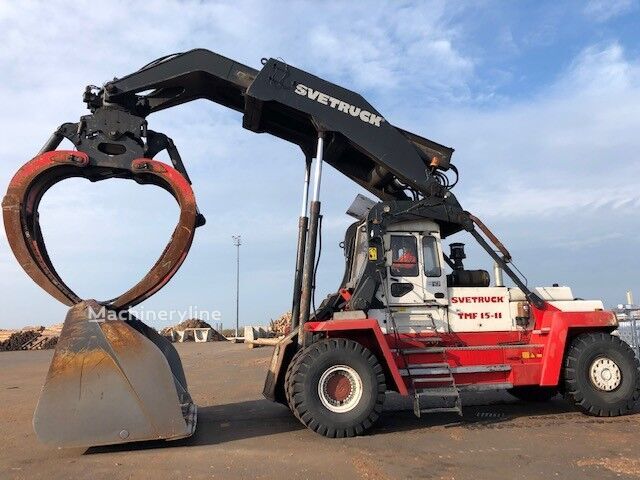

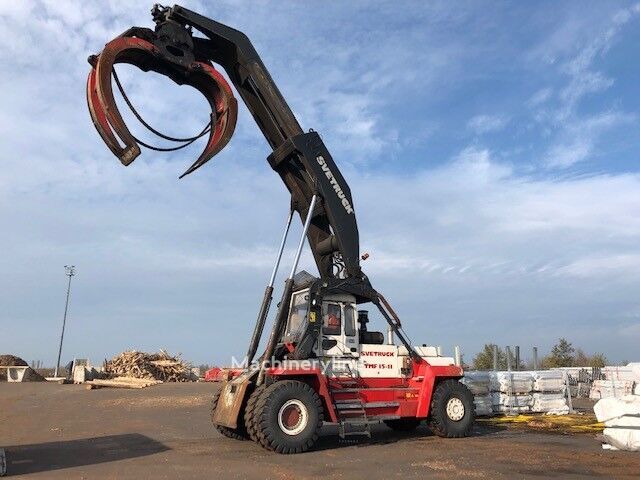

2012 - Svetruck TMF 15 11-54 Reach Container Handler()
- Listing No
- 970683
- Year
- 2012
- Manufacturer
- Svetruck
- Model
- TMF 15 11-54
- Condition
- Used
- Location
- Germany
- Price
- $69,900
- Description
-
Rundholzstapler Svetruck Typ TMF 15/11 Laufleistung 16370 lt. Zähler Maschinenmaße komplett in Länge x Breite x Höhe 11400 x 3900 x 6000 mm Maschinenmaße (demontiert) in Länge x Breite 7500 x 3900 mm Höhe ohne Maße 4700 mm Höhe ohne Mast und Mastträger 4300 mm Baumaße Mast in Länge x Breite x Höhe 8000 x 1600 x 2000 mm Maße Greifer in Tiefe x Breite (geschlossen) x Höhe 1400 x 3600 x 4200 mm Länge Zange offen 5200 mm Höhe Zange 4000 mm Radstand vorn 1500 mm Höhe 250 mm (Polterschild) Radstand hinten 1600 mm Höhe 400 mm Hublast Teleskop eingefahren max. 15000 kg Hublast Teleskop ausgefahren max. 11000 kg Stapelhöhe Teleskop ausgefahren (offener Greifer) 8000 mm Stapelhöhe Teleskop ausgefahren (geschlossener Greifer) 7600 mm Reichweite Mitte Antriebsachse max. 6870 mm Antrieb über 6 Zylinder Volvo Dieselmotor mit 289 KW / 393 PS Hubraum 12130 cm³ Getriebetyp Drehmomentwandler Automatisch 3 Vorwärts – und 3 Rückwärtsgänge Fahrgeschwindigkeit 27 km/h Reifengröße 18.00 x 25“ nähere Daten und weitere Bilder gern auf Anfrage diese Beschreibung stellt kein verbindliches Angebot dar und kann Fehler beinhalten keine Gewähr auf alle Angaben
About this machine
This Svetruck TMF is a reach container handler — sometimes referred to as a reach stacker — designed to lift, stack, and reposition intermodal containers in port terminals, rail depots, and container storage yards. Svetruck is a Swedish manufacturer with a long-standing reputation for building heavy-duty timber and container handling equipment for demanding industrial and logistics environments.
According to the seller's data, this is a 2012 machine located in Germany, offered in used condition. The hour meter reads 16,370 units. In its fully assembled configuration, the machine measures 11,400 mm in length, 3,900 mm in width, and 6,000 mm in height. When disassembled for transport, the footprint reduces to 7,500 mm by 3,900 mm, with a height of 4,700 mm without the mast assembly, or 4,300 mm without the mast and mast carrier. The mast itself measures 8,000 mm long, 1,600 mm wide, and 2,000 mm tall.
The lifting capacity is rated at a maximum of 15,000 kg with the telescopic boom retracted, reducing to 11,000 kg at full extension. Maximum stacking height with the boom extended and the grapple open is 8,000 mm, and 7,600 mm with the grapple closed. The maximum reach from the centre of the drive axle is 6,870 mm. The grapple itself measures 1,400 mm in depth, 3,600 mm in width when closed, and 4,200 mm in height; it opens to a length of 5,200 mm and stands 4,000 mm tall. A log stop shield is fitted at 250 mm, with a rear ground clearance of 400 mm. Front and rear axle spacings are 1,500 mm and 1,600 mm respectively.
Power comes from a six-cylinder Volvo diesel engine producing 289 kW (393 hp) from a displacement of 12,130 cm³. Drive is transmitted through an automatic torque-converter gearbox offering three forward and three reverse gears. The machine reaches a travel speed of 27 km/h and rides on 18.00 x 25-inch tyres.
The price is $69,900.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
