TOS Svitavy Pksn 20 Wood Saw()
- Listing No
- 962787
- Year
- Manufacturer
- TOS Svitavy
- Model
- Pksn 20
- Condition
- Used
- Location
- Slovakia
- Price
- $3,350
- Description
-
Cutting width: 240 mm Cutting height: 105 mm Max. blade diameter: 350 mm Main motor: 22 kW Feed motor: 1.5 kW Feed adjustment: Continuous regulation Height adjustment: Electric (feed rollers, shaft) Shaft diameter: 50 mm Housing diameter: 70 mm Dimensions (L/W/H): approx. 150/165/160 cm Weight: approx. 2000 kg
About this machine

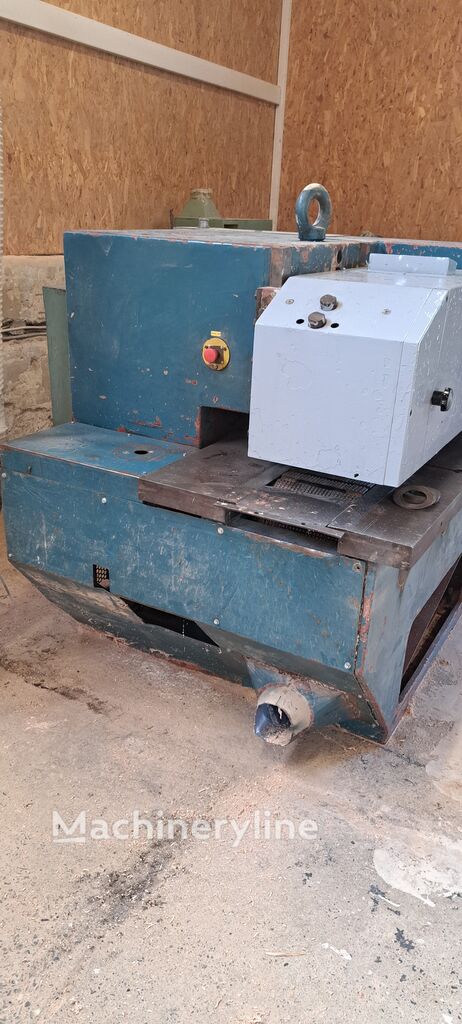

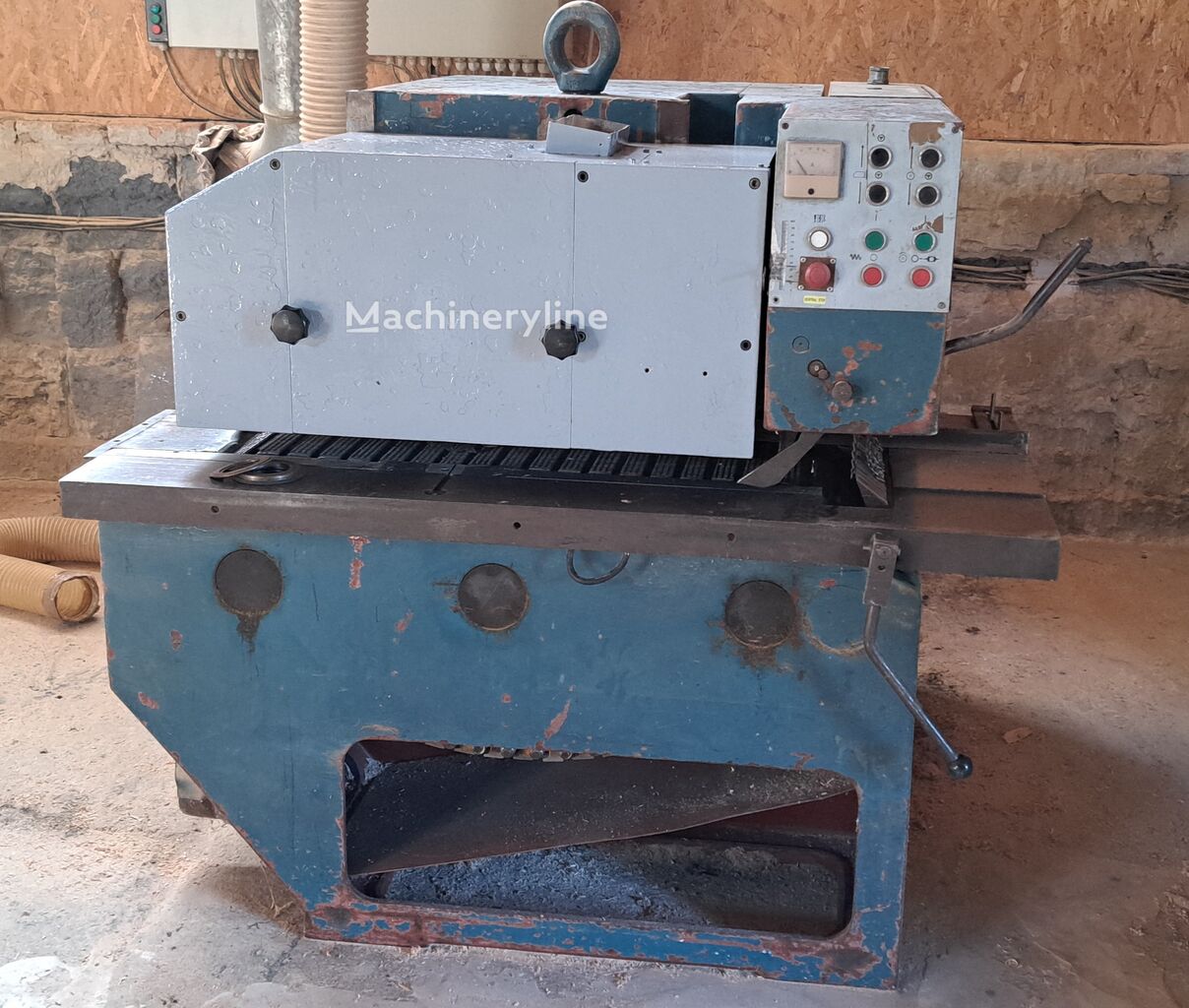

This TOS Svitavy Pksn 20 is a used wood saw — also commonly referred to as a circular rip saw or panel saw — a type of industrial woodworking machine designed to make precise straight cuts through timber, boards, and similar wood stock. TOS Svitavy is a Czech manufacturer with a long-standing history in the production of woodworking and metalworking machinery, supplying equipment to industrial and trade users across Europe and beyond.

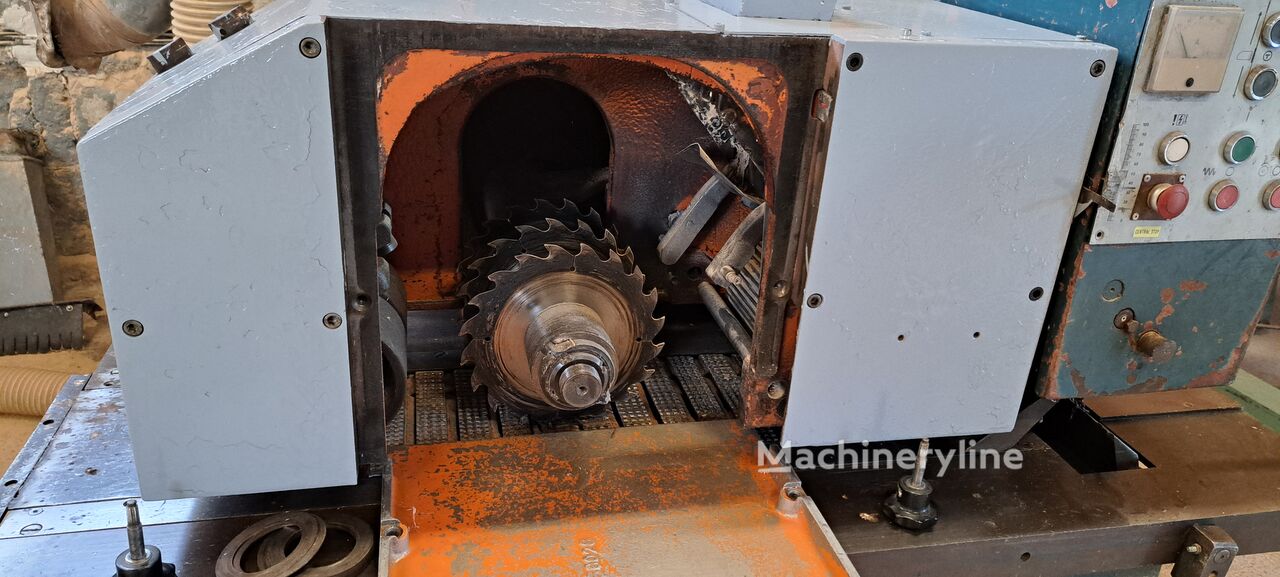

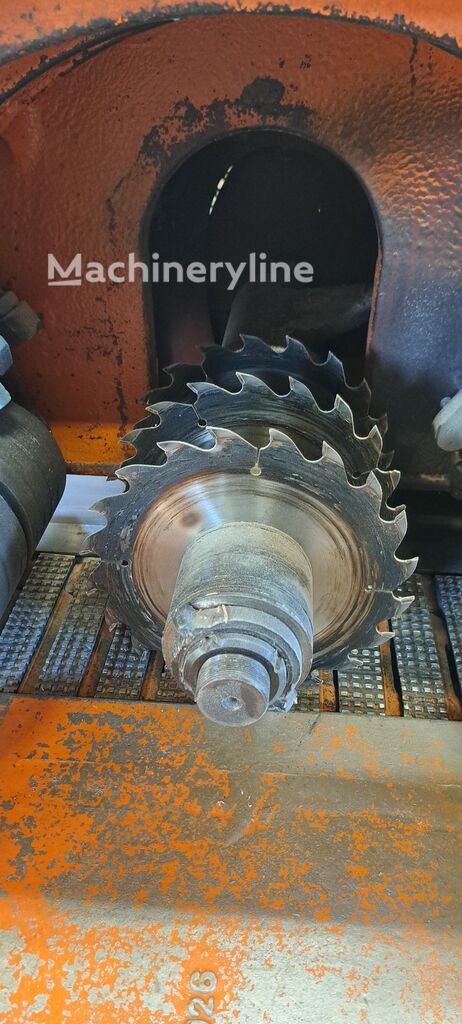

The machine offers a cutting width of 240 mm and a cutting height of 105 mm, defining the maximum cross-section of material it can process in a single pass. The maximum blade diameter is 350 mm, and the saw arbor has a shaft diameter of 50 mm with a housing diameter of 70 mm, indicating a robust spindle assembly suited to demanding production use.
Power is provided by a main motor rated at 22 kW, delivering the output required for continuous heavy-duty cutting. A dedicated feed motor of 1.5 kW drives the material feed system, which benefits from continuous speed regulation, allowing the operator to match the feed rate precisely to the material being cut and the required finish quality. Height adjustment of the feed rollers and shaft is electrically controlled, making setup and changes between different stock thicknesses more efficient and repeatable.
The machine has an overall footprint of approximately 150 × 165 cm with a height of around 160 cm, and a working weight of approximately 2,000 kg. It is offered in used condition and is currently located in Slovakia, listed at $3,350.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
