2007 - Transcraft Oilfield Trailer()
- Listing No
- 1151080
- Year
- 2007
- Manufacturer
- Transcraft
- Model
- Condition
- Used
- Location
- USA
- Price
- POA
- Description
-
2007 Transcraft 100K trailer on air ride, 60KW gen set,(KW yet to be verified) fuel tank,(aprox. 500 Gal.) 3408 450 HP. Cat engine, 5 speed trans., Fold down lights for night operation, walk ways and hand rails, Gardner Denver PAH Triplex Pump, covered operators station, mud mix tank , 2 paddle mixers, with shaker screen, very good condition, very low hours............ I'm sure I missed something else but those are the major items. the pump was opened this winter for winterization so it would not freeze, I can accommodate you if you need special plungers or swabs while I have it open.
About this machine

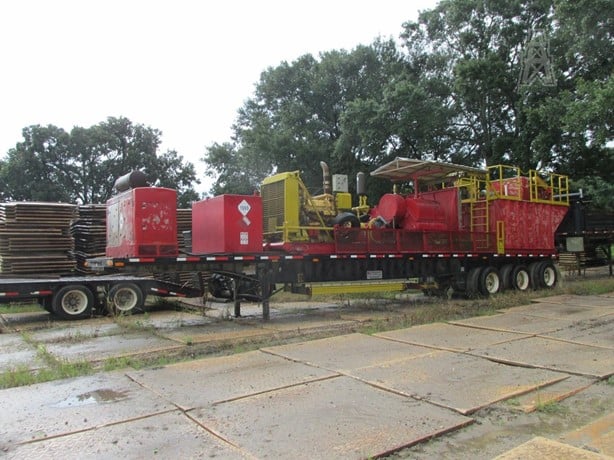

This 2007 Transcraft oilfield trailer — sometimes referred to as an oilfield skid or well-service trailer — is a self-contained, field-deployable unit built to support drilling and well-servicing operations. Transcraft is a well-established American manufacturer known for producing heavy-duty trailers and transport equipment used across industrial and oilfield applications. This example is offered used and is located in Texas, USA.

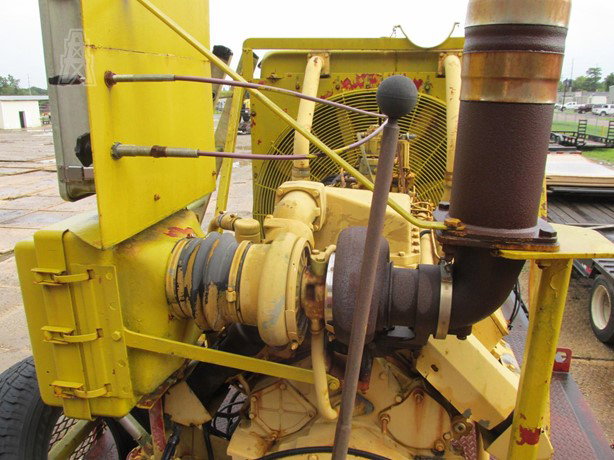

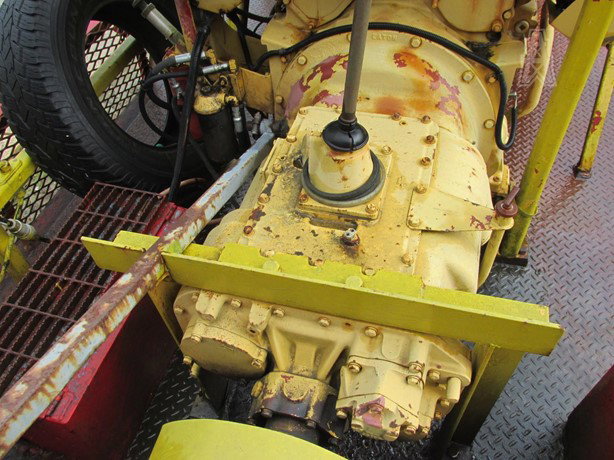

The trailer is rated at 100,000 lb capacity and rides on an air-ride suspension system, making it suitable for transport over demanding terrain. Power is provided by a Caterpillar 3408 engine rated at 450 horsepower, paired with a five-speed transmission, and a 60 kW generator set is also included (output yet to be independently verified by the seller). An onboard fuel tank with an approximate capacity of 500 gallons supports extended field operation without resupply.

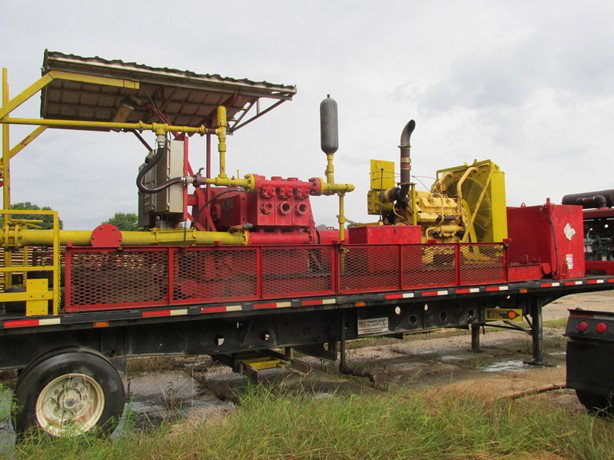

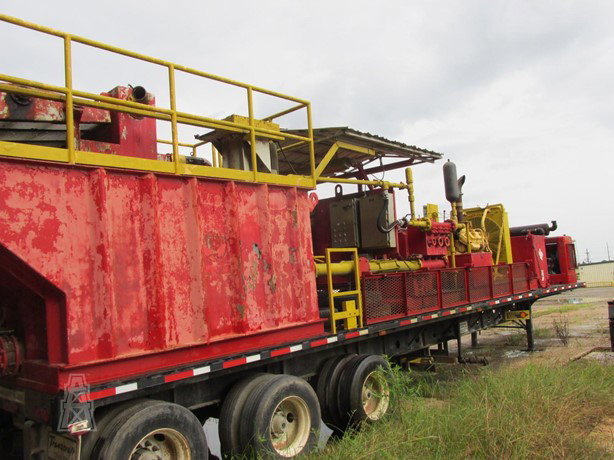

The primary pumping equipment is a Gardner Denver PAH Triplex pump, a proven high-pressure positive-displacement pump commonly used in oilfield fluid-handling applications. The seller notes the pump was opened during the winter for winterization to prevent freeze damage, and there is an option to accommodate special plungers or swabs while the pump remains accessible. A mud mix tank is fitted along with two paddle mixers, and a shaker screen is also included, rounding out the fluid-management capabilities of the unit.
Additional features include fold-down lights for nighttime operation, walkways and handrails for safe access around the unit, and a covered operator station providing weather protection during use. The seller describes the overall condition as very good with very low hours.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
