2019 - Trumpf Liftmaster Compact 1530 AL34 , LMZ Laser Cutting()
- Listing No
- 950802
- Year
- 2019
- Manufacturer
- Trumpf
- Model
- Compact 1530
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Type: LiftMaster Compact 1530 (AL34) CONFIGURATION Automation LiftMaster Compact Loading max sheet format 3000 x 1500 mm min sheet format 1000 x 1000 mm max sheet thickness 25 mm max sheet weight 900 kg Unloading min parts size 150 x 150 mm max sheet thickness 25 mm max sheet weight 900 kg LiftMaster Compact 1530 (AL 34) basic unit Type 1530 sheet sizesthicknesses 3048 mm x 1524 mm Store interface Loading Peeling unit Double sheet detection Synchronous loader including separation of thin sheet (08 - 20 mm) Advanced standard configuration Extended pallet removal Loading station stack height of 90 mm Mild steel rake (prong spacing 67 mm replaceable prongs) Finished part pallet LiftMaster Compact options Cleaning brush for slats
About this machine

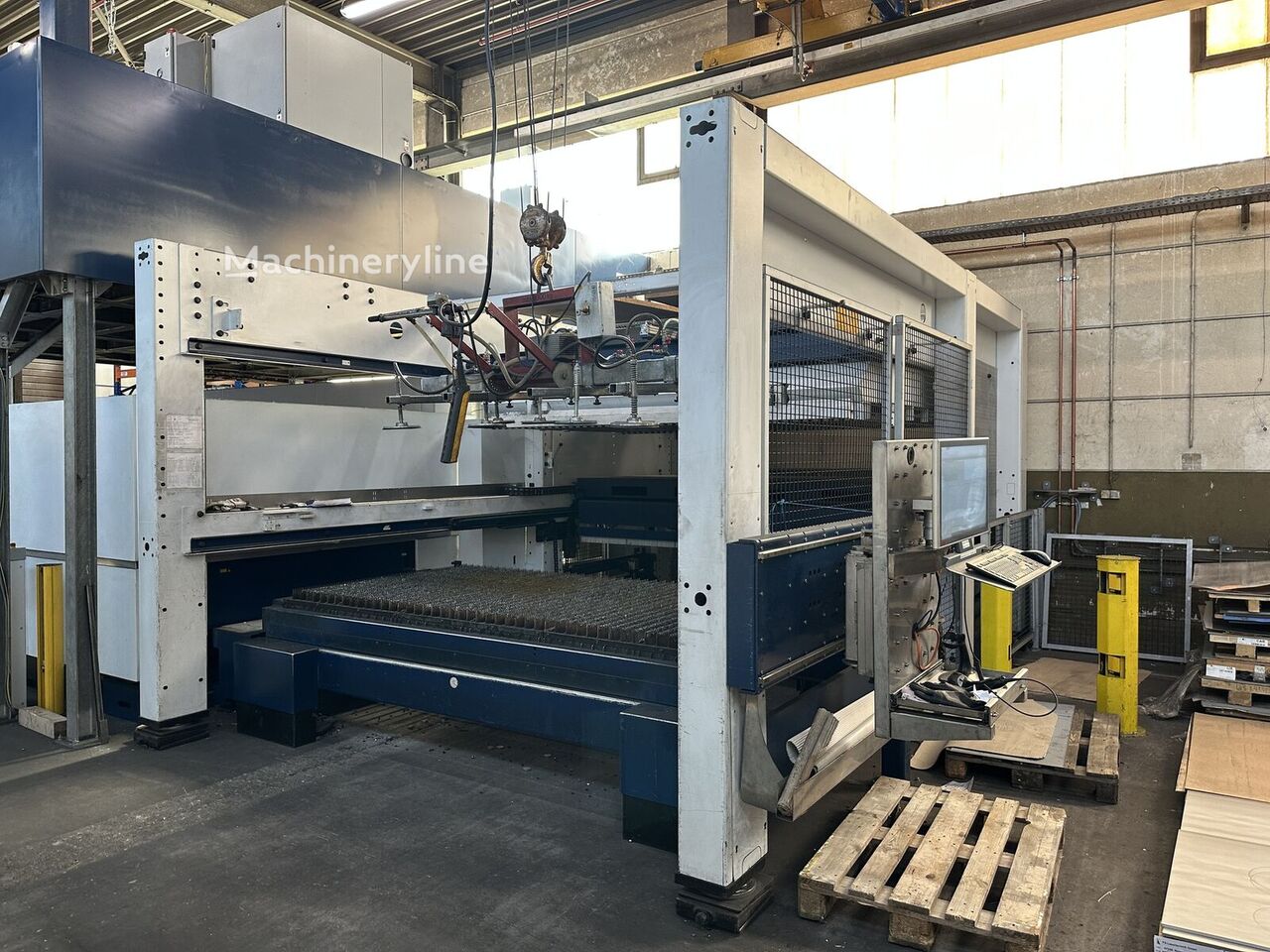

This Trumpf Liftmaster Compact 1530 AL34 is a laser cutting machine — sometimes referred to as a laser cutter or laser cutting system — used for the precision cutting of sheet metal and plate material using a focused laser beam. Trumpf is a globally recognised manufacturer of machine tools and laser technology, supplying industrial equipment to sheet metal fabrication, automotive, aerospace, and general manufacturing sectors.
This particular unit is a 2019 model in used condition, located in Germany, and its primary function here is automated sheet handling through the LiftMaster Compact system, which manages the loading and unloading of material in conjunction with a laser cutting cell.

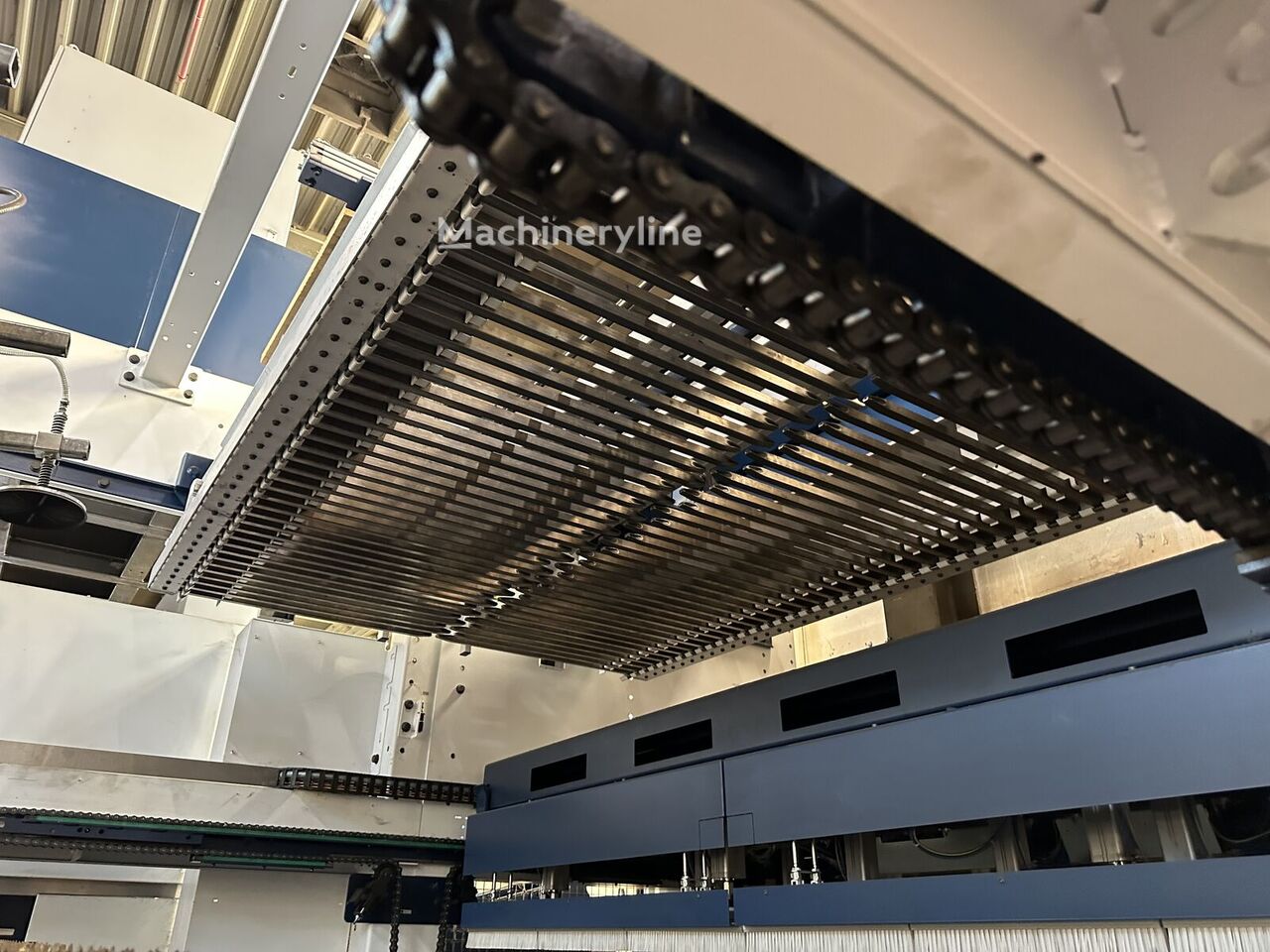

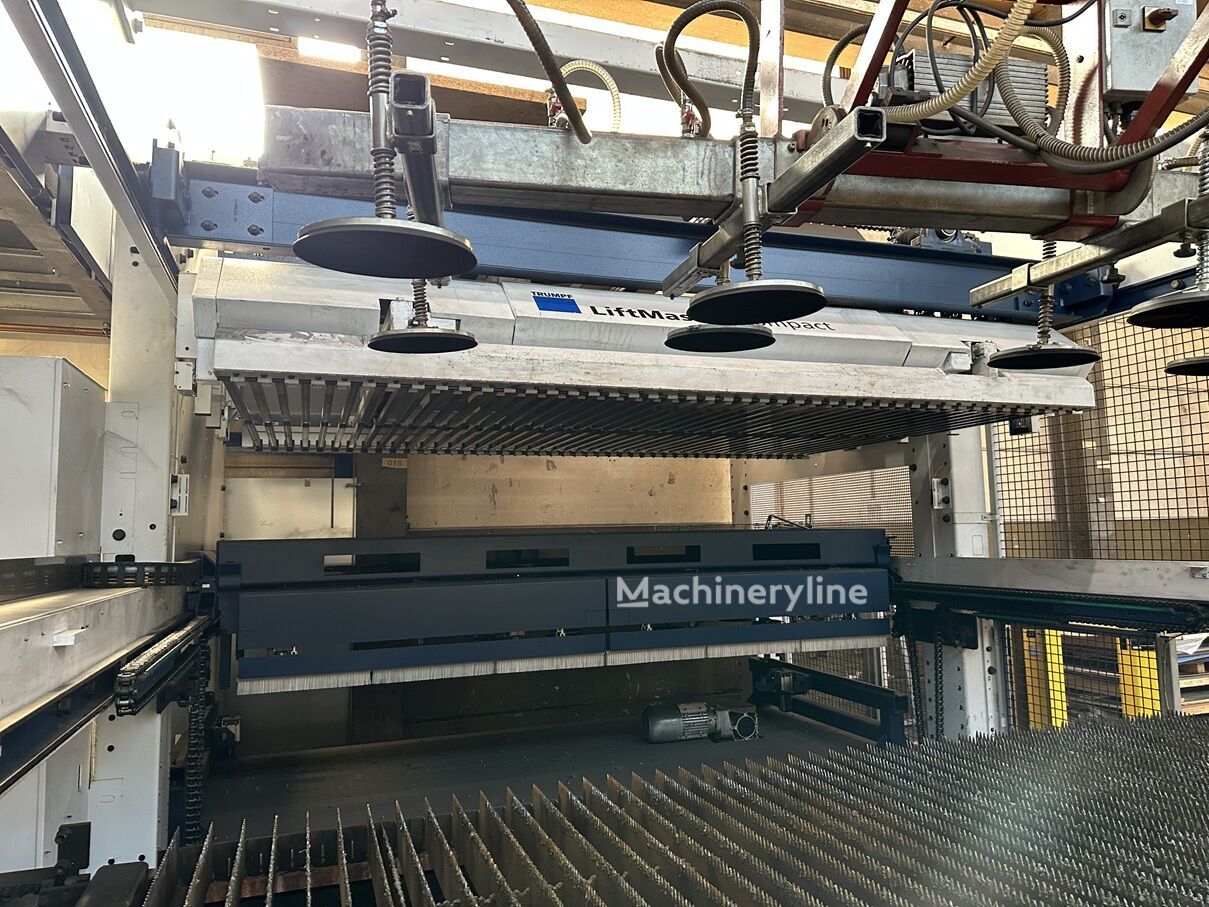

On the loading side, the system accepts sheets ranging from a minimum format of 1,000 x 1,000 mm up to a maximum of 3,000 x 1,500 mm, with a maximum sheet thickness of 25 mm and a maximum sheet weight of 900 kg. The basic unit references a sheet size of 3,048 mm x 1,524 mm. The loading station is equipped with a peeling unit and double sheet detection, which prevents misfed sheets from entering the cutting process. A synchronous loader is included with functionality for the separation of thin sheet material in the range of 0.8 to 20 mm. The loading station supports a stack height of 90 mm and includes a mild steel rake with a prong spacing of 67 mm, featuring replaceable prongs for ongoing maintenance.
On the unloading side, the system handles finished parts with a minimum part size of 150 x 150 mm, again accommodating material up to 25 mm thick and up to 900 kg in weight. A finished part pallet is included as part of the configuration.
The machine is configured to the advanced standard specification and includes extended pallet removal capability, a store interface for integration with upstream or downstream storage systems, and a cleaning brush for the cutting slats. This combination of features reflects a well-equipped automation cell suited to high-throughput sheet metal production environments.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
