2015 - Trumpf Trulaser Cell Laser Cutting()
- Listing No
- 972518
- Year
- 2015
- Manufacturer
- Trumpf
- Model
- Trulaser Cell
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

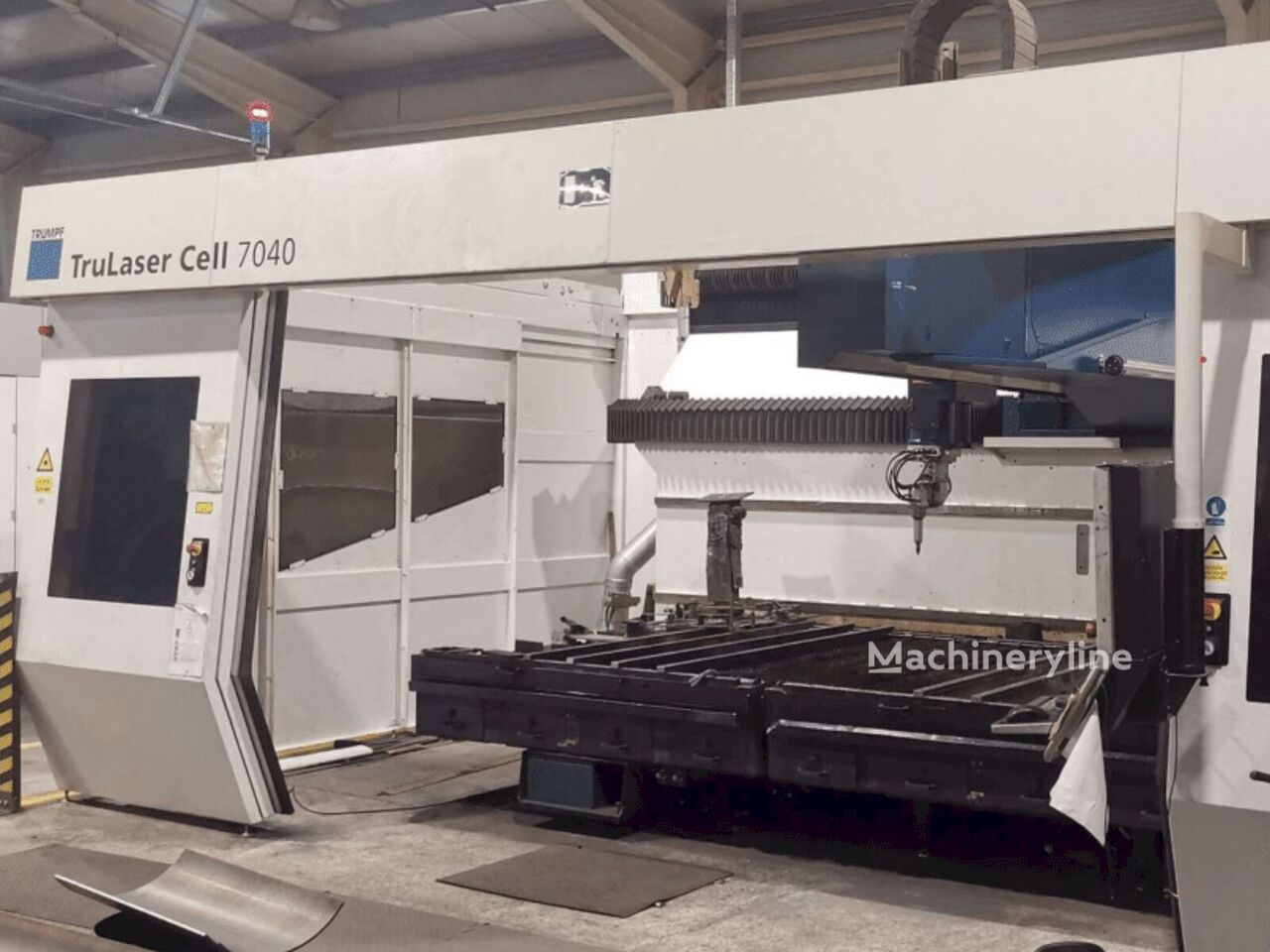

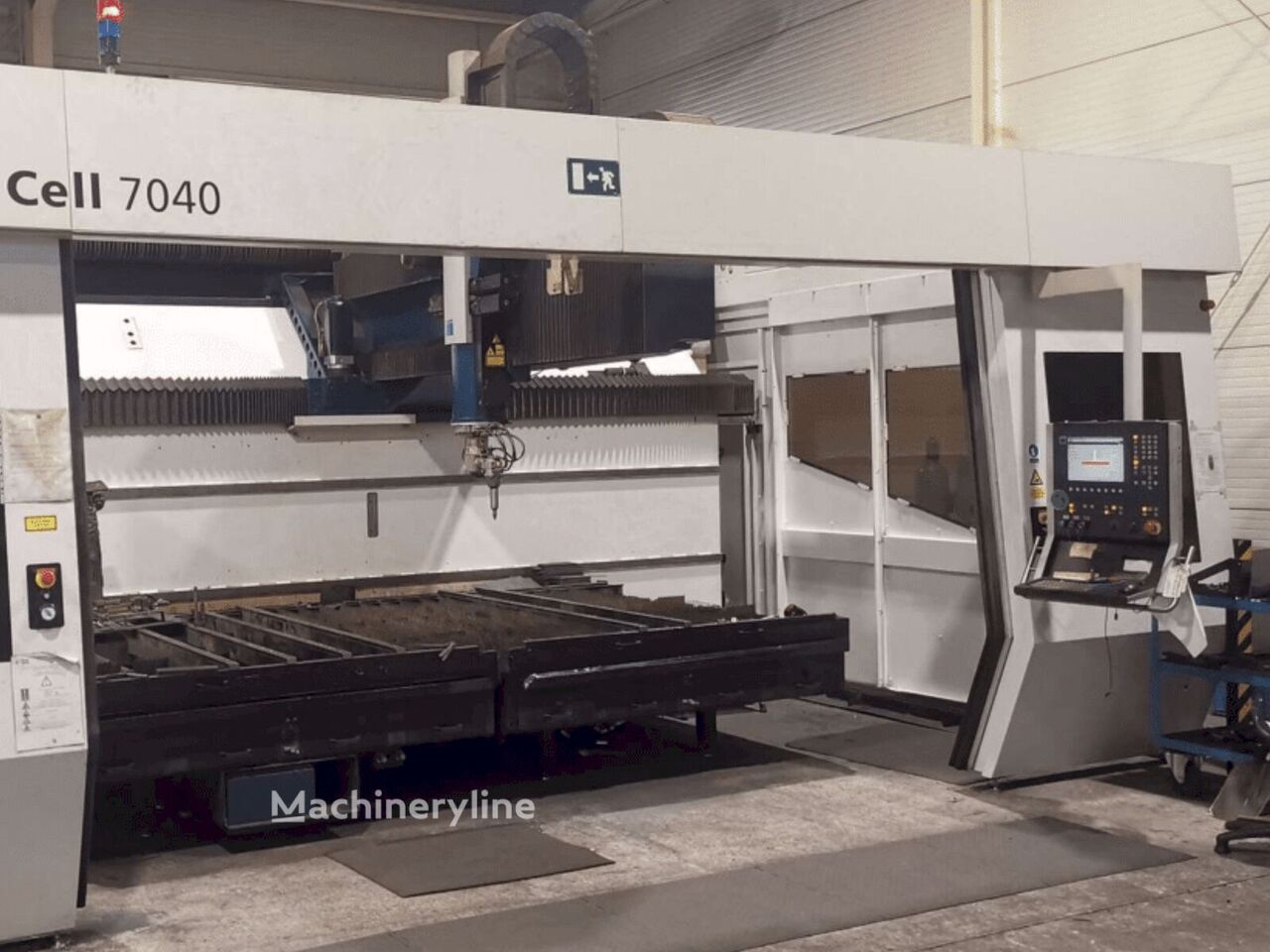

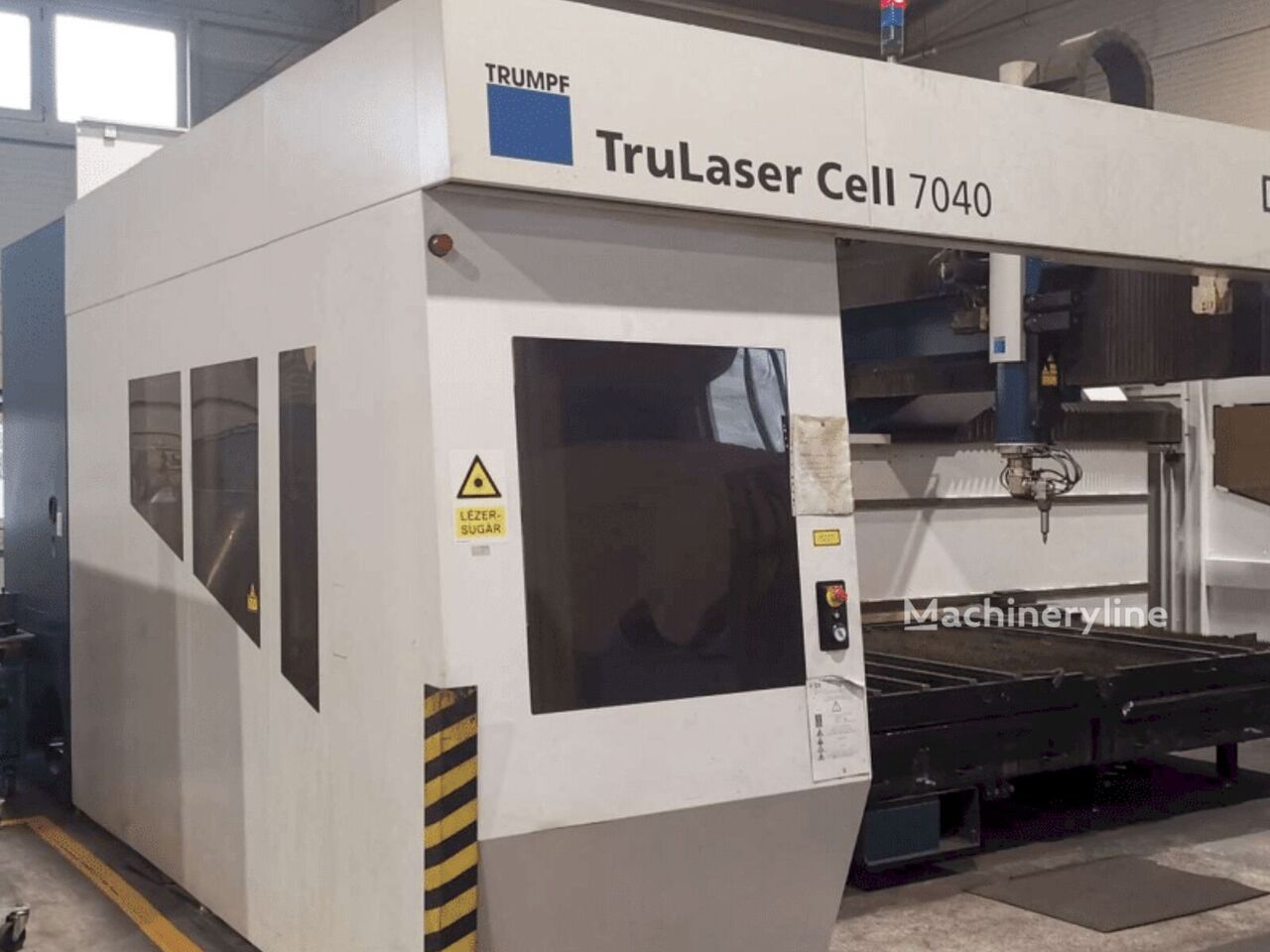

This TRUMPF TruLaser Cell 7040 was manufactured in 2015. It features a large working range with dimensions of 4000x2000 mm and a Z-axis height of 750 mm. Equipped with a powerful TruFlow 4000 Watt CO2 laser, it excels in both thin and thick material cutting. Additional features include CNC automatic scanning, height detection, and a Siemens 840D control system. Consider the opportunity to buy this TRUMPF TruLaser Cell 7040 CO2 laser cutting machine. Contact us for more information. Additional equipment HERDING Fume extraction in working area: 2000 Nm3/h Cooling unit Automatic sliding door "CE" Automatic two-level redundant working range protection "CE" Machine Benefits Technical Machine Benefits Cnc automatic workpiece scanning Cnc automatic height detection Table for laser cutting: 4000x2000 mm Laser source: truflow 4000 watt (co2) Dynamic optics for thin materials focus distance: 155 mm Dynamic optics for thick materials focus distance: 240 mm Optics calibration device Extra Information Working range X: 4000 mm Working range Y: 2000 mm Working range Z: 750 mm 3D cutting head B = 135°, C = n x 360° Partition wall for 2 side operation CE certification 3D Programming Module TruTops Cell Automatic Laser status indicator light application type: Cutting Location: Hungary machine type: CO2 Laser Cutting Machine control unit brand: SIEMENS Control Brand: SIEMENS Control Model: 840D
About this machine
This Trumpf TruLaser Cell Laser Cutting is a laser cutting machine — sometimes referred to as a laser cutter — used for precision cutting of sheet metal and other materials by directing a focused laser beam along programmed paths. Trumpf is a globally recognised manufacturer of machine tools and laser technology, supplying equipment to metal fabrication, automotive, aerospace, and industrial production industries.
This particular machine was manufactured in 2015 and is offered in used condition from a location in Germany. It is equipped with a TruFlow 4000-watt CO2 laser source, providing substantial cutting power suited to a wide range of material thicknesses. The working envelope spans 4,000 mm in X, 2,000 mm in Y, and 750 mm in Z, giving it a generous flat cutting area of 4,000 × 2,000 mm alongside meaningful vertical clearance. A 3D cutting head with B-axis travel of 135° and continuous C-axis rotation (n × 360°) extends the machine's capability beyond flat sheet work into three-dimensional cutting applications.
Two sets of dynamic optics are fitted to optimise performance across different material thicknesses: a 155 mm focus distance lens for thin materials and a 240 mm focus distance lens for thick materials. An optics calibration device is included to maintain cutting accuracy. CNC automatic workpiece scanning and CNC automatic height detection are both standard on this machine, supporting consistent, repeatable results across varying workpiece geometries. The control system is a Siemens 840D, a widely used CNC platform in machine tool applications, and 3D programming is supported via the TruTops Cell module.

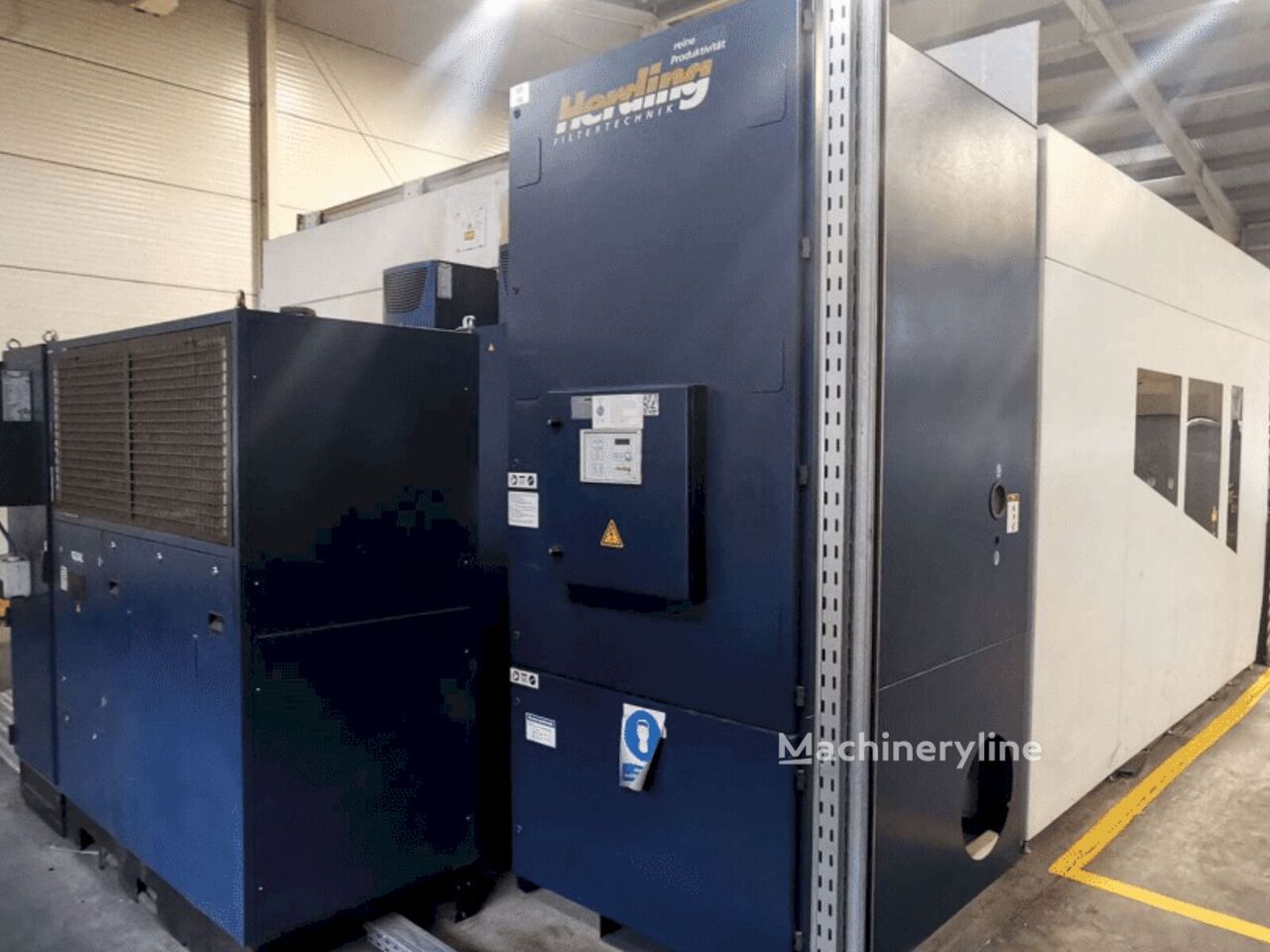

Additional equipment supplied with the machine includes a Herding fume extraction unit rated at 2,000 Nm³/h serving the working area, a cooling unit, and an automatic sliding door. The working range is protected by an automatic two-level redundant safety system. A partition wall enabling two-sided operation is also present, allowing one side to be loaded or unloaded while cutting continues on the other. An automatic laser status indicator light is fitted, and the machine holds CE certification. The machine type is designated as a CO2 laser cutting machine, and the listing includes a 3D programming module as part of the package.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
