2012 - Bitzer Sublimator 90- Dryer
()- Listing No
- 1166670
- Year
- 2012
- Manufacturer
- Bitzer
- Model
- Sublimator 90-
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: S6F-30 2Y-40P Working pressure: 0.01 Bar Material: Stainless steel 1.4404 (316L) Surface: 5 m2 Freeze dryer: check Cooling surface: 5m² Number of plates: 12 Plate sizes: 600x800 mm Thickness 16mm Between the plates: 50 mm With condenser: check Condenser capacity: 80kg/24 h With cooling compressor: check No: 1692211548 Capacity: 101,4 m³/h Cooling medium: R404A Motor: 400V, 51A, 1450 rpm Mounted on frame: check With switchgear: check (as is) Floorspace: 2,8x1,1 m CE: check Total height: 2,5 m Extra Specifications: with controls/pc , with chiller, pump. Charge capacity 48 plates (300mm x 400mm ) Plates not included! Clean room General Pressure Main Features Specified Features - Freeze dryer Information
About this machine

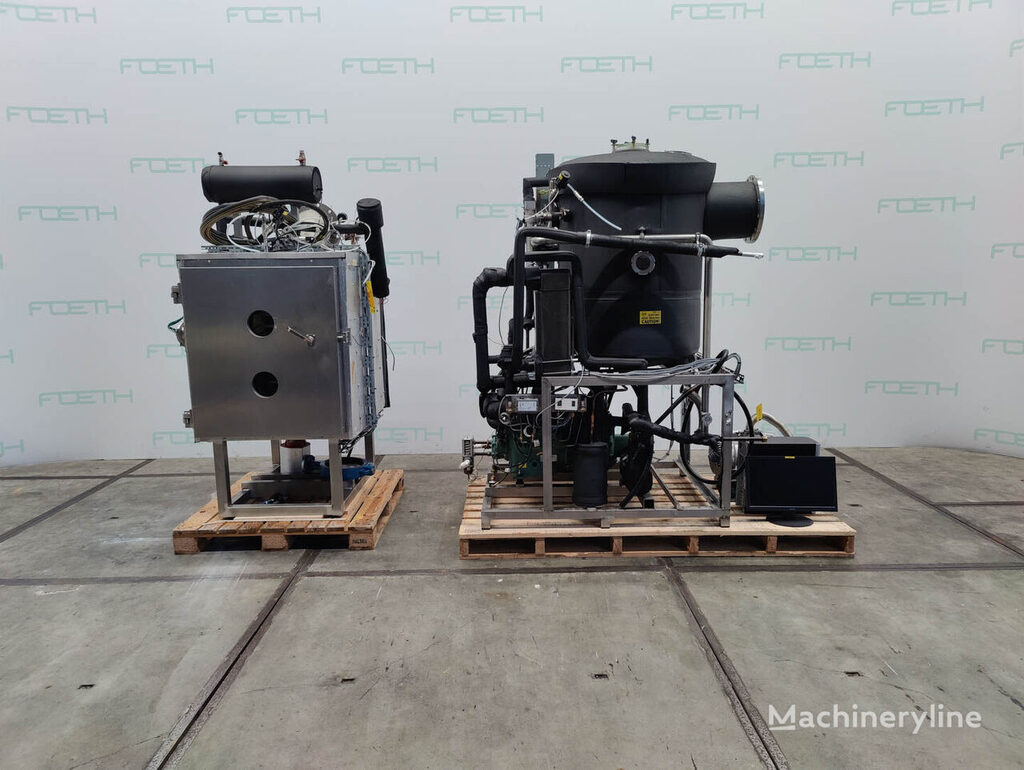

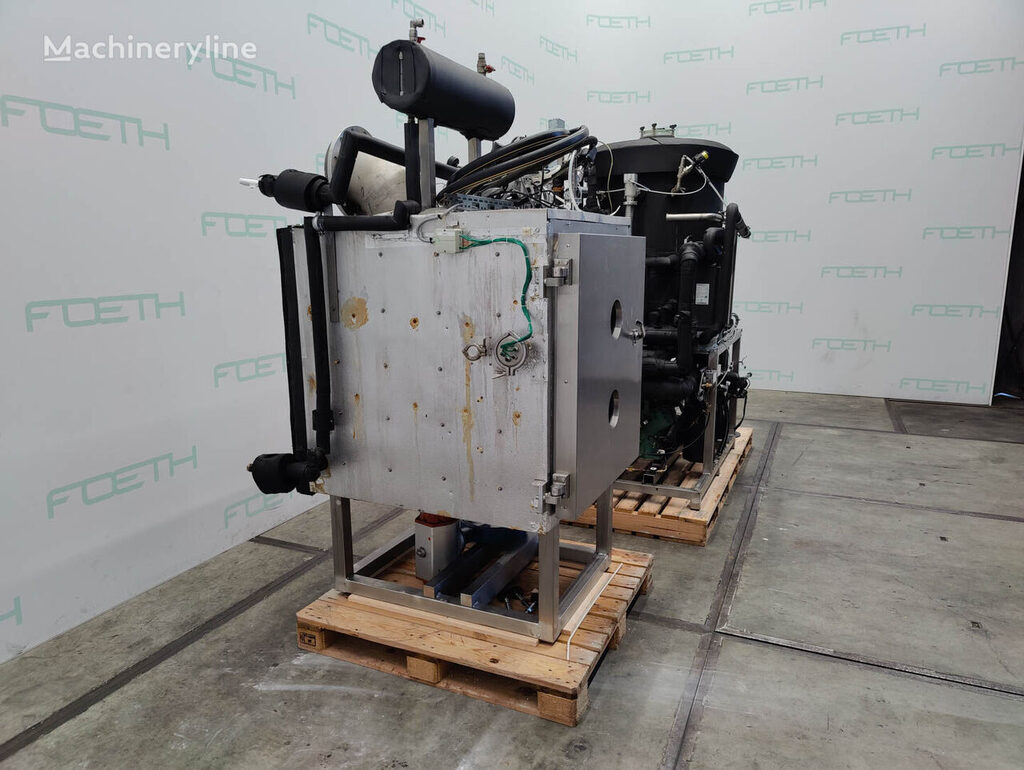

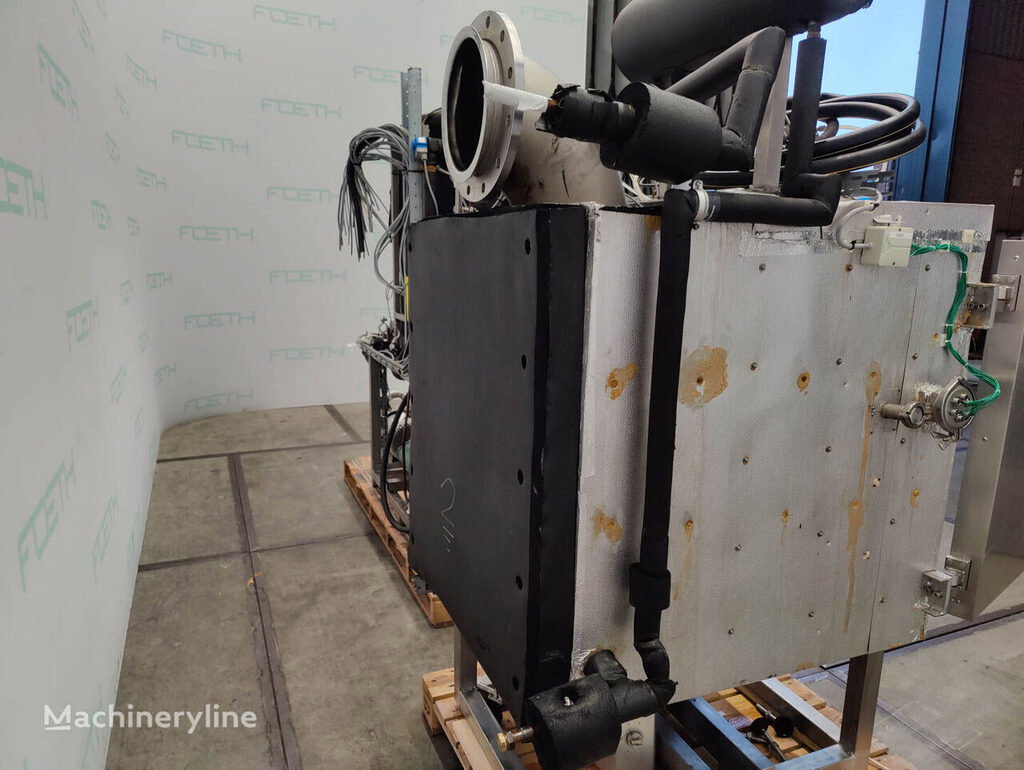

This Bitzer Sublimator 90- Dryer is a freeze dryer — sometimes referred to as a lyophilizer — used to remove moisture from sensitive materials through a controlled process of freezing and sublimation under vacuum conditions. Bitzer is a well-established manufacturer of refrigeration and cooling technology, supplying equipment to the pharmaceutical, food processing, and industrial sectors worldwide.
This used unit, dating from 2012, is located in Barneveld, Netherlands, and carries CE certification. It is constructed from stainless steel grade L), making it well suited to hygienic and cleanroom environments. The machine is designated type S6F-30 2Y-40P and bears serial number .
The freeze dryer features a total cooling surface of 5 m², distributed across 12 plates, each measuring 600 × 800 mm with a thickness of 16 mm. Plate spacing is 50 mm. The system operates at a working pressure of 0.01 bar. A built-in condenser is included, with a condenser capacity of 80 kg per 24 hours. The integrated cooling compressor uses R404A as the refrigerant and is powered by a 400 V motor drawing 51 A at 1,450 rpm, with a vacuum pump capacity of 101.4 m³/h.
The unit is mounted on a frame with a floorspace footprint of 2.8 × 1.1 m and a total height of 2.5 m. It is supplied with switchgear (sold as-is), controls and a PC interface, a chiller, and a pump. The system has a maximum charge capacity of 48 plates sized 300 × 300 mm, though these smaller plates are not included in the sale. The machine is noted as suitable for cleanroom use.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
