Vötsch VHT 155 170 WW Dryer
()- Listing No
- 1167093
- Year
- Manufacturer
- Vötsch
- Model
- VHT 155 170 WW
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld CE: check Working pressure: 3 Bar Material: Stainless steel 1.4301 (304), Stainless steel 1.4571 (316Ti) Volume: 2470 Ltr Surface: 22 m2 Tray dryer: check Stainless steel housing: check Stainless steel trays: check Heating surface: 22 m² Drying chamber capacity: 2.47 m³ Drying chamber sizes: 1560 x 1700 x 1050 mm Max. temperature: 20—95 °C Number of trays: 15 Tray sizes: 1550 x 950 mm With 1 door: check Connection for the vacuum pump: check Type: VHT 155/170 WW Machine number: 59 52600085 0010 Floorspace: 1,45 x 1,05 m Total height: 2,01 m Extra Specifications: with AUTOTHERM – Temperature controller AWF 95-36/E; Technical data Rated temperature: 95 °C Heating capacity: 36 kW Cooling: Indirect General Pressure Main Features Specified Features - Tray dryer Information
About this machine

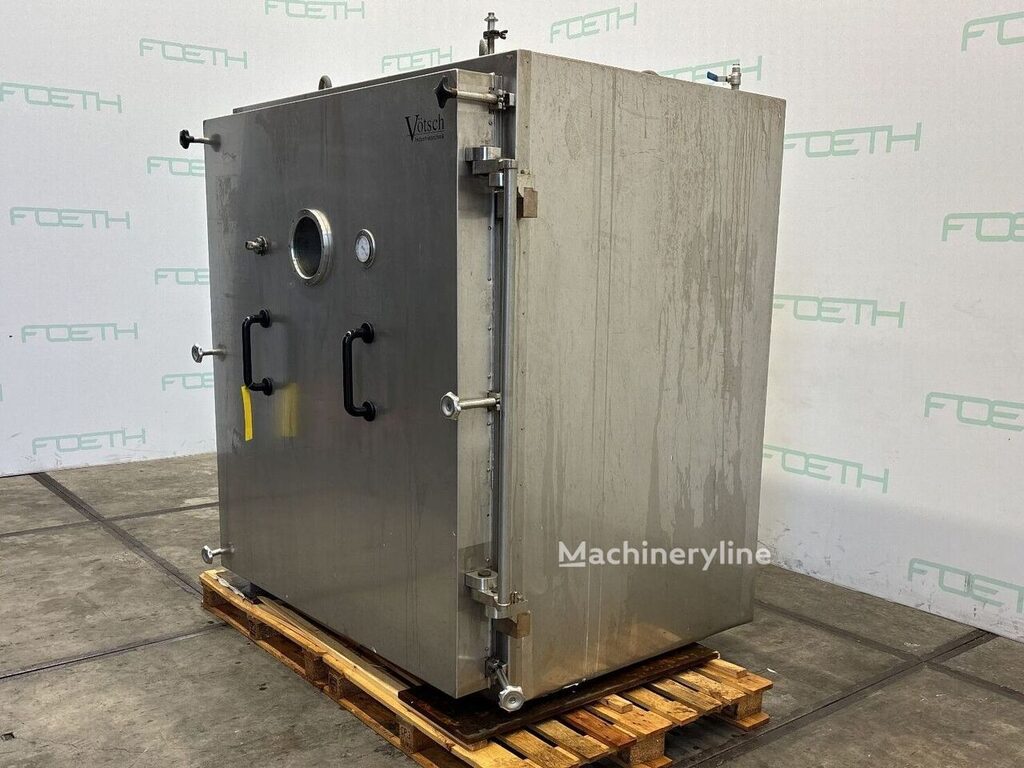

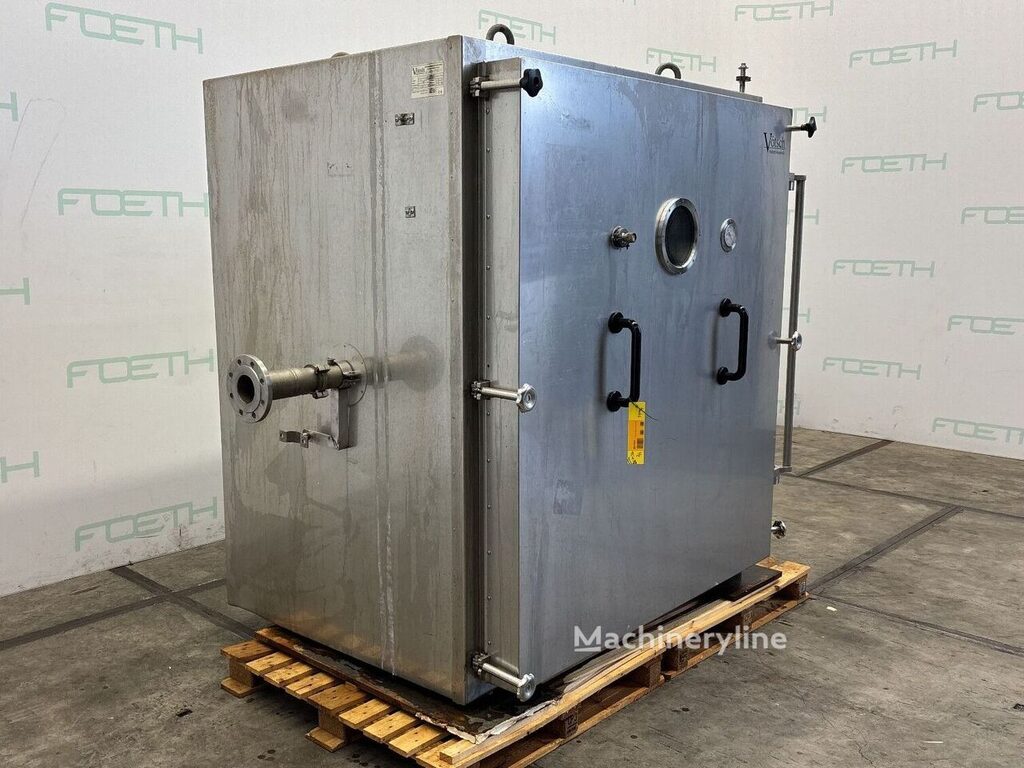

This Vötsch VHT 155 170 WW is a used tray dryer — sometimes referred to as a shelf dryer — designed for the controlled drying of products spread across a series of horizontal trays within an enclosed, temperature-regulated chamber. Vötsch is a well-established German manufacturer specialising in industrial climate and temperature-control equipment, serving sectors such as pharmaceuticals, chemicals, food processing, and materials testing.
The machine is constructed throughout in stainless steel, combining grade ) and grade Ti), giving it strong corrosion resistance and suitability for demanding process environments. The stainless steel housing and stainless steel trays are both included. A total of 15 trays are fitted, each measuring 1,550 × 950 mm, and the drying chamber itself measures 1,560 × 1,700 × 1,050 mm, yielding an internal volume of 2.47 m³ and a heating surface area of 22 m². Access is via a single door.
The unit operates across a temperature range of 20 to 95 °C, with a rated temperature of 95 °C and a heating capacity of 36 kW. Cooling is indirect. Working pressure is rated at 3 bar, and the machine is equipped with a connection for a vacuum pump. Temperature control is handled by an AUTOTHERM controller, model AWF 95-36/E.
In terms of physical footprint, the machine occupies a floor area of 1.45 × 1.05 m and stands 2.01 m in total height, making it relatively compact for a chamber of this capacity. The machine carries serial number and bears CE marking. It is located in Barneveld, Netherlands, and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
