2001 - Hosokawa Micron Torus Disc JS Dryer
()- Listing No
- 1167073
- Year
- 2001
- Manufacturer
- Hosokawa Micron
- Model
- Torus Disc JS
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: Torus-Disc TDJS 1000-3.15 No: 4056101000 Working pressure jacket: 3 Bar Max. temperature: 50°C Material: Stainless steel 1.4301 (304) Volume: 3375 Ltr Motor: 11 kW (400 V, 1500 rpm) Torus-disc dryer: check Continuous: check Capacity: bruto 3375 l (netto 2000 l) Trough sizes: 1120 x 3150 mm Inlet: DN400 Manhole: DN500 inspection port Outlet: DN400 With jacket: check Shaft can be heated: check Speed mixing shaft: 20 rpm Total height: 2,10 m Floorspace: 5,45 x 1,45 m Extra Specifications: Rotor: - volume 107 l. - working pressure 3 bar, design pressure 5 bar, test pressure General Pressure Technical specs Main Features Specified Features - Continuous dryer Continuous dryers Information
About this machine

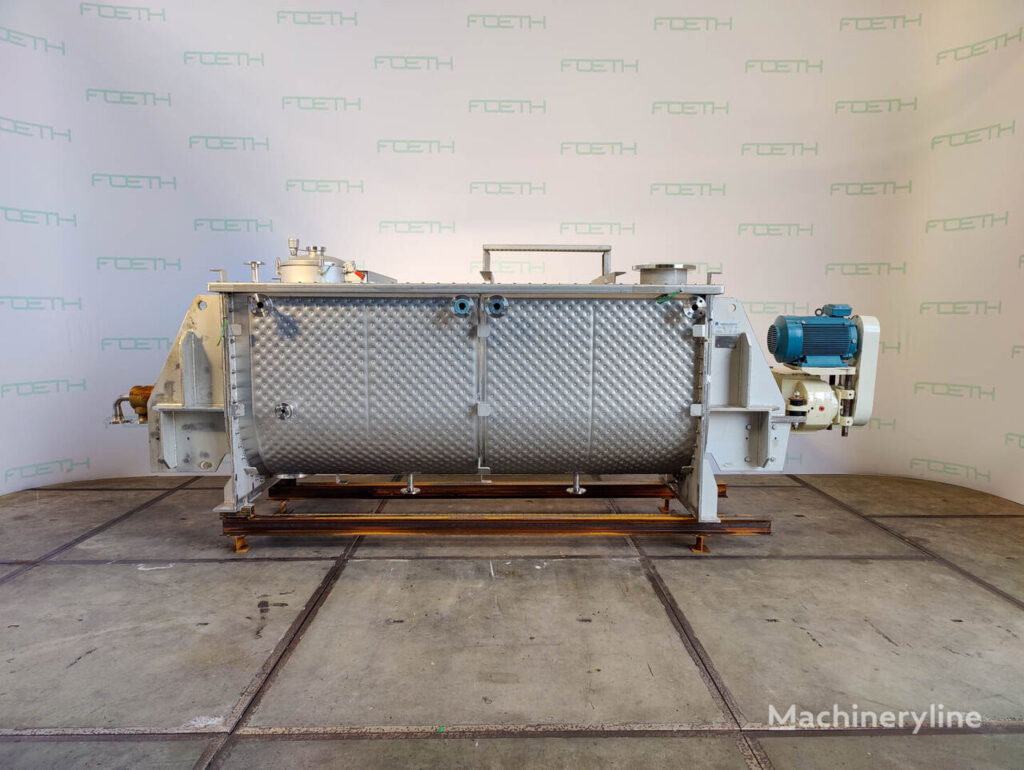

This Hosokawa Micron Torus Disc JS Dryer is a continuous dryer — sometimes referred to as a disc dryer or paddle dryer — designed for the gentle, indirect drying of bulk materials in a continuous process. Continuous dryers of this type transfer heat through a jacketed trough and a heated rotating shaft, making them well suited to temperature-sensitive products across the chemical, food, and pharmaceutical industries. Hosokawa Micron is a widely recognised manufacturer of powder and particle processing equipment, with a long-established presence in mixing, drying, and size-reduction technology for process industries worldwide.
This unit is identified by the manufacturer as a Torus-Disc TDJS , serial number , and was built in 2001. It is located in Barneveld, Netherlands, and is offered in used condition. The machine is constructed throughout in stainless steel ), making it appropriate for hygienic and corrosion-sensitive applications.

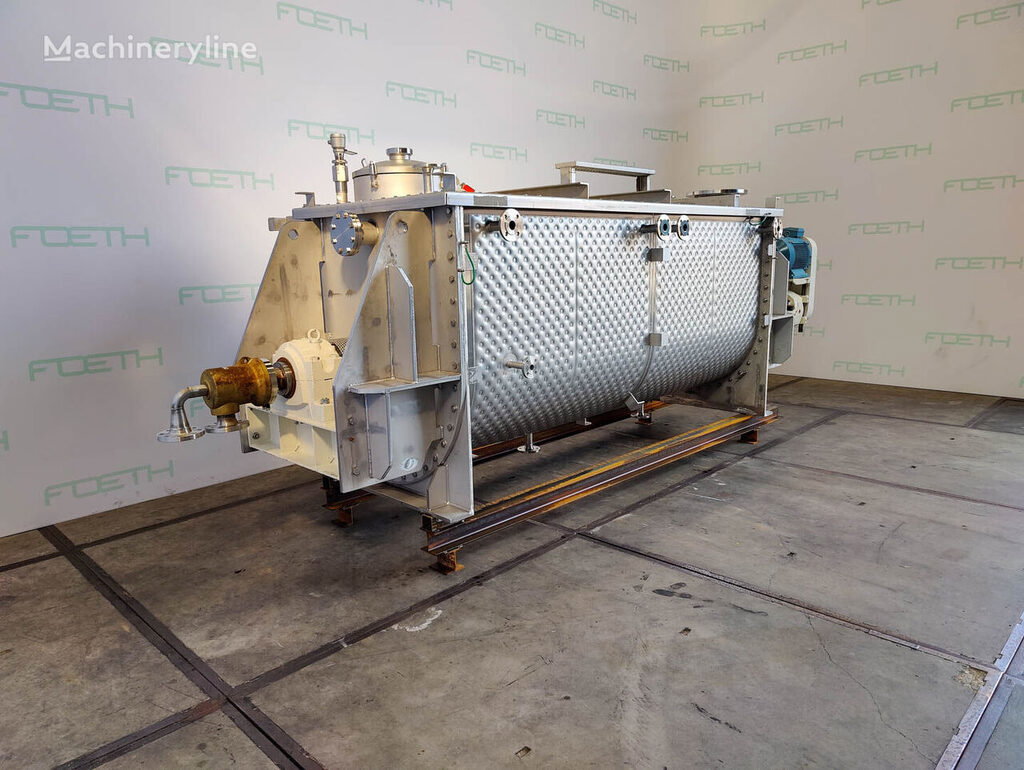

The trough measures 1,120 × 3,150 mm, with a total gross volume of 3,375 litres and a net working volume of 2,000 litres. The machine is equipped with a full heating jacket on the trough body, and the mixing shaft itself can also be heated, allowing heat to be applied from both the wall and the shaft simultaneously for efficient energy transfer. The jacket operates at a working pressure of 3 bar. The rotor has a separate volume of 107 litres, with a working pressure of 3 bar, a design pressure of 5 bar, and a test pressure as specified by the manufacturer. Maximum product temperature is 50 °C.

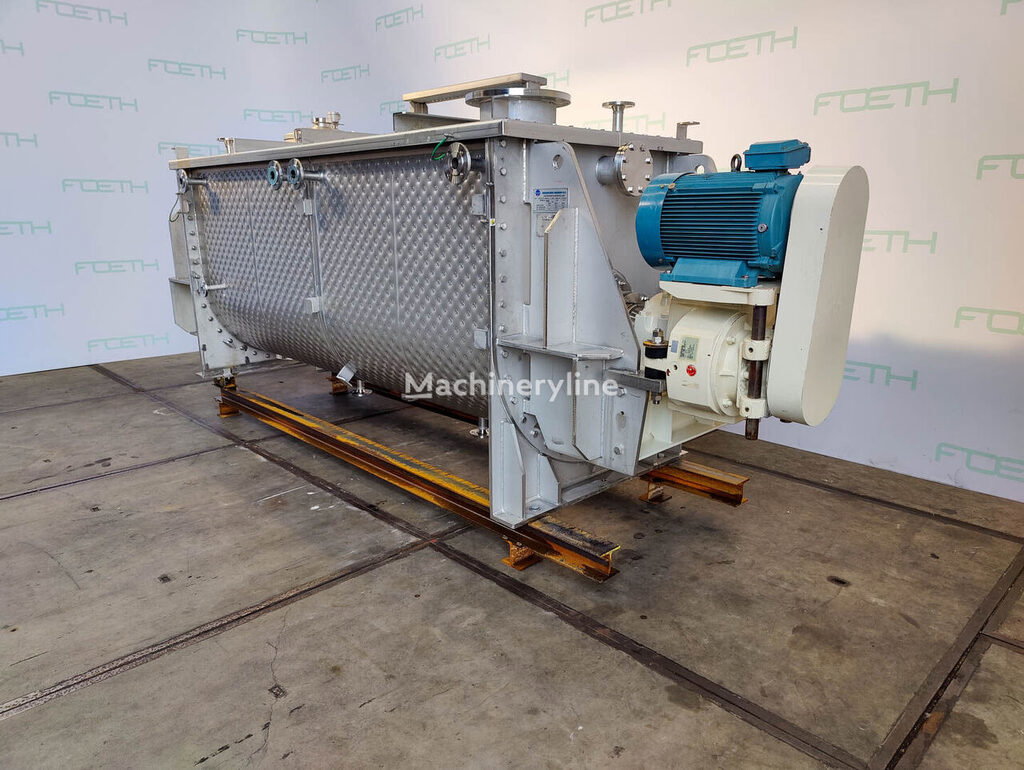

The mixing shaft runs at 20 rpm and is driven by an 11 kW motor rated at 400 V and 1,500 rpm. Material enters through a DN400 inlet and exits through a DN400 outlet. Access for inspection and maintenance is provided by a DN500 manhole port. The overall height of the machine is 2.10 m, and its footprint measures 5.45 × 1.45 m, giving an indication of the floor space required for installation.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
