2012 - Bühler OTW-150 CRF ST Dryer
()- Listing No
- 1167111
- Year
- 2012
- Manufacturer
- Bühler
- Model
- OTW-150 CRF ST
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Type: OTW-150 CRF Location: Barneveld CE: check Material: Stainless steel 1.4541 (321) Motor: ± 30 kW 500V 2960 rpm Surface: 1,66 m² Continuous fluidbed dryer: check Bed sizes: 2024 x 822 mm Product inlet: DN200 Product outlet: DN200 Air inlet: DN400 Air outlet: DN400 With fan: check No: 10506369 Floorspace: 2,3 x 0,92 m Total height: 1,9 m Extra Specifications: Operating parameters Maximum operating temperature: 200°C Pressure range: 100 / –50 mbar Air capacity: approximately 8,160 m³/h Material throughput capacity: up to 2,250 kg/h Included equipment General Main Features Specified Features - Fluid bed dryer continuous Information Pulsator with electric motor rated at 0.55 kW 290/500 V with an adjustable operating speed
About this machine
This Bühler OTW-150 CRF ST is a continuous fluidbed dryer — sometimes referred to as a fluid bed dryer — a type of industrial drying equipment that suspends and conveys particulate or granular material on a controlled flow of heated air, enabling efficient and uniform moisture removal in continuous-production environments. Bühler is a globally recognised Swiss processing technology group with a long-established presence in food, feed, grain milling, and related industries, known for engineered equipment built to exacting industrial standards.
This machine was manufactured in 2012 and is available used from its current location in Barneveld, Netherlands. It is constructed from stainless steel grade 1.4541 (equivalent to AISI 321), a material chosen for its resistance to corrosion and elevated temperatures, making it well suited to food-grade or chemically demanding processing environments. The unit carries CE marking.

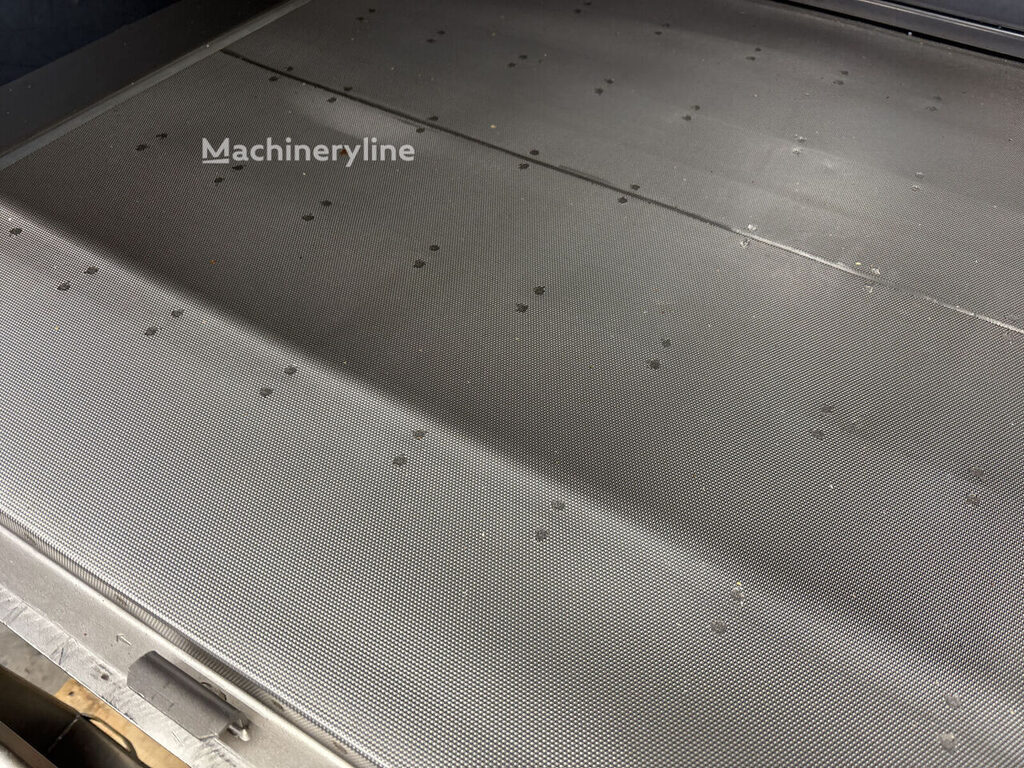

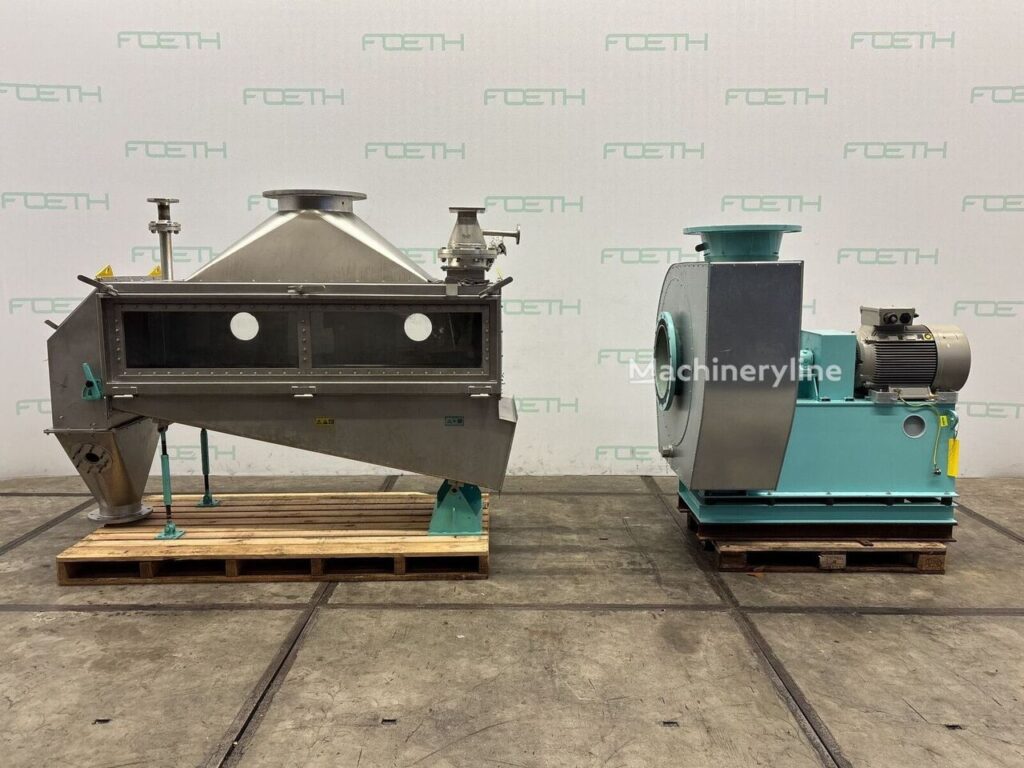

The dryer operates on a fluidised bed measuring 2,024 × 822 mm, giving an active bed surface area of 1.66 m². The overall footprint is 2.3 × 0.92 m, with a total installed height of 1.9 m, making it a comparatively compact unit for continuous throughput applications. Product enters and exits through DN200 connections, while air inlet and outlet are sized at DN400. A fan is incorporated as part of the assembly.
The main drive motor is rated at approximately 30 kW, running at 2,960 rpm on 500 V supply. An additional pulsator is fitted, driven by a 0.55 kW electric motor rated at 290/500 V with an adjustable operating speed, which introduces controlled vibration or pulsation to improve fluidisation and material flow through the bed.
Operating parameters allow a maximum process temperature of 200°C and a pressure range of 100 to −50 mbar. The unit's air handling capacity is approximately 8,160 m³/h, and material throughput capacity is stated at up to 2,250 kg/h, making this a capable machine for medium-to-high-volume continuous drying duties. The serial number is .
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
