2011 - Bosch Pilotlab L – F Dryer
()- Listing No
- 1165993
- Year
- 2011
- Manufacturer
- Bosch
- Model
- Pilotlab L - F
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: Pilotlab L No: D.1000129 Sprayer: check Material: Stainless steel 1.4552 Volume: 60 Ltr Motor: 22 kW (400 V, 2950 rpm) Fluidbeddryer: check Coater: check Granulator: check With pan mounted on wheels: check Capacity: 1500 m³/h Pan sizes: Dia 380 mm x 550 mm With sprayer: check With sprayer on bottom of pan: check (3x) With pump: check Can be heated by steam: check With fan: check With dust filter: check ( internal filter) Filter surface: 0,5 m² Cleaning with air pulse: check With switchgear: check (as is) Total height: 4 m CE: check Floorspace: 1,5 x 1,5 m (fluid bed dryer netto gewicht: ± 5.000 kg for total installation General Pressure Main Features Specified Features - Fluid bed dryer batch Information
About this machine

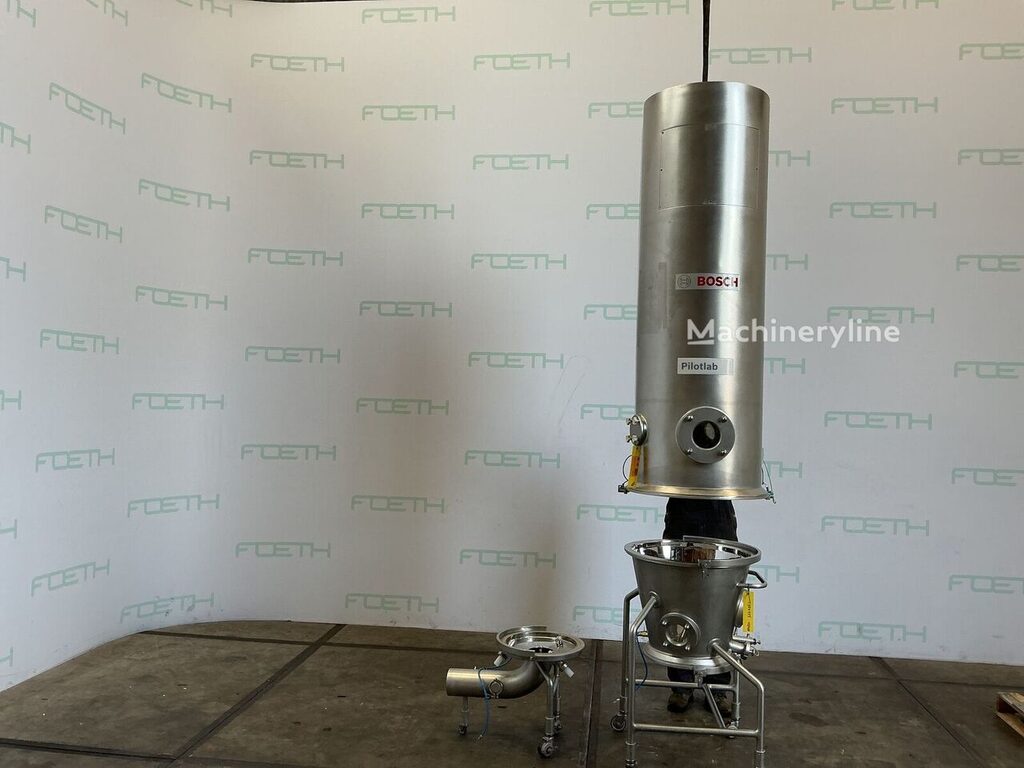

This Bosch Pilotlab L - F Dryer is a fluid bed dryer — sometimes referred to as a fluidised bed processor — a batch processing machine used in pharmaceutical, chemical, and food industries to dry, coat, and granulate powder or granule materials by passing heated air upward through a product bed. Bosch is a well-established manufacturer of processing and packaging equipment for the pharmaceutical and life sciences sectors, producing machinery known for its precision engineering and compliance with industry standards.

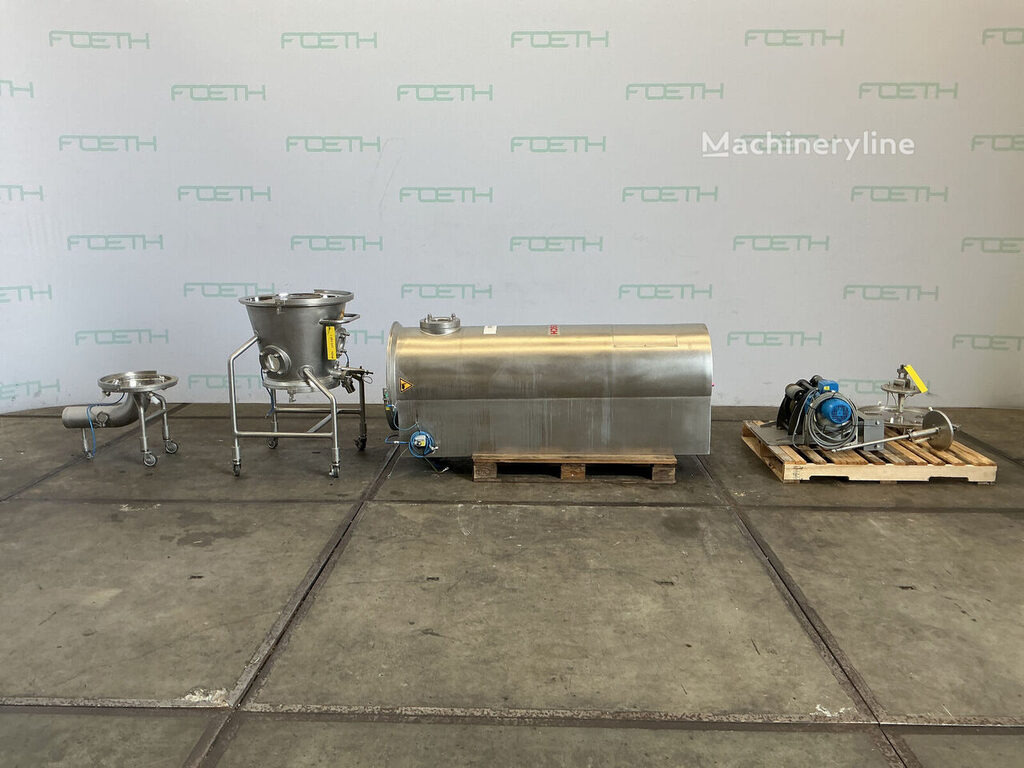

This used unit, manufactured in 2011 and located in Barneveld, Netherlands, is a multi-functional system that combines fluid bed drying, coating, and granulation in a single installation. The machine carries serial number D.1000129 and holds CE certification. It is constructed from stainless steel grade 1.4552, suitable for pharmaceutical and food-grade processing environments.
The system has a working volume of 60 litres and is fitted with a pan measuring 380 mm in diameter by 550 mm in length, mounted on wheels for ease of positioning. It is driven by a 22 kW motor running at 400 V and 2,950 rpm, and delivers an airflow capacity of 1,500 m³/h via an integrated fan. Air heating can be provided by steam.

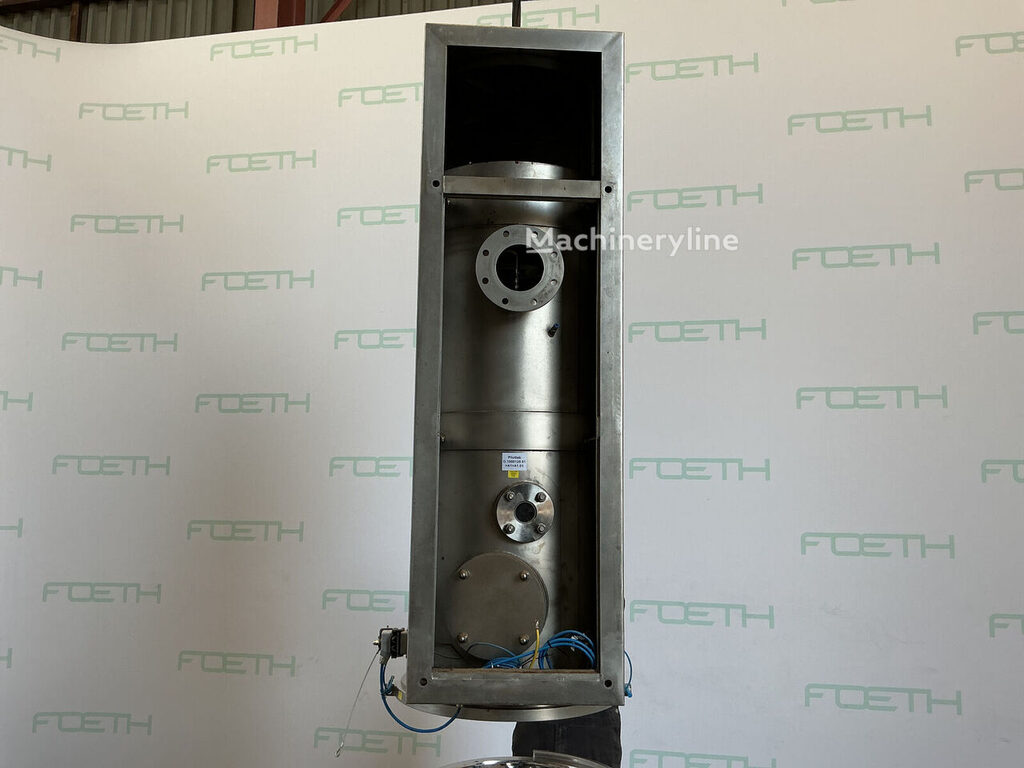

The installation includes a sprayer, along with three bottom-spray nozzles mounted beneath the pan, making it suitable for Wurster-type coating and bottom-spray granulation processes. A pump is included to supply liquid to the spray system. An internal dust filter with a surface area of 0.5 m² captures fines during processing, and the filter is cleaned automatically by air pulse, minimising downtime between batches. Switchgear is included with the machine, sold as-is.
The overall installation stands 4 metres in height and occupies a floor footprint of 1.5 × 1.5 metres for the fluid bed dryer section. The total net weight of the complete installation is approximately 5,000 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
