2000 - Bucher VTS-D7 30M2 – Dryer
()- Listing No
- 1166894
- Year
- 2000
- Manufacturer
- Bucher
- Model
- VTS-D7 30M2 -
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: VTS D7 30m² Machine number: 5266/1-11 Vacuum possible: check Working pressure trays: 2 Bar Material: Stainless steel 1.4541 (321) Volume: 5000 Ltr Surface: 30 m2 Tray dryer: check Stainless steel housing: check Stainless steel trays: check Heating surface: 30m² Drying chamber capacity: 5 m3 Drying chamber sizes: 1991x2080x1420 mm Max. temperature: 100°C With jacket: check Number of trays: 11 Tray sizes: 1550x2000 mm Distance between the trays: 100 mm With 2 doors: check Connection for the vacuum pump: check With vacuum pump: check Motor: 5,5kW, 400/690 Volt, 1455rpm With switchgear: check Floorspace: 3x2,6 m Total height: 2,6 m General Pressure Main Features Specified Features - Tray dryer Information Weight
About this machine

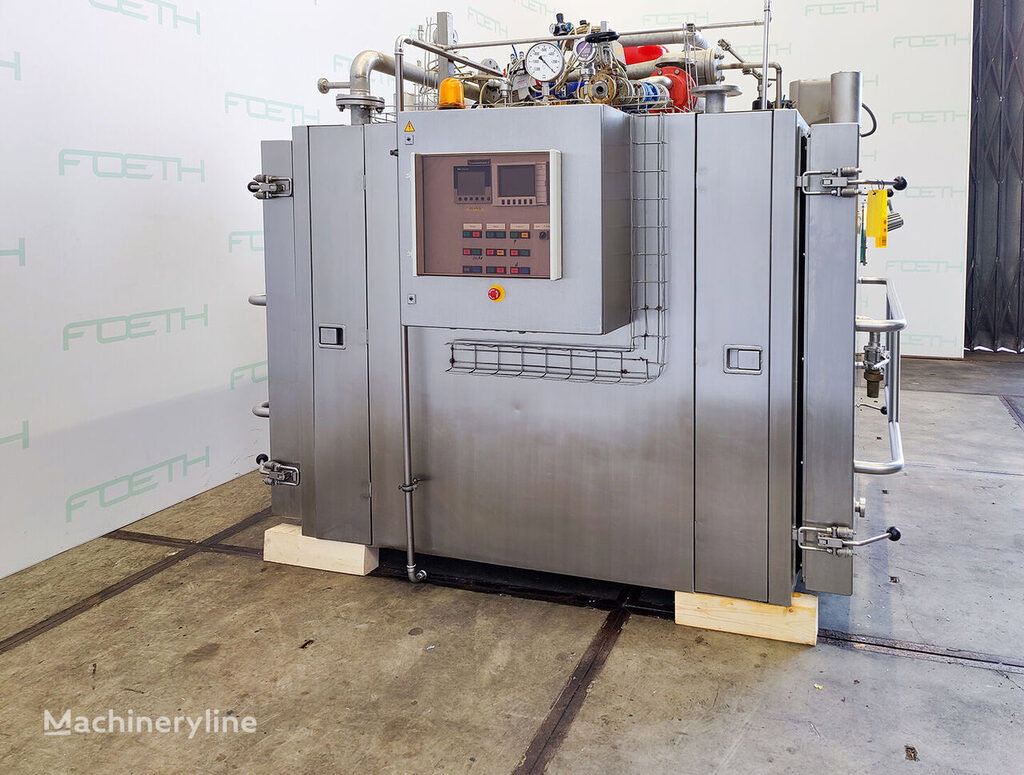

This Bucher VTS-D7 30M2 is a tray dryer — sometimes referred to as a shelf dryer or vacuum tray dryer — a type of industrial drying equipment used to remove moisture from bulk materials, powders, granules, pastes, and similar products under controlled temperature and, where required, vacuum conditions. Bucher is a well-established Swiss engineering group with a broad portfolio of industrial processing equipment serving the food, pharmaceutical, and chemical industries, among others.
This particular unit dates from 2000 and is offered in used condition from its current location in Barneveld, Netherlands. It carries machine number 5266/1-11 and is constructed throughout in stainless steel grade 1.4541 (AISI 321), covering both the housing and the trays, making it suitable for hygienic or corrosion-sensitive applications.
The drying chamber measures 1,991 × 2,080 × 1,420 mm and offers a usable volume of 5 cubic metres, with a total internal volume of 5,000 litres. The heating surface area is 30 m², distributed across 11 trays, each measuring 1,550 × 2,000 mm and spaced 100 mm apart. The chamber is fitted with a jacket and the working pressure of the trays is rated at 2 bar. Maximum operating temperature reaches 100 °C.
The machine is equipped for vacuum operation, with a connection point for a vacuum pump and a vacuum pump included. Access is via two doors. The drive motor is rated at 5.5 kW and runs on 400/690 V at 1,455 rpm. Switchgear is included. The unit has a floor footprint of 3.0 × 2.6 m and a total height of 2.6 m.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
