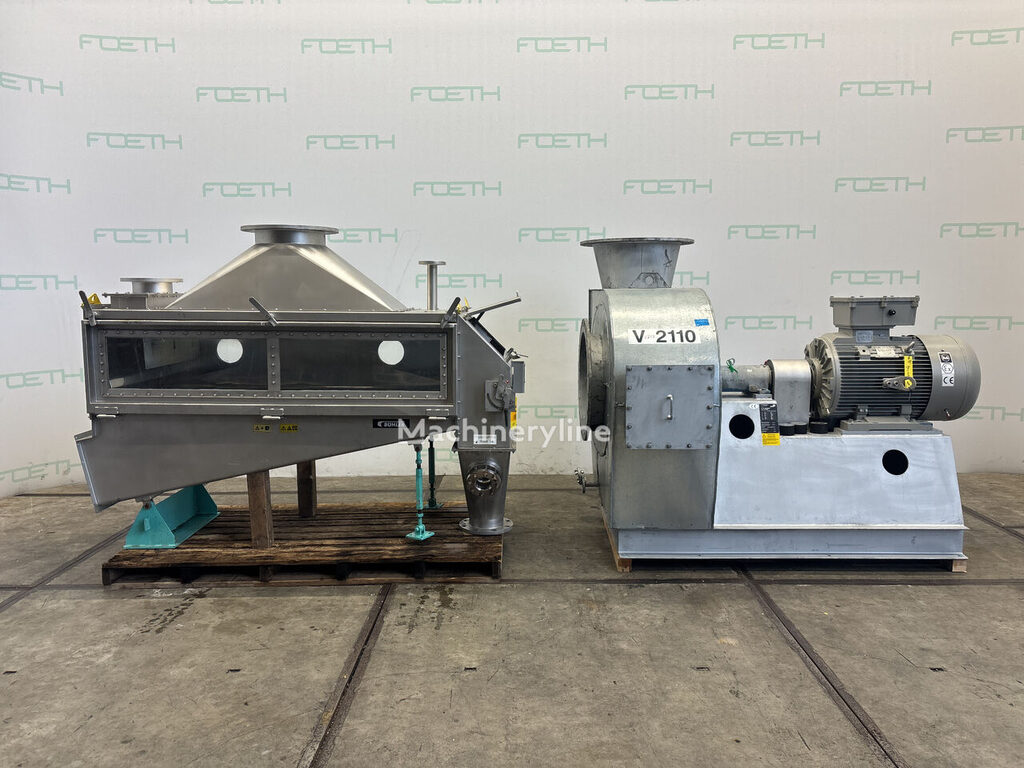

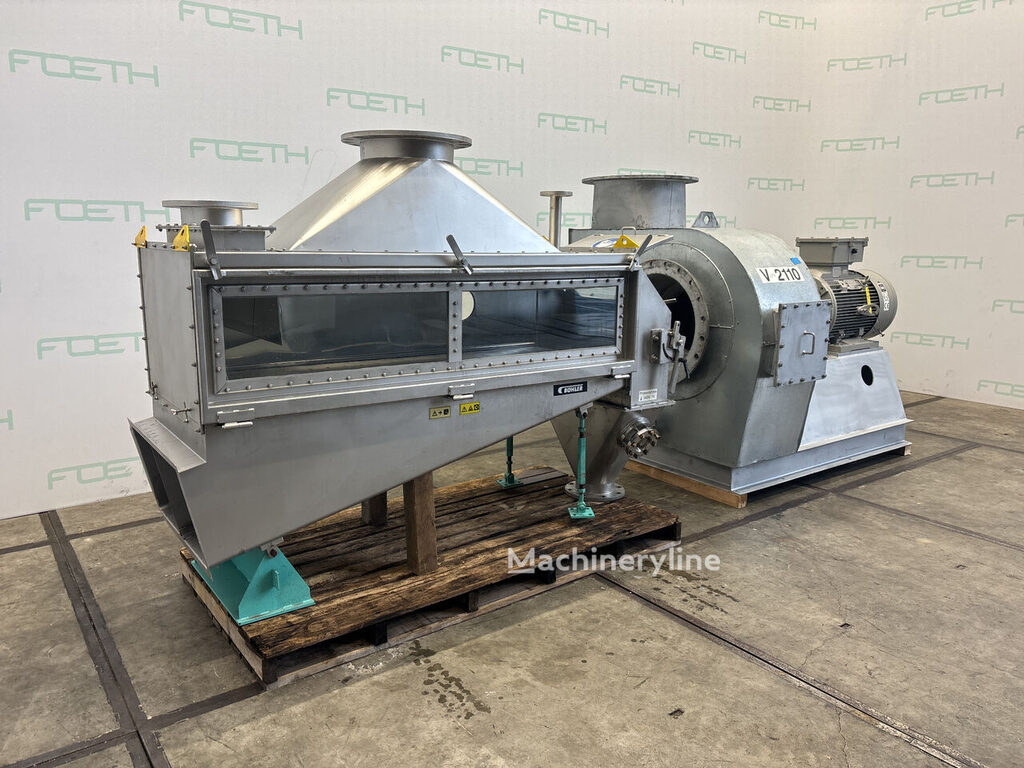

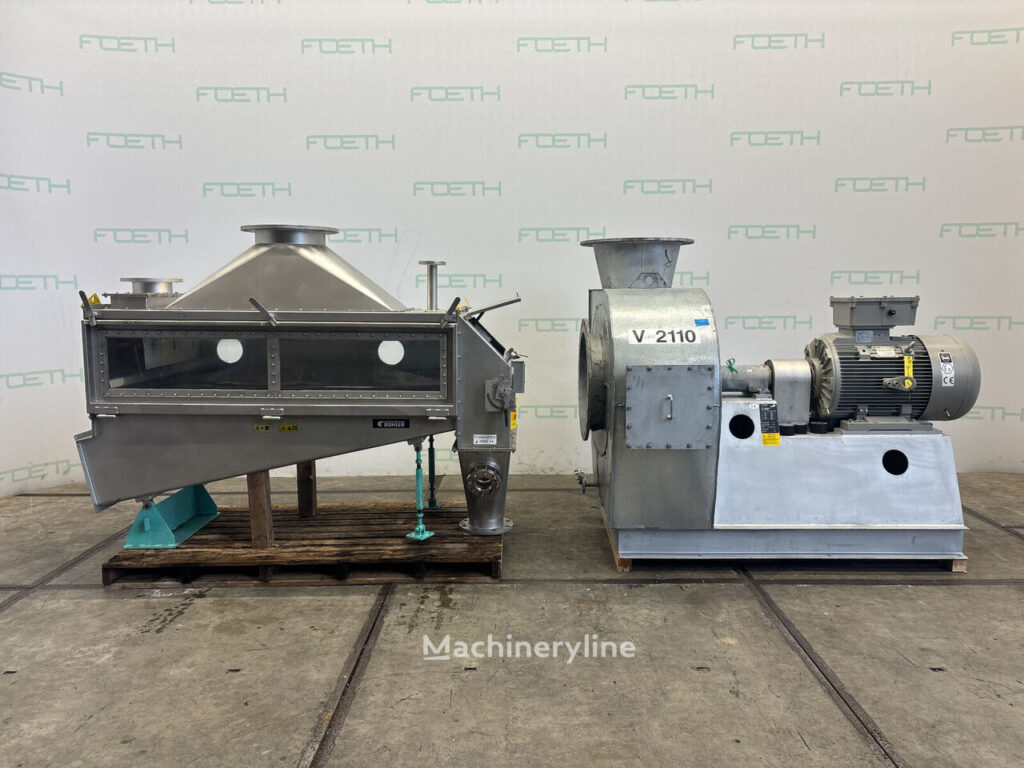

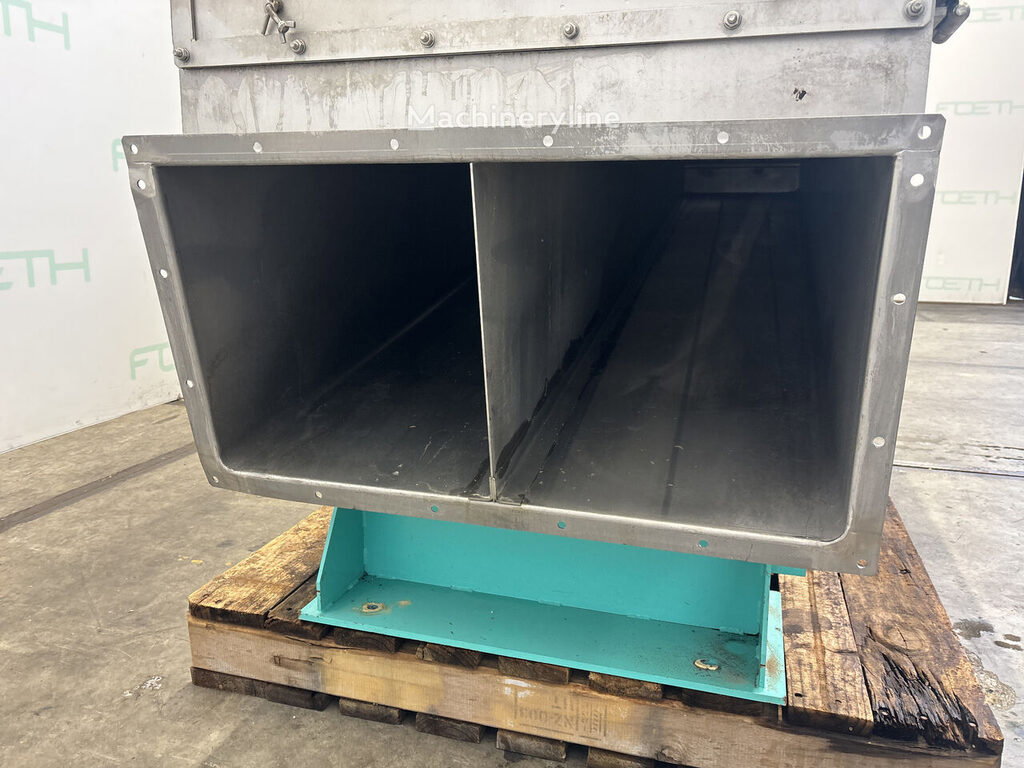

2010 - Bühler OTW 150 Dryer
()- Listing No
- 1165679
- Year
- 2010
- Manufacturer
- Bühler
- Model
- OTW 150
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld CE: check Type: OTW 150 Material: Stainless steel 1.4541 (321) Motor: 75 kW, 290/500 V, 2970 rpm, (Ex) Surface: 1,5 m² Continuous fluidbed dryer: check Product inlet: DN200 Product outlet: DN200 Number of sections: 1 Air inlet: DN400 Air outlet: DN400 Vibro motor: check With variable speed drive: check (34 — 171 rpm) With fan: check Capacity: 2250 kg/h Cleaning by air pulse: check Max. temperature: 200 °C No: 20.330.943 Floorspace: 3,35 x 1,0 m Total height: 1,90 m Extra Specifications: Cooling air volume: approx. 8100 m³/h Throughput capacity: max. 2250 kg/h Product inlet temperature: 150 °C General Main Features Specified Features - Fluid bed dryer continuous Information
About this machine
This Bühler OTW 150 is a continuous fluid bed dryer — sometimes referred to as a fluidised bed dryer — a type of industrial drying equipment used to remove moisture from bulk solid materials by suspending them on a controlled flow of heated air. Bühler is a well-established Swiss process technology company with a long history of supplying equipment to the food, feed, grain milling, and chemical processing industries.
Built in 2010 and now available used from a location in Barneveld, Netherlands, this machine is constructed in stainless steel grade ), making it suitable for hygienic and corrosion-sensitive applications. It carries CE marking and bears the serial number .
The dryer operates as a single-section continuous unit with a working surface of 1.5 m² and a floor footprint of 3.35 × 1.0 metres, with a total installed height of 1.90 metres. Product enters and exits through DN200 connections, while process air moves through DN400 inlet and outlet connections. An integrated vibro motor with a variable speed drive covers a range of 34 to 171 rpm, allowing the residence time and throughput rate to be adjusted. A dedicated fan is included. Bed cleaning is carried out by air pulse.
The main drive motor is rated at 75 kW, configured for 290/500 V operation at 2,970 rpm, and is specified to ATEX explosion-proof (Ex) standards. Maximum operating temperature is 200 °C, and the product inlet temperature is stated at 150 °C. Cooling air volume is approximately 8,100 m³/h, and throughput capacity is rated at a maximum of 2,250 kg/h.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
