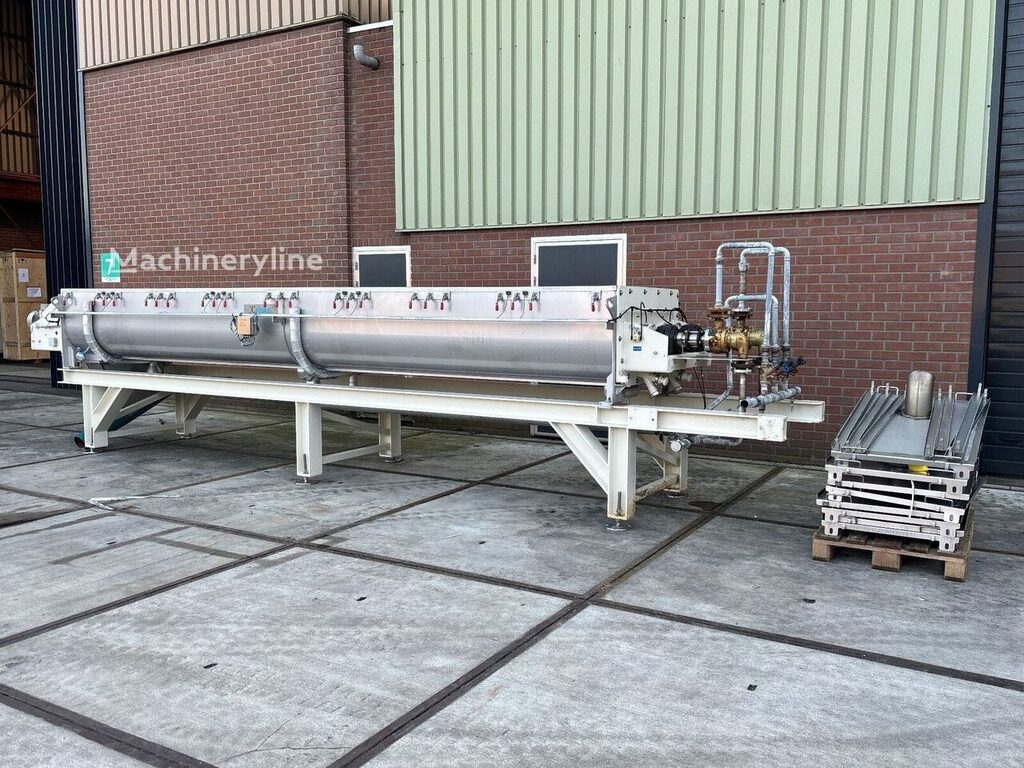

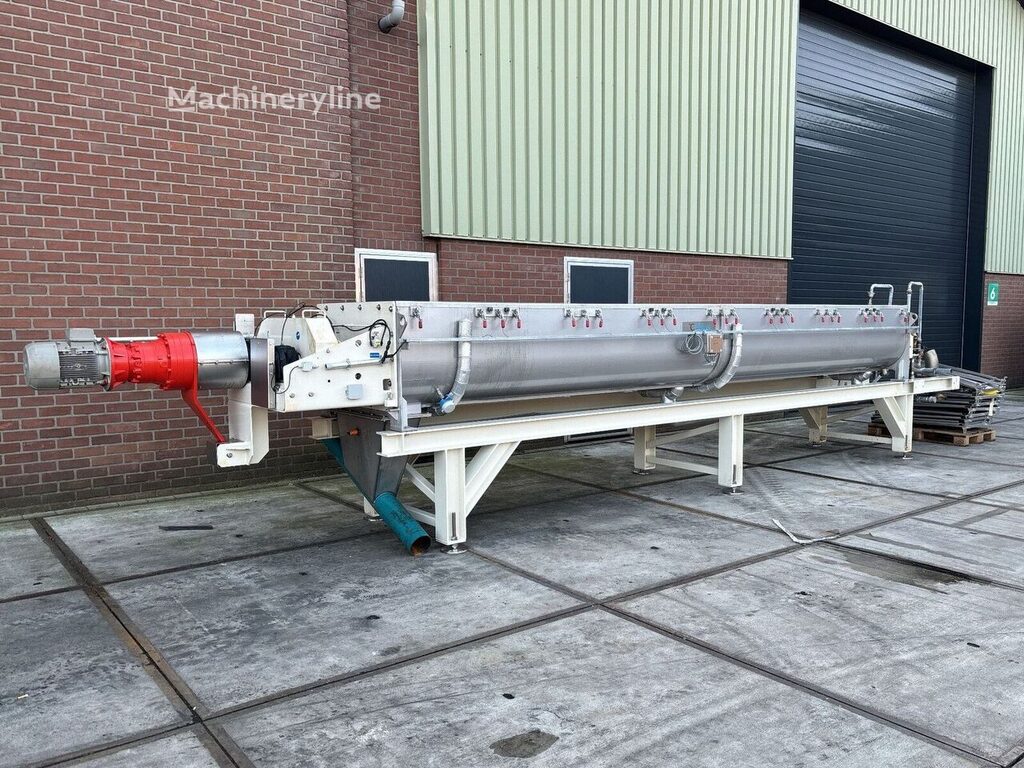

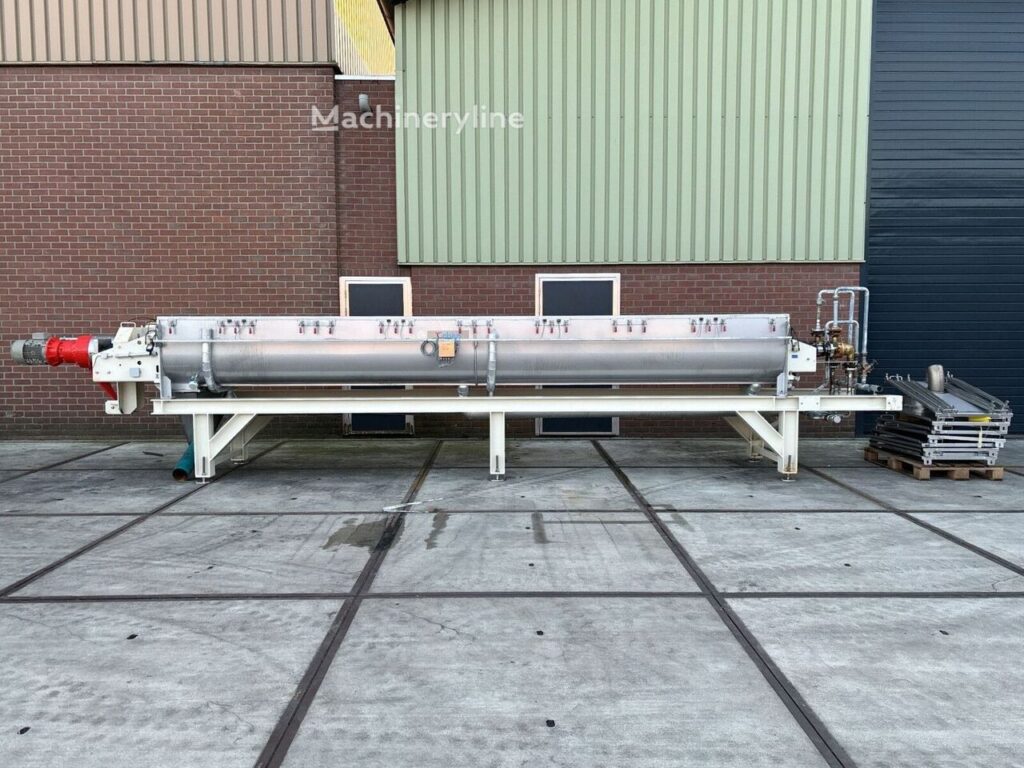

2011 - Celsius CWR-500 Contin Dryer
()- Listing No
- 1166214
- Year
- 2011
- Manufacturer
- Celsius
- Model
- CWR-500 Contin
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-

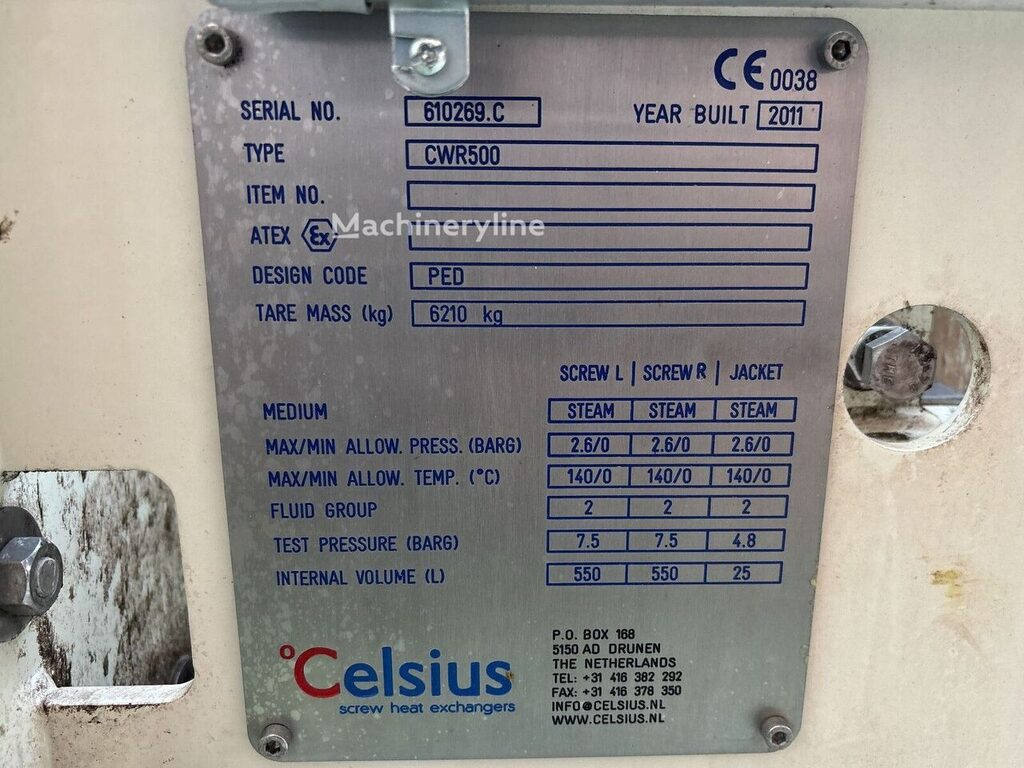

Location: Barneveld CE: check Type: CWR500 Working pressure: 2.6 Bar Working pressure jacket: 2.6 Bar Max. temperature: 140 °C Material: Stainless steel 1.4301 (304) Volume: 5000 Ltr Motor: 9,2 kW, 400/690 volt Screw dryer: check (screw heat exchanger) Double shaft: check Continuous: check Capacity: 1500 kg/h Product inlet: DN150 Manhole: 440 x 330 mm Product outlet: 250x700 mm With jacket: check 25 l Shaft can be heated: check Screw speed: 6.4 rpm No: 610269.C Mounted on frame: check With switch: check Floorspace: 9,027x1,10 m Total height: 1,90 m Extra Specifications: Volume 5000 l General Pressure Technical specs Main Features Specified Features - Continuous dryer Continuous dryers Information
About this machine
The Celsius CWR-500 is a used continuous dryer — sometimes referred to as a screw dryer — designed to remove moisture from bulk materials in a steady, uninterrupted flow rather than in batches. Continuous dryers of this type are widely used in the food processing, chemical, and agricultural industries wherever consistent throughput and controlled drying conditions are required.
This machine was manufactured in 2011 and is currently located in Barneveld, Netherlands. It carries CE marking and bears serial number 610269.C. Construction is entirely in stainless steel grade ), making it suitable for hygienic and corrosion-sensitive applications.
The dryer has a total internal volume of 5,000 litres and is rated for a continuous throughput capacity of 1,500 kg/h. It features a double-shaft configuration with an integrated screw heat exchanger, meaning heat is transferred directly through the rotating screws as well as through the surrounding jacket. The screw speed is 6.4 rpm. The jacket holds 25 litres and both the jacket and the shafts can be heated, providing efficient and even heat distribution across the product mass. Working pressure for the main vessel and the jacket is 2.6 bar, and the maximum operating temperature is 140 °C. Product enters through a DN150 inlet and exits through a 250 × 700 mm outlet. A manhole measuring 440 × 330 mm provides access for inspection and cleaning.

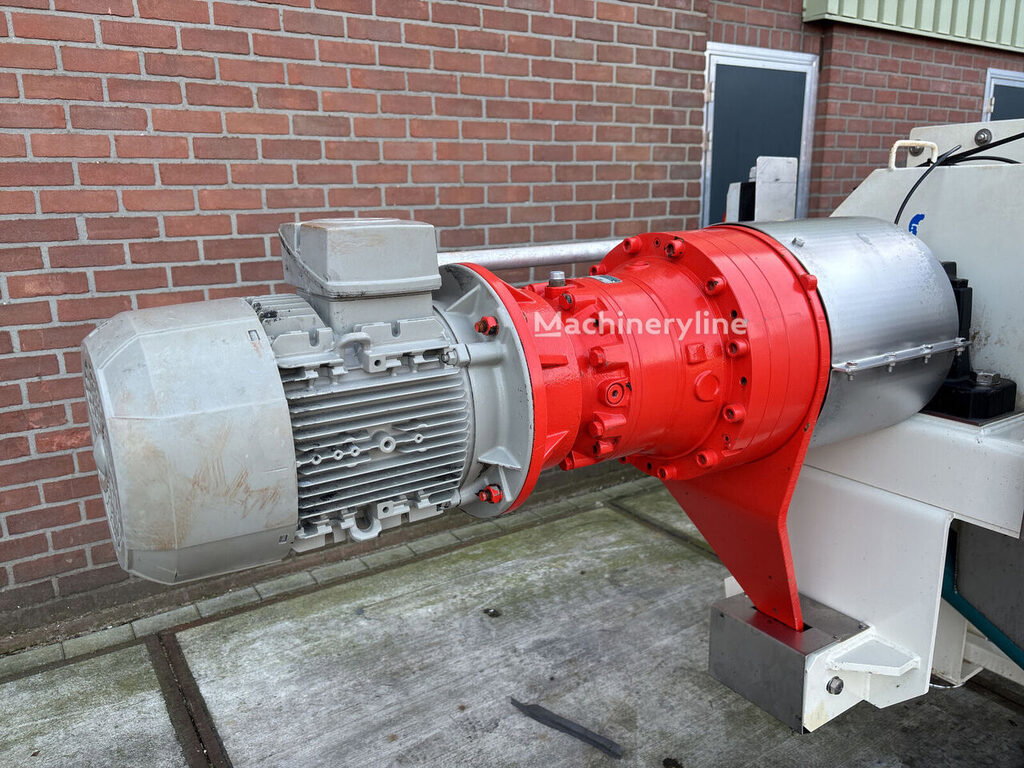

The machine is driven by a 9.2 kW motor rated at 400/690 volt and is mounted on a frame with a footprint of approximately 9.03 × 1.10 metres and a total height of 1.90 metres. A switch panel is included. The unit is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
