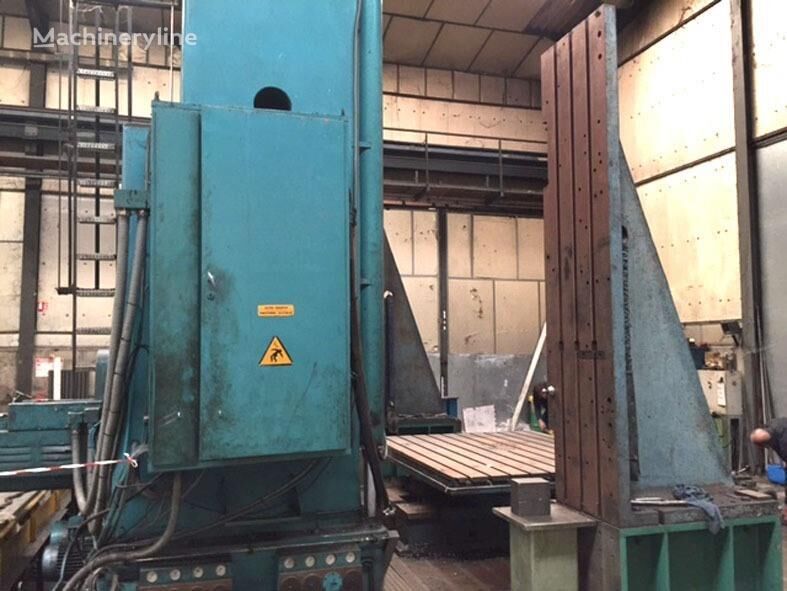

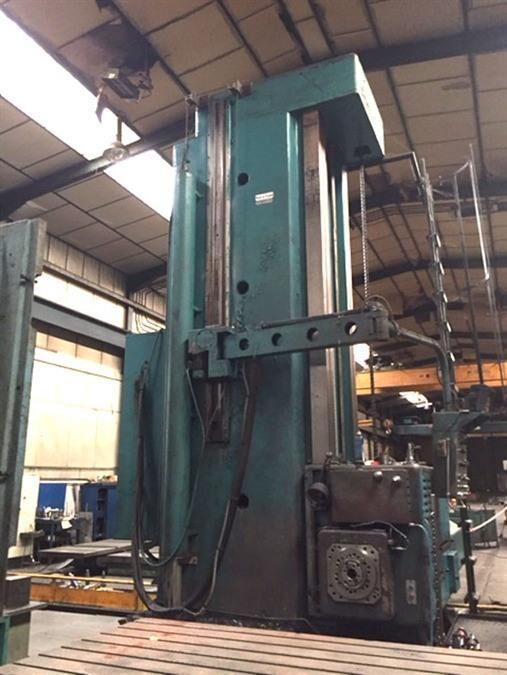

Defum WH150 Boring Mill
()- Listing No
- 952155
- Year
- Manufacturer
- Defum
- Model
- WH150
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Conventional borer with ballscrews Skoda license production Slides are in excellent condition (flower texture still visible = very little wear) ram size: 380 x 380 mm Optional equipment 3 milling heads 3 cabinets with tooling lengthening piece for spindle turning table 2 corner supports of 3000 mm high 2 corner supports of 2000 mm high 2 corner supports of 1100 mm high 2 floorplates 5000 x 2000 x 400 mm Cross traverse Y-axis (table/column): 1200 mm Spindle traverse W-axis: 500 mm Milling spindle taper (ISO): ISO 50 Spindle power: 30 kW Dia spindle -- Spindle bore: 150 mm Spindle speed range: 1470 rpm Digital read-out (1) CNC(2): Newall dig readout Rotary table dimensions: 2500 x 2000 mm Weight: yes
About this machine
This Defum WH150 is a used boring mill — sometimes referred to as a horizontal borer — a machine tool designed for precision drilling, boring, and milling of large or complex workpieces that require accurate hole-making and facing operations. Defum is a Belgian machine tool manufacturer with a history of producing heavy-duty boring and milling equipment for metalworking and industrial machining applications. This particular machine is noted as being built under Škoda licence, reflecting the robust engineering tradition associated with that lineage of heavy machine tools.
The machine is a conventional boring mill equipped with ballscrews, which reduce backlash and improve positional accuracy compared to traditional leadscrews. The spindle diameter is 150 mm with a ram cross-section of 380 × 380 mm, and the milling spindle accepts ISO 50 tooling. Spindle power is 30 kW, with a maximum spindle speed of 1,470 rpm. The W-axis spindle traverse is 500 mm, and the Y-axis cross traverse of the table or column is 1,200 mm. A Newall digital readout is fitted. The rotary table measures 2,500 × 2,000 mm, providing a substantial working envelope for large components.

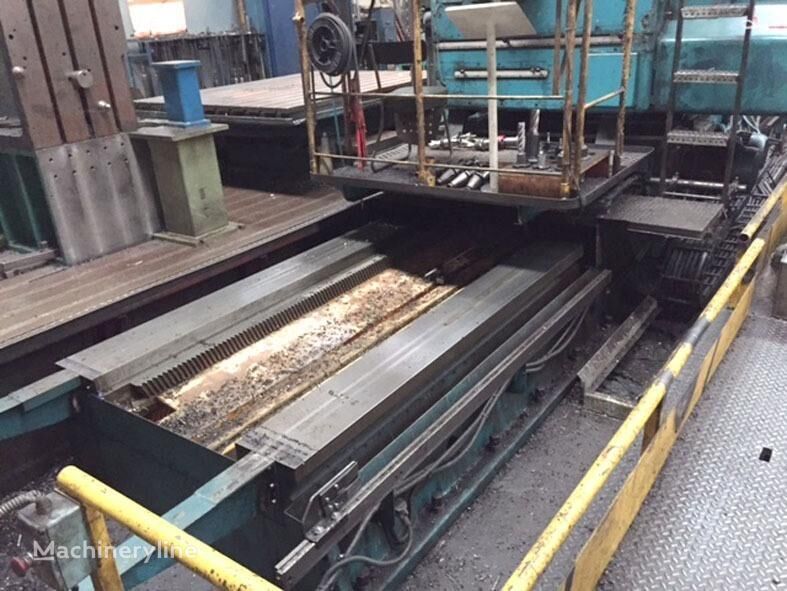

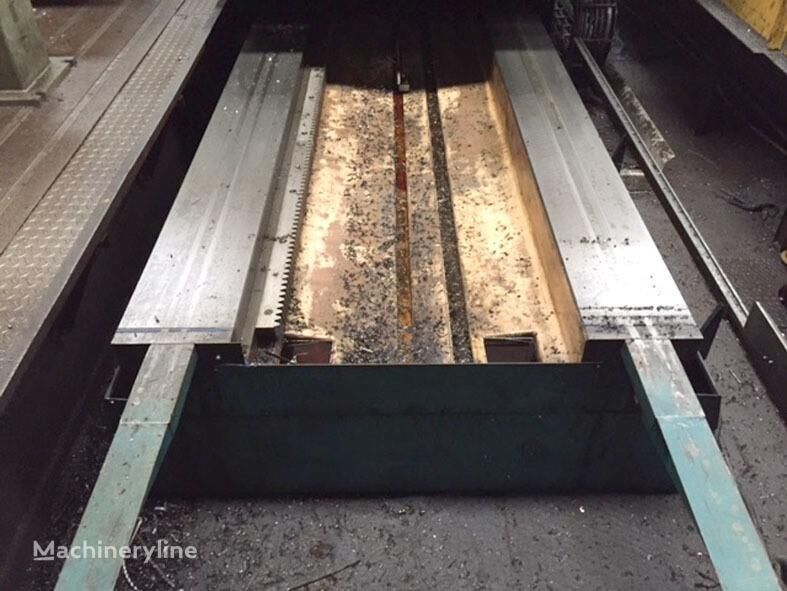

Condition is reported as used but notably well-preserved: the seller specifically observes that the flower texture on the slideways remains visible, indicating very little wear and that the slides are in excellent condition by conventional assessment standards.
A substantial package of optional equipment is included with the machine. This comprises three milling heads, three cabinets with tooling, a spindle lengthening piece, a turning table, and a full set of corner supports — two at 3,000 mm, two at 2,000 mm, and two at 1,100 mm in height. Two floor plates, each measuring 5,000 × 2,000 × 400 mm, are also included. The machine is located in Belgium.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
