Pegard AF 16 Boring Mill
()- Listing No
- 952216
- Year
- Manufacturer
- Pegard
- Model
- AF 16
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Machine can working with 6 axis simultaneous 2 tablesnbsp;CNC controllednbsp Continueous 360° - cross table moving 2500 mm Tool storage 90 POSITIONS Milling head support / support de renforcement de la broche Drill spindle support / support portefraises nbsp Cross traverse Y-axis (table/column): 650 mm (column) Spindle traverse W-axis: 1200 mm Milling spindle taper (ISO): ISO 50 Dia spindle -- Spindle bore: 160 mm Digital read-out (1) CNC(2): Heidenhain TNC 530 Rotary table dimensions: 2 tables 2380 x 2380 mm Max weight on table: 2 tables x 30 ton
About this machine

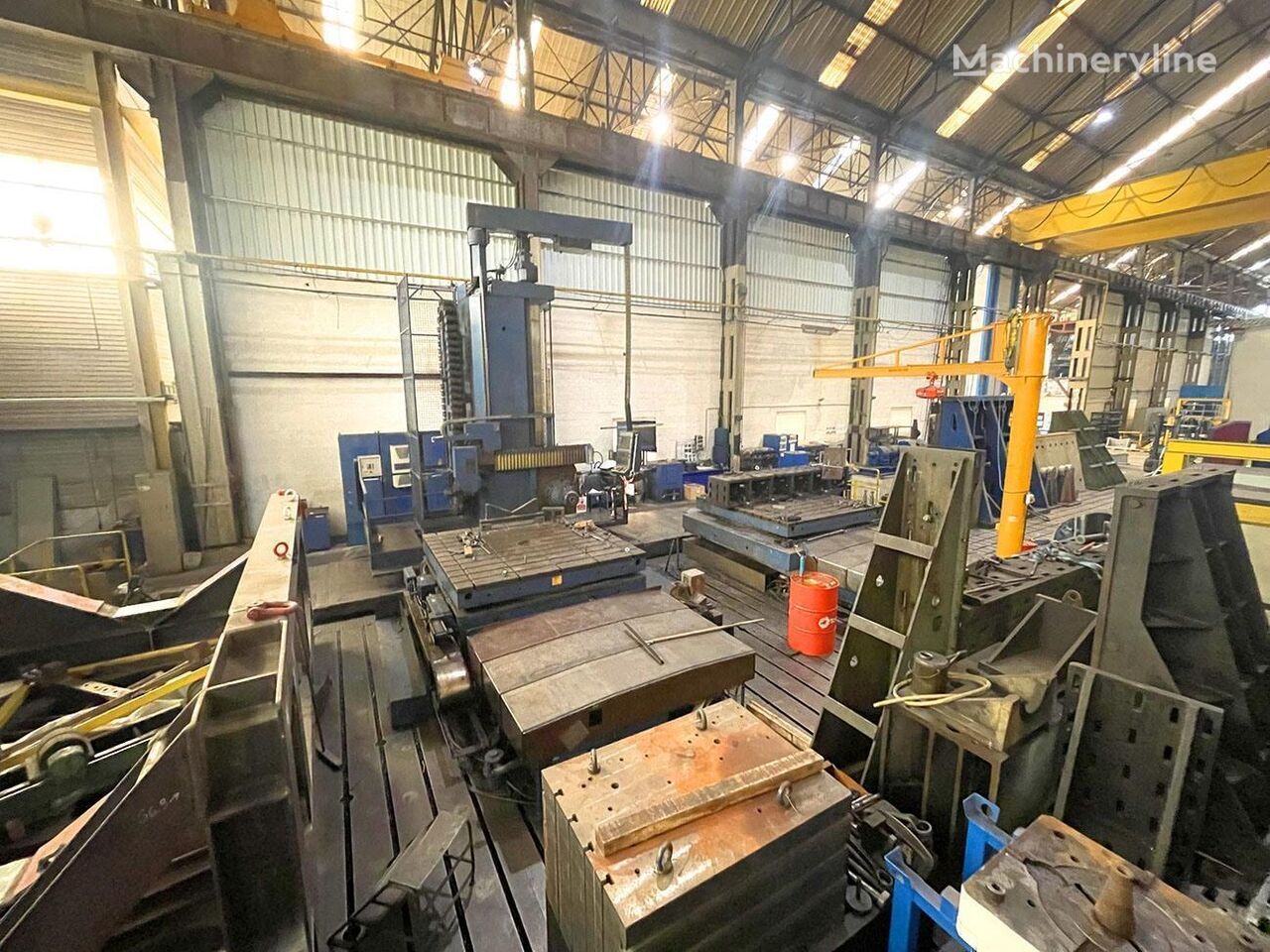

The Pegard AF 16 is a used boring mill — sometimes referred to as a horizontal boring machine — located in Belgium and offered here for sale. Boring mills of this type are precision machine tools designed for drilling, boring, milling, and tapping large or complex workpieces that require highly accurate hole placement and surface finishing. Pegard is a Belgian manufacturer with a long-standing reputation for building heavy-duty precision boring and milling machines, serving industries such as aerospace, power generation, heavy engineering, and mould and die making.

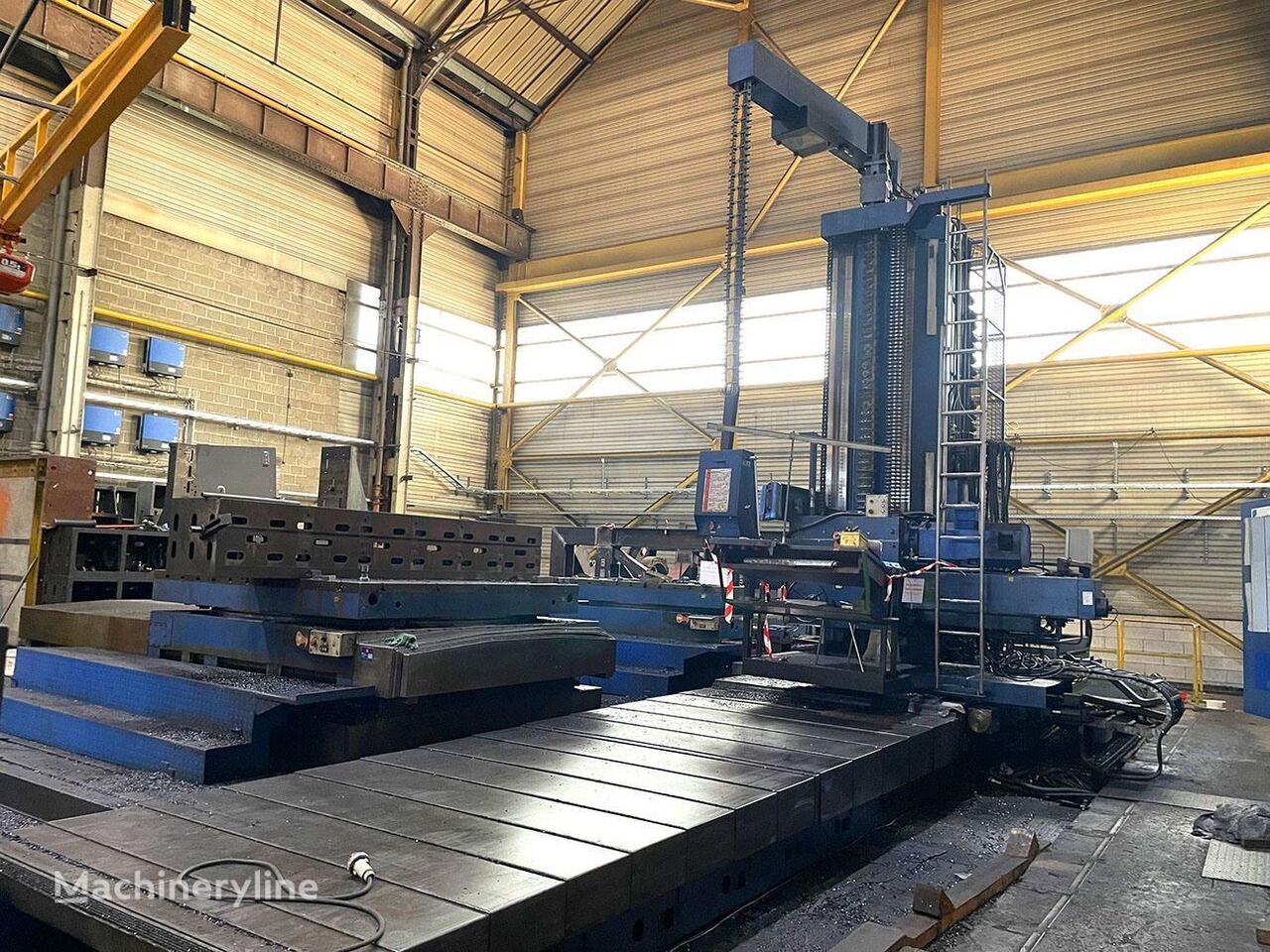

This machine is configured for simultaneous six-axis operation, giving it the flexibility to perform complex multi-surface machining in a single setup without repositioning the workpiece. The CNC control system is a Heidenhain TNC 530, a widely respected control platform known for its conversational programming and precision contouring capabilities. The spindle bore diameter is 160 mm with an ISO 50 taper, placing this firmly in the heavy-duty category for large-scale boring and milling work. The W-axis spindle traverse extends to 1,200 mm, and the Y-axis cross traverse of the column reaches 650 mm.

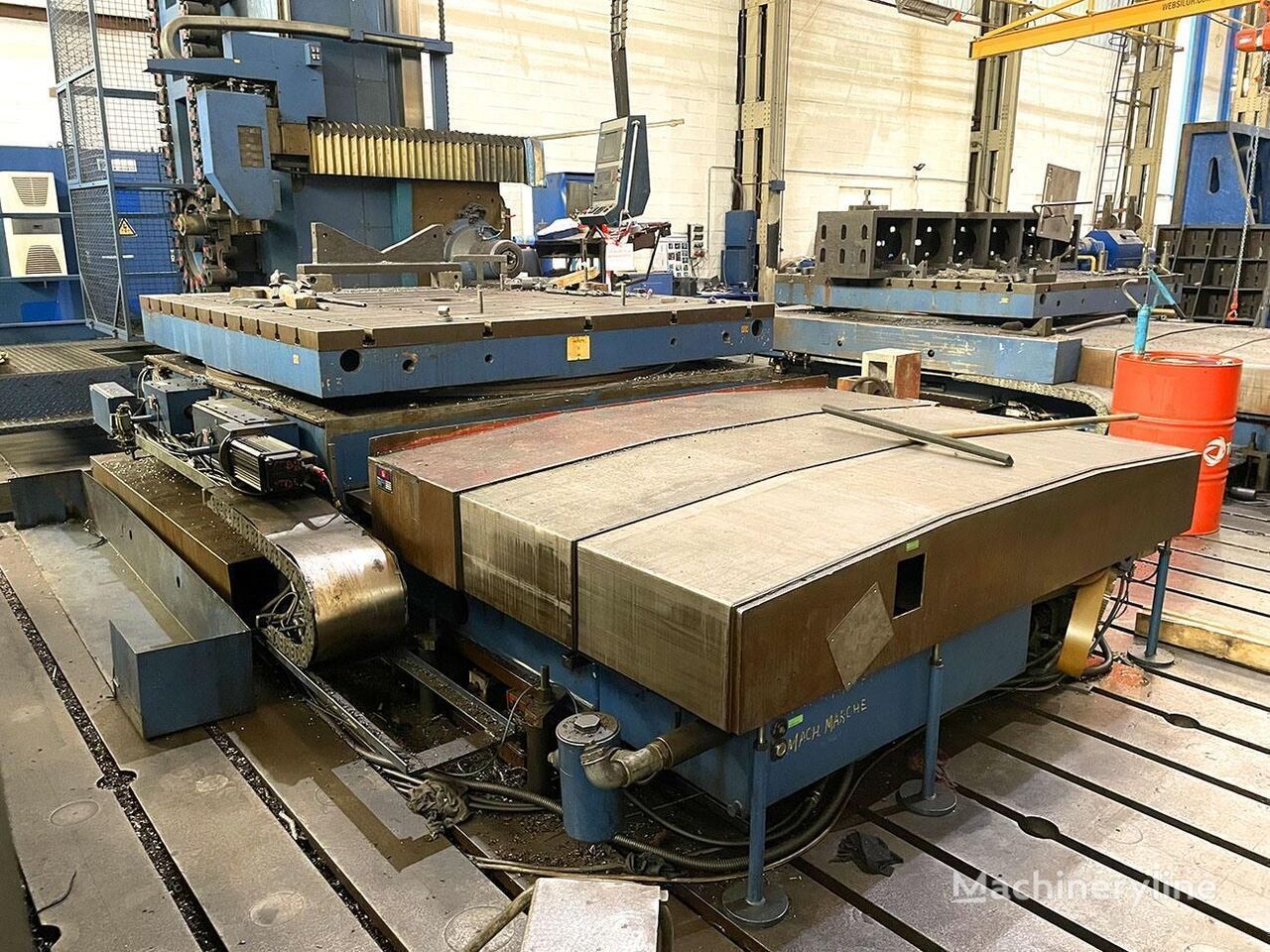

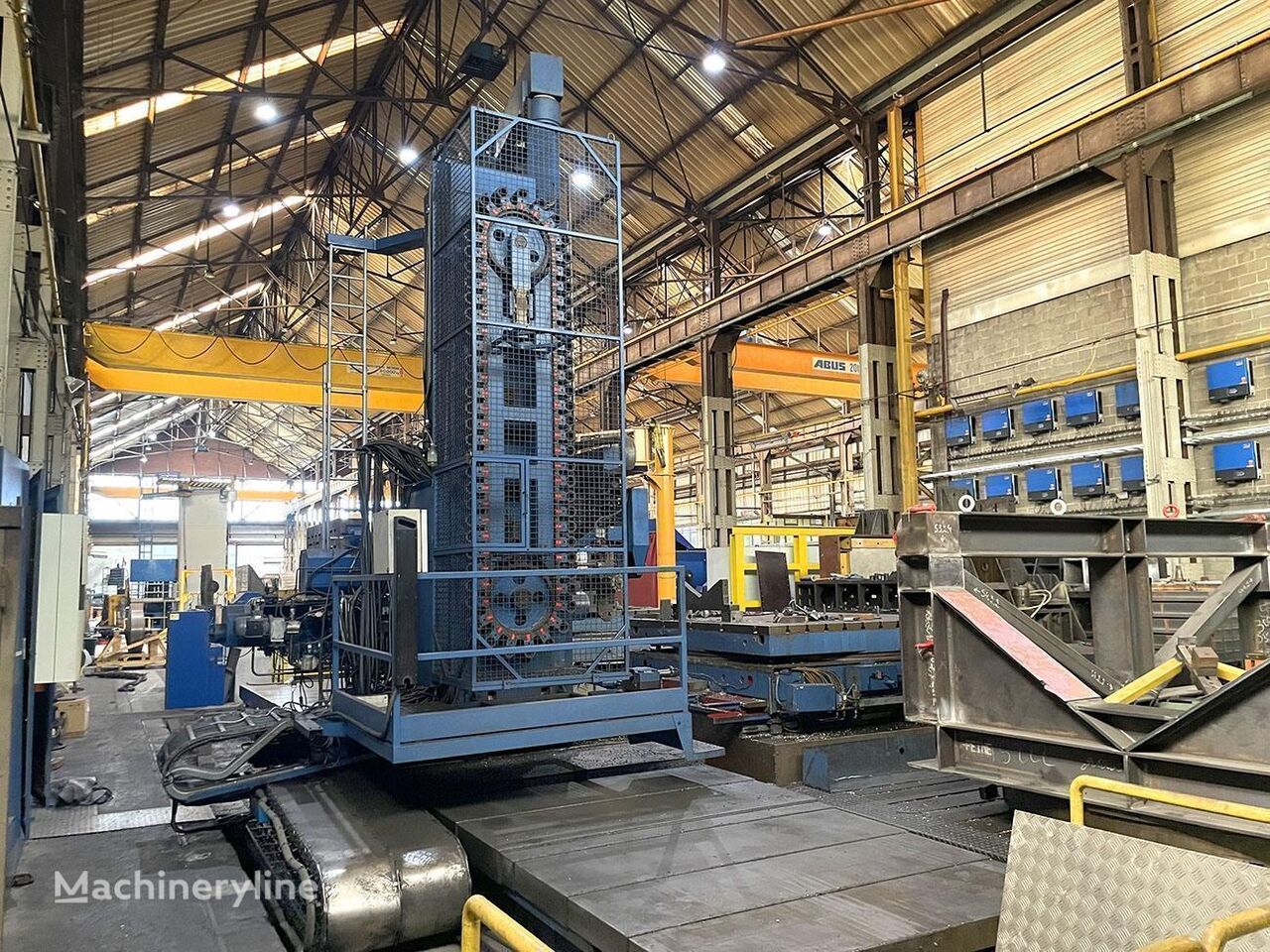

A notable feature of this installation is the dual-table configuration. Both tables measure 2,380 × 2,380 mm and are CNC controlled with continuous 360° rotary movement, allowing complex angular positioning of very large workpieces. Each table carries a maximum load of 30 tonnes, giving a combined capacity of 60 tonnes across the two tables. The cross table travel is 2,500 mm. Tool changes are supported by an automatic tool storage system with 90 positions, enabling extended unmanned or semi-automated machining cycles.
The machine is also equipped with a milling head support and a drill spindle support, providing additional rigidity for heavy cutting operations. This combination of large table capacity, generous axis travels, high-capacity tool storage, and a capable CNC control system makes this Pegard AF 16 a substantial and versatile asset for operations requiring precision work on heavy components.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
