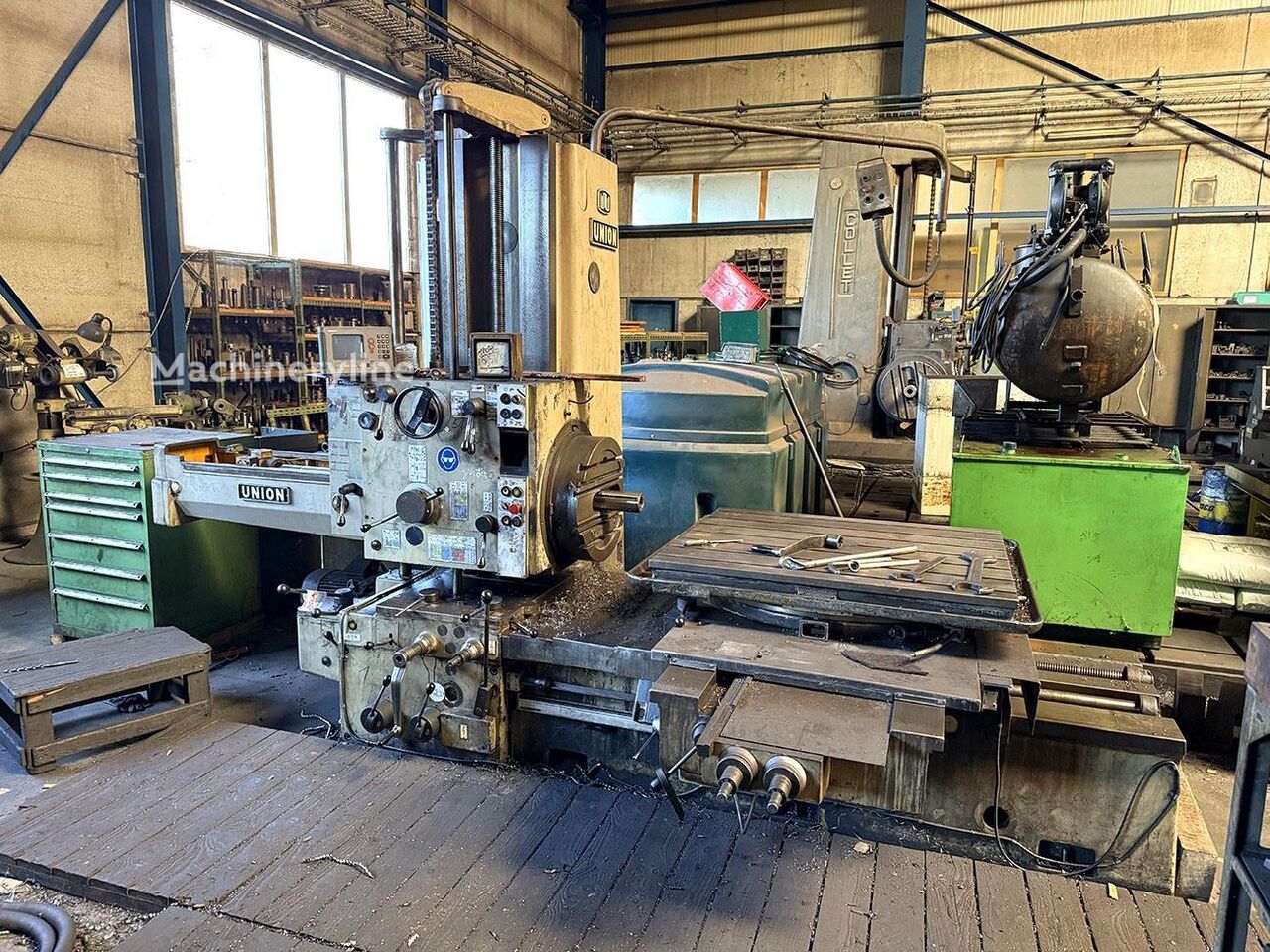

WMW Union BFT 80 2 Boring Mill
()- Listing No
- 952076
- Year
- Manufacturer
- WMW
- Model
- Union BFT 80 2
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
WMW Union BFT 80/2 X: 1000 - Y: 1000 - Z: 1600mm Spindle Dia: 80 mm Spindle bore: ISO 50 Table dimensions : 1100 x 1000 mm Table longitudinal travel (X-axis): 1000 mm Cross travel Table/colom (Y-axis): 1000 mm Height travel head (Z-axis): 1600 mm Max travel spindle: 700 mm Power on spindle: 1250 rpm Power principal motor: 8,5 kW
About this machine
This WMW Union BFT 80 2 is a used boring mill, a type of machine tool also known as a horizontal boring machine, designed for precision boring, drilling, milling, and facing of large or complex workpieces that would be difficult to handle on a conventional machining centre. WMW, the German industrial group historically headquartered in the former East Germany, was a major manufacturer of machine tools across a wide range of metalworking disciplines, supplying engineering and manufacturing industries throughout Europe and beyond.
The machine is built around an 80 mm diameter spindle with an ISO 50 taper bore, making it compatible with a wide range of standard tooling. The spindle offers a maximum travel of 700 mm, providing substantial reach for deep boring and internal machining operations. Maximum spindle speed is rated at 1,250 rpm, and the principal motor delivers 8.5 kW of power to the spindle.
The work envelope is defined by three axes of movement. The X-axis provides 1,000 mm of longitudinal table travel, the Y-axis gives 1,000 mm of cross travel between the table and column, and the Z-axis offers 1,600 mm of vertical head travel, allowing the machine to address tall or awkwardly proportioned components. The table itself measures 1,100 x 1,000 mm, offering a generous and practical working surface for fixturing medium to large parts.
This machine is located in Belgium and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
