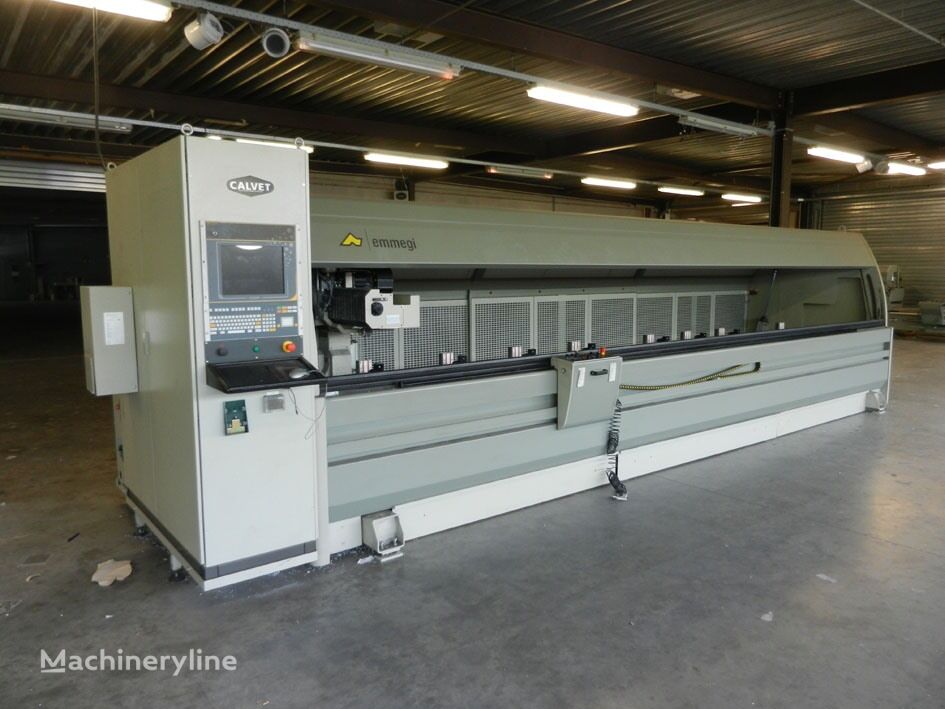

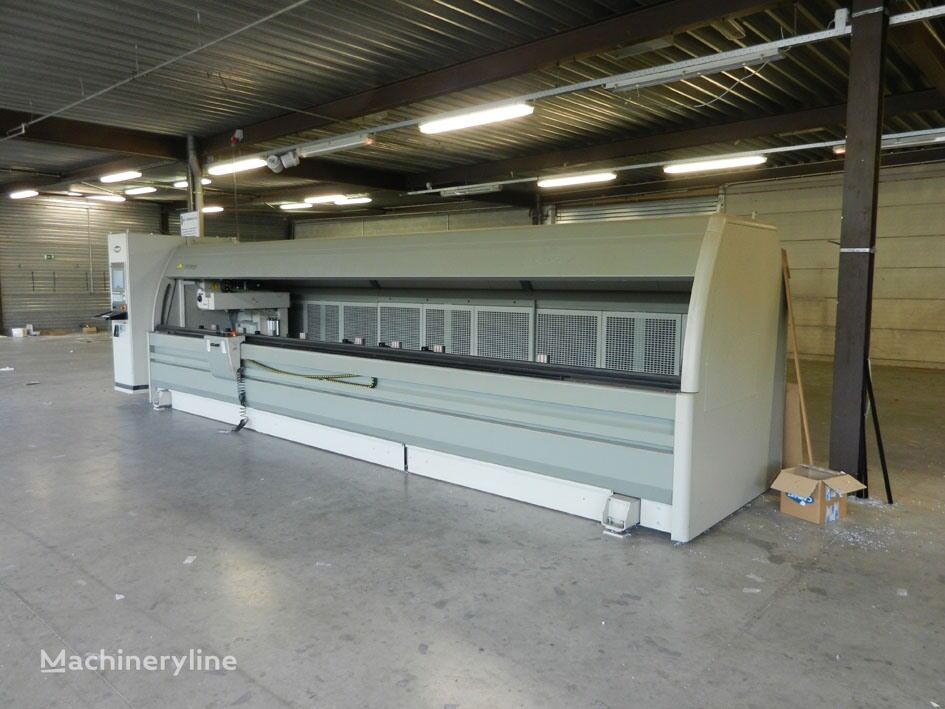

Emmegi Comet Isola Milling Machine()
- Listing No
- 954430
- Year
- Manufacturer
- Emmegi
- Model
- Comet Isola
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
4 axes - suitable for alu/pvc/steel Cam editor version 3.63 / Drill version 3.9 max workpiece size machinable on 1 face gripped in standard vice with tool length 35 mm + toolholder length 105 mm gt;gt max workpiece size machinable on 3 faces gripped in standard vice with tool length 35 mm + toolholder length 105 mm gt;gt tapping capacity: M10 manual positioning/unloading workpiece reference stop with N/C positioning 8 pneumatic vices automatic vice positioning through X-axis Crosstravel Y -axe: 525 mm Travel Z-axe (Height): 335 mm Power on spindle: 5,5 kW Admission in millingheadspindle (ISO): HSK-40E Max speedrange: 24 000 rpm Control: CNC-PC Power needed: 23 kW ACCESSORIES & TOOLING: 8 + 1 tools
About this machine
The Emmegi Comet Isola is a used CNC milling machine — sometimes referred to as a machining centre — designed for precision milling operations across a range of materials. Emmegi is a well-established Italian manufacturer specialising in CNC machining and fabrication equipment for the window and door industry, producing machines engineered to process aluminium, PVC, and steel profiles. This unit is offered in used condition and is located in Belgium.
The machine operates across four axes and is confirmed suitable for aluminium, PVC, and steel workpieces. Spindle power is rated at 5.5 kW, with a maximum spindle speed of 24,000 rpm, making it capable of high-speed cutting across its supported materials. The spindle accepts tooling via an HSK-40E interface. Tapping capacity extends to M10. The tool magazine accommodates 8 plus 1 tools, and the unit is supplied with its associated accessories and tooling.

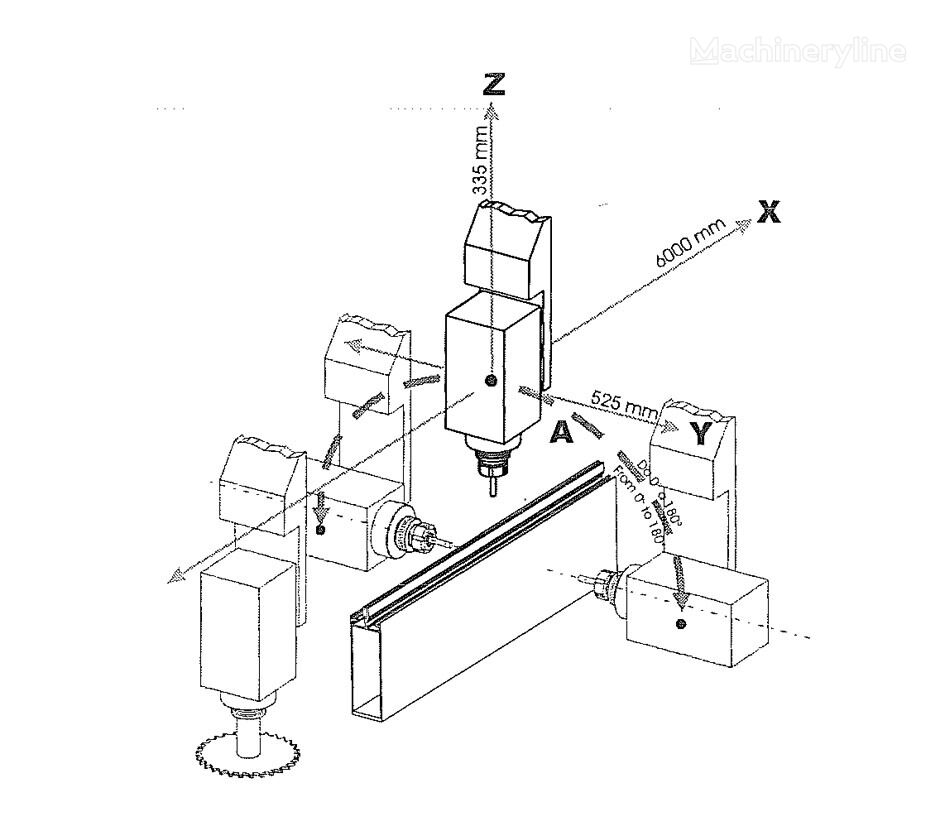

Axis travel figures are as follows: the Y-axis crosstravel measures 525 mm, and the Z-axis travel (height) is 335 mm. The machine features eight pneumatic vices with automatic vice positioning driven through the X-axis, along with manual positioning and unloading. A workpiece reference stop with numerically controlled positioning is also included, supporting repeatable setup for both single-face and three-face machining operations when using a standard vice with a tool length of 35 mm and toolholder length of 105 mm.
Control is via a CNC-PC system running CAM Editor version 3.63 and Drill version 3.9. Total connected power required is 23 kW.
