2003 - GEA Niro MP1 Dryer
()- Listing No
- 1165910
- Year
- 2003
- Manufacturer
- GEA
- Model
- Niro MP1
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: Multiprocessor No: 02563.0010 Sprayer: check Material: Stainless steel 1.4301 (304), Stainless steel 1.4404 (316L) Volume: 12 Ltr Motor: 11 kW (400V Ex) Fluidbeddryer: check Coater: check Granulator: check With pan: check Capacity: 580 m3/h Pan sizes: Dia 120x480 mm and Dia 170x280 mm With pump: check Can be heated by steam: check With fan: check With dust filter: check Cleaning with air pulse: check CE: check With switchgear: check ATEX compatible: check Extra Specifications: Complete technical file (total 21 folders) - Complete system, including heating system, filters, control valves - Can be used in General Pressure Main Features Specified Features - Fluid bed dryer batch Information
About this machine

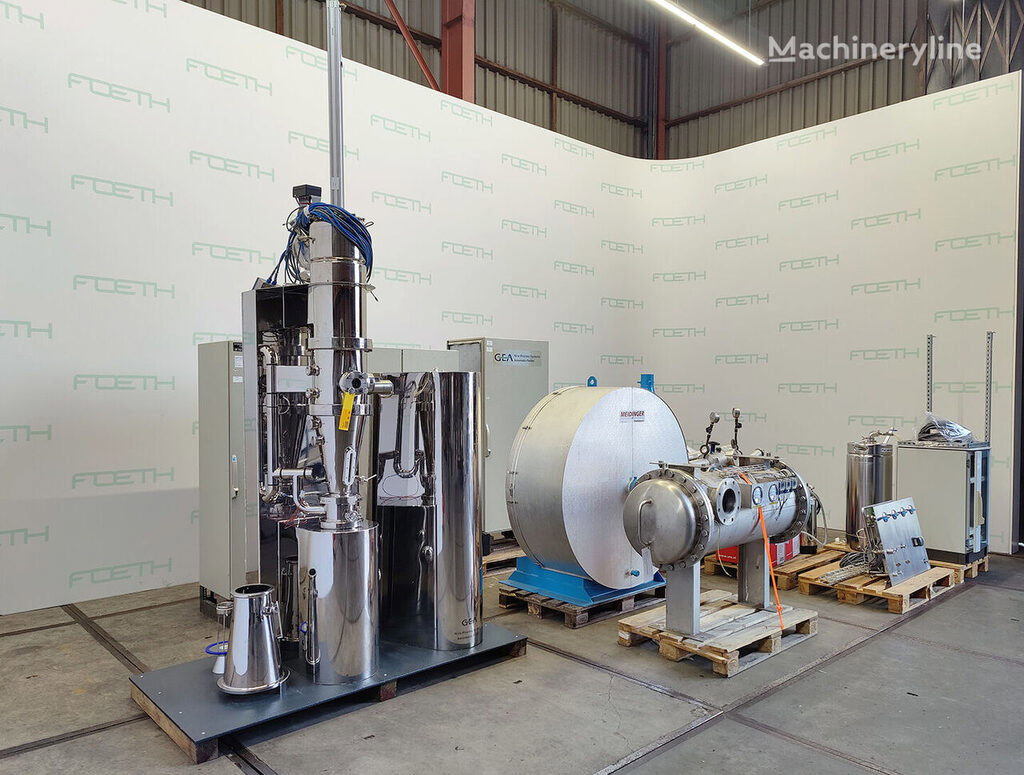

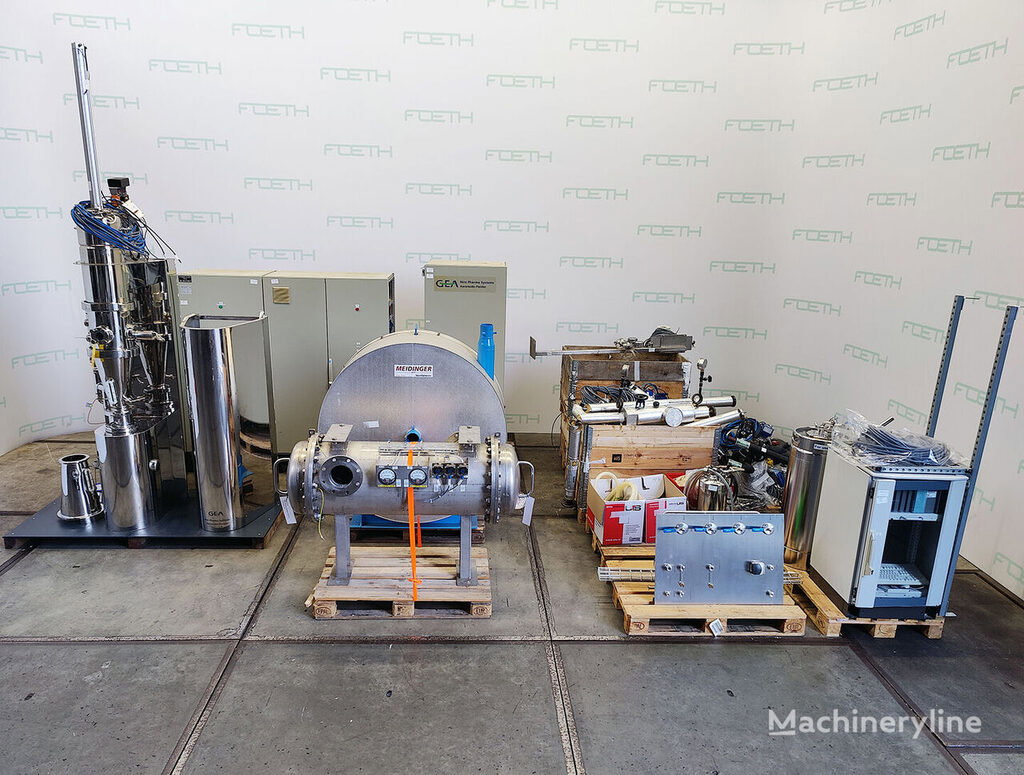

This GEA Niro MP1 Dryer is a fluid bed dryer — sometimes referred to as a fluidised bed dryer — a batch-processing machine used to remove moisture from granules, powders, and other particulate materials through the controlled flow of heated air. GEA is a globally recognised supplier of process technology and equipment to the pharmaceutical, food, and chemical industries, and its Niro product line is well established in powder and particle processing applications.
This particular unit is a multiprocessor configuration, meaning it combines several functions in a single machine. In addition to fluid bed drying, it is equipped as a sprayer, coater, and granulator, making it suitable for a range of process steps without the need to transfer material between separate pieces of equipment. The machine carries serial number and is ATEX compatible, meaning it is rated for use in potentially explosive atmospheres. It also holds CE marking. The construction materials are stainless steel grade 1.4301 (AISI 304) and stainless steel grade 1.4404 (AISI 316L), which are standard choices for hygienic and chemically resistant process equipment.
The working volume is 12 litres, and the system handles an air capacity of 580 m³/h. The motor is rated at 11 kW and is configured for 400 V in an Ex-rated (explosion-proof) version, consistent with the ATEX compatibility noted above. The heating system uses steam, and the unit comes complete with its heating system, a fan, a pump, a dust filter with air-pulse cleaning, and control valves — representing a fully integrated processing system rather than a bare vessel. Two pan sizes are included: one at 120 mm diameter by 480 mm length, and one at 170 mm diameter by 280 mm length.
The machine is offered with its switchgear and is accompanied by a complete technical file comprising 21 folders of documentation. Located in Barneveld, Netherlands, this is a used unit from 2003, presented as a complete, operational system.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
