1998 - Glatt GPCG-15 – Flui Dryer
()- Listing No
- 1166298
- Year
- 1998
- Manufacturer
- Glatt
- Model
- GPCG-15 - Flui
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: GPCG 15 No: 6534 Material: Stainless steel 1.4301 (304) Volume: 45 Ltr Motor: 7,5kW 400V 2880 rpm Fluidbeddryer: check Granulator: check With pan mounted on wheels: check Capacity: 1000 m³/h Pan sizes: ø 350 x 286 mm With pump: check type: 2051.REx V/168, 0,5l/min Can be heated by steam: check With fan: check With dust filter: check (inlet, outlet and inside filter) Filter surface: 2x 1,1m² Total height: 7,6 m Floorspace: 3,1 x 3,5 m Extra Specifications: Machine volume: 1.2 m³ Product contact surfaces: 3.86 m³ With hydraulic unit type: BHT 30, 70 bar. Filter types: Prefilter type: FP 85 HT Filter General Main Features Specified Features - Fluid bed dryer batch Information
About this machine

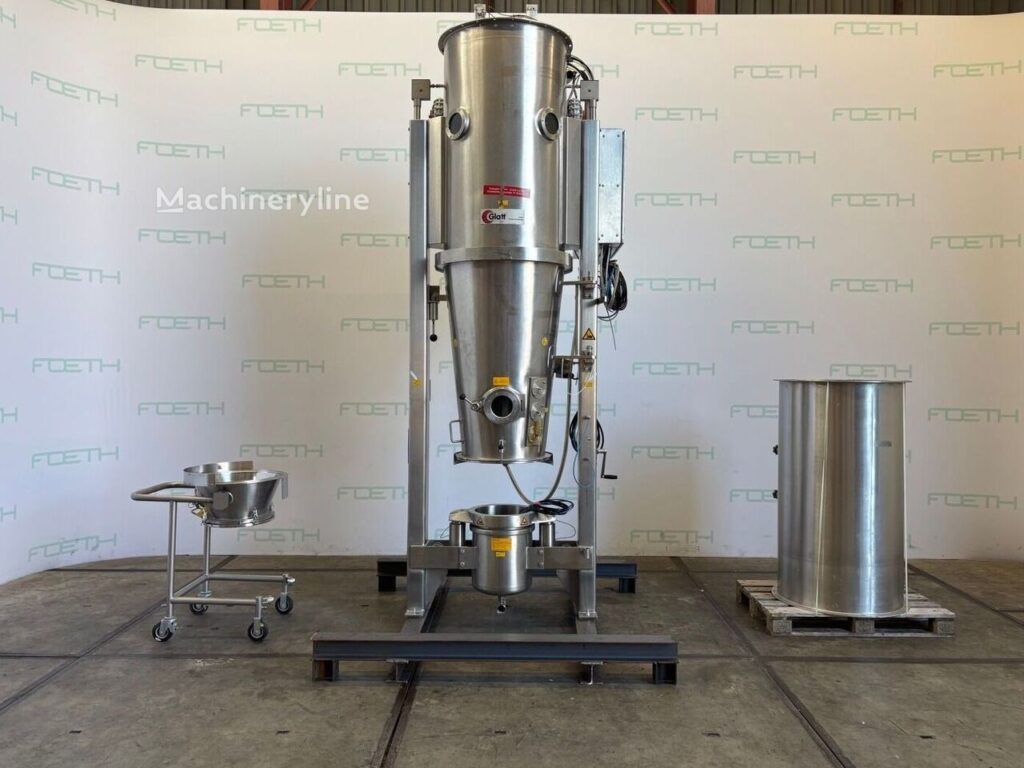

This Glatt GPCG-15 is a fluid bed dryer — sometimes referred to as a fluidised bed dryer — a batch processing machine used in the pharmaceutical, chemical, and food industries to dry granular or powdered materials by suspending them in a controlled stream of heated air. Glatt is a well-established manufacturer specialising in fluid bed and coating technologies, with a long history of supplying processing equipment to pharmaceutical and related industries.
This 1998 machine is constructed from stainless steel grade ) and is configured as a combined fluid bed dryer and granulator, making it suitable for both drying and wet granulation processes within a single unit. It carries serial number 6534 and is located in Barneveld, Netherlands.
The unit has a product volume of 45 litres and a machine volume of 1.2 m³, with product contact surfaces totalling 3.86 m². The air handling system delivers a capacity of 1,000 m³/h, served by an integrated fan. Heating can be provided by steam. The pan measures ø 350 × 286 mm and is mounted on wheels for ease of handling.
Filtration is comprehensive, with inlet, outlet, and internal filters installed. Two filter sections each provide 1.1 m² of filter surface area, with a prefilter specified as type FP 85 HT. A liquid delivery pump of type 2051.REx V/168 is included, rated at 0.5 l/min. The hydraulic unit is type BHT 30, operating at 70 bar. The fan motor is rated at 7.5 kW, running on 400 V at 2,880 rpm.
The overall installed height of the machine is 7.6 m, with a floor footprint of 3.1 × 3.5 m, reflecting the vertical stack typical of fluid bed equipment. The machine is offered used, in its current condition as described.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
