2010 - Hanwha XD-38H Lathe
()- Listing No
- 978917
- Year
- 2010
- Manufacturer
- Hanwha
- Model
- XD-38H
- Condition
- Used
- Location
- Italy
- Price
- POA
- Description
-
Controllo: Siemens 840D 5 tornitori + 4 rotanti (3 mandrinetti presenti) rostro a 5+5 frontali/posteriori fissi (4 portapunta singoli + 2 doppi) 4 rotanti per controperazioni (4 mandrinetti rotanti + 2 fissi) contromandrino + 2 rotanti frontali (2 mandrinetti presenti) 2 x asse C Pass.barra 38 mm - Corsa di alimentazione 310 mm Velocità mandrino/contromandrino 8.000/7.000 giri/min Potenza motore mandrino/contromandrino 5.5-7.5/2.2-5.5 kW Dimensioni: 2720x1304x1775h mm - Peso tornio kg. 4.050 caricatore Iemca Boss 545E-r/32 anno 2010 con guide diam.43 mm e lancia di spinta 40 mm dispositivo refrigerante olio Nanocool mod.CIL750 A-CT nastrino motorizzato pezzi torniti manuali certificati CE
About this machine

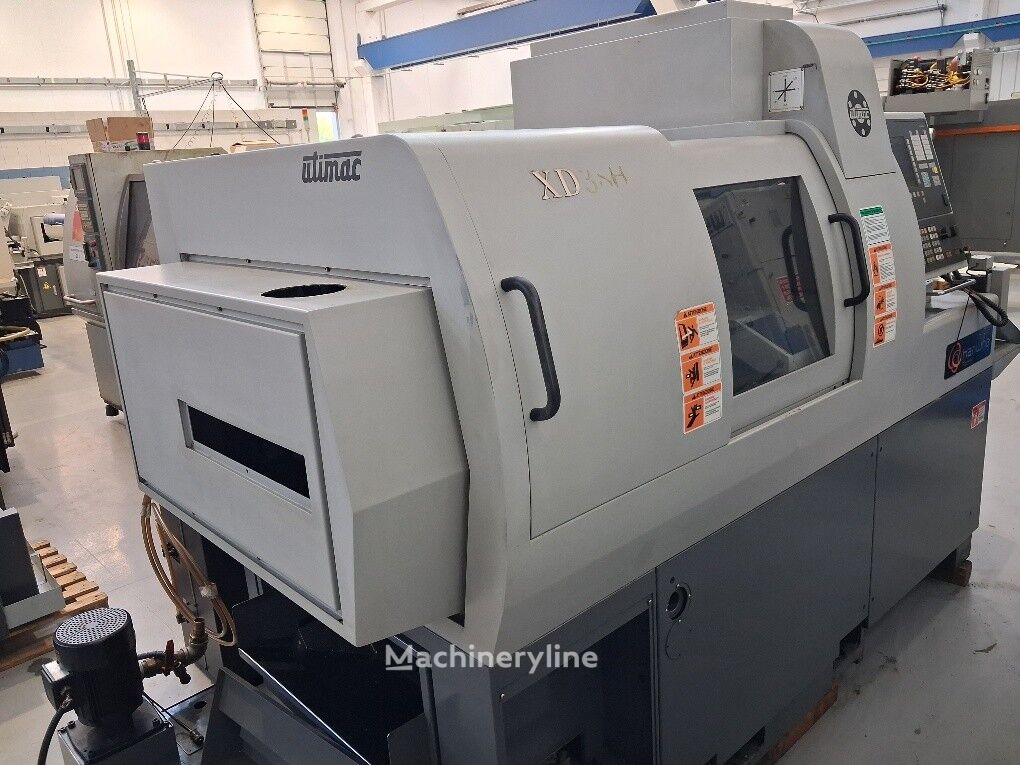

The Hanwha XD-38H is a used CNC lathe — also known as a turning centre — manufactured by Hanwha in 2010 and currently located in Italy. CNC lathes are precision machine tools used to produce turned components by rotating bar stock against cutting tools under computer numerical control, and are widely employed in high-volume production environments across the automotive, aerospace, and general engineering sectors. Hanwha is a South Korean industrial group with a well-established presence in precision CNC turning machines, particularly sliding-headstock and fixed-headstock automatic lathes used in the production of small, complex turned parts.

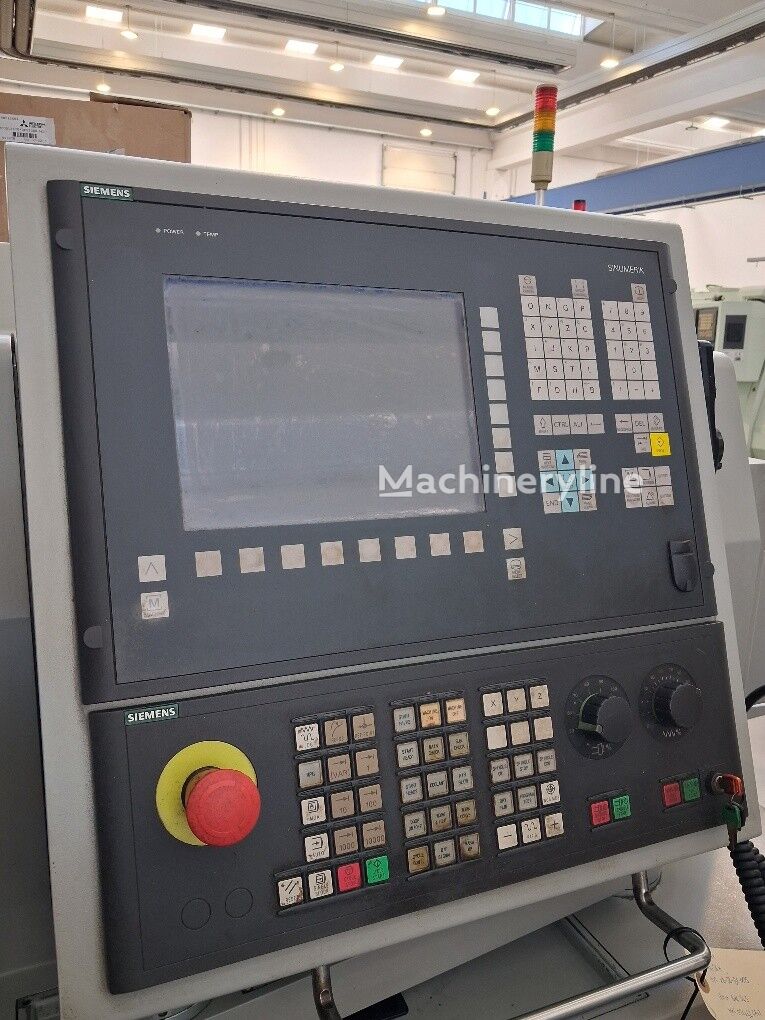

The machine runs on a Siemens 840D control system, a high-specification CNC platform widely used in demanding turning applications. Bar capacity is 38 mm with a bar feed stroke of 310 mm. The main spindle reaches 8,000 rpm and the counter-spindle 7,000 rpm. Spindle motor power is rated at 5.5–7.5 kW, and the counter-spindle motor at 2.2–5.5 kW. Both the main spindle and counter-spindle are equipped with a C-axis, enabling precise angular positioning for milling and drilling operations.

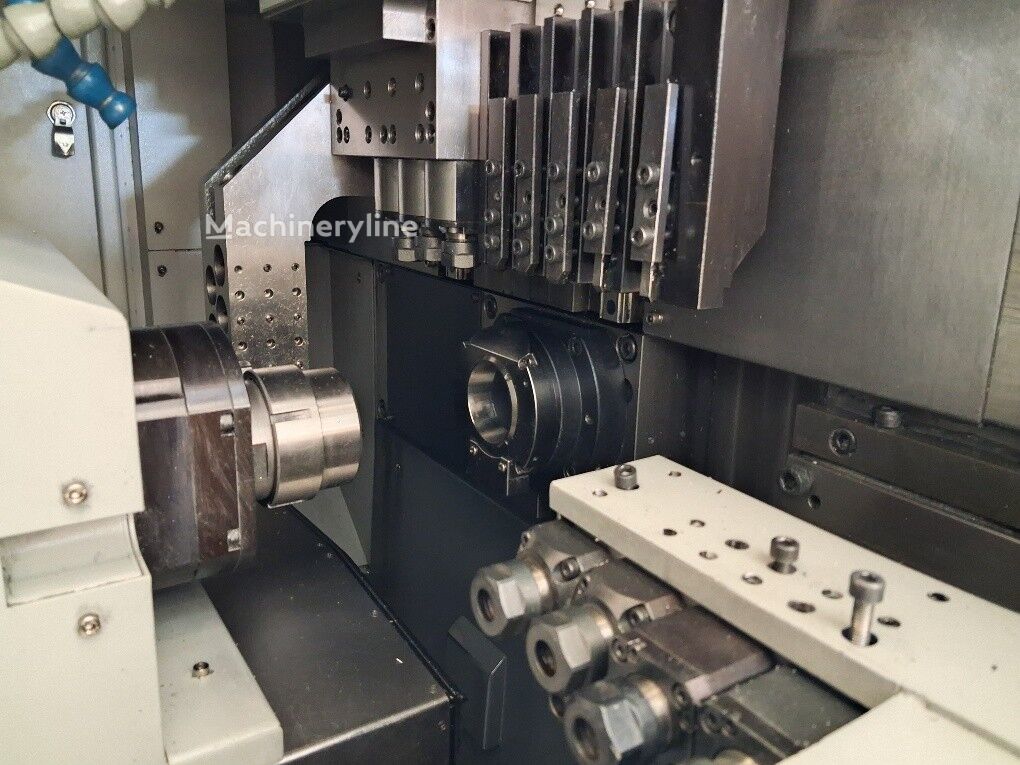

The tooling configuration is extensive. There are five turning positions plus four rotary positions on the main working area, with three live tool holders currently fitted. The turret provides a 5+5 front and rear fixed tool station arrangement, comprising four single boring bar holders and two double holders. Four rotary positions are available for back-working operations, served by four live tool holders and two fixed holders. The counter-spindle side is further equipped with two front rotary positions, with two live tool holders present.

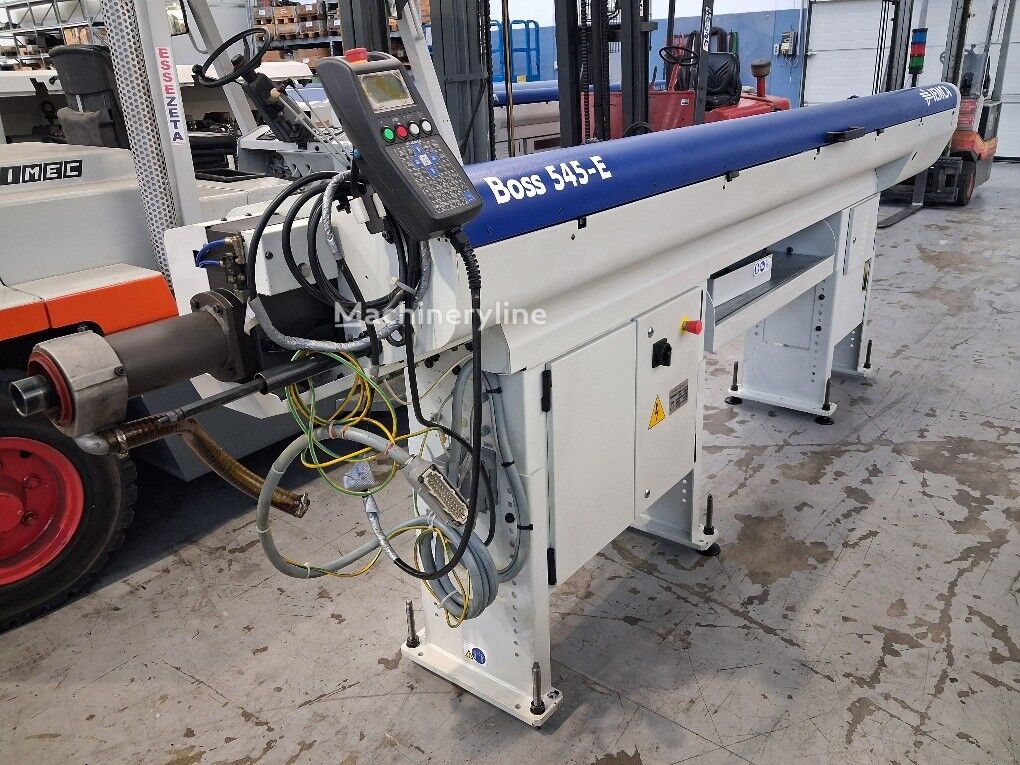

The machine is offered with a Iemca Boss 545E-r/32 bar loader, also from 2010, fitted with 43 mm diameter guide channels and a 40 mm push rod. A Nanocool model CIL750 A-CT oil cooling unit is included, along with a motorised conveyor belt for finished turned parts. Machine dimensions are 2,720 × 1,304 × 1,775 mm (L × W × H) and the machine weighs 4,050 kg. Manuals and CE certificates are available with the machine.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
