1996 - Star RNC-16A Lathe
()- Listing No
- 978811
- Year
- 1996
- Manufacturer
- Star
- Model
- RNC-16A
- Condition
- Used
- Location
- Italy
- Price
- POA
- Description
-
Controllo: Fanuc 18T Stato a magazzino: in arrivo 5 utensili radiali + 3 utensili frontali Pass.barra 16 mm - Corsa di alimentazione 130 mm Velocità mandrino 8.000 giri/min Potenza motore mandrino 2.2 kW Dimensioni : 1690x900x1720h mm - Peso tornio kg. 1300 caricatore di barre Iemca MiniBoss 325/32 trasformatore manuali
About this machine

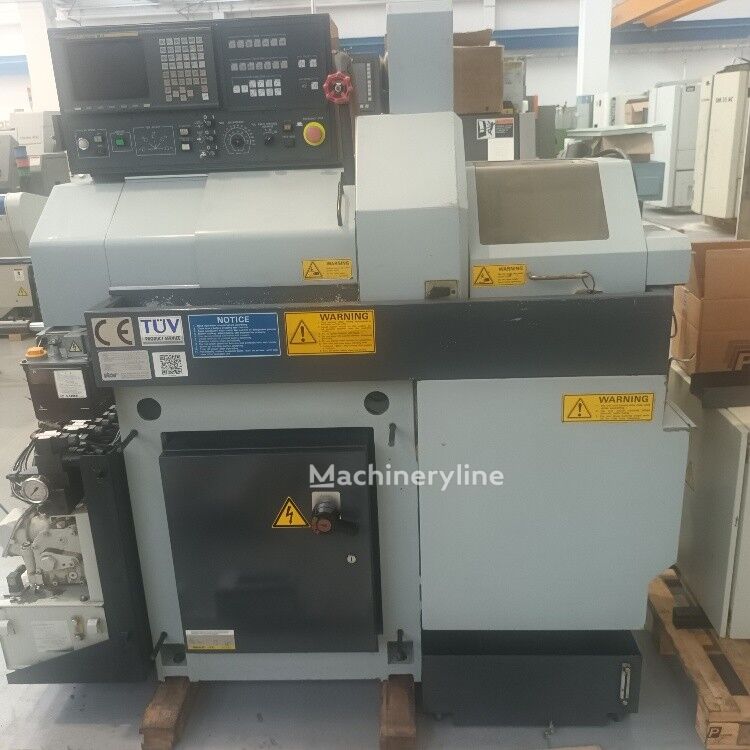

The Star RNC-16A is a used CNC lathe, a machine tool — sometimes referred to as a turning machine — designed to shape metal bar stock by rotating it against cutting tools under precise numerical control. Star is a well-regarded manufacturer of precision turning machines, particularly known for its CNC lathes and automatic bar-feeding lathes used in high-volume production environments across the automotive, medical, electronics, and general engineering industries.

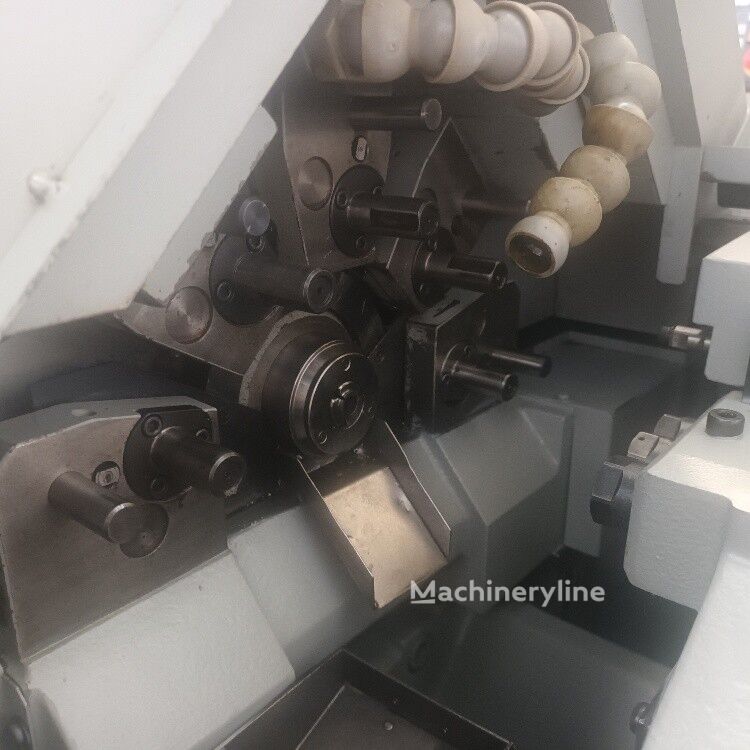

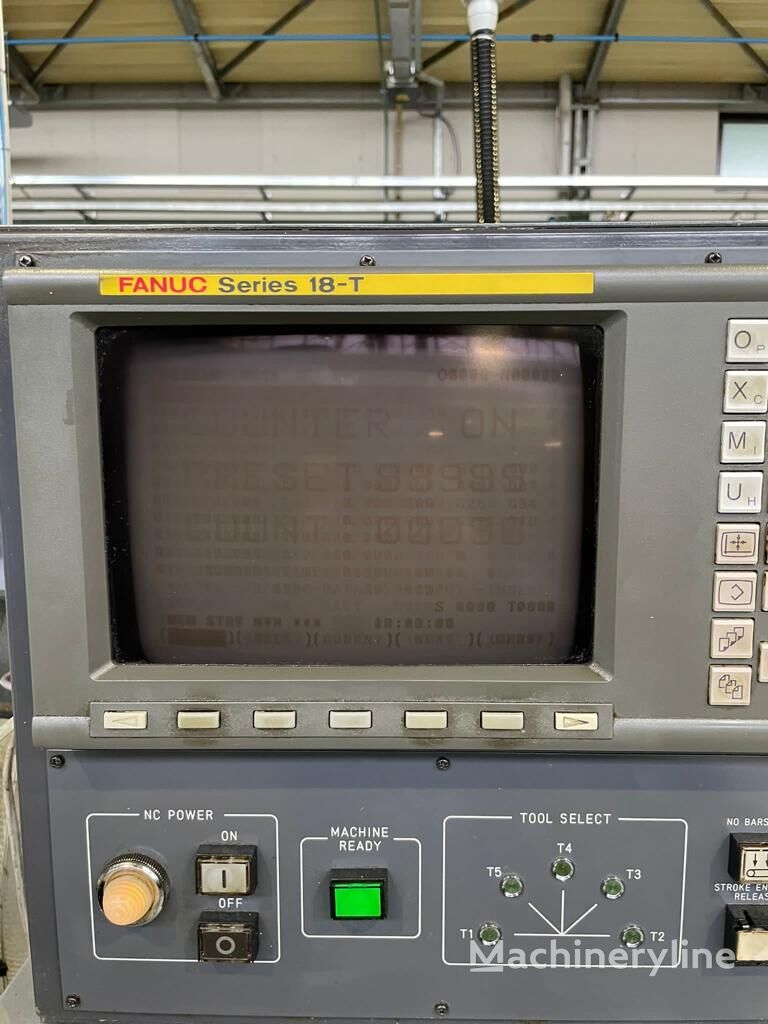

This machine is equipped with a Fanuc 18T control unit, a widely adopted CNC system known for its reliability and ease of programming in production lathe applications. The spindle is rated at a maximum speed of 8,000 rpm and is driven by a 2.2 kW motor, making it suited to small-diameter, high-speed turning work. Bar capacity is 16 mm in diameter, with a feed stroke of 130 mm. The tooling configuration comprises five radial tools and three frontal tools, allowing a variety of turning, facing, and cross-working operations to be carried out in a single setup.
The machine's footprint is 1,690 × 900 mm with a height of 1,720 mm, and it weighs 1,300 kg. Included with the lathe is an Iemca MiniBoss 325/32 bar loader, which automates bar feeding and supports unattended or semi-unattended production runs. A transformer and the original manuals are also included. The machine is currently listed as incoming stock, located in Italy.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
