2000 - Takamaz XY-2000 Mighty Lathe
()- Listing No
- 978625
- Year
- 2000
- Manufacturer
- Takamaz
- Model
- XY-2000
- Condition
- Used
- Location
- Italy
- Price
- POA
- Description
-
Controllo: Takamaz/Fanuc 18i-TA Torretta superiore a 12 posizioni motorizzate torretta inferiore a 8 posizioni motorizzate contromandrino - asse Y torretta superiore (+/- 40 mm) - n.2 asse C Pass.barra 65 mm Max lunghezza tornibile 510 mm Velocità mandrini 3500 giri/min Potenza motore mandrino/contromandrino 15-11/7.5-5.5 kW Potenza/velocità utensili rotanti 2.2-1.5 kW / 3600 giri/min Dimensioni : 2900x1915x2250h mm - Peso kg. 7500 18 portautensili fissi 6 portautensili rotanti (3 radiali + 3 assiali) mandrino portapinza Bellegrandi mod.MSCTN70-A8" per pinze BA60 (185E) mandrino autocentrante a 3 griffe Hwacheon mod. HH037M6 diam.165 mm prendipezzo a portale + nastrino motorizzato per pezzi torniti caricatore di barre corte Lns Quick Load anno 1996 convogliatore trucioli a tappeto trasformatore di corrente manuali
About this machine

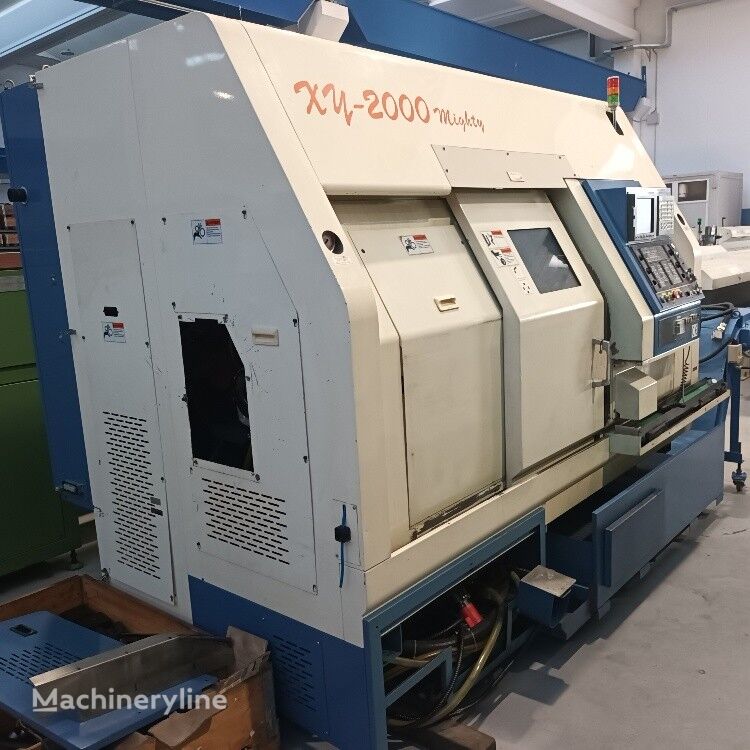

The Takamaz XY-2000 Mighty Lathe is a used CNC turning centre — sometimes referred to as a CNC turning machine — designed for the precise, automated machining of metal components. Lathes of this type rotate a workpiece against a cutting tool to produce cylindrical, conical, and profiled parts, and are widely used across automotive, aerospace, hydraulic, and general engineering production. Takamaz is a Japanese machine tool manufacturer known for building high-productivity CNC lathes and turning centres intended for demanding industrial environments.

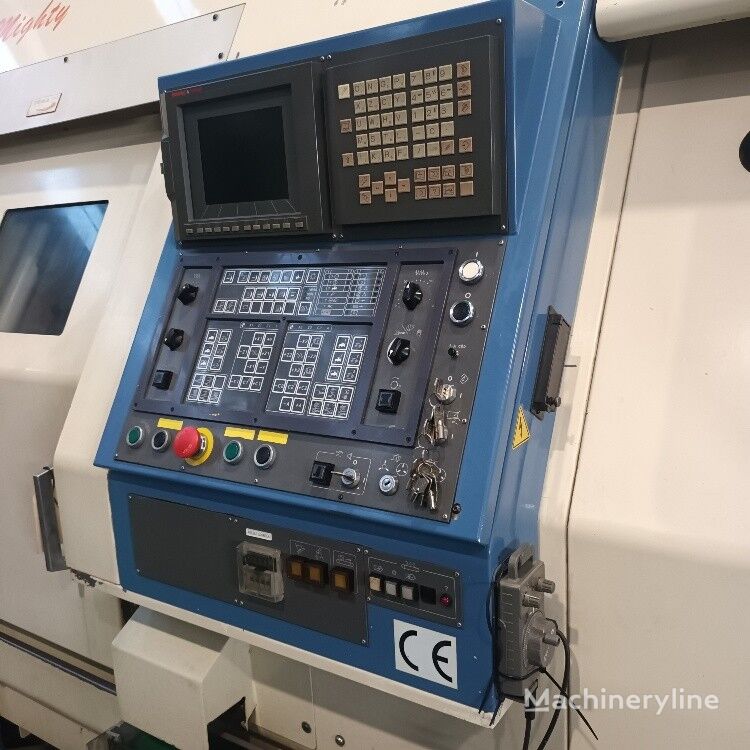

This machine is equipped with a Takamaz/Fanuc 18i-TA control system, a capable and well-supported CNC platform commonly found in production turning applications. The spindle configuration is dual, comprising a main spindle and a sub-spindle (counter-spindle), both fitted with C-axis capability — two C axes in total — enabling fully synchronised, multi-side machining without manual repositioning of the workpiece. The main spindle accepts bar stock up to 65 mm in diameter, and the maximum turning length is 510 mm. Both spindles reach a top speed of 3,500 rpm. Spindle motor power is rated at 15/11 kW for the main spindle and 7.5/5.5 kW for the counter-spindle, with the paired figures representing continuous and peak ratings respectively.

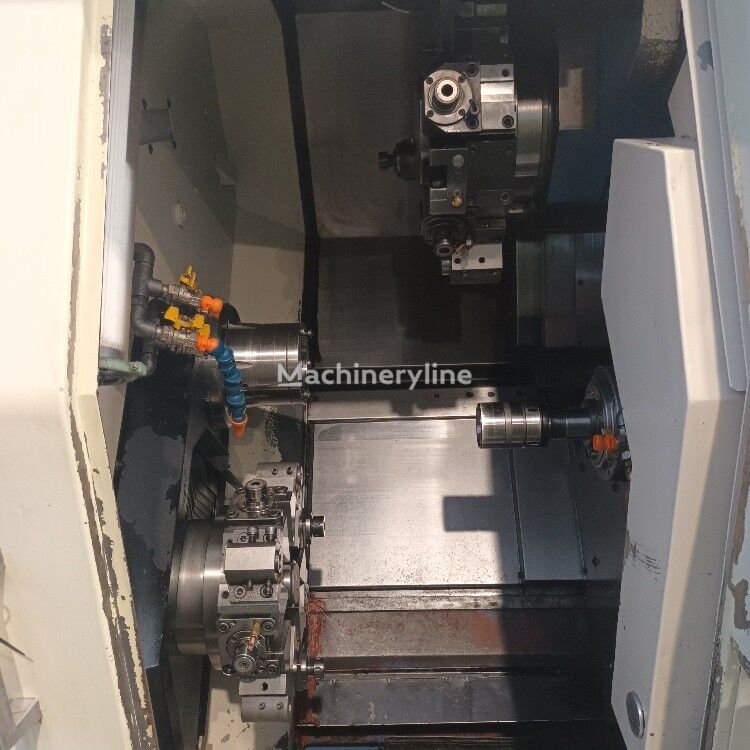

Tooling is handled by two independent turrets. The upper turret carries 12 powered (live) tool stations and benefits from a Y-axis travel of ±40 mm, which allows off-centre milling, drilling, and slot cutting that would otherwise require a separate machining centre. The lower turret holds 8 powered positions. Live tooling is driven at up to 3,600 rpm with a motor rated at 2.2/1.5 kW. The machine is supplied with 18 static toolholders and 6 live toolholders broken down as 3 radial and 3 axial units.
Two workholding options are included: a Bellegrandi collet chuck, model MSCTN70-A8", configured for BA60 collets (185E series), and a Hwacheon three-jaw self-centring chuck, model HH037M6, with a diameter of 165 mm. Parts handling is covered by a gantry loader with a motorised conveyor belt for turned parts. Bar feeding is provided by an LNS Quick Load short-bar loader dating from 1996. A chip conveyor with belt extraction is fitted, along with a power transformer and the original machine manuals.
The machine measures 2,900 × 1,915 × 2,250 mm (L × W × H) and weighs 7,500 kg. It is located in Italy and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
