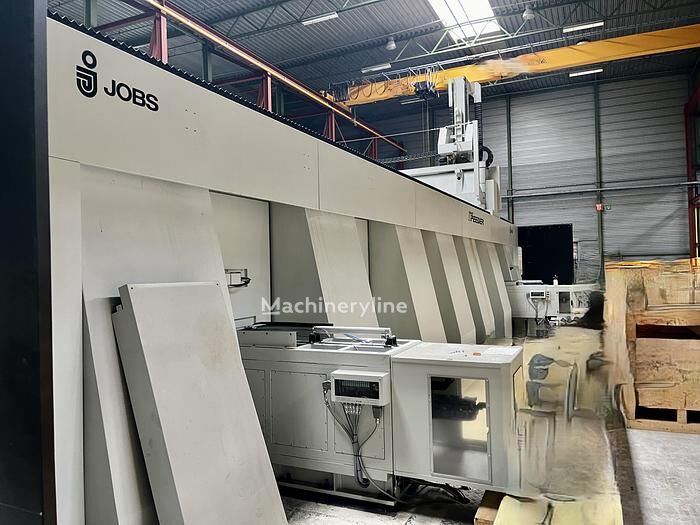

2015 - Jobs Grand Speeder Milling Machine()
- Listing No
- 953710
- Year
- 2015
- Manufacturer
- Jobs
- Model
- Grand Speeder
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Preis: Contact us for price Manufacturer JOBS Model Grand Speeder Year of Manufacture 2015 Type of Machine Gantry type Milling Machine XYZ travel 14000x 5000 x 2500 mm C-axis 400 degrees (+/-200 degrees) A-axis 220 degrees (+/- 100 dgrees) Electro spindle Speed 24000 RPM Spindle Taper HSK63-A Two Chain Tool magazine each 40 tools External Diameter 170 mm Total length tool 553 mm Working Table 13000 x 5000 x 250 mm (capacity = 1000 kg/sqm) Machine weight 70830 kg Find more here show contacts Contact us at show contacts
About this machine
The Jobs Grand Speeder is a used gantry milling machine — sometimes referred to as a gantry machining centre — dating from 2015 and currently located in Belgium. Gantry milling machines are large-format, high-rigidity machine tools designed for the precision milling, boring, and contouring of substantial workpieces, and are widely used in aerospace, automotive, mould-making, and heavy engineering. Jobs is an Italian manufacturer with a long-established reputation for building large-format, high-performance milling and machining systems serving demanding industrial sectors.
The machine's axis travels are exceptionally large: 14,000 mm in X, 5,000 mm in Y, and 2,500 mm in Z, making it suited to very long or wide structural components. Rotary motion is provided by a C-axis with a range of 400 degrees (±200 degrees) and an A-axis with a range of 220 degrees (±110 degrees), enabling five-axis contouring and complex multi-angle machining operations.

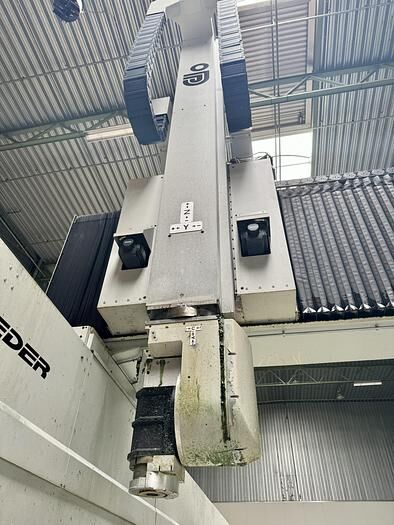

The electro-spindle runs to 24,000 RPM and accepts HSK63-A toolholders, a precision taper widely used in high-speed milling to ensure secure, accurate tool clamping. Tooling capacity is provided by two chain-format tool magazines, each holding 40 tools, giving a combined capacity of 80 tool positions. Tools are specified with a maximum external diameter of 170 mm and a total length of up to 553 mm.

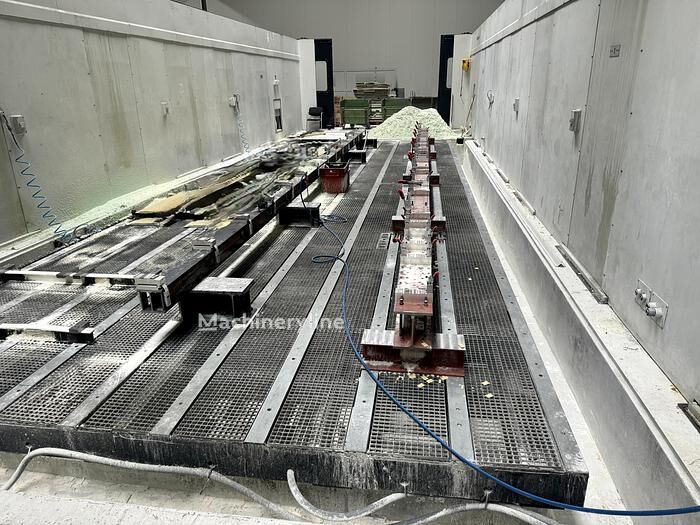

The working table measures 13,000 mm by 5,000 mm with a height of 250 mm and is rated to carry a load of 1,000 kg per square metre, reflecting the heavy-duty structural nature of the machine. Total machine weight is 70,830 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
