Lagun X 1500 – Y 430 – Z 505MM Milling Machine()
- Listing No
- 954356
- Year
- Manufacturer
- Lagun
- Model
- X 1500 - Y 430 - Z 505MM
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Lagun FU2000 X: 1500 - Y: 430 - Z: 505mm Max cross-travel Y-axe: 430 mm Max travel Z-axe: 505 mm Power on spindle: 20 kW Type of millinghead: ISO 50 Spindlespeeds: 28 - 2400 rpm Table size: 2000 x 450 mm Table turning angle : 47° Digital screen: Heidenhain
About this machine

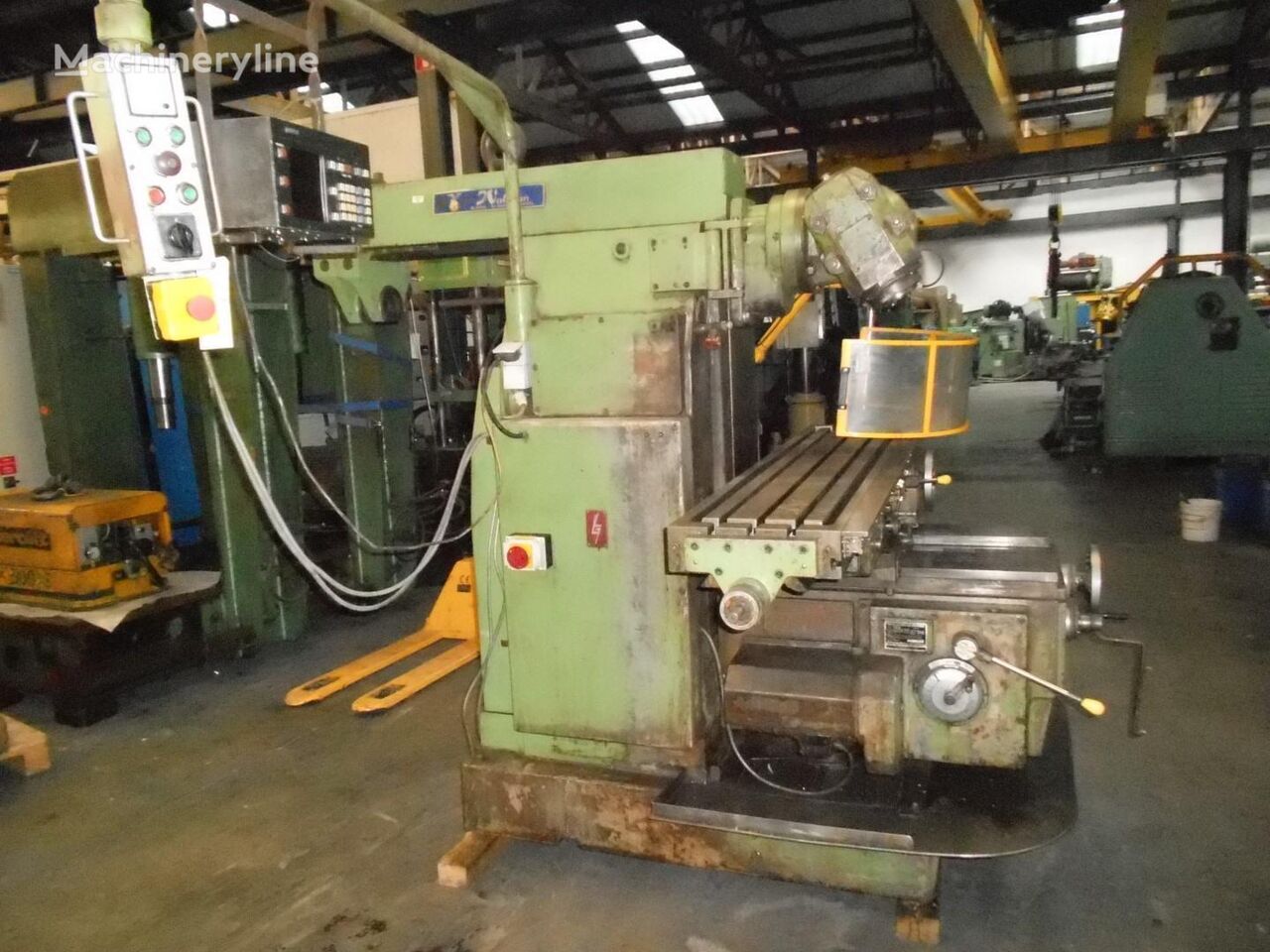

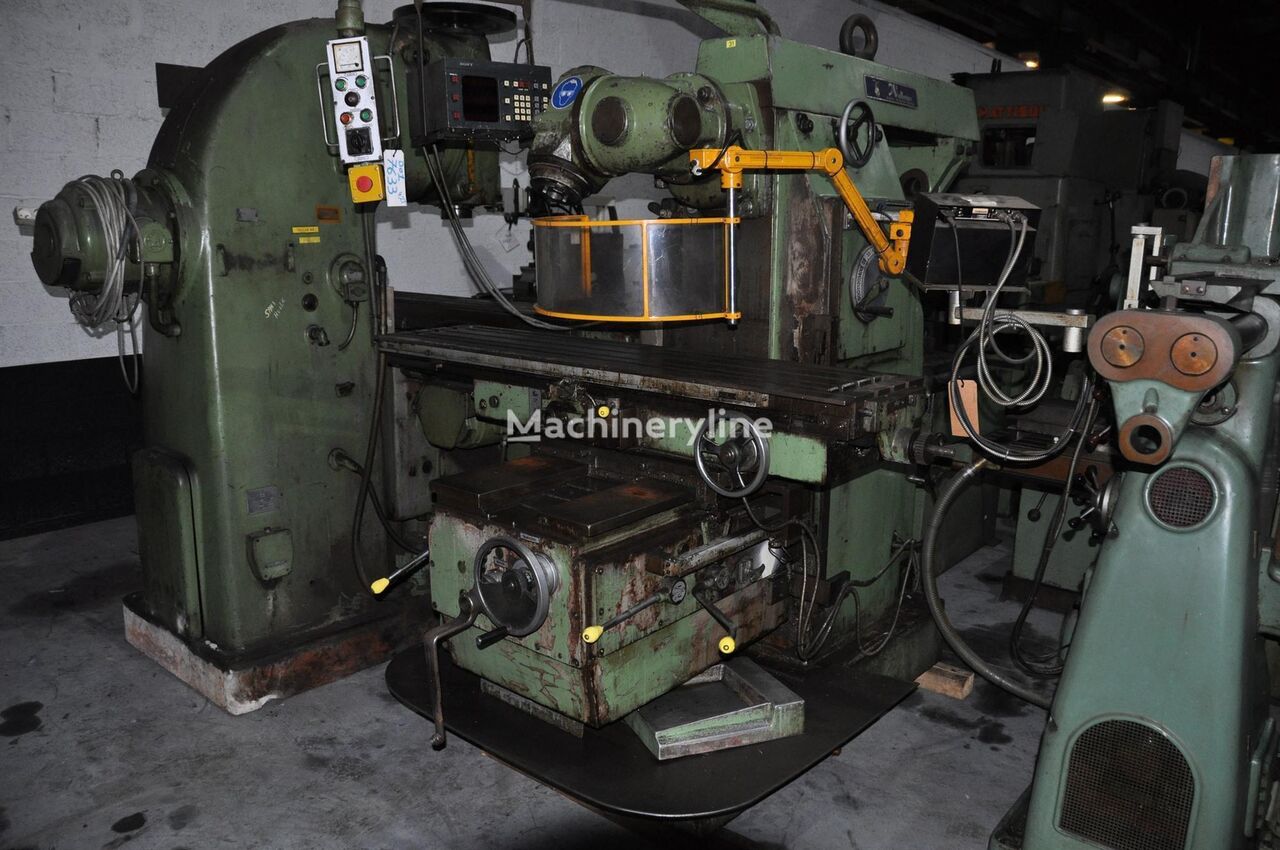

This used milling machine — sometimes referred to as a universal milling machine or knee mill — is a heavy-duty metal-cutting tool designed for face milling, peripheral milling, slotting, and a wide range of other machining operations on metal workpieces. Lagun is a well-established Spanish machine tool manufacturer with a long history of producing precision milling machines, lathes, and machining centres for the metalworking and engineering industries. This example is offered in used condition from a seller located in Belgium.
The machine is built around a generously sized table measuring 2,000 × 450 mm, providing ample surface area for larger workpieces or multiple fixtures. Longitudinal travel along the X-axis reaches 1,500 mm, cross-travel on the Y-axis extends to 430 mm, and vertical travel on the Z-axis is 505 mm, giving the operator considerable working envelope in all three axes. The table can also be rotated through an angle of up to 47°, which is a notable feature for angular and helical milling operations without repositioning the workpiece.

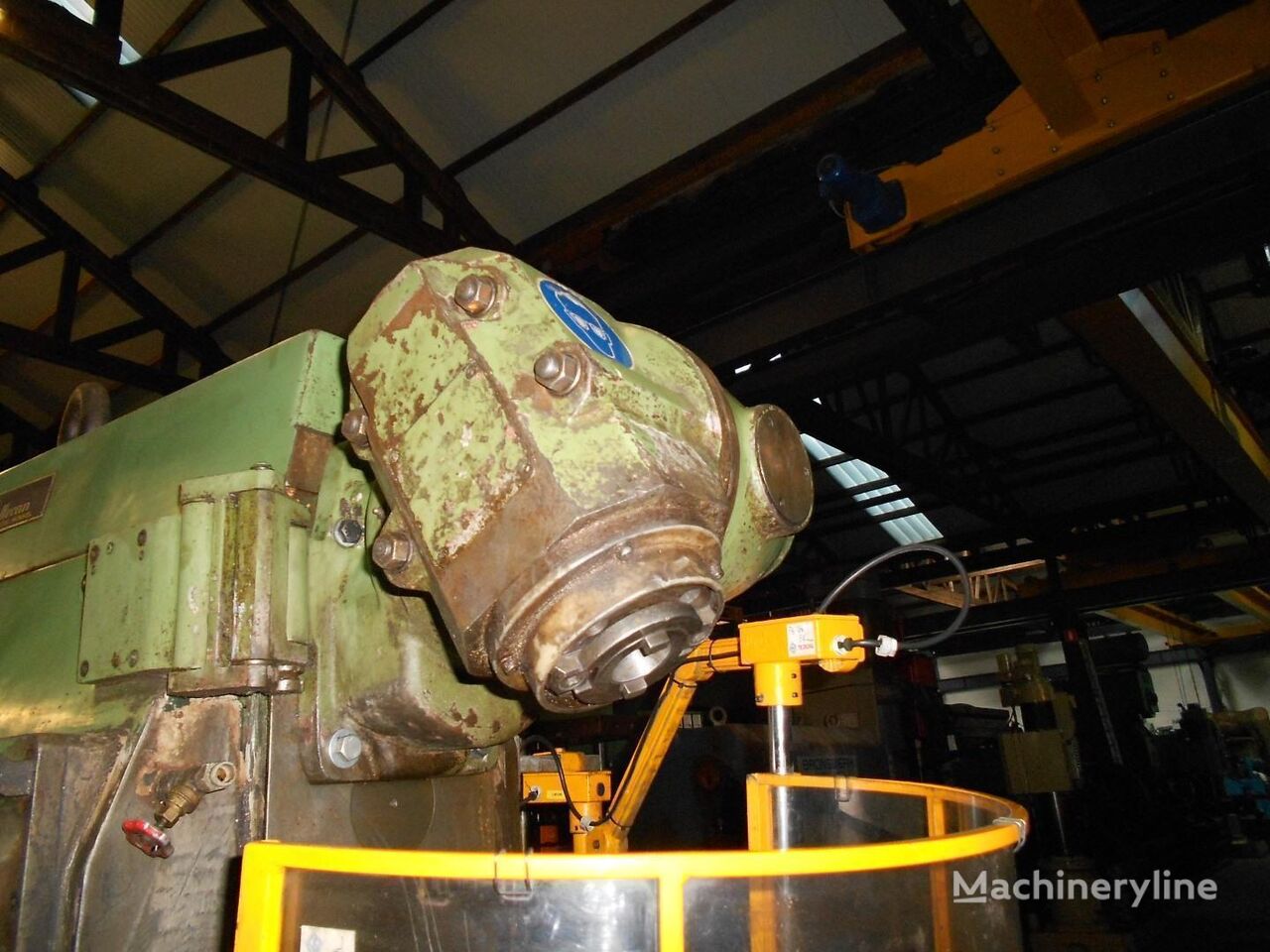

The milling head accepts ISO 50 taper tooling, a robust and widely used standard suited to heavy-duty cutting and a broad selection of commercially available cutters and arbors. Spindle speeds range from 28 to 2,400 rpm, covering slow, high-torque operations through to faster finishing passes. Spindle power is rated at 20 kW, reflecting the machine's capacity for demanding material removal rates.
A Heidenhain digital readout screen is fitted, giving the operator precise positional feedback and reducing setup time and the risk of cumulative measurement error during machining.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
