MAS VR5 NC X 1600 – Y 1000 – Z 880 MM Milling Machine()
- Listing No
- 953858
- Year
- Manufacturer
- MAS
- Model
- VR5 NC X 1600
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Z': 300 mm spindle movement Between colomns: 1600 mm Cross travel Y-axe: 1000 mm Dimensions clamping space- table: 1600 x 1000 mm Max height workpiece: 1300 mm Universal (2x360°): ISO 40 Control: Heidenhain
About this machine

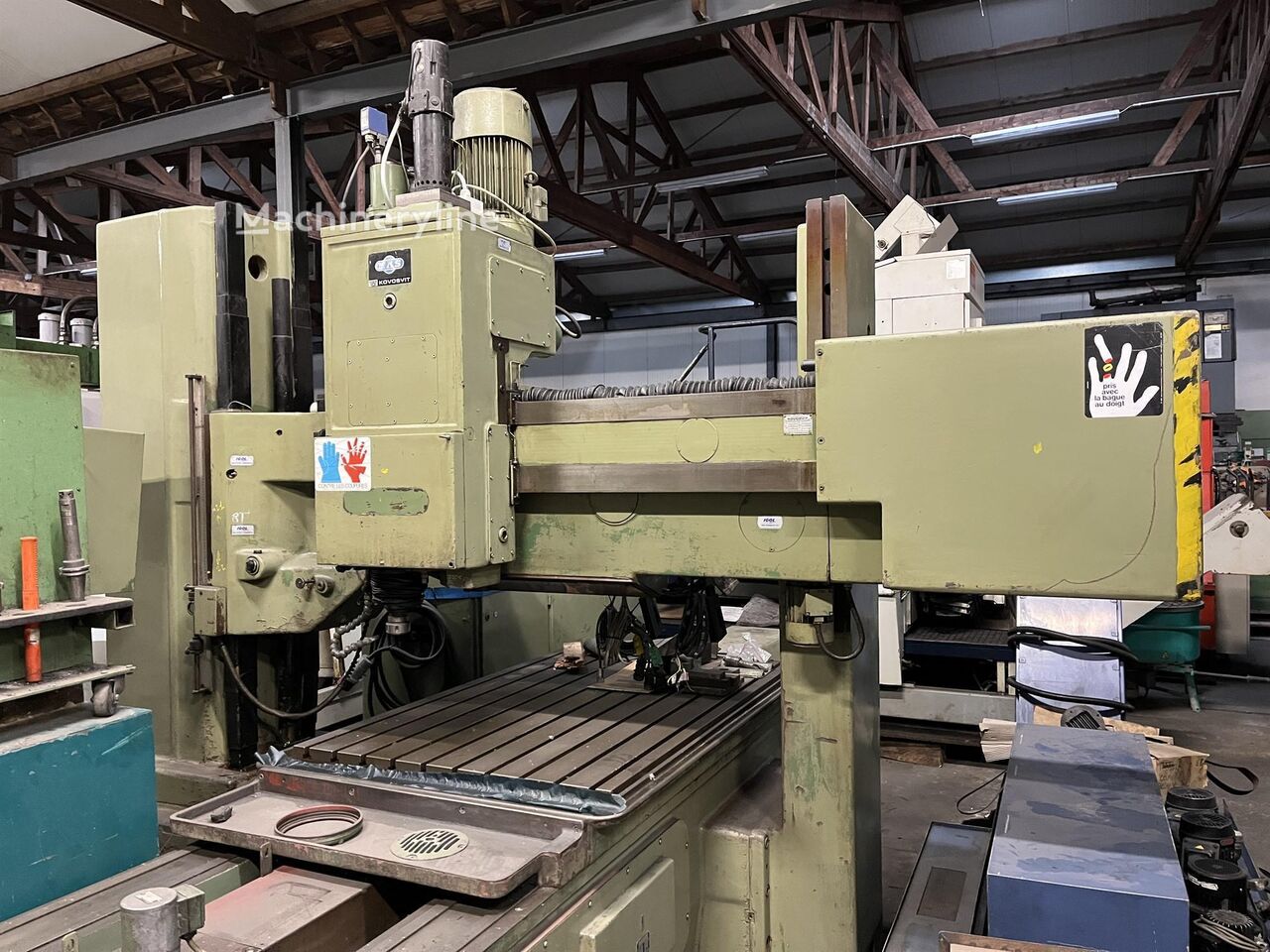

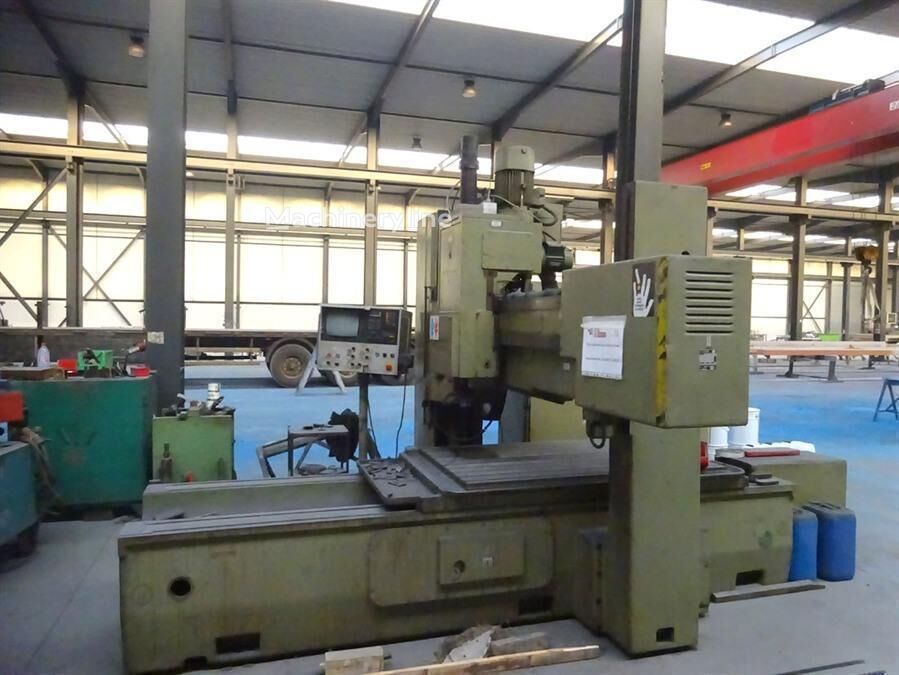

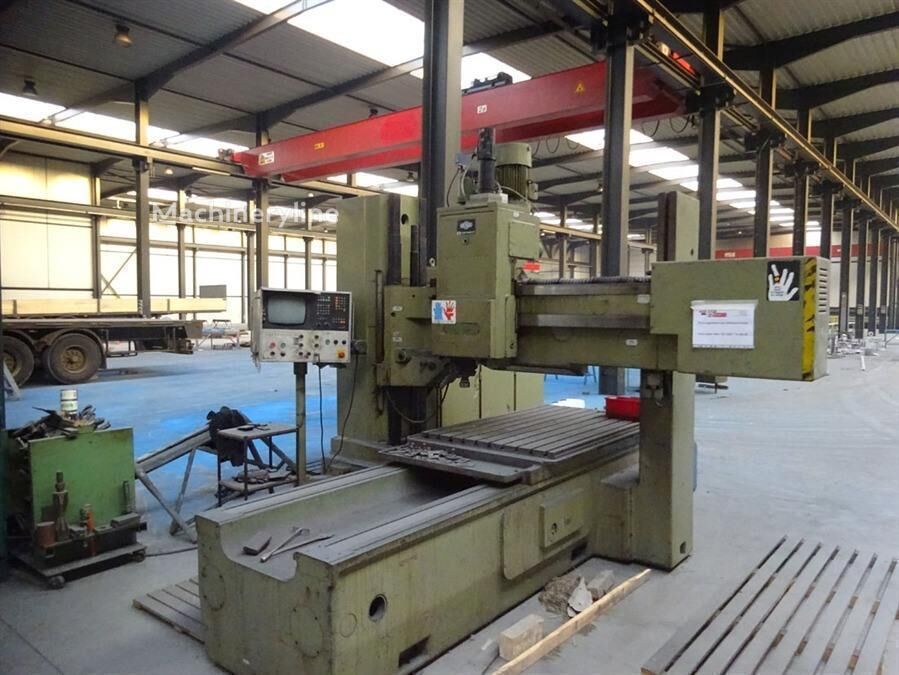

This MAS VR5 NC X 1600 - Y 1000 - Z 880 MM is a used milling machine — sometimes referred to as a machining centre in certain production contexts — designed for precision material removal across metal and engineering workpieces. MAS, the Czech manufacturer Machine Tools Sommerfeld, is a well-established builder of milling and turning equipment serving general engineering, toolmaking, and industrial manufacturing sectors.
The machine offers a working envelope suited to large-format parts. The distance between columns measures 1600 mm, while cross travel on the Y-axis extends to 1000 mm, and the clamping table itself measures 1600 x 1000 mm, confirming a generous usable surface area. The maximum workpiece height is 1300 mm, making it capable of accommodating tall or bulky components. The main Z-axis stroke is given in the listing name as 880 mm, and an additional Z-prime spindle movement of 300 mm supplements this, allowing finer positional reach along the vertical axis.
The spindle features a universal head with dual 360-degree rotation, providing full angular flexibility for complex multi-face machining operations without repositioning the workpiece. The taper is ISO 40, a widely used standard that ensures broad compatibility with tooling from most industrial suppliers.

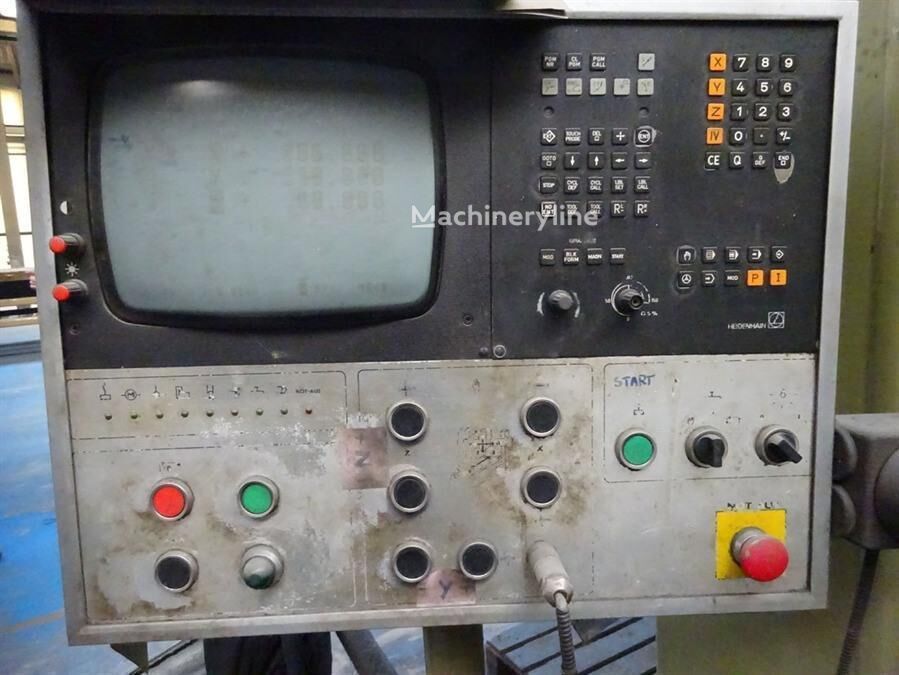

Control is handled by a Heidenhain system, a well-regarded make in precision CNC milling known for its reliability and operator-friendly interface on contouring applications. This machine is located in Belgium and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
